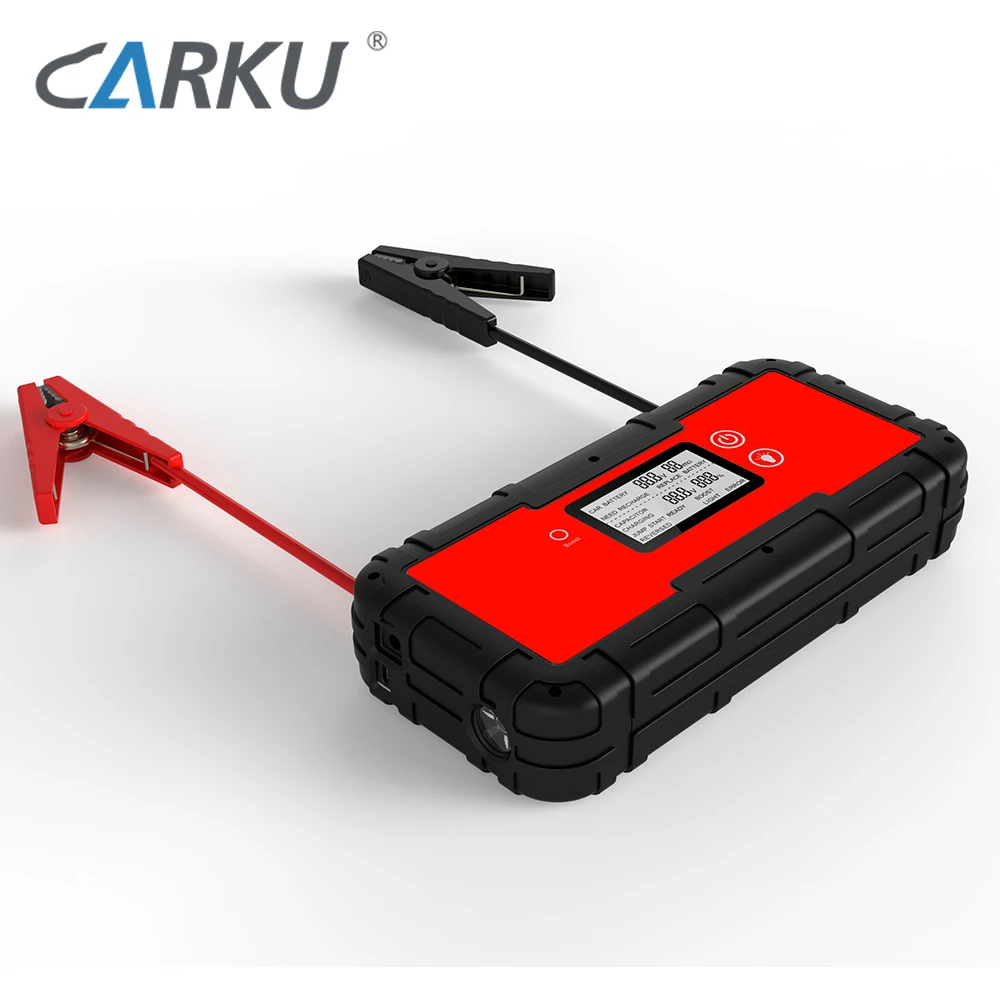

CARKU 700A ultracapacitor batteryless jump starter 12V 350F capacitor jump starter and tyre compressor
- Category: >>>
- Supplier: Shenzhen Carku Technology Co. Ltd.
Share on (60769294661):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Details \t\t\t\t\t\t\t
Ultracapacitor Jump-Start
car jump starter composed with super capacitor has its unique characteristics: high efficiency, large discharging current, wide range of voltage and temperature, long cycling life, maintenance-free, and more suitable to environmental conditions for emergency start-up.
It works for Automotive, Marine, RTVs, Motorcycles, Garden Tractors, Taxis, Emergency Vehicles; perfect as a Roadside Assistance batteryless Jump Starter!
Item | Data | ||||
Model NO.: | EPower-93A | ||||
Capacitor: | 350F*5 | ||||
Size | 250*120*50mm | ||||
Weight | 1300g (with backup battery) 1150g (without backup battery) | ||||
Output | 12V car Jump Start | ||||
Input | 5V 2A，12V 10A | ||||
Peak current | 700A | ||||
20mins (5V 2A) 2mins (12V 10A) 45S (car battery) 4mins (back-up battery） | |||||
Charging time for back-up battery | 4hours(5V 2A) 50mins(12V 10A) | ||||
Charing times from back-up battery to ultral-capacitor | |||||
Operating temp | -20℃~60℃/-4℉~140℉ | ||||
Backup Battery capacity | 6000mAh (3 pcs of 18650 battery cells) | ||||
Shock protection
Rubber cover design for the whole product , protect hands from hurt and protect the unit from shock
● 3mm thick rubber
● Feel comfortable
● Industrial grade
LED Flashlight is used for camping at night.

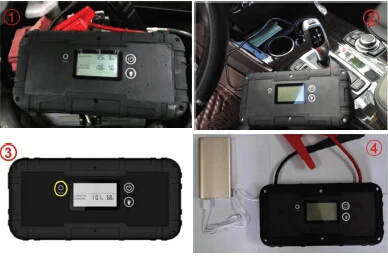

How To Charge Batteryless Start Booster?
1. Connect the jumper clamp to the car battery terminal, detect the voltage and internal resistance of the car battery
2. If the car battery is low voltage and the LCD displayer shows “JUMP START READY”, the ultra capacitor can jump start the car after 10S. If the car battery is >12V and LCD displayer shows“CHARGING”, after 45 to 60S, the LCD displayer will show “JUMP START READY”, the ultra capacitor can jump start the car after 10S.
3. If the car battery is <6V, need to charge the ultra capacitor from another car.
a. Use 12V cigarette lighter to charge it after two minutes, the ultra capacitor voltage shows 15V, it can jump start the car.
b. Charging it by the car battery for 45S to 60S, the LCD displayer shows “JUMP START READY”, the ultra capacitor can jump start the car.
4. Press the backup battery button to charge it by the backup 6000mAh battery , after 4min, when the LCD displayer shows ”JUMP START REDAY”, the ultra capacitor can jump start the car.
5. Use the AC adapter to charge it after 20min and the LCD displayer shows the ultra capacitor voltage 15V, it can jump start the car.
How to batteryless jump starter ultracap work?
1. Connect Red (+) clamp of jump starter to red(+) positive terminal of vehicle,then connect Black(-) clamp to black(-) negati Ve terminal of vehicle.
2. When the screen turn to“JUMP START READY”it can jump start car.
3. If the capacitor is power off, it can charging by the car battery or press boost to charging from back-up battery.
When the screen turn to “JUMP START READY”,it can jump start the car .
4. Once vehicle is started remove Black(-) clamp from vehicle and then Red(+) clamp from vehicle. Leave vehicle running。

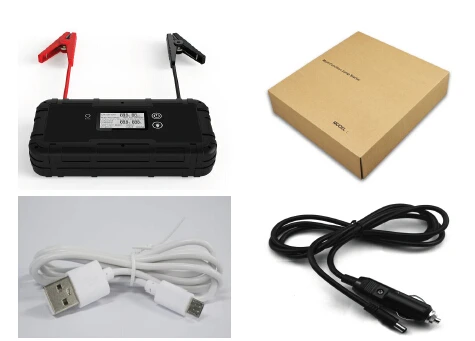

Accessory&Package
1. USB Cable
2. Car Charger
3. Manual
one pcs colorful box with accessories 1.5kg
ten sets in one carton 16kg
Item | Ultra-capacitor Jump Starter VS | Lithium battery jump starter(18000mAh) |
Jump start resource | ultra-capacitor | lithium battery |
Size | 250*120*50mm | 230*87*27mm |
Net weight | 1300g | 615g |
Output | 12V jump start | 5V 1A,5V 2A,12V 10A,19V 3.5V,12V jump start |
Input | 5V 2A,12V 10A | 15V 1A |
LED light | lighting | lighting/Strobe/SOS |
Peak current | 700A | 600A |
Cycle time | ＞100,000 times | ＞1000 times |
Cranking time | 1-2time | above 40 times |
Charging time | 2min(12V 10A) | 8hours(15V 1A) |
Charging method | 5V 2A,12V 10A,car battery,back-up battery | 15V 1A,5V 2A |
Operating temp. | -20℃~60℃/-4℉~140℉ | -20℃~60℃/-4℉~140℉ |
ultracapacitor jump starter review
"this is so far the most ultimate jump starter you can get" commented by jerry bskorner on youtube.
