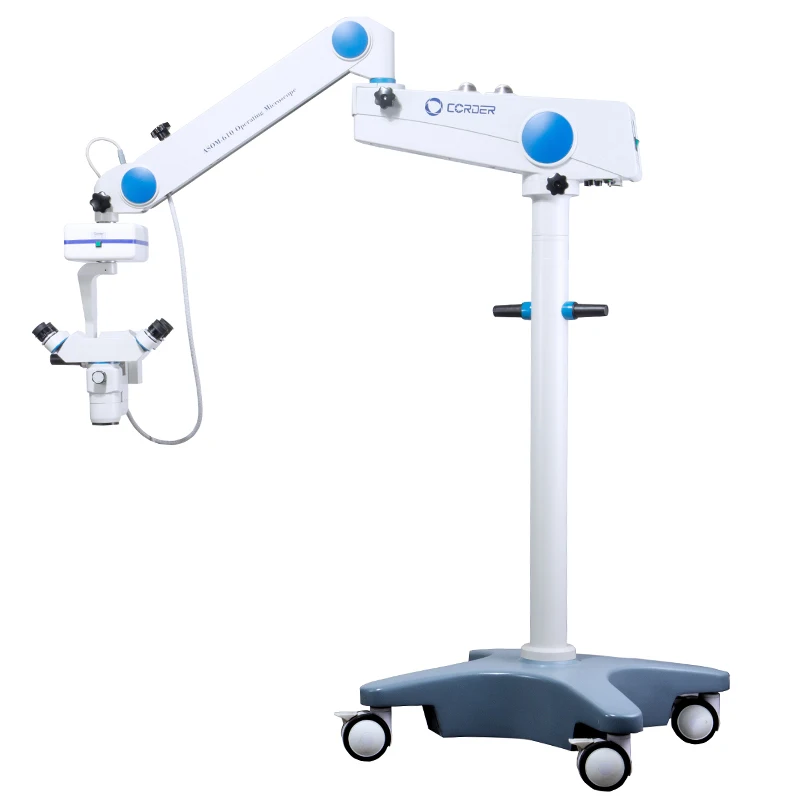

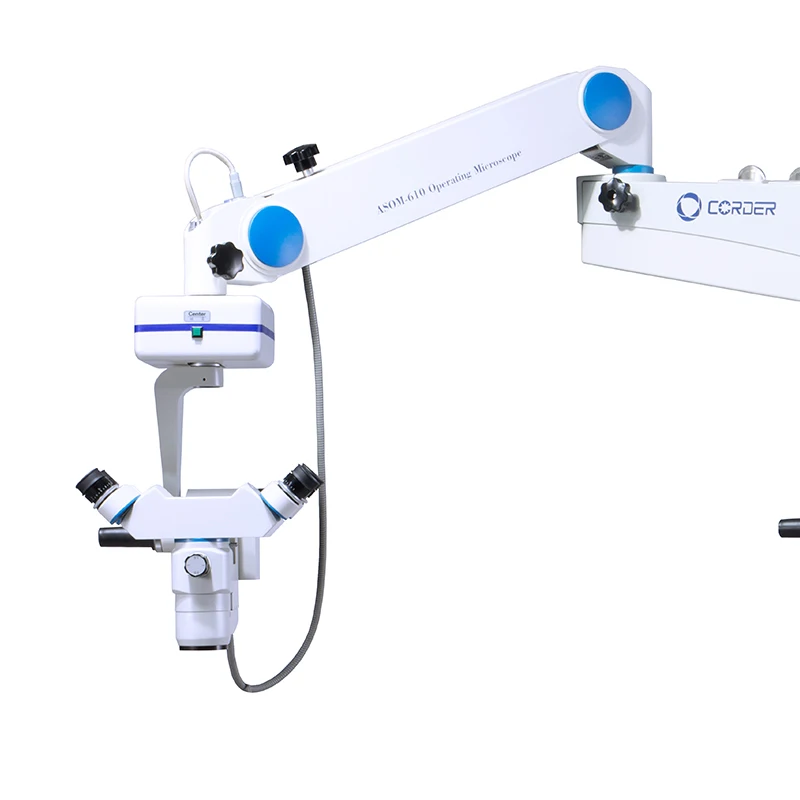

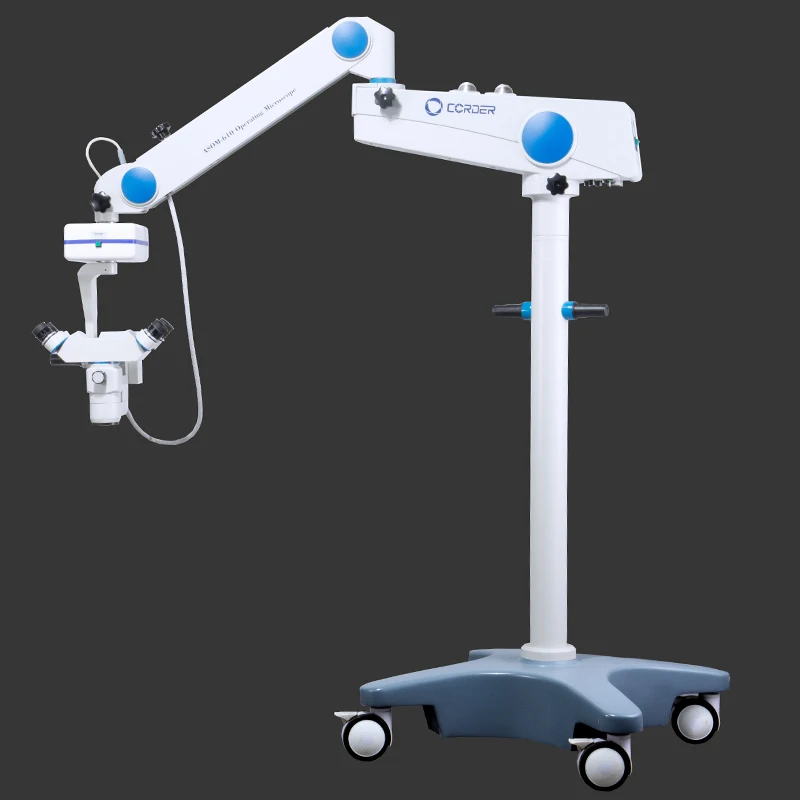

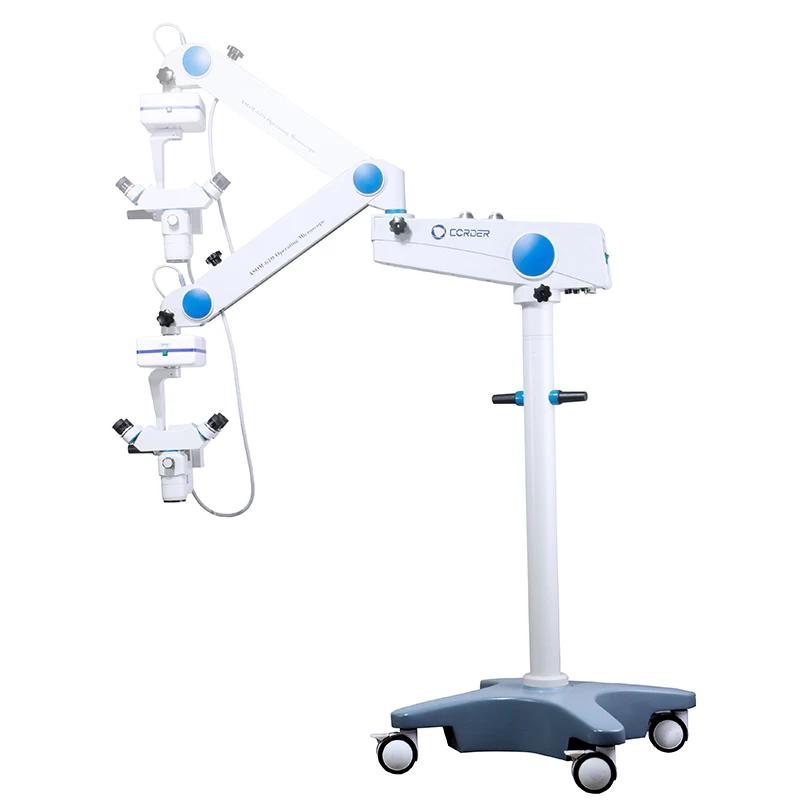

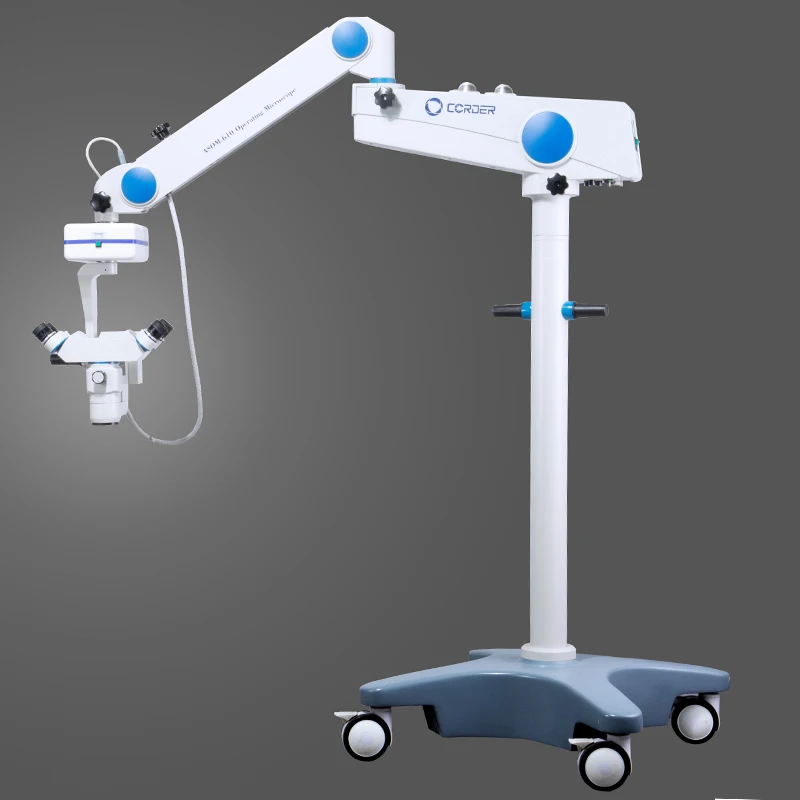

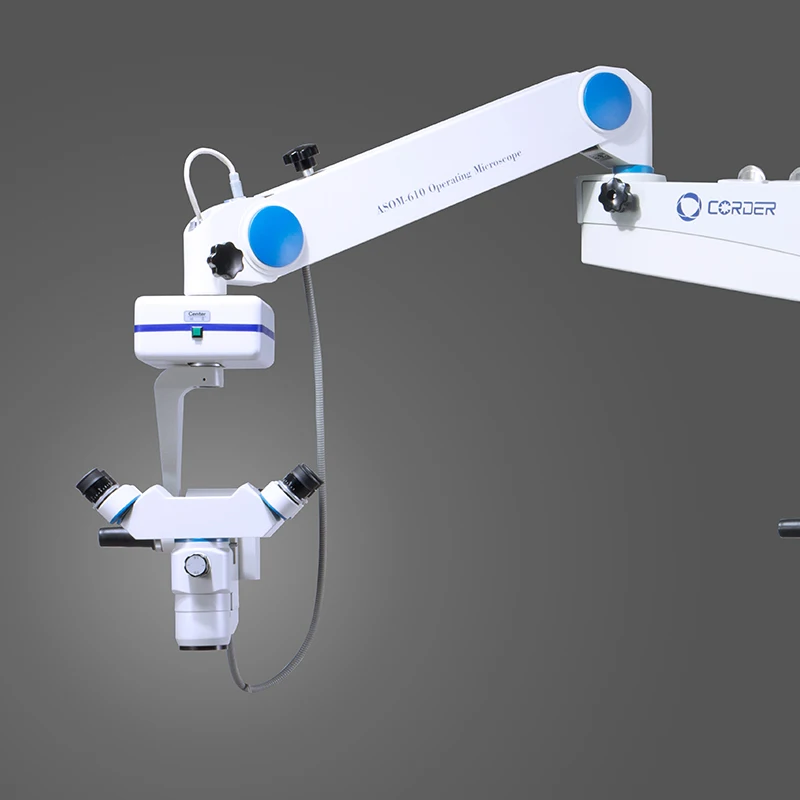

Microscope for orthopedics plastic surgery hand surgery equipment aesthetic clinic surgical microscope 4B
- Category: >>>
- Supplier: Chengdu Corder Optics & Electronics Co. Ltd.
Share on (60769306235):
Product Overview
Description
Recommend Products
Products Description
Superb optical performance
Corder microscope sysems offer new dimension in perormance, lexbilily and economy in diagnosics and surgery. compact design is tailored to oplimize use of imited operating room spoce. From oupatient cinics to sugeries,CORDER offers perfomance to serve every clinical requirement in the field of Orthopedics, plastic surgery, gynecology, andrology.
Eyepiece adopts 12.5/ 10x wide-angle eyepiece, which can provide large field of view and 3D stereoscopic imaging. Diopter +6- 6D diopter range, eye cup height adjustable, the operator of the glasses can be comfortable without the glasses to complete the work.
German imported gas spring, the optimized force word structure enables you to move microscope any desired working Angle conveniently and precisely.
The operating microscope from corder adopts the excellent achromatology system, the color reduction is more real, the large wide Angle eyepiece,motorized focusing and XY moving by foot switch, the level 3 magnification can identify the smaller details and fine structures, comprehensively improve your diagnosis and treatment quality.
A modular solution to fit your needs
Corder microscope sysems oter o brond new dimension in perormance, lexbilily and economy in diagnosics and surgery. Corder microscope packs a high level of performane in is smll pckage. lis compact design is tailored to oplimize use of imited operating room spoce.
Depending on your needs, you may choose to equip your device with an external HD HD camera system.
1080P full hd image quality, efficient image management during the operation. Integrate your digital workflow to facilitate case management and facilitate more intuitive patient communication.
Product Paramenters
Model | ASOM-610-4B | |
Function | Orthopedics | |
Surgical microscope | ||
Magnification | manual 3-step changer, total magnification 6x,10x,16x | |
Focusing range | 50mm | |
Binocular tube | high brightness 45°binocular tube | |
Eyepiece | 12.5x / 10x | |
Objective lens | F 200mm(175mm, 250mm, 300mm optional) | |
pupil distance | 55mm~75mm | |
diopter adjustment | +6D ~ -6D | |
Feild of veiw | Φ34mm,Φ20mm,Φ13mm | |
Illumination | ||
System | Direct illumination | |
Light source | Halogen lamp | |
Light intensity adjustment | 10 steps 0-60000lux | |
Fiber optic illumination | Single fiber | |
Field of illumination | Φ50mm | |
Red reflex | Adjustable | |
Arm & Base | ||
Mount | Floor stand | |
Maximum arm extension | 1100mm | |
Height from objective to floor | 800mm | |
Base size | 680*680mm | |
Brake system | Four-wheel brake | |
Foot switch | Waterproof, 6 function steps | |
Others | ||
Weight | 107KG | |
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | |
Power consumption | 180VA | |
Safety class | class I | |
Accessories | ||
CCD Camera system | Beam splitter, CCD adapter, CCD, Display | |
Mobile phone Adapter | Compatible with all models | |
Integrated Video Adapter | SONY / CANON Camera | |
Ambient conditions | ||
Use | +10°C to +40°C | |
30% to 75% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Storage | –30°C to +70°C | |
10% to 100% relative humidity | ||
500 mbar to 1060 mbar atmospheric pressure | ||
Limitations on use | ||
The CORDER ASOM-610 surgical microscope may be used in enclosed rooms and on flat surfaces with max. 0.3° unevenness; or at stable walls or ceilings that fulfill Leica Microsystems' specifications (see installation manual) | ||
Company Profile
Company Profile
Chengdu Corder Optics and Electronics Co., Ltd. is one of the subsidiary companies of Optoelectronic Technology Research Institute of Chinese Academy of Sciences (CAS).
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our company's main products include ASOM operation microscopes, LX slit lamp microscopes, spotting scopes, bio-chip detectors, photoetching machines, retinal self-adaption optics imaging systems and other optical-electronical equipment. Products have passed the ISO 9001:2000 and ISO 13485:2003 Quality Management System Certifications. We are the leading manufacturer of surgical microscopes in China, and we can accept cooperation by OEM, and provide import-export and other services too. Now Corder's products have been sold all over China and have been exported to several foreign countries, such as the Middle East, Europe, the United States, etc. The brand "CORDER" has became a well-known brand in domestic optical-electronical industry in China.
Chengdu Corder Optics and Electronics Co., Ltd. is a governmental company. We are the first manufacturer who produces operation microscopes in China. We have begun to produce ASOM operation microscopes since 1970s. And from 1991, we began to manufacture other optical-electronical products, such as spotting scope and photoetching machines. And now you can find optical-electronical products made by CORDER all over the world.
Our goal is to be a global market leader in life science and medical microscopy products with the highest price-to-performance ratio.
reflected through product innovations.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Careful synchronization of design, engineering, and production processes to ensure that our vision of flawless functionality is realized from beginning to end.
Thoughtful execution of quality control and product support to our network of faithful distributors so that our customers realize supreme value in owning a Corder microscope.
Captures the essence of optical and mechanical perfection.
With the clarity of vision to respond to evolving needs in modern microscopy, Corder was founded on its unique abilities to deliver high precision microscopes and optical instruments. From design concepts to finished products, the Corder brand captures the essence of optical and mechanical perfection.
MANUFACTURING TECHNIQUE
Optical wool glass is made from a patented raw material formulation
30 production processes are completed by hand
60 quality control checks by experienced technicians to ensure consistent quality
Obtain durable high quality optical glass.
We have more than 30 years experience of QC team and strictly quality control system in our production process.
