Customized Vane Type Demister Pad
- Category: >>>
- Supplier: Jiangxi Pingxiang Kelong Petrochemical Equipment Packing Co. Ltd.
Share on (60769350586):
Product Overview
Description
Product Description

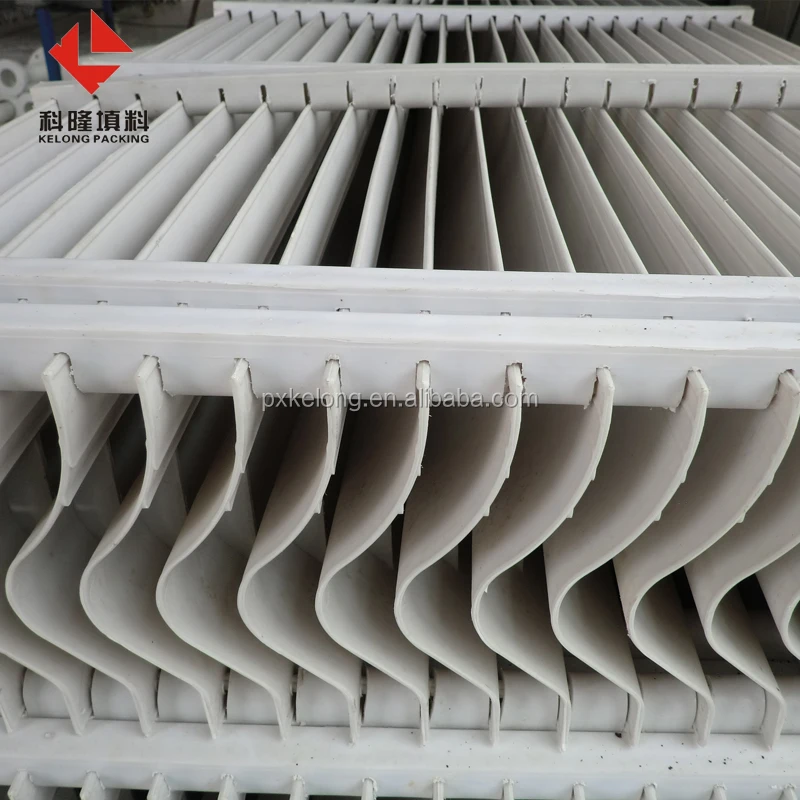

Customizd Vane Type Demister Pad

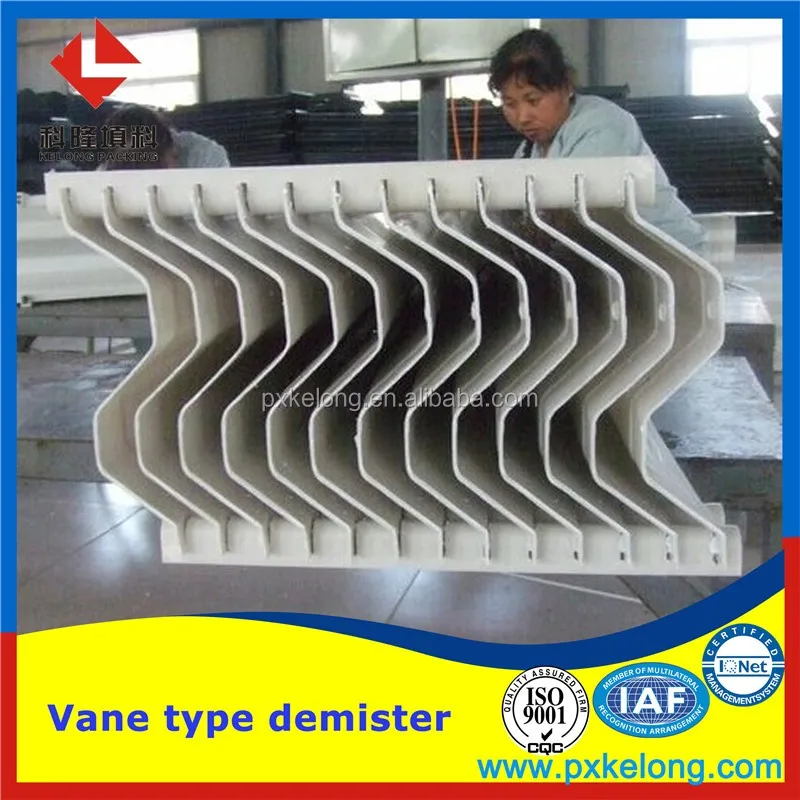

Vane type demister pad, also called vane mist eliminator, chevron demister pad, it consist of several zig-zag chevron blades with certain spacing. The blade profile can be smooth or with hooks. The smooth blade is commonly used for non fouling services and the hook blade can supply greater removal efficiency and capacity.
In the same environments, where the small solid particles presents, vane demister pads are the better choice for liquid and gas separator than the wire mesh demister pads.
Working Principle of vane type demister pad
In the working principle, the vane demister pads are different from the wire mesh demister pads. Liquid drainage in the vane demister pad occurs outside the gas flow.Vane mist eliminator is widely used to separate entrained liquid droplets from gas stream, which the liquid droplets are 8 μm or larger. When the gas stream passes through the vane demister pad and change direction, the liquid droplets are unable to change direction as quick as the gas due to their momentum. So the liquid droplets impact on the chevron blade and then coalesce and form large droplets until drain away.
Material: Carbon steel,stainless steel including 304,304L,316,316L etc.
Plastic including PP,RPP,FRP
Also produce special material according to customer's request.
Advantages of vane type demister pad
1.High capacity. It can improve 30% to 100% more capacity than the wire mesh demister pad.
2.High filtering and separating efficiency.
3.Lower pressure drop.
4.Durable and long service life.
5.High vapor capacity.
6.Resistance to fouling.
7.High tensile strength.
8.Custom-made design available.
Applications of vane type demister pad
Vane demister pad is widely used in various applications to separate liquid droplets from gas streams, in all applications where a contact between liquid and flowing gas, the vane demister pad can supply a good performance. Additional, tiny mist droplets can be carried away with the gas.
It is widely used in the foaming system and high liquid viscosity system in refineries, chemicals, petrochemicals, pharmaceuticals, dyes and intermediates, aromatics and other process industries.
Size and structure can be customized according to customer's drawings.
Product Series

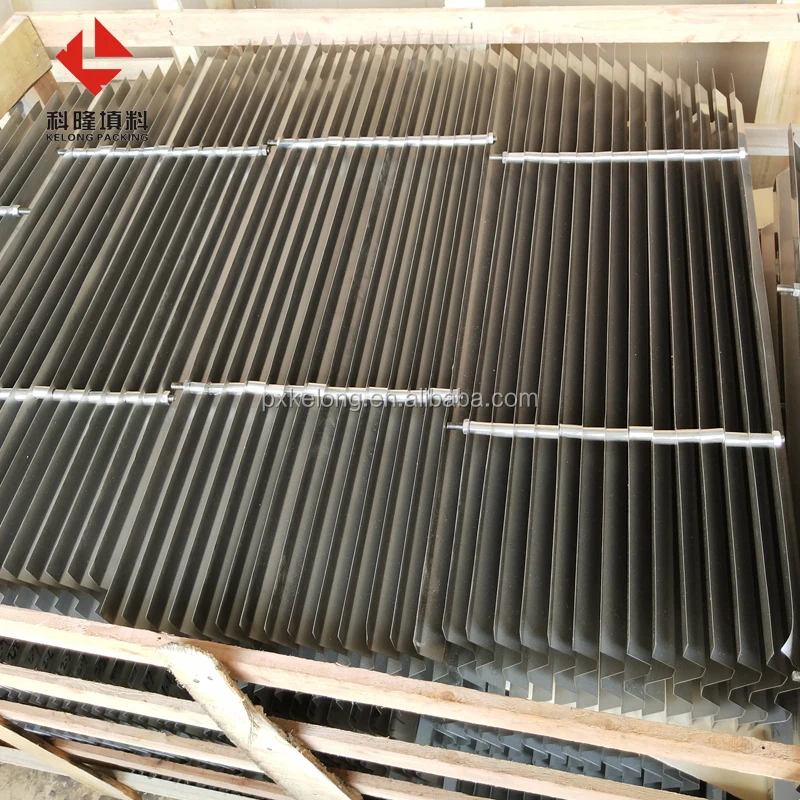

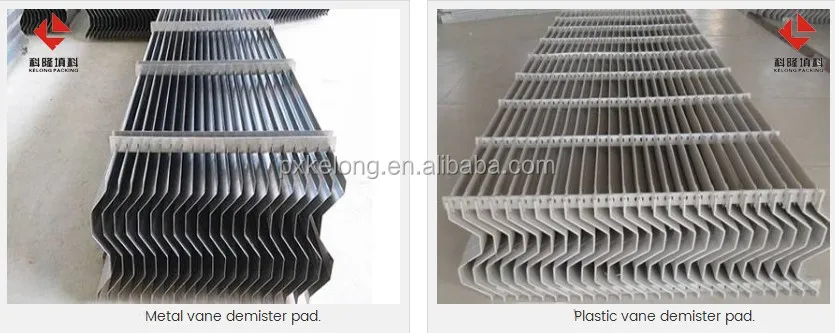

According to material. Vane demister pad can be divided into metal vane demister pad and plastic vane demister pad. Vane demister pad can be made of stainless steel, carbon steel and other alloy steel. It has better corrosion and rust resistance than the plastic vane demister pad. Plastic vane demister pad is lightweight but high filtering efficiency for gas and liquid separating.

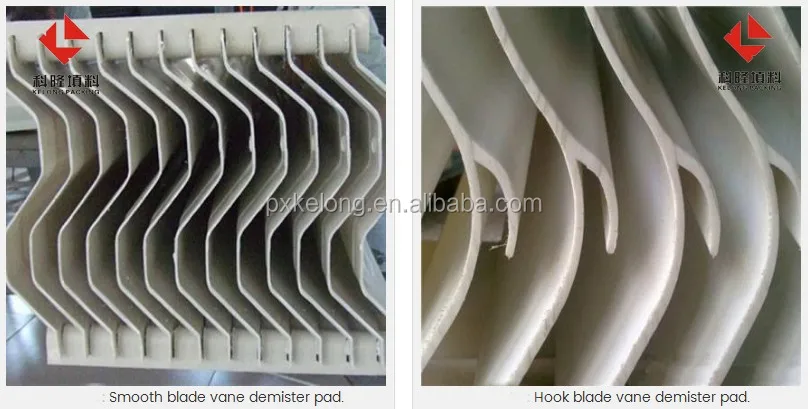

According to the blade type. The blade of vane demister pad is different. It can be smooth blade for non fouling services and it can also be hook blade to supply greater removal efficiency and capacity.

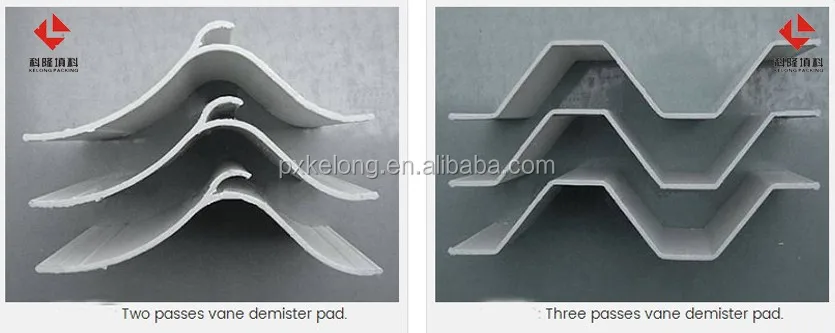

According to the passes. The vane demister pad has different passes, commonly, it can be divided into two passes and three passes. The number of passes corresponding to the number of times the gas flow change direction. More the passes, better the separating efficiency. Additional, the vane demister pad can be divided into stream line type and broken line type.

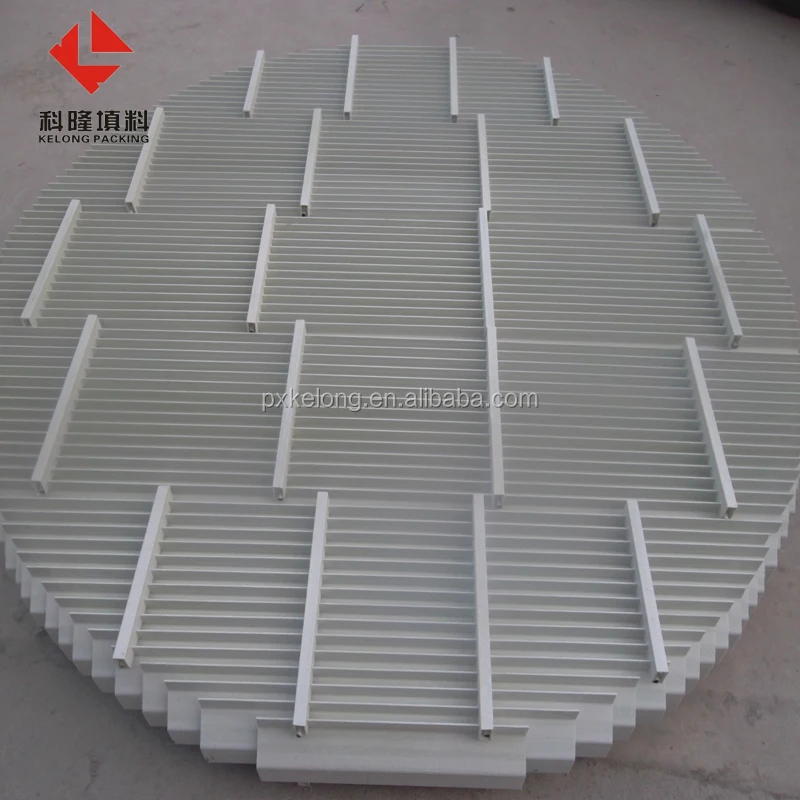

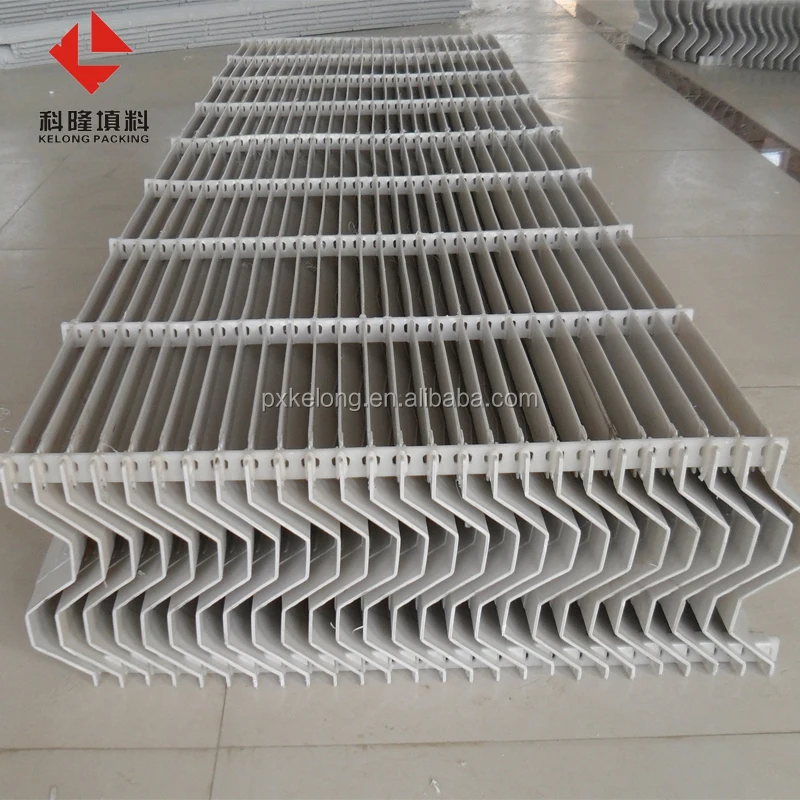

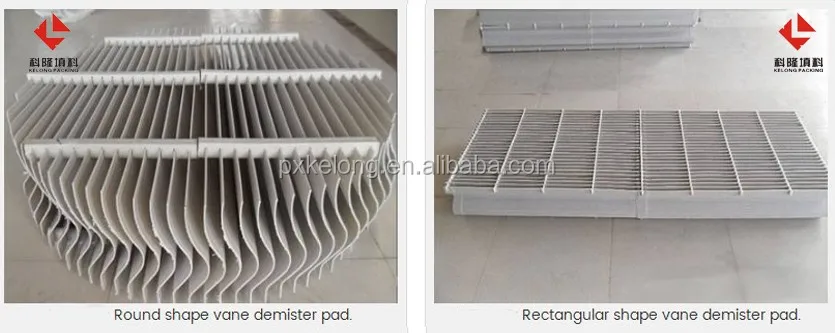

According to the shape. The vane demister pad can be made into different shapes, for example the round shape and rectangular shape. Additional, the vane demister pad can be integrated, it can also be divided into several parts for easy transporting and installing.

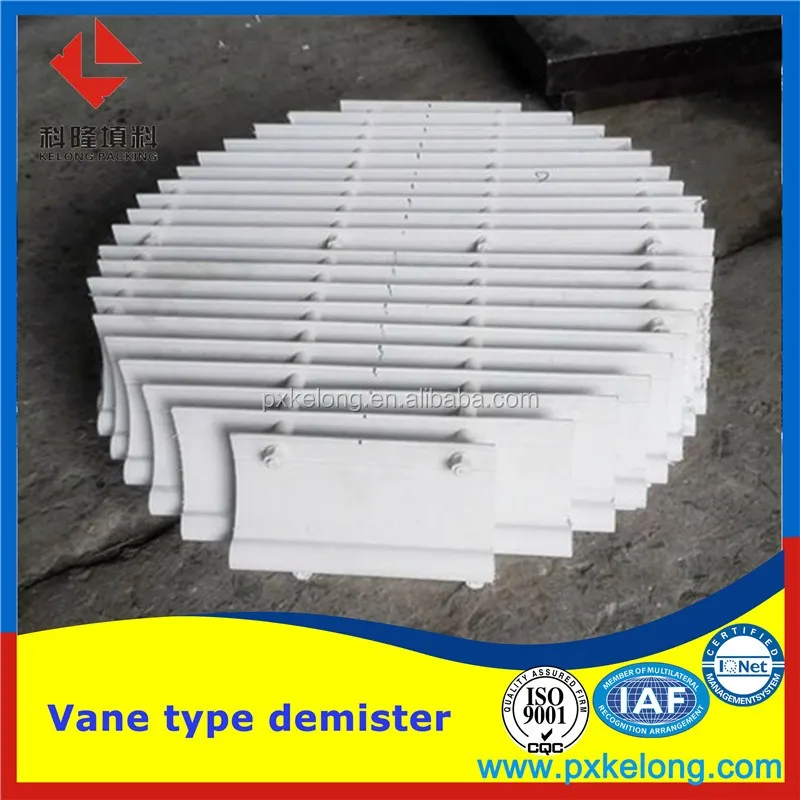

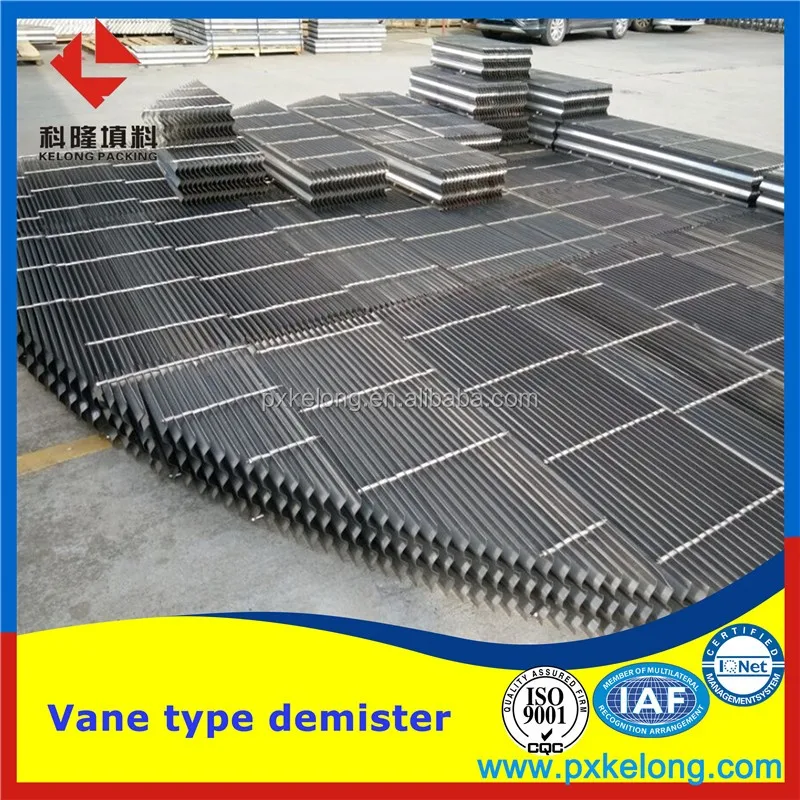

Detailed Images
Certifications
Packing
Our Company
Our Service
1.OEM Service: All details can be designed or changed according to buyer's requirements. The material and size can be customized.
2.Competitive Price: Direct factory price
3.Team Support: Professional sales and technology team provide service.
4.Good Quality: 10 years production experiences in tower packing and have strict quality control system.
5.Sample is free
6.If you have any question or advice, please feel free to contact us. We will do our best to meet your requirement.
