50 meter 100 meter 200 meter depth diamond core drilling rig water drilling rig 300m
- Category: >>>
- Supplier: Guilin Technology Hydrogeological Investigation Institute
Share on (60769354750):
Product Overview
Description
Product Description

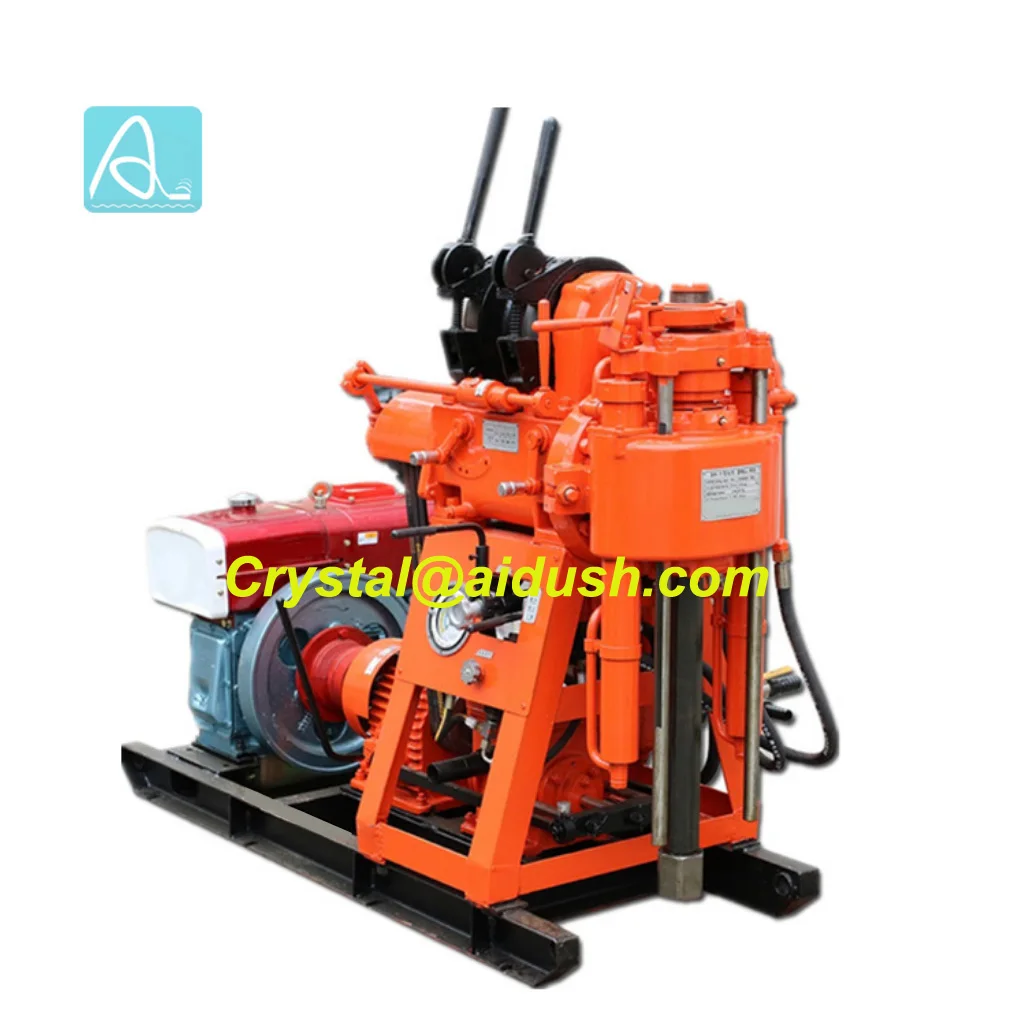

50 meter 100 meter 200 meter depth diamond core drilling rig water drilling rig 300m
Water well drilling, engineering geographical prospecting of railway, hydro-power, transportation, bridge, dam foundation and buildings, as well as rock core geological and physical survey drilling
Drill rig | Hoist | |||
Drilling Depth | 500/300/230/100 feet | Lifting capacity (single rope) | 15KN | |
Drill rod diameter | 1.65 inch | Lifting rotating speed | 18/36/84/168 r/min | |
Pilot Hole diameter | 5.9 inch | Drum circle linear speed (2 layers) | 32.8/65.3/144.3/288.3ft/min | |
Final Hole diameter | 2.95 / 1.81 inch | Drum Diameter | 5.51 inch | |
Drill angle | 90-75 0 | Wire rope diameter | 0.37 inch | |
Moving stroke | 13.78 inch | Wire rope length | 114.8 feet | |
Weight | 500kg | Brake diameter | .92 inch | |
Dimension(L x W x H) | 4.70 x 2.30 x 4.18 feet | Brake belt width | 1.97 inch | |
Swivel head | Engine (Diesel or Electric motor) | |||
Spindle speed (4-shift) | 71/142/310/620 r/min | Diesel engine | S1115 | |
Spindle stroke | 17.71 inch | Rated power | 16.2KW | |
Forward speed | 13.2 ft /min | Rated speed | 2200 r/min | |
Reverse speed | 9.85 ft/min | Electric motor | Y160M-4 | |
Spindle torque | 15 KN | Rated power | 11KW | |
Spindle lifting capacity | 25 KN | Rated speed | 1460 r/min | |
Main Features
The beam of spindle shell was changed into dual-guide rod to ensure the machine more durability.
1) It is used for small-scale grouting, blasting hole drilling and small-scale well drilling to reduce human work intensity.
2) Equipped with ball stuck clamping system to lock and release the drilling rod, reverse the rod without stopping drilling system.
3) Handles gathered for convenient operation.
4) On the hoist axle, the slid bearing was changed into ball bearing to avoid any burning damage when it is working.
5) The planetary gear supporting structure was adopted for the hoist, change the planetary gear supported by double point from single point, and improved the lifting capacity of the hoist.
6) Small volume, light weight, easy to disassemble, sled bed frame for easy transportation, is very suitable for working in plain and mountain area.
