Product Overview
Description

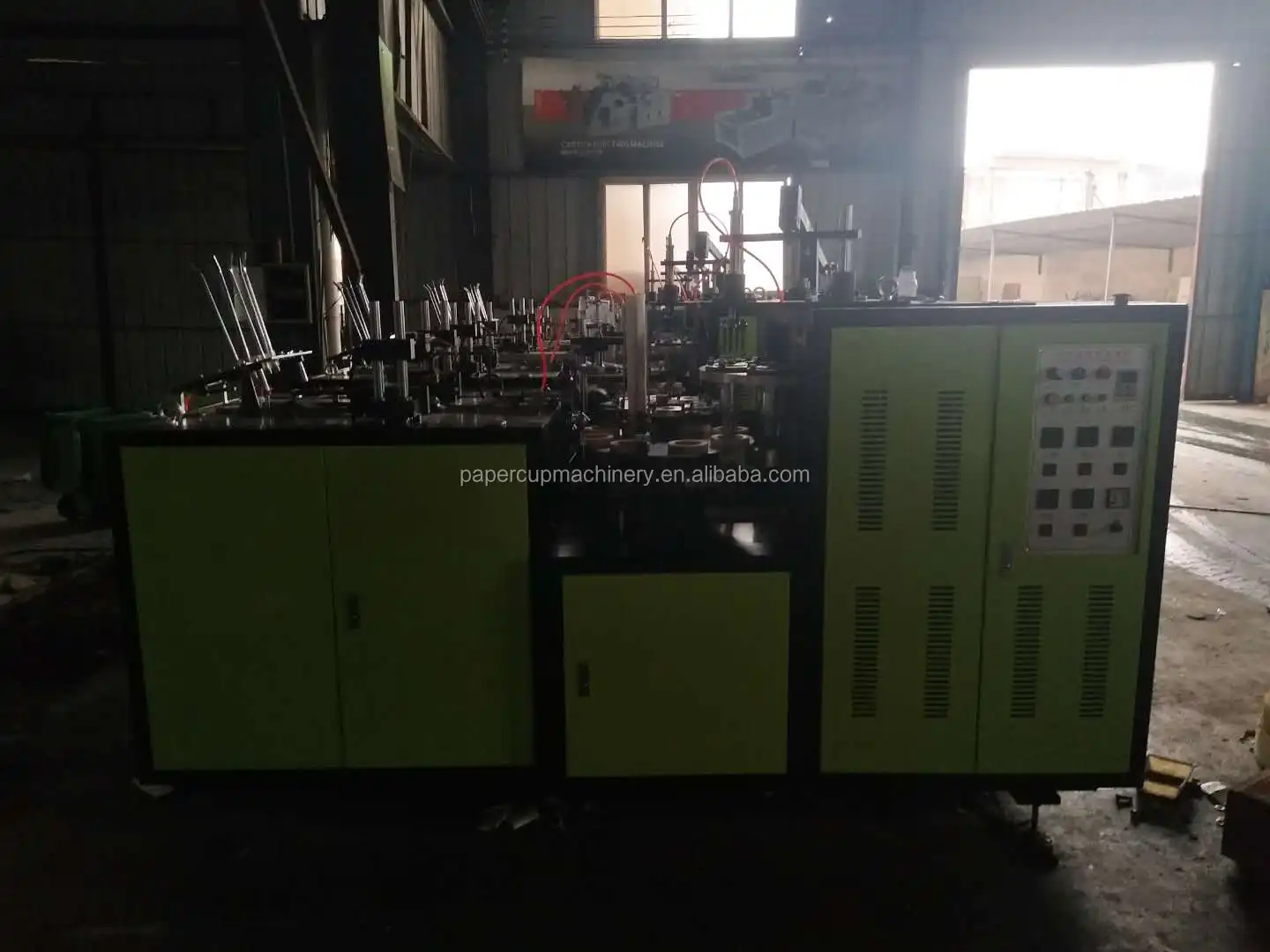

ZB-D Automatic Single-PE Coated Paper Cup Forming Machine
ZB-D paper cup machine is improved based on the normal chain driving type. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment for producing drinking cups,market cups, coffee cups, advertising cups , etc. It is widely used for hot drink and beverage.
Paper Cup's General Size :
A:Top Diameter B:Bottom Diameter C:Total Height D:Stacking Increment E:Rim Thickness
Technical Specification
Type: | ZB-D |
Cup size: | 3-12oz(different size mold exchanged) |
Suitable paper material: | 150-380g/m2 (single or double PE-coated paper) |
Capacity: | 35-40pcs/min |
Power source:: | 220V,380V 50HZ(please inform us your power in advanced) |
Total power: | 4KW |
Weight: | 1500KG |
Package size: | 2500 x 1400 x 1700 mm |
Working Air Source: | Air pressure 0.4Mpa;Air out-put:0.6m3/min |
Advantage and improvement:
1.Use gear driving system instead of chain,more stable running and speed up.
2.We use 125 type gear box,which is longer life and more accurate.Normally,100 type gear box is used.
3.100 type speed reducer is used instead 80 type.

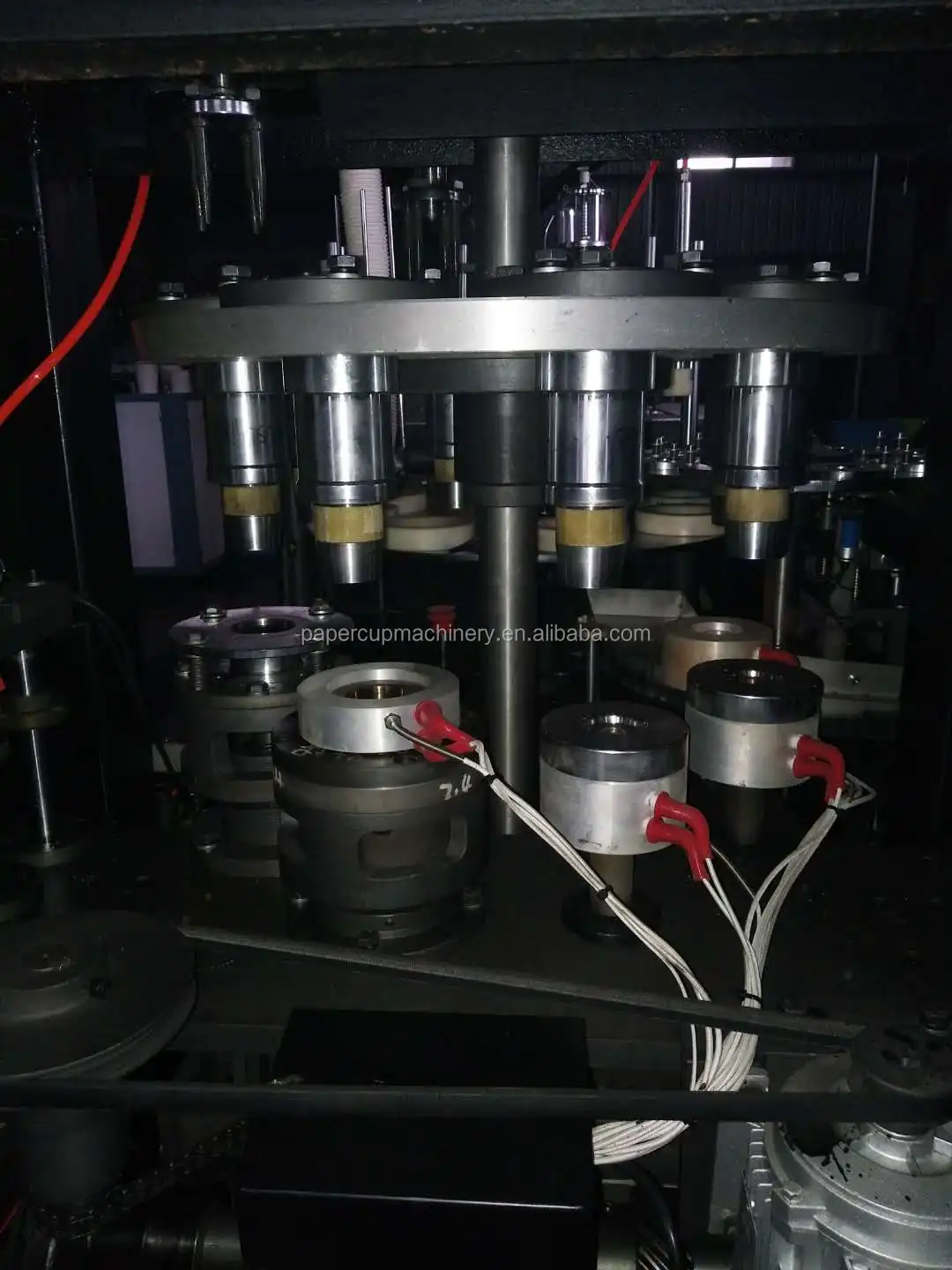

4.New design knurling wheel is used to guarantee the even pressure and better bottom sealing.
5.Cup folding parts is controlled by three separate cams,and each folding clip can be adjusted by itself.
6.We use manipulator to transfer the cup body instead of falling itself by pipe,It is more stable and accurate under the fast running.
7.Change the Ø25 normal steel shaft to Ø30 imported steel shaft to be sttrengthened,longer life and more stable.

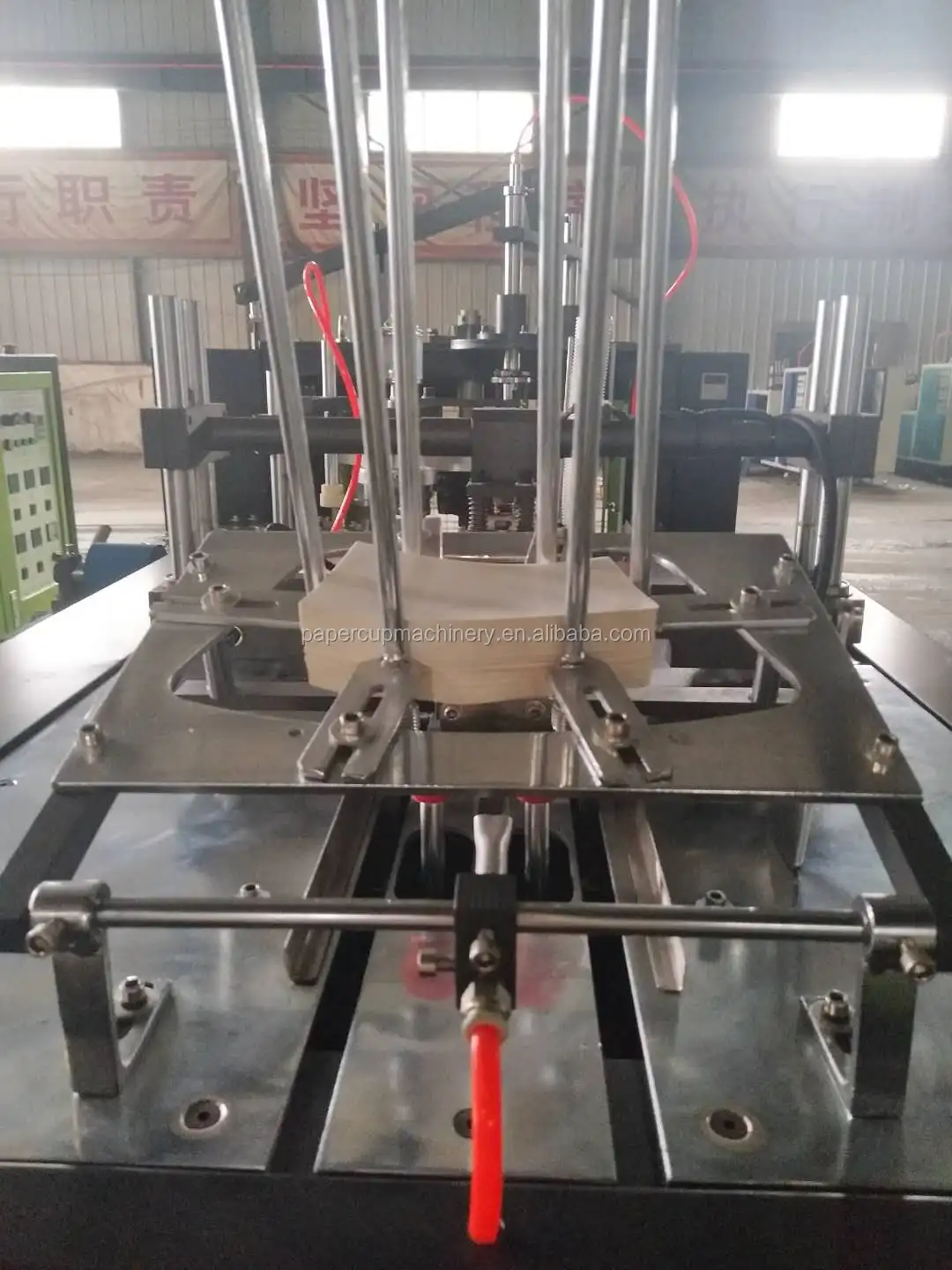

8.Organ type sucker is used for cup fan sucked to gaurantee powerful sucking and more successful.The life is much more longer than normal sucker.
Company Information
Product Show
FAQ
We are Manufacturer...
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about 2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes, color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by FCL(full container loading) we might use the wooden pallet with plastic film wrapping, without plywood case.
