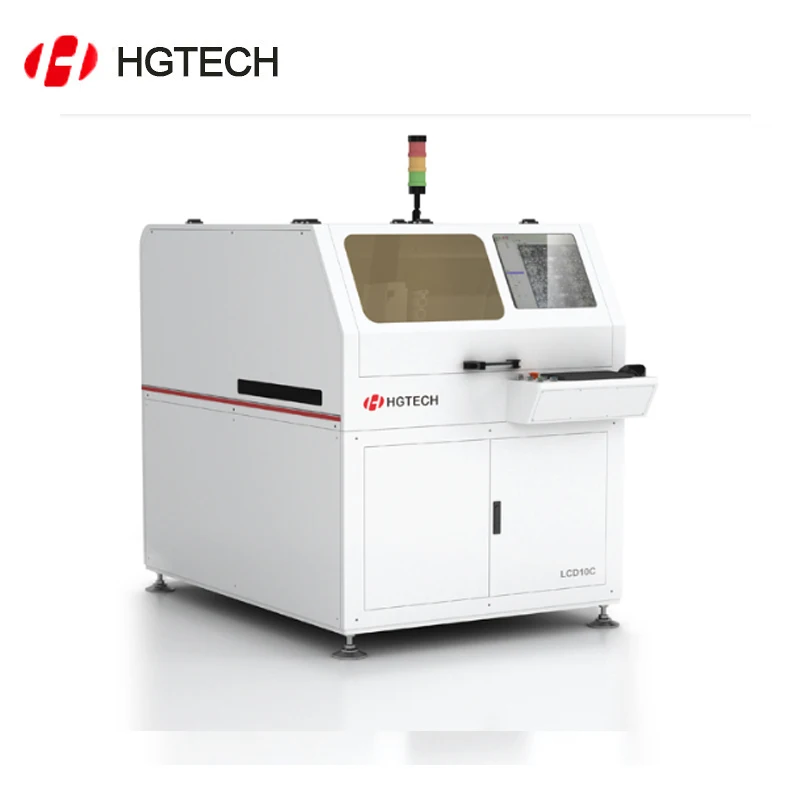

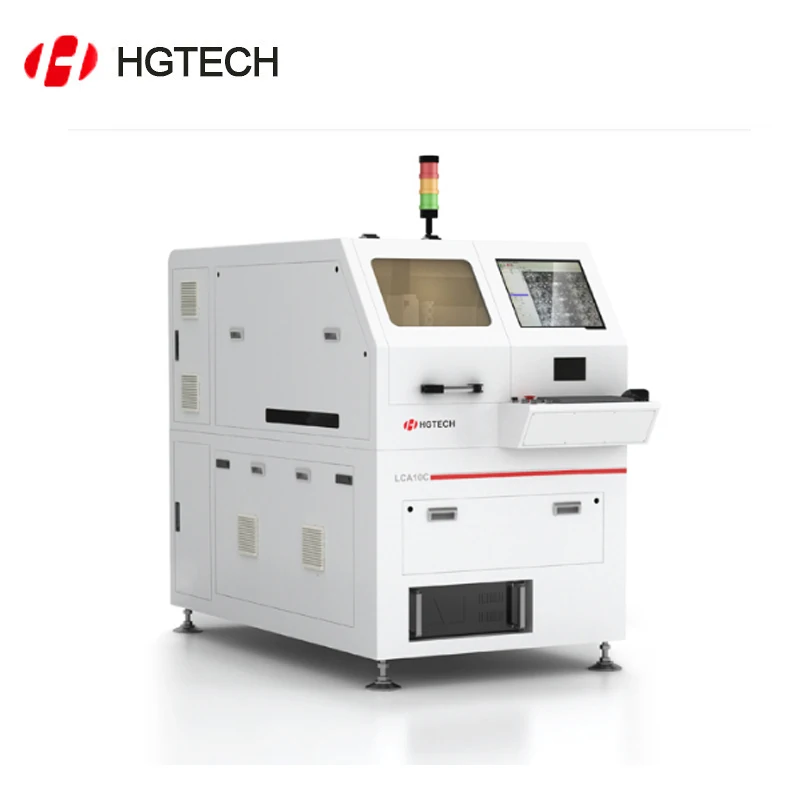

HGTECH Automatic color pcb laser marking machine
Product Description

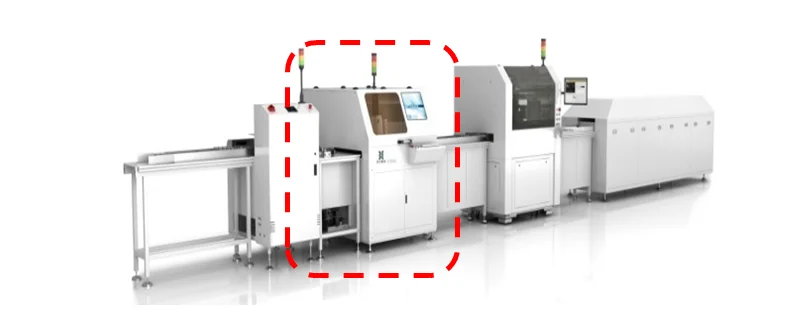

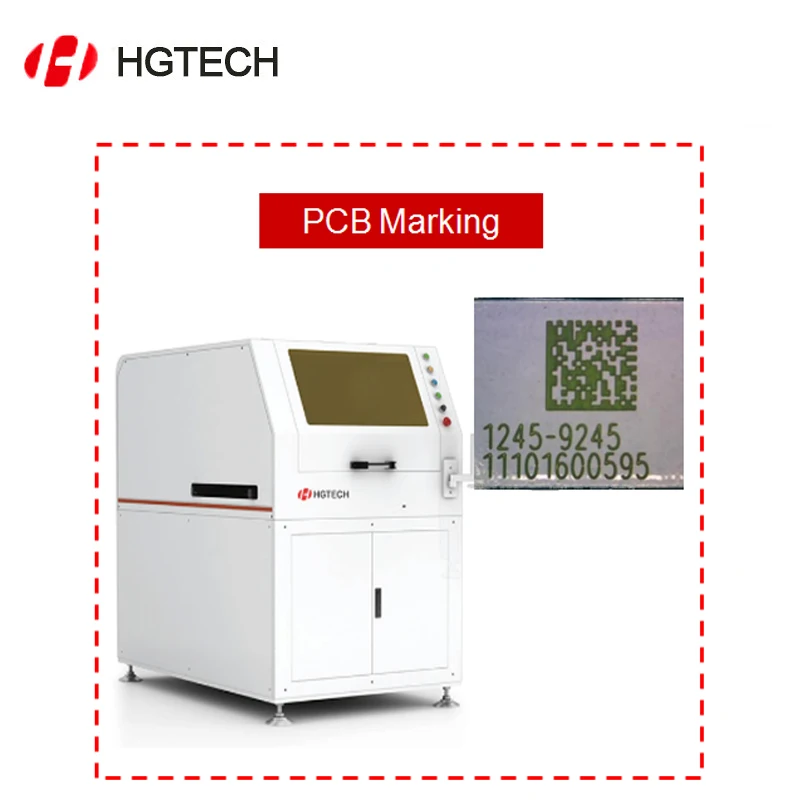

PCB Laser Marking Machine
| LCA10/30C-S3 | LCA10/30C-S5 | ||
|---|---|---|---|
| laser source | CO2/Fiber | CO2/Fiber | |
| Laser | laser wave length | 10600nm/1064nm | 10600nm/1064nm |
| Output Power | 30±0.5W | 10±0.5W | |
| Processability | processing area | 300mm*300mm | 500mm×500mm |
| Repositioning resolution | ±0.1mm | ±0.1mm | |
| Min. Line Width | <0.15mm | <0.1mm | |
| Min. Character Height | <0.3mm | <0.2mm | |

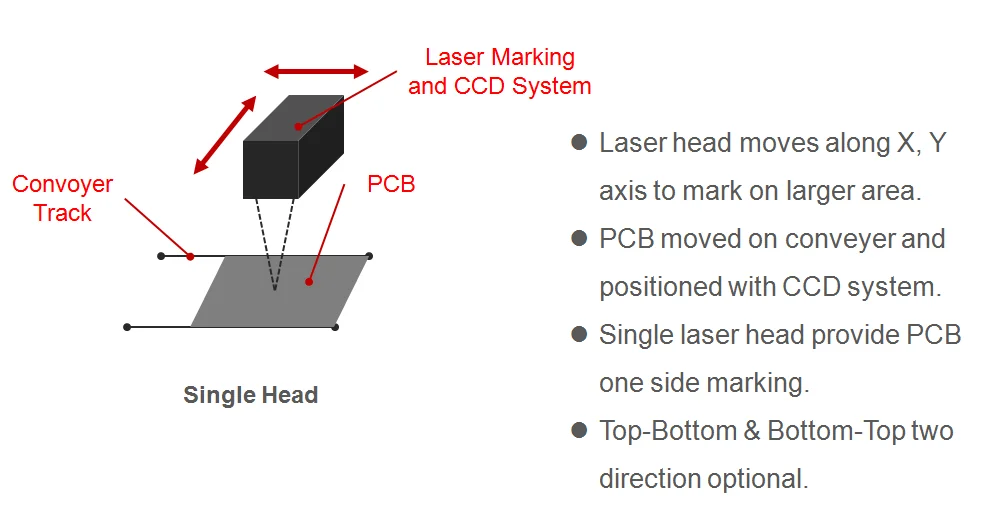

| Configuration | Working Table | Turn-over mechanics | X-Y linear module |
| Positioning System | paraxial CCD camera | paraxial CCD camera | |
| Control System | IPC | IPC | |
| auxiliary control system | Mitsubishi PLC | Mitsubishi PLC | |
| External auxiliary device | Negative pressure suction dust-exhaust system | Negative pressure suction dust-exhaust system | |
| Operating Conditions | voltage | 220V | 220V |
| frequency | 50KHz | 50KHz | |
| Capacity | 3KVA | 2.5KVA | |
| phase | 2 | 2 | |
| operating temperature | 15-30℃ | 15-30℃ | |
| operating humidity | <50% | <50% | |
| Equipment Size | 700mm×1300mm×1700mm | 1500mm×1740mm×1900mm |

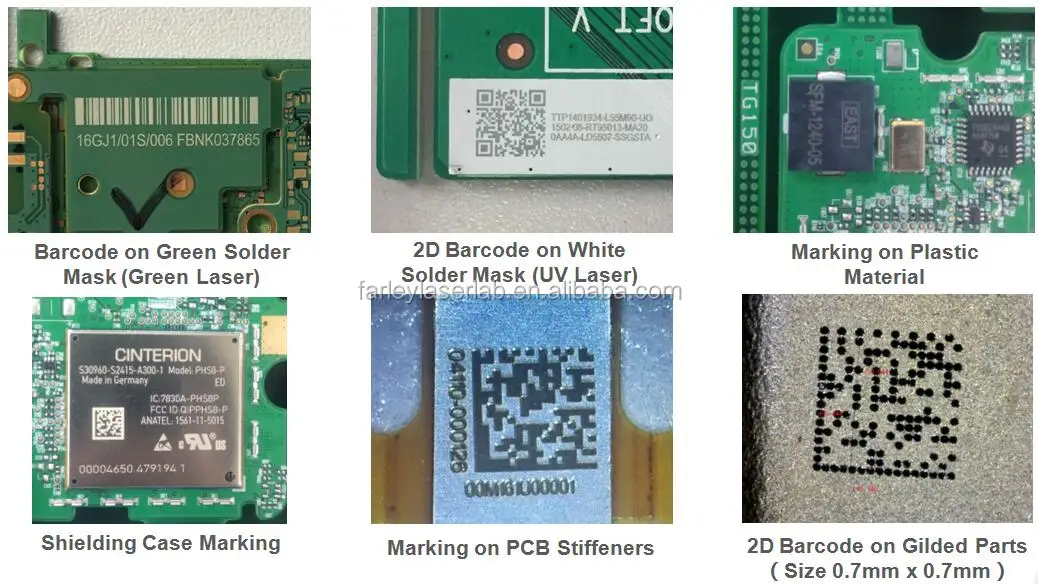

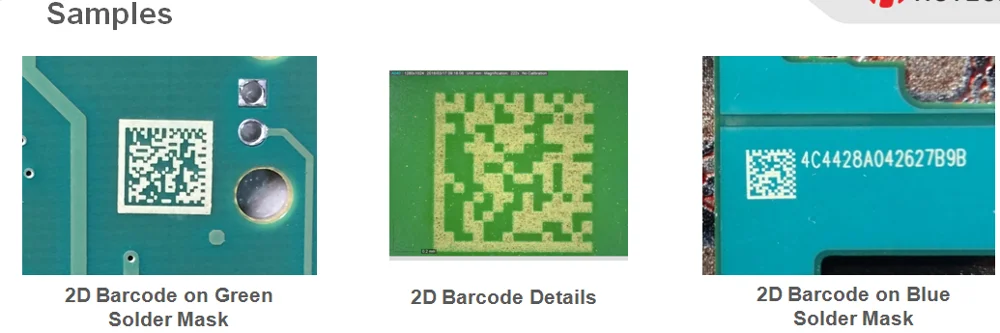

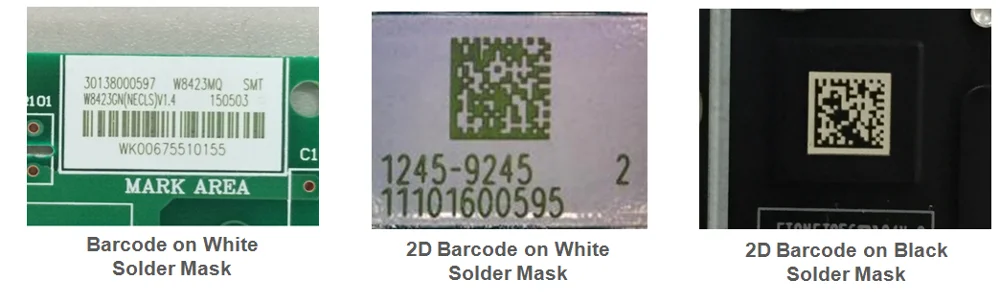

1.Surface material is vaporized or changed color by laser, and left a permanent mark.
2.Applicable for text, drawings with low heat affecting. High precision, low costs, easy to operate and no pollution.
3.Laser marking is becoming a stable processing technology, and used widely in electronics production.

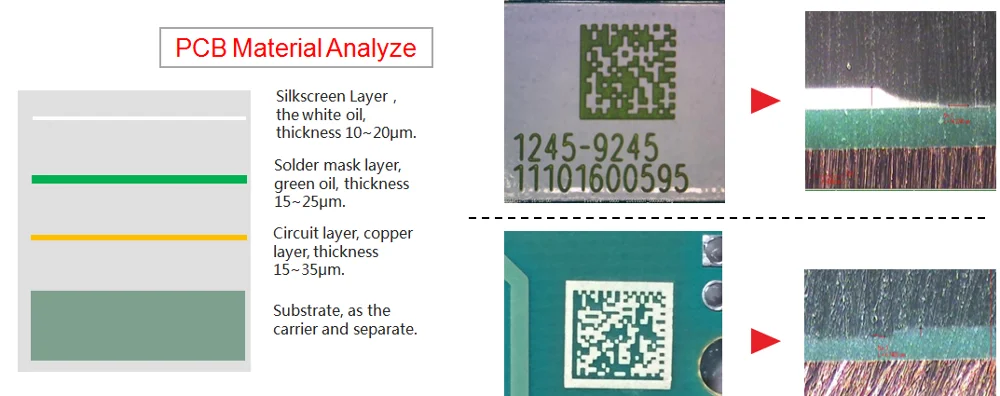

PCB is composite material, in which different elements react differently to the laser, so the laser source and parameters should be properly selected to achieve the best results.

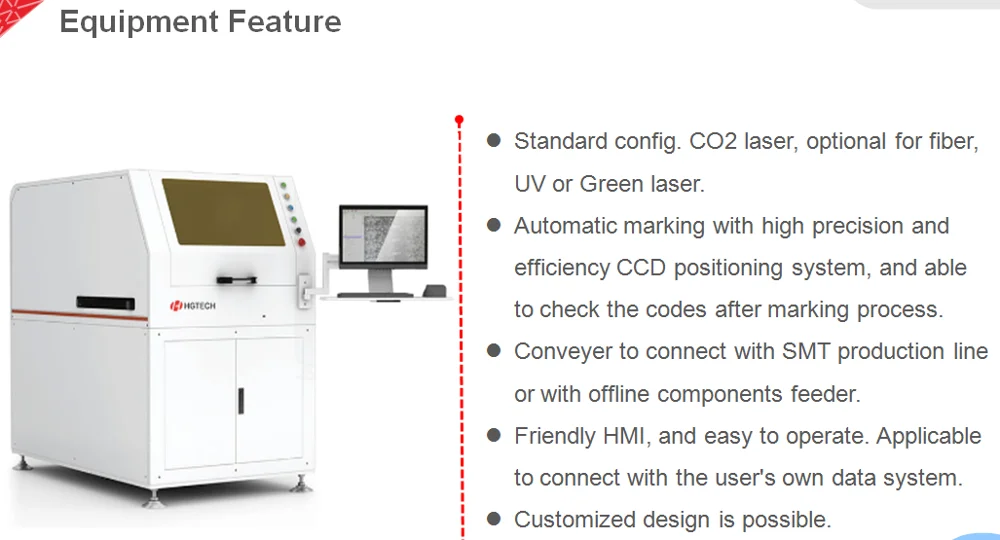

Feature:
Full-Automation
High Efficiency
No Consumables
High Precision
Stable Quality
Permanent Marked
Environmen Friendly
