Fully Automatic Crimped Wire Mesh Machine China Manufacturer

Product Overview

Description

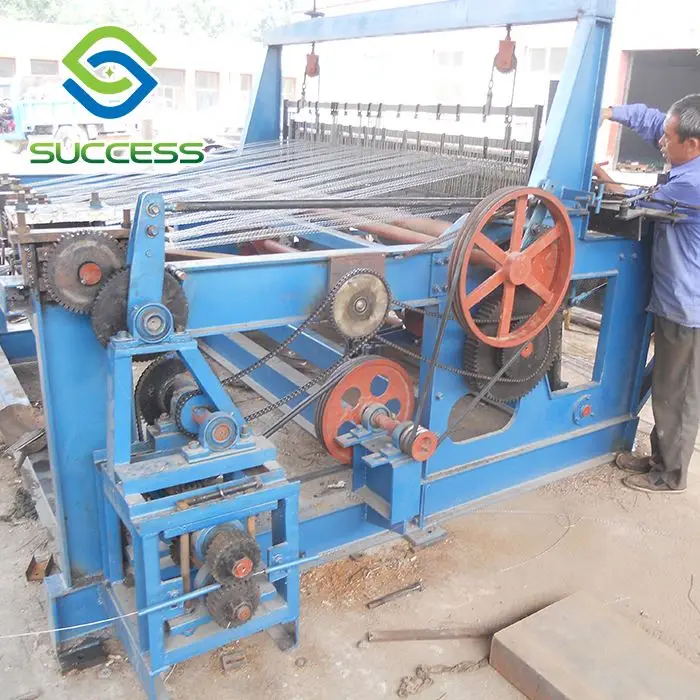

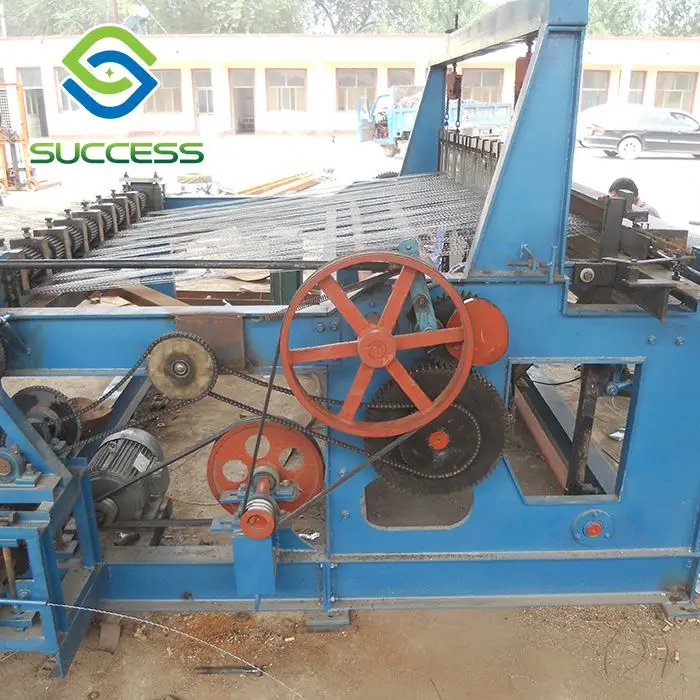

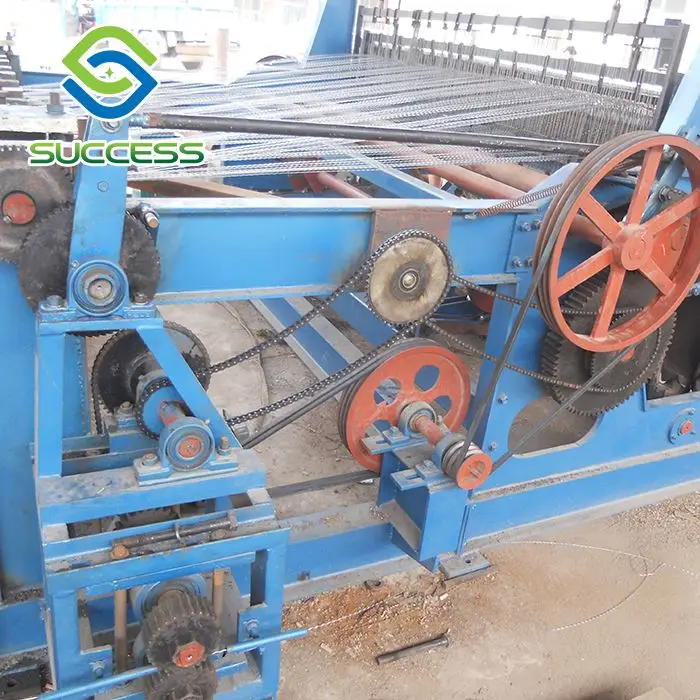

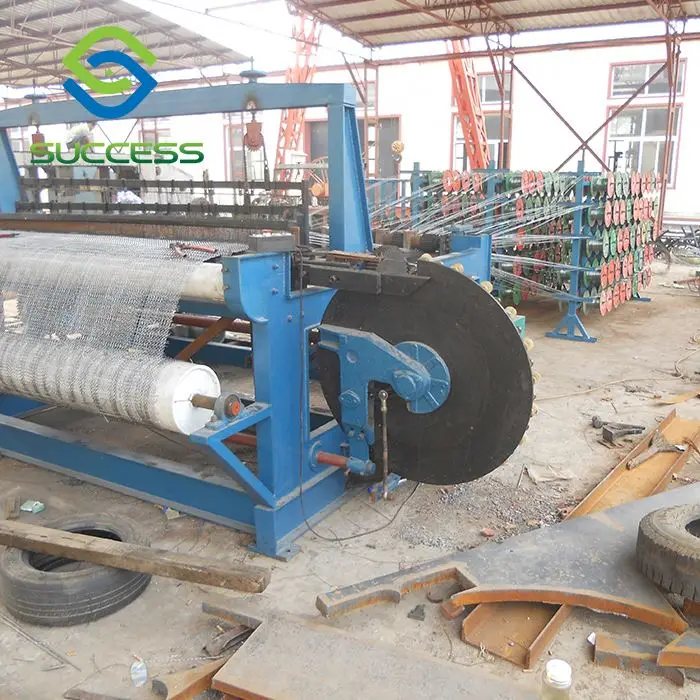

Fully-Automatic Crimped Wire Mesh Machine China Manufacturer

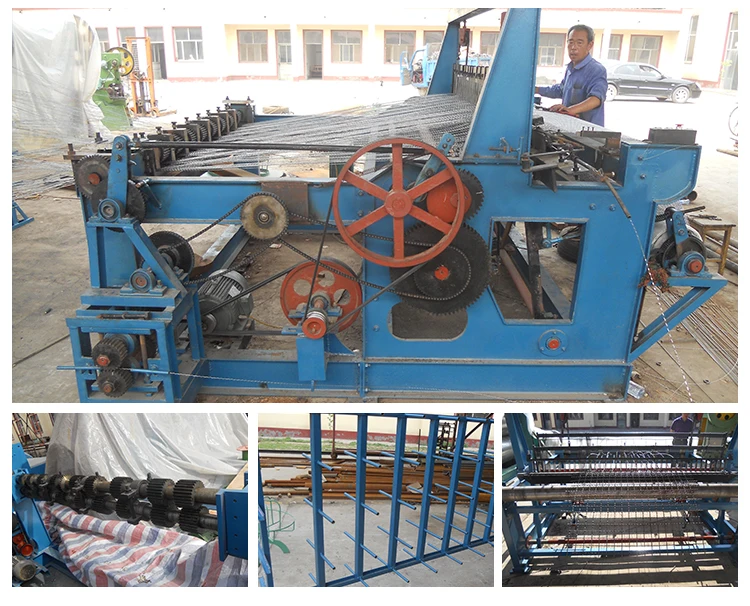

1. Semi Automatic Crimped Wire Mesh Machine

This machine’s structur compact ,easy to operate,can be woven mesh 2.5-10mm,wire diameter 2mm-6m,weaving width of 1-4meters, This machine also known as Mine screen loom.

Weaving Width(mm)	Overal Diamension(mm)	Motor Power (KW)	Machine Weight(KG)
1000	2500x2000x1500	0.75	750
1200	2600x2500x1500	1.1	800
1300	2800x2500x1500	1.1	1000
1500	3500x3000x1700	1.5	1200
1800	4000x3000x1700	2.2	1400
2000	3300x3000x1800	3.0	1600
2300	3500x3000x1800	3.0	1800

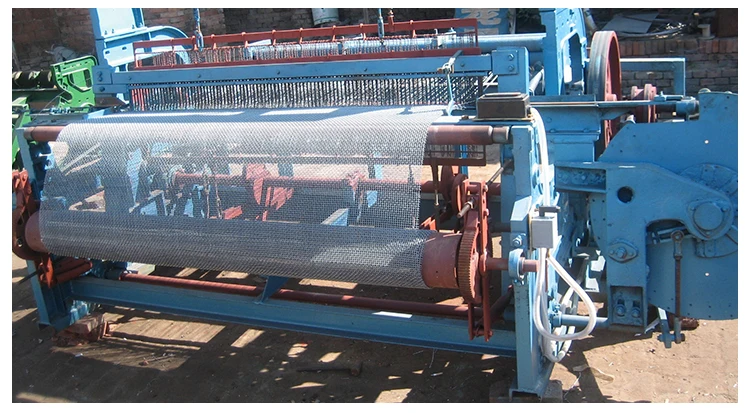

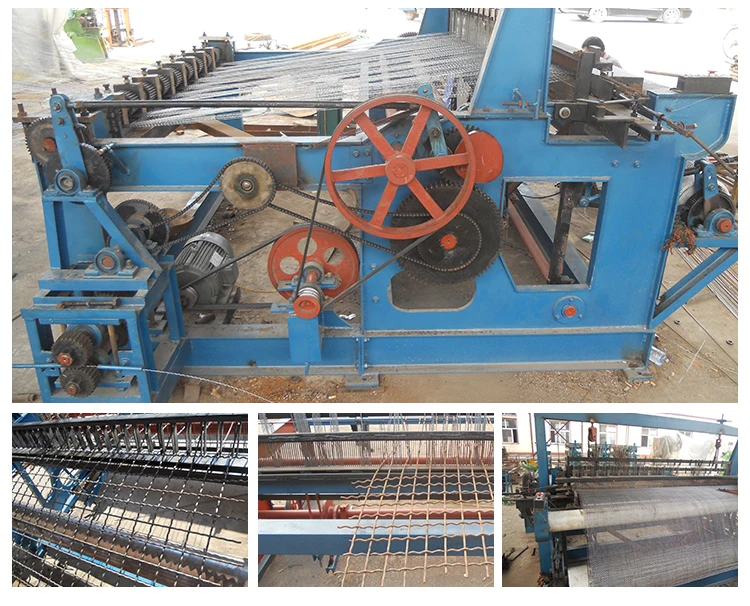

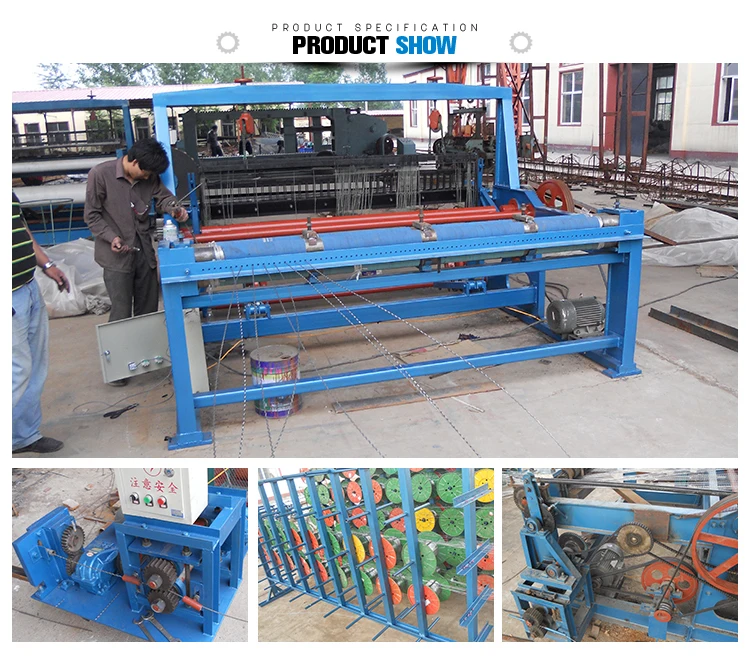

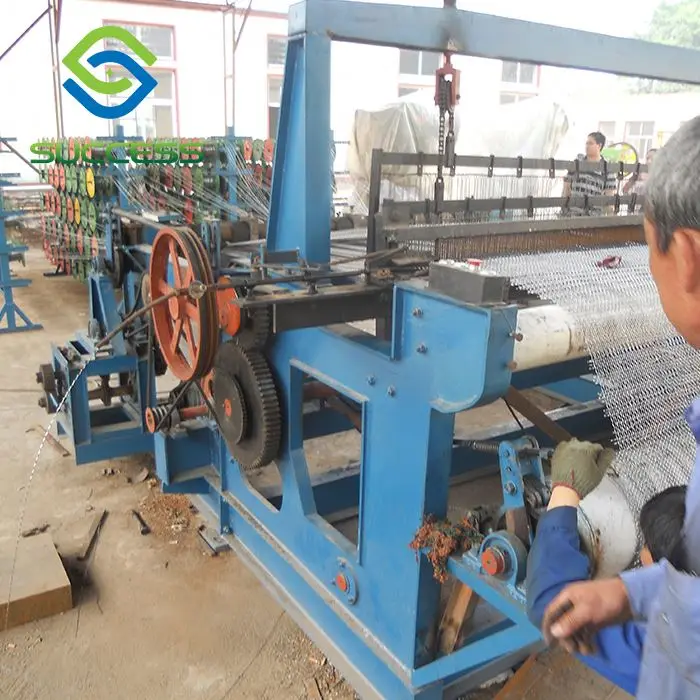

2.Fully Autoamtic Crimped Wire Mesh Machine

The machine is designed and produced by our factory to adapt to market demand, adopts shuttleless shaftment for straight weft insertion and wire prebending molding, synchronously finishes weft embossing and weaving, and is featured by simple operation, steady operation and high production efficiency.

It is suitable for weaving meshes with small and medium wire number and unusual wire meshes, and can weave specifications of crimped meshes with width of 1m-2.3m, knitting tightness of 2-20 meshes and wire diameter of 0.4mm-1.6mm.

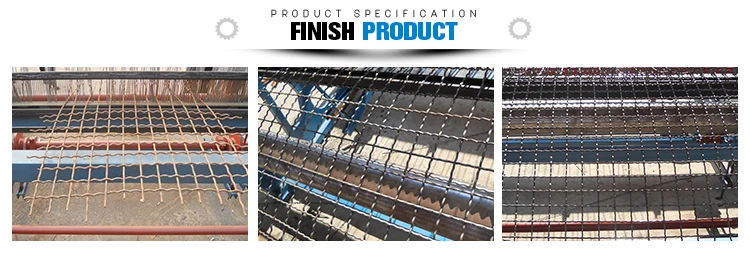

The made products are widely used for screening filtration in coal mine, petroleum, chemical industry and other fields.

Weaving Width(mm)	Overal Diamension(mm)	Motor Power (KW)	Machine Weight(KG)
1000	2500x2000x1500	0.75	800
1200	2800x2500x1500	1.1	1000
1300	3200x2000x1500	1.1	1100
1500	3500x2500x1700	1.5	1250
1800	4000x2500x1700	1.5	1500
2000	4200x3000x1800	2.2	1800
2300	4500x3000x1800	2.2	2000



The machine structures compact and is easy to operate.

Instruction

- Suitable for blanking, punching, forming, bending, shallow drawing and other cold stamping process implementation.

- Widely used in electrical appliances, equipment, vehicles, machinery, agricultural machinery, hardware and other industries.

Structure

- Welded steel body, relieving stress by whole body.

- C-type frame, large throat depth, easy to process large-scale of material.

- Crankshaft was placed horizontally, and easily maintenance.

- Band brake, adjustment conveniently.

- Collapse type of fuse that allows the machine is not damaged when overloaded.

Applications:

1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper

2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts
3. Kitchenware: sink, tea set and other kinds of containers.
