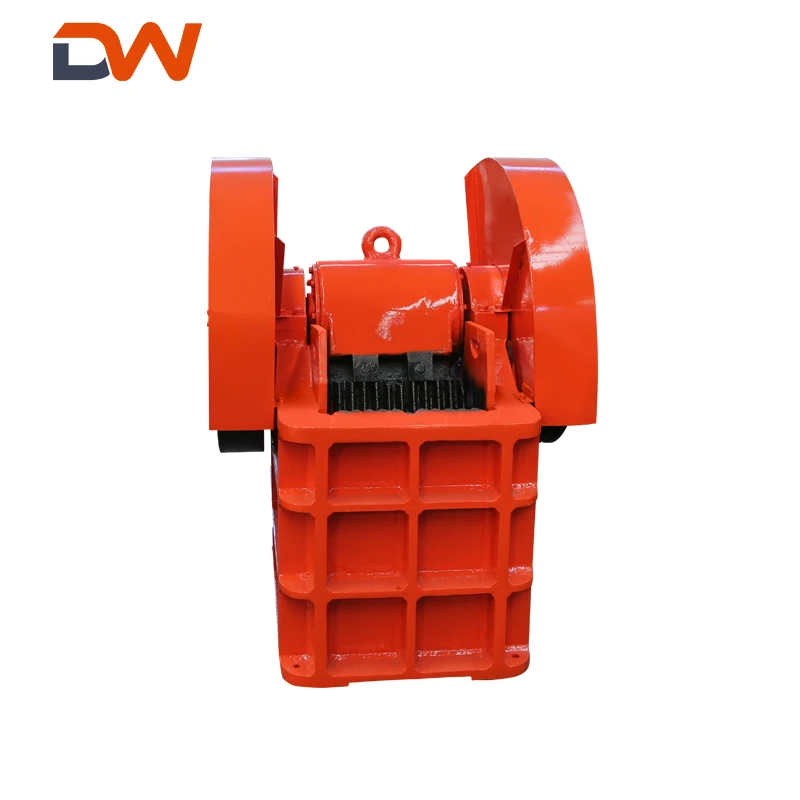

The motor transmits power through belt and belt pulley, drives the swing jaw surround the eccentric shaft to do periodic motion. The angle between toggle plate and swing jaw increases when swing jaw moves up and makes the moving jaw get closes to the fixed jaw.
At the same time the material is squeezed, rubbed, grinded and other multiple broken. The angle of Jaw Crusher between toggle plate and swing jaw decreases when swing jaw moves down.The moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.

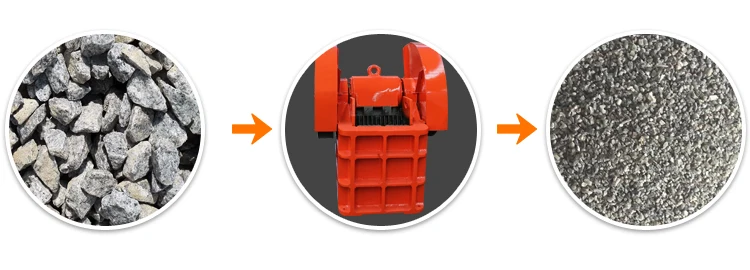

Material crushing contrast

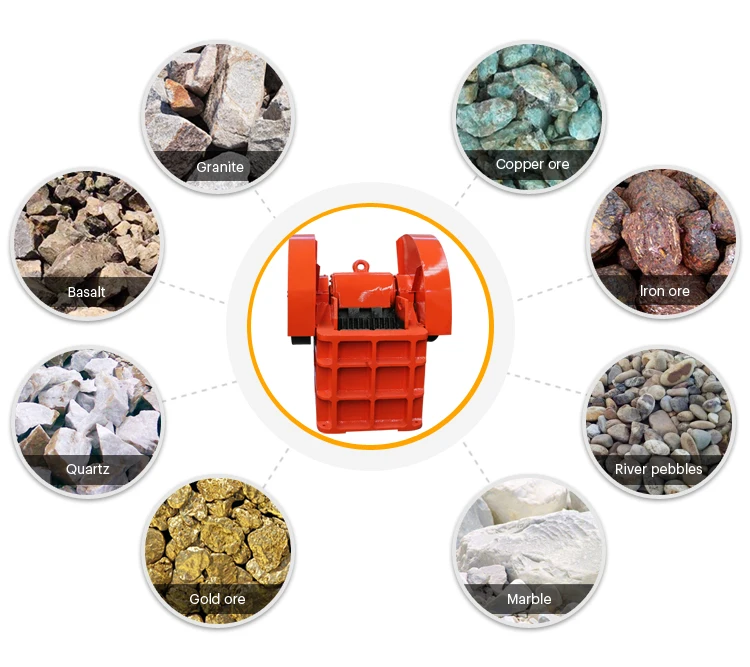

APPLICABLE MATERIALS
APPLICABLE MATERIALS
1 The first procedure used for rock crushing of various minerals can be used to process all kinds of ores with a compressive strength not higher than 320 MPa to a medium size.
2. Crude broken process in the front part of the grinding industry in the mining industry, and broken materials in industries such as building materials, metallurgy, chemical industry, mining, refractory materials, cement, and abrasives.

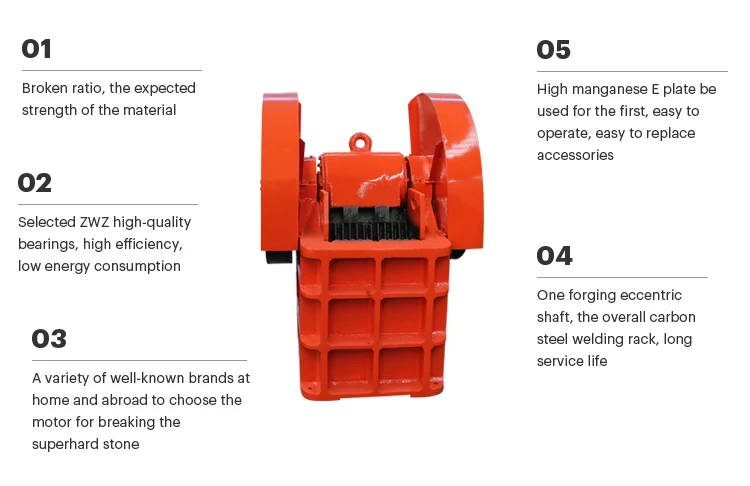

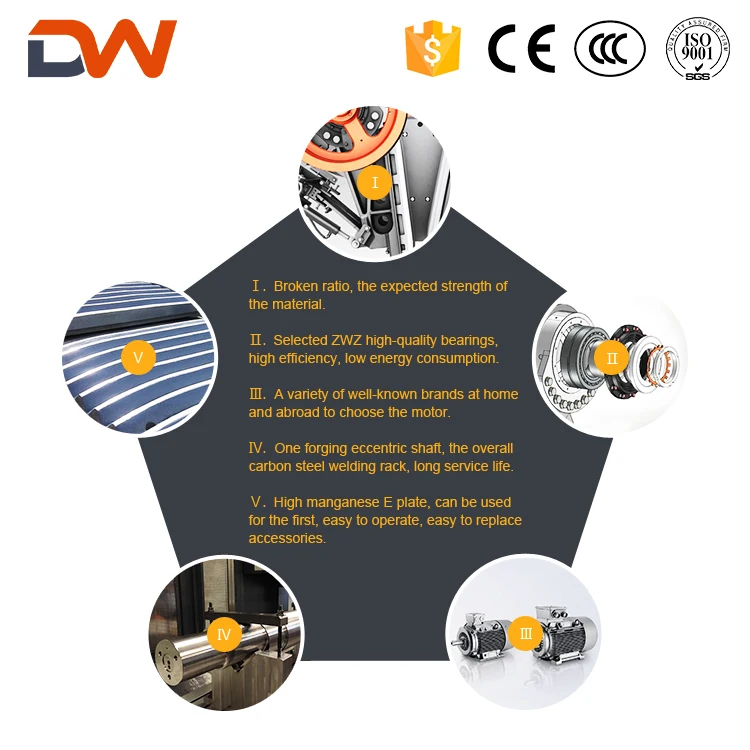

3. In the field of infrastructure engineering, water conservancy and hydropower, highways, high-speed railwaysJAW CRUSHER 5 BIG FEATURE Sicated lines, bridges, airport runways, municipal engineering, and high-rise buildings will be broken.
4. Crude broken production of limestone, rocks, river pebbles, basalt, granite, quartz stone, tailings, slag, etc., and primary crushing of stone production lines and sand production lines.

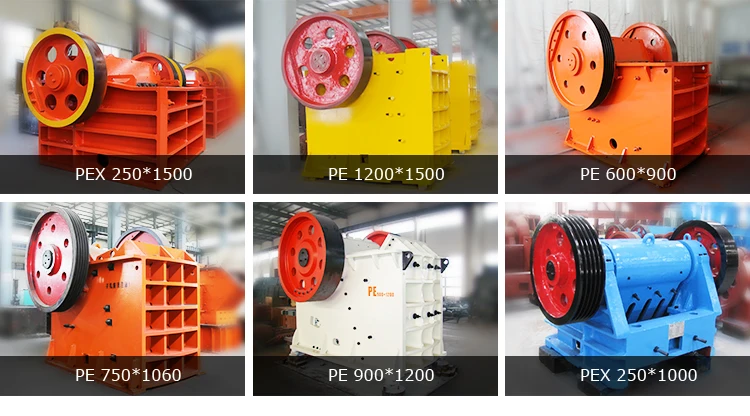

PRODUCT PARAMETERS
Model
Feed opening (mm)
Max.feeding size (mm)
Adjusting range of discharge opening (mm)
Processing capacity (t/h)
Rotation speed of main shaft (r/min)
Motor power (kw)
Total weight (t)
Dimensions (L×W×H) (mm)

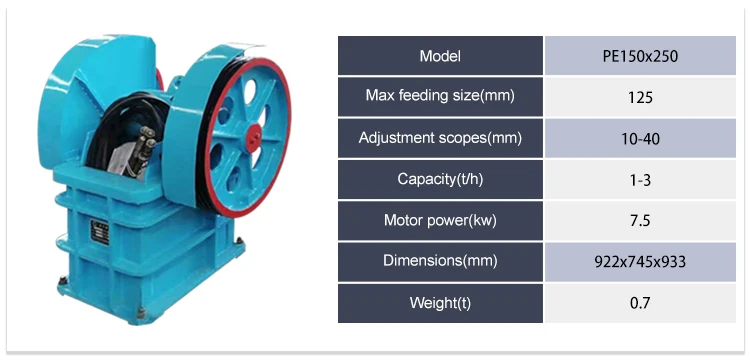

PE-150×250
150×250
125
10-40
1-3
250
5.5
0.8
720×660×850
PE-200×300
200×300
180
15-50
2-6
260
7.5
1.2
910×750×990
PE-200×350
200×350
180
18-70
3-10
260
11
1.5
1000×870×990
PE-250×400
250×400
210
20-60
5-20
300
15
2.8
1300×1090×1270
PE-400×600
400×600
340
40-100
16-60
275
30
7
1730×1730×1630
PE-500×750
500×750
425
50-100
40-110
275
55
12
1980×2080×1870
PE-600×750
600×750
500
150-200
80-240
275
55
15.8
2070×2000×1920
PE-600×900
600×900
500
65-160
50-180
250
55
17
2190×2206×2300
PE-750×1060
750×1060
630
80-140
110-320
250
110
29
2660×2430×2800
PE-800×1060
800×1060
640
130-190
130-330
250
110
29.8
2710×2430×2800
PE-830×1060
830×1060
650
160-220
150-336
250
110
30.7
2740×2430×2800
PE-870×1060
870×1060
660
200-260
190-336
250
110
31.5
2810×2430×2800
PE-900×1060
900×1060
685
230-290
230-390
250
110
33
2870×2420×2940
PE-900×1200
900×1200
750
95-165
220-450
200
110
52
3380×2870×3330
PE-1000×1200
1000×1200
850
195-265
315-500
200
110
55
3480×2876×3330
PE-1200×1500
1200×1500
1020
150-350
400-800
180
160-220
100.9
4200×3300×3500
PE-1500×1800
1500×1800
1200
220-350
500-1000
180
280-355
122
5160×3660×4248
PE-1600×2100
1600×2100
1500
300-400
1300-2200
160
350-380
150.6
6210×4013×4716
PEX-150×750
150×750
120
18-48
8-25
320
15
3.8
1200×1530×1060
PEX-250×750
250×750
210
25-60
13-35
330
30
5.5
1380×1750×1540
PEX-250×1000
250×1000
210
25-60
16-52
330
30
7
1560×1950×1390
PEX-250×1200
250×1200
210
25-60
20-61
330
37
9.7
2140×1660×1500
PEX-300×1300
300×1300
250
20-90
16-105
300
55
15.6
2720×1950×1600
PRODUCTION LINE
Capacity
Jaw crusher +Impact crusher
Jaw crusher+ Cone crusher
+VSI
50 tph
GZD8530+PEF5075+PF1008
GZD8530+PEF5075+PY900
VSI7611
100 tph
GZD9538+PEF6090+PF1210
GZD9538+PEF6090+PY1200
VSI8518
200 tph
GZD1142+PEF7510+PF1214
GZD1142+PEF7510+PY1750
VSI9526
300 tph
GZD1149+PEF9012+PF1315
GZD1149+PEF9012+PY2200
VSI1140
500 tph
GZD1352+PEF1215+2PF1315
GZD1352+PEF1215+2PY2200
2VSI1140
Bluestone crushing project in Kenya
Process Materials: bluestone
Production capacity: 100 T/H
Production Line Configuration:
The crushing production line is used for processing bluestone, which is composed of jaw crusher, Simmons cone crusher, three vibrating feeders, belt conveyors, and circular vibrating screens. The structure is compact and the layout is reasonable. The material is transported by the vibrating feeder to the gravel screen and the large material is evenly fed into the jaw crusher. The coarsely crushed material enters the Siemons cone crusher for fine crushing. The finely crushed material is sent by a belt conveyor to a circular vibrating screen to screen the finished stone of different specifications, and the unqualified stone is returned to the cone crusher.
Limestone sand making line in Indonesia
Process Materials: Limestone
Production capacity: 300 T/H
Production Line Configuration: The sand production line is mainly used for limestone sand production, and a sand washing machine is added to wash out the sand powder contained in the sand. It is suitable for the environment-restricted machine manufacturers, and they can draw materials locally to directly produce qualified sand. Stones are evenly sent to the jaw crusher for coarse crushing by the vibrating feeder. The coarse broken material is sent by the belt conveyor to the sand making machine for further crushing. The finely-divided material is transported to the vibrating screen for sieving. The material that has reached the required particle size is sent to the sand washer for cleaning. After cleaning, the output from the finished conveyor belt is the finished product. The material that does not meet the requirements for the finished particle size is returned from the shaker back to the sand maker for reprocessing to form a closed-circuit multiple cycle. Product granularity can be combined and graded according to the needs of users.
