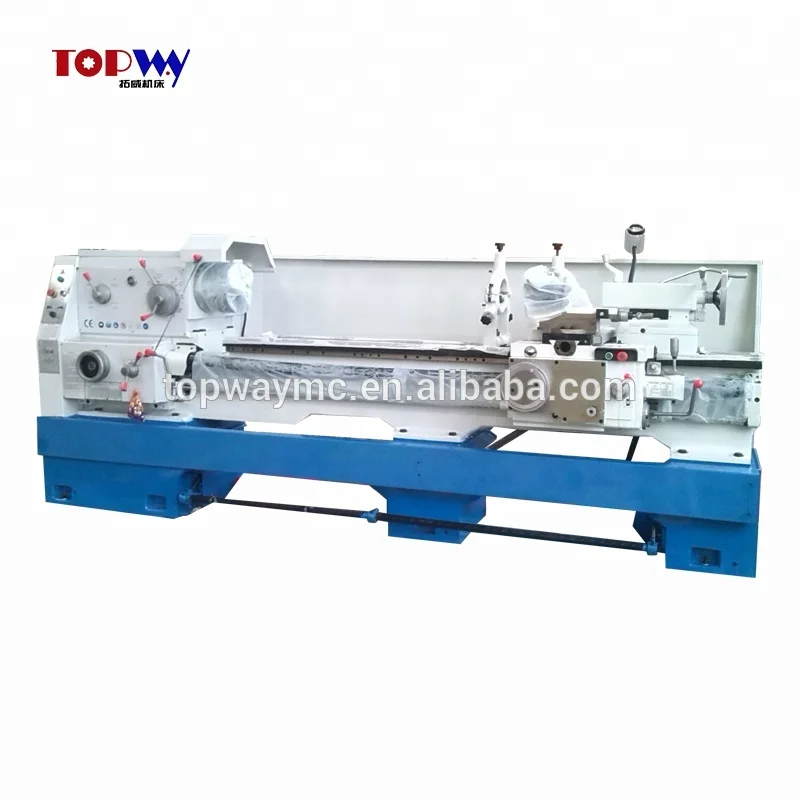

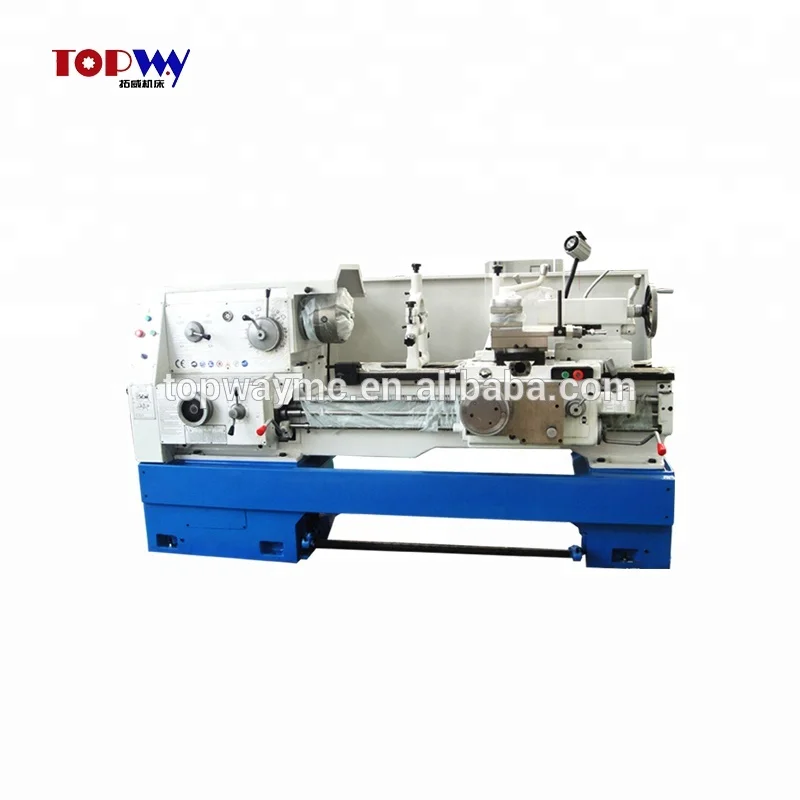

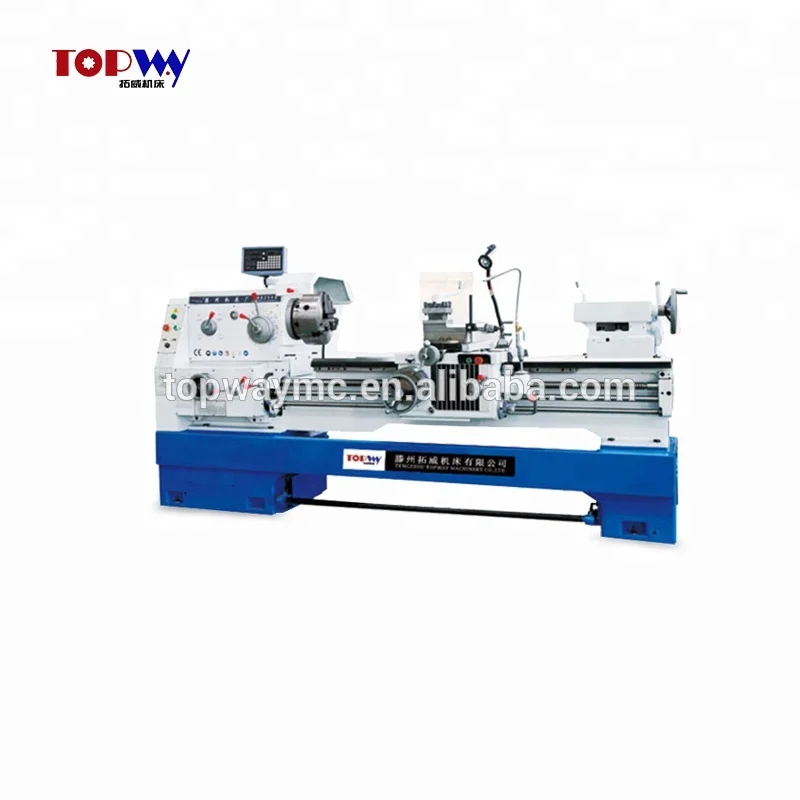

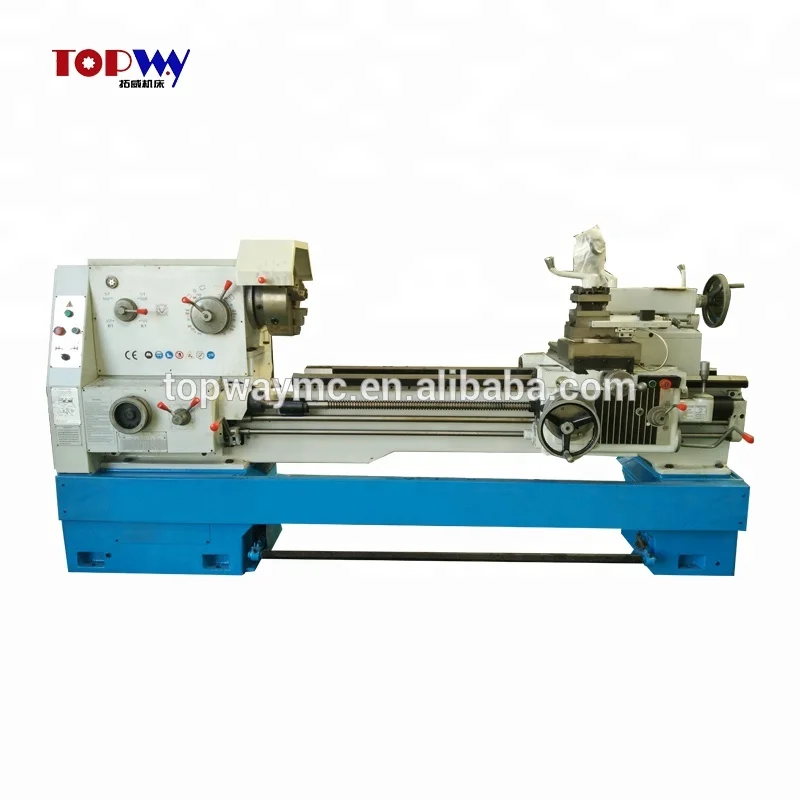

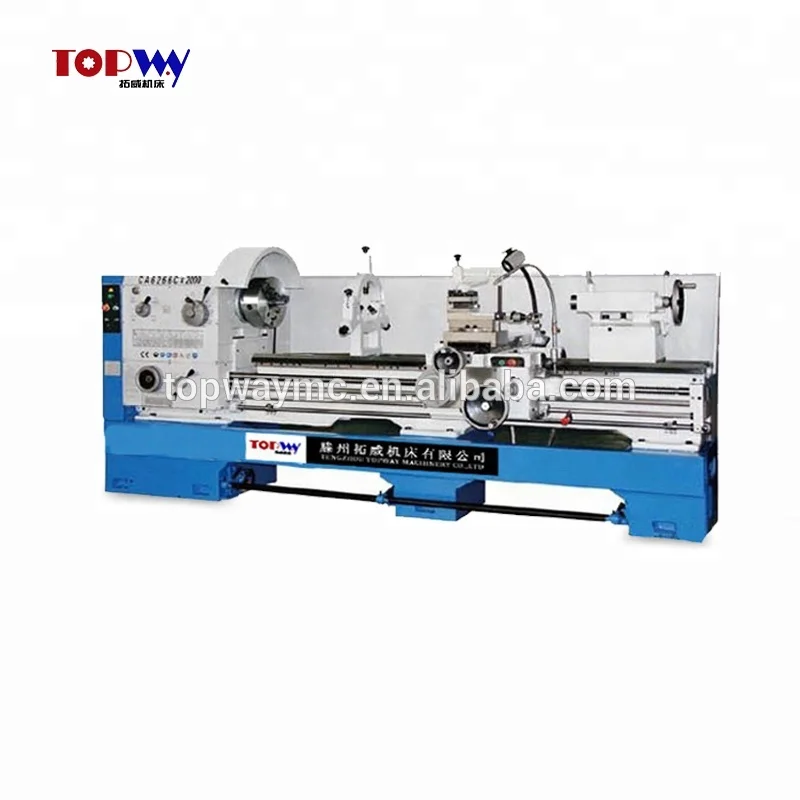

CA6161/CA6126 Made In Japan all gear engine turning Lathe
- Category: >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (60769465148):
Product Overview
Description

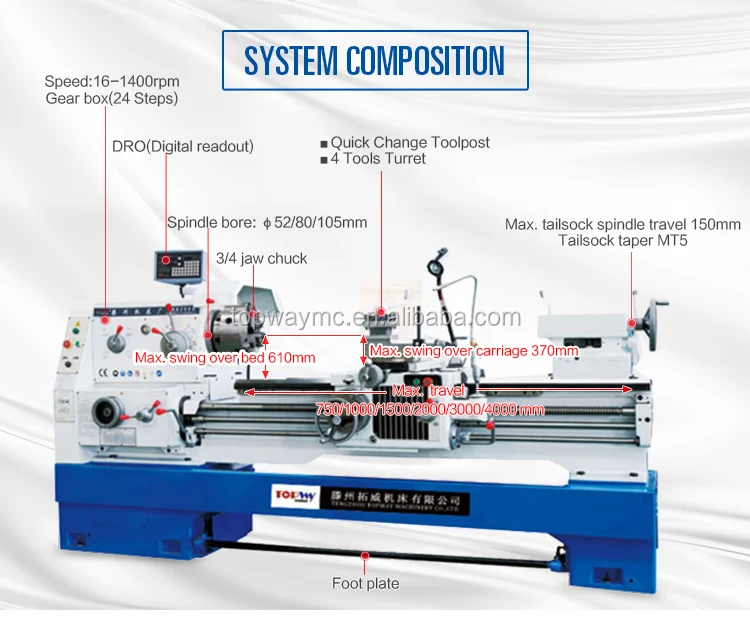

Model | CA6140 CA6240 | CA6150 CA6250 | CA6161 CA6261 | CA6166 CA6266 | CA6180 CA6280 | ||
Max .Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | ||
Max .Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | ||
Max .Swing in gap (optional) | 630mm | 720mm | 830mm | 880mm | 1020mm | ||
Effective gap length | 210mm | 210mm | 210mm | 210mm | 210mm | ||
Max .length of work piece | 750/1000/1500/2000/2200/3000/4000mm | ||||||
width of bed | 400mm | ||||||
section of turning tool | 25×25mm | ||||||

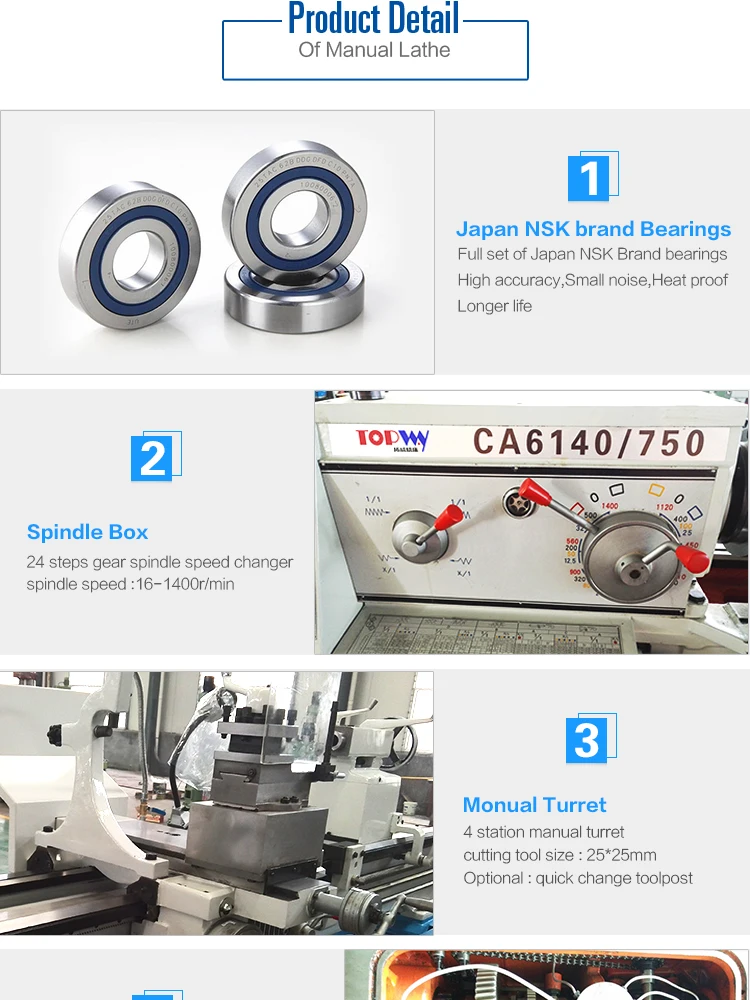

Spindle | spindle speed | 16-1400rpm(24steps) | |||||
hole through spindle | 52mm ,(80mm),(105mm) | ||||||
spindle taper | No.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||||||
Feed | No. of feed | (64 kinds)(for each) | |||||
range of metric threads | (1-192mm) (44 kinds) | ||||||
range of inch threads | (2-24tpi) (21kinds) | ||||||
range of module threads | 0.25-48 (module 39 kinds) | ||||||
range of diametral pitc threads | 1-96DP (37 kinds) | ||||||
Tailstock | Max. Tailstock spindle travel | 150mm | |||||
tailstock spindle diameter | φ75mm | ||||||
taper of tailstock spindle center hole | NO.5MT5 | ||||||

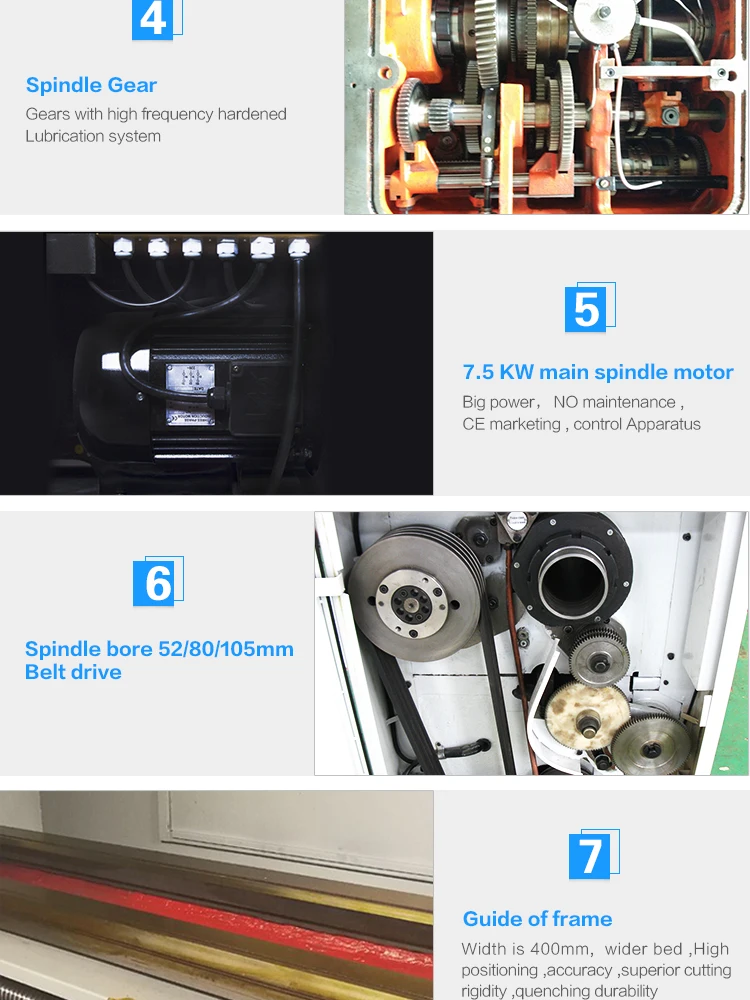

Main motor | 7.5KW(10HP) | ||||||
Packing dimensions (L×W×H mm) | Overall dimensions for 750mm | 2550*1140*1750 | |||||
Overall dimensions for 1000mm | 2700*1140*1750 | ||||||
Overall dimensions for 1500mm | 3200×1140×1750 | ||||||
Overall dimensions for 2000mm | 3700×1140×1750 | ||||||
Overall dimensions for 3000mm | 4850×1140×1750 | ||||||
Overall dimensions for 4000mm | 5800×1140×1750 | ||||||
Weight(kg) | Length | G.W. N.W. | |||||
Overall dimensions for 750mm | 2100 1990 | 2170 2060 | 2300 2180 | 2380 2260 | 2520 2400 | ||
Overall dimensions for 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | 2720 2560 | ||
Overall dimensions for 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | 2980 2800 | ||
Overall dimensions for 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | 3260 3087 | ||
Overall dimensions for 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | 4200 3887 | ||
Overall dimensions for 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | 4850 4500 | ||
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.
Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
