6.6 кВт 600 в EV бортовое зарядное устройство

                      Model

Specification/unit

DA6K6M51-600C

Power Input

Rated Voltage

Vac

220 (charger intelligent detection of charging pile CP signal can output 6000W, otherwise half output)

Voltage Range

Vac

85~265

FREQ RANGE

HZ

47~63

Efficiency(max)

%

≥95 (excluding auxiliary power supply)

Power Factor

≥0.99@220Vac, rated power

Current

A

≤32@220Vac

Power output

Rated output voltage

Vdc

600

Max current

A

16.5@400Vdc

Constant power output

W

6000

Constant voltage output range

Vdc

400~750

Output voltage accuracy

V

≤±1%Vo  Input175Vac-265Vac, output10%-100% load

Line regulation

%

≤±1Vo  Input175Vac-265Vac, output full load

Load regulation

%

≤±1Vo  Input220Vac,output 10%-100% load

Ripple and noise

mV

≤±3%Vo 20M oscilloscope,Twisted-pair cable test.

Auxiliary power supply

Rated output voltage

Vdc

24

Rated output power

W

2 (For BMS wake-up signal)

performance

Input over-voltage protection

Vac

>275  CAN directive warning protection

Input under-voltage protection

Vac

<85   CAN directive warning protection

Output over-current protection

A

≥110%Io  CAN directive warning protection

Output under-voltage protection

Vdc

< 400   CAN directive warning protection

Output over-voltage protection

Vdc

>750    CAN directive warning protection

Over-temperature protection

℃

85±5   CAN directive warning protection

Output short circuit protection

Yes

Reverse polarity protection

Yes

Dynamic response

us

≤200

CAN communication

Communication interrupt, overtime 20s intelligent shutdown, communication normal recovery.

Work environment

Operating temperature

-40℃~+70℃

Storage temperature

-45℃~+95℃

Operating humidity

%RH

20-90(No condensation)

Storage  humidity

%RH

10-95(No condensation)

Vibration

QC/T413-2002(Other parts required)

Cooling mode

Water-cooled

Work environment

Isolation Voltage

Input-output 2KVac; input-shell 2KVac;

main output-shell 2.8KVdc;

auxiliary output-shell 700Vdc

Insulation resistance

MΩ

Input-output-shell>10 (25℃,70%RH)

Structure

Weight

Kg

14

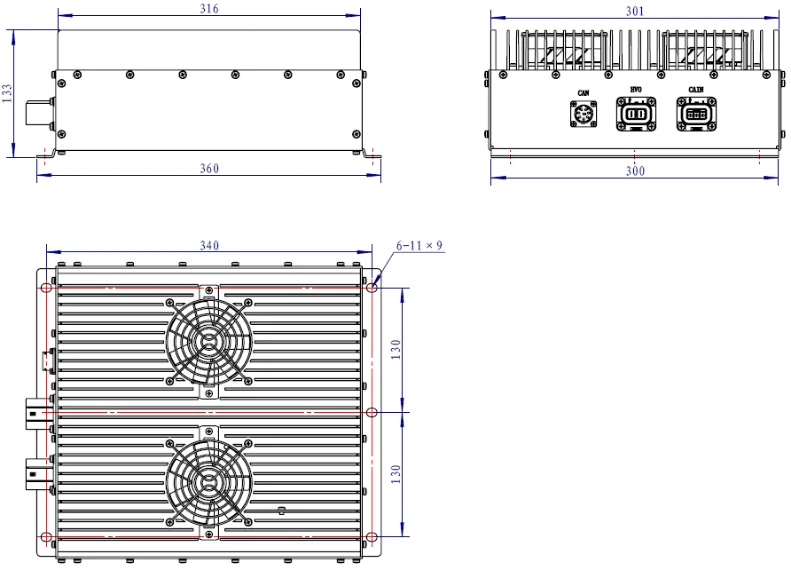

Size

mm

304*280*100
