I. Linear position sensor overview

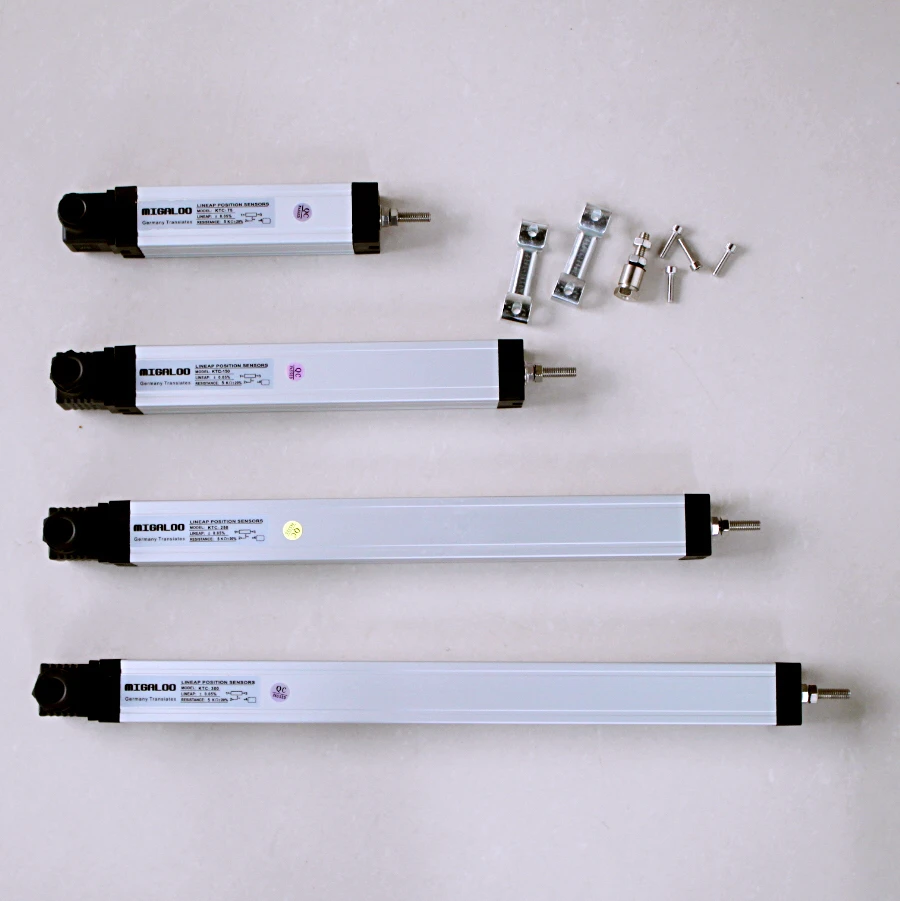

KTC Pull Pole series linear position sensors are designed for precise measurement of displacement

and length. The Measuring range of KTC is up to 1250mm with repeatability of ±0.01mm and linearity

of  0.05% (model size>350mm).Its structure is designed for simple installation and reliable work.

Anodized aluminium housing can contribute to nice appearance and super corrosion resistance. By

adopting conductive plastic track inside ,the product could run smoothly and have low-noise output

signals.

There is a ball coupling at the top of pull pole to offset the effects of misalignment with the actuating

part. Credited to the technology of trimming resistanc.

II. Linear position sensor  parameter:

1.KTC series conductive plastic rod type linear position sensor

2.Rod displacement sensor KTC-75-1250MM

3.Range: 0-75MM-1250MM

4.Linear precision: plus or minus :0.2%

5.Output: 0-5K

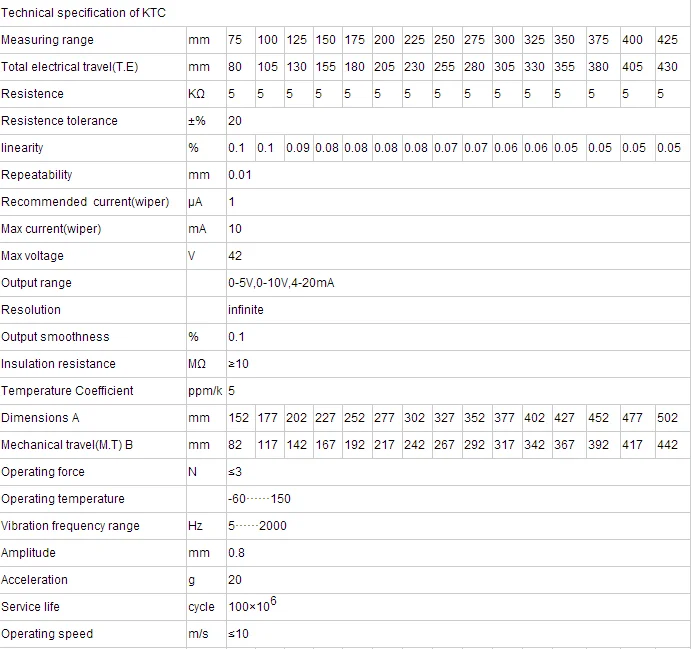

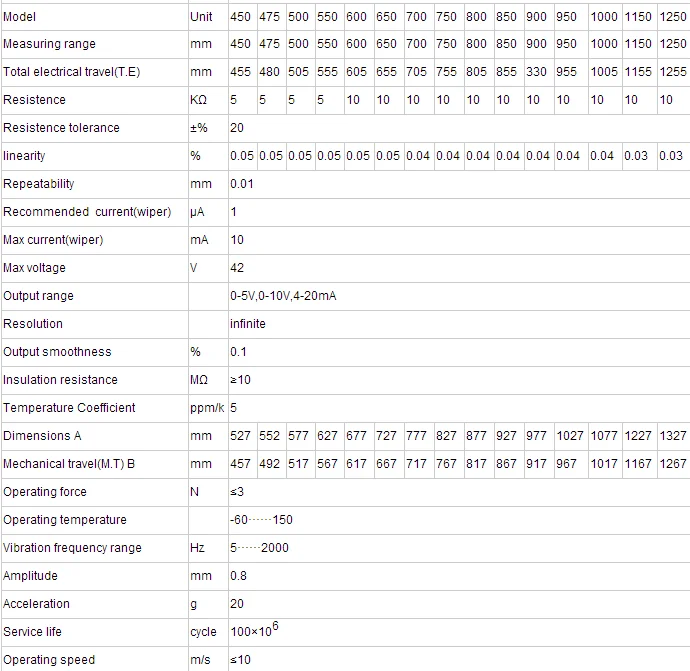

III. Linear position sensor  specifications
