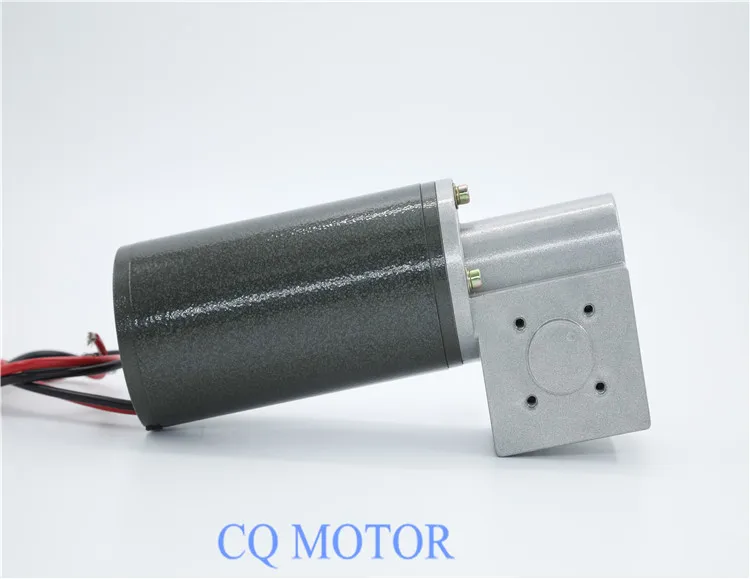

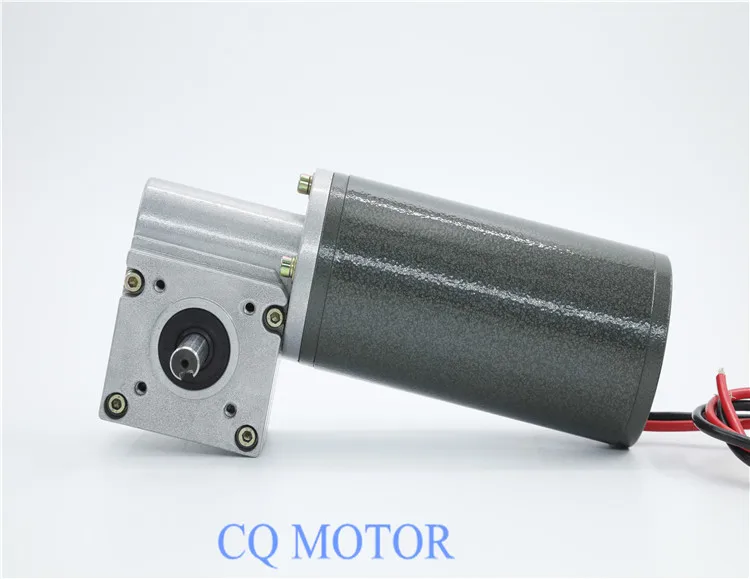

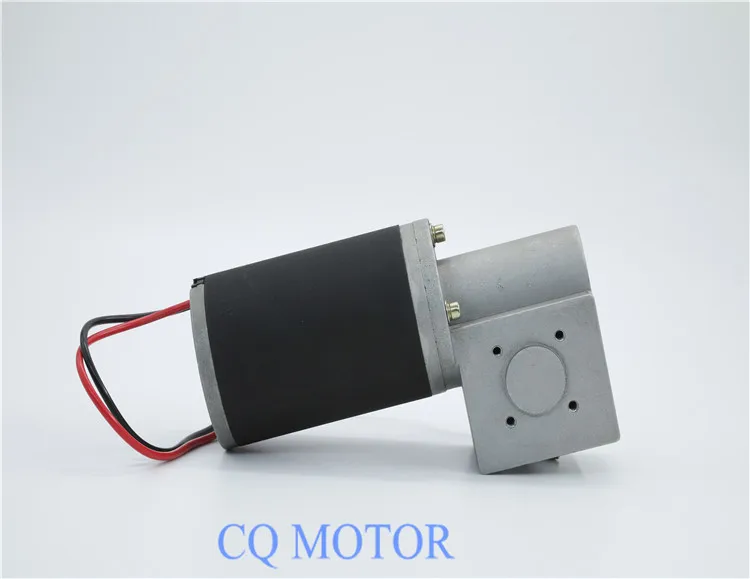

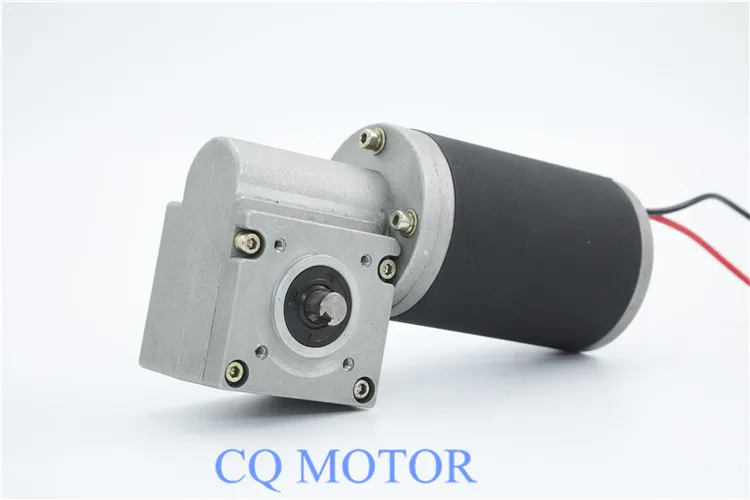

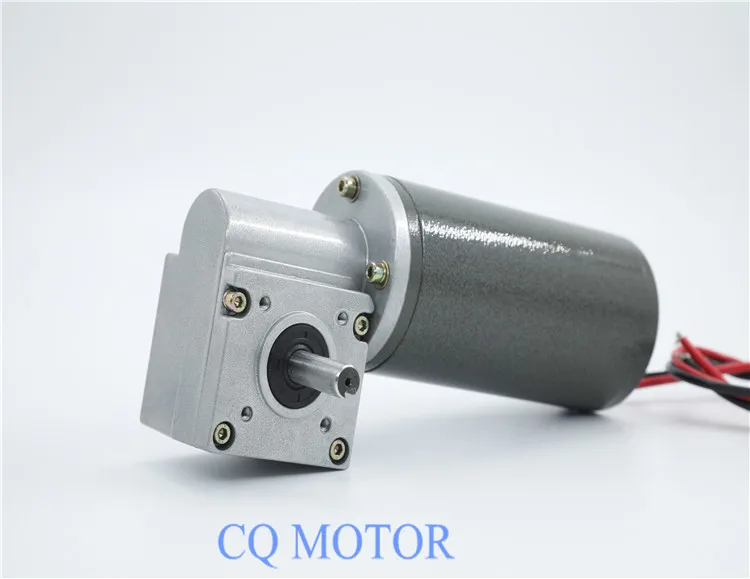

12v24v worm gear Windshield Wiper DC Motor

Share on (60769525096):


Price:RUB 3,790.90 - RUB 4,928.17

Quantity:


Product Overview

Description

products descriptio

63ZYJX DC permanent magnet gear motor consists of 63ZY DC permanent magnet motor and worm gear reducer. Its characteristics: high efficiency, environmental protection, compact structure, small size, light weight, large output power, it was used as the driving element and the actuator in the system.


Motor Technical Data





Type



Voltage

Torque

N.m



Ampere

 Speed

r/min

Power

Watt

Length

cm

63ZY-97

12/24

13

5/3

3000

40

97

63ZY-127

12/24

24

11/6

3400

80

127

Gearbox Technical Data





Ratio



length*width*height

No-Load Speed

r/min

Loaded Speed

r/min

Rated Torque

N.m

Max Torque

N.m

q

71*80*63

100

84

4.3

18


Product presentation



Company introduction



    Zibo Chuanqiang Motor Co.,Ltd is a professional motor manufacturing enterprise which set develop,research,production and sale in one. We have been working on motor since 2002. Our main products are DC motors, worm gear motors and special gear motors. The application arena covers field mower, truck tarp systems, golf cart, wheelchair, automatic tarp etc. The company is located in Boshan, Shandong—the most influencial Chinese industrial area of electric motor. By cooperating our sophisticated equipment and advanced process with good working environment  efficient reflected. Our company is one of the biggest tarp motor OEMs in USA, UK and Australian market, one of the best suppliers of Dongfeng Automobile Co.,Ltd—the biggest automobile manufacturer in China.





Packaging & Shipping

Packed in pallets according to the international container standard. Deliver in Qingdao or any other ports which are suitable for customers.

For more products please come to the link :www.chuanqiangmotor.com

Our contact information: WhatsApp : +8617663027289
