Заводской Гибридный солнечный инвертор Axpert KS SUMRY, 1 кВА, 3 кВА, 5 ква, с встроенным контроллером солнечной зарядки

Product Overview

Description

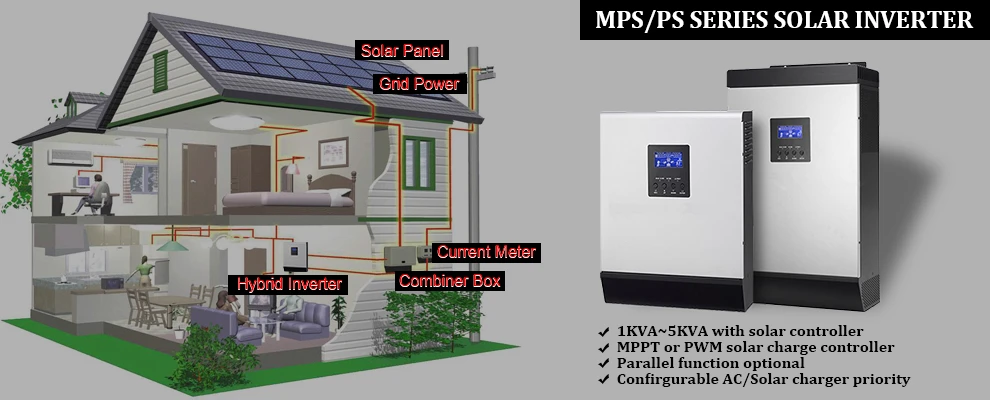

Professional factory Sumry Axpert KS solar inverter with built-in solar charge controller 1KVA 3KVA 5KVA









Features of 3KW 3KVA 50A PWM Solar Inverter:

1.Pure sine wave inverter
2.Built-in PWM solar charge controller
3.Selectable input voltage range for home appliances and personal computers.
4.Selectable charging current based on applications
5.Configurable AC/Solar input priority via LCD setting
6.Compatible to mains voltage or generator power
7.Auto restart while AC is recovering
8.Overload and short circuit protection
9.Smart battery charger design for optimized battery performance
10.Cold start function
11.Parallel operation with up to 4 units only available for MKS 4K/5K



Product Parameters:



Model NO.		PS1K	PS3K	PS5K
Rated Power		1000VA/800W	3000VA/2400W	5000VA/4000W
INPUT	Phase&waveform	230 VAC
	Voltage selectable range (for Personal Computer)	170~280 VAC
	Voltage selectable range (for home appliance)	90~280 VAC
	Frequency range	50Hz/60Hz (Auto sensing)
OUTPUT	AC voltage Regulation (Batt.Mode)	230V AC ± 5%
	Surge Power	2000VA	6000VA	10000VA
	Efficiency (Peak)	90%	93%
	Transfer time	10ms (for personal computer),20ms (for home appliance)
	Wave form	Pure sine wave
Battery& AC Charger	Battery voltage	12VDC	24VDC	48VDC
	Floating charge Voltage	13.5VDC	27VDC	54VDC
	Overcharge Protection	15VDC	30VDC	60VDC
	Maximum Charge Current	10A or 20A	20A or30A	10A/20A/30A/40A/50A/60A
PV Input	Charge current	50A
	MPPT Range @  Operating Voltage (VDC)	50VDC	60VDC	105VDC
	Standy powr consumption	1W	2W	2W
Physical	Dimension, D×W×H (mm)	305x300x110	305x272x100	413x295x120
	Net Weight (Kgs)	4.5	6.9	9.8
Environmental	Humidity	5%~95% Relative Humidity (Non-condensing)
	Operation Temperature	0℃~55℃
	Storage Temperature	-15℃~60℃





Product details show:
