WH148 Rotary 10k Dimming potentiometer with switch Single potentiometer double potentiometer B1KB2KB5KB10KB20KB50KB100K
- Category: >>>
- Supplier: Sichuan Qixing Electronics Co. Ltd.
Share on (60769554267):
Product Overview
Description
WH148 Rotary 10k Dimming potentiometer with switch

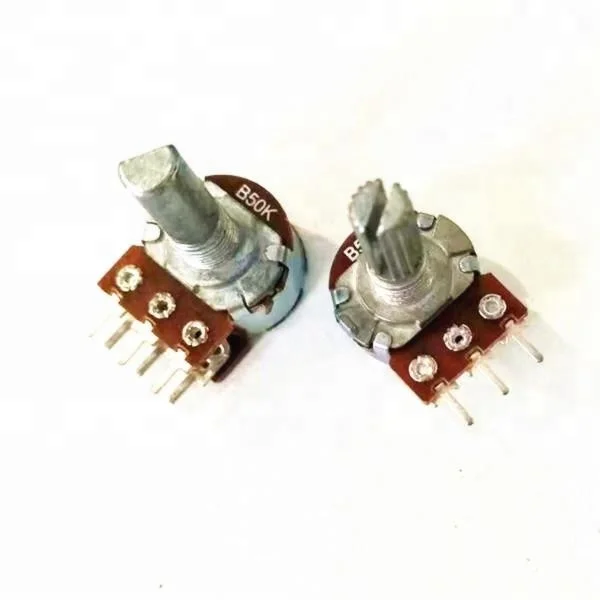

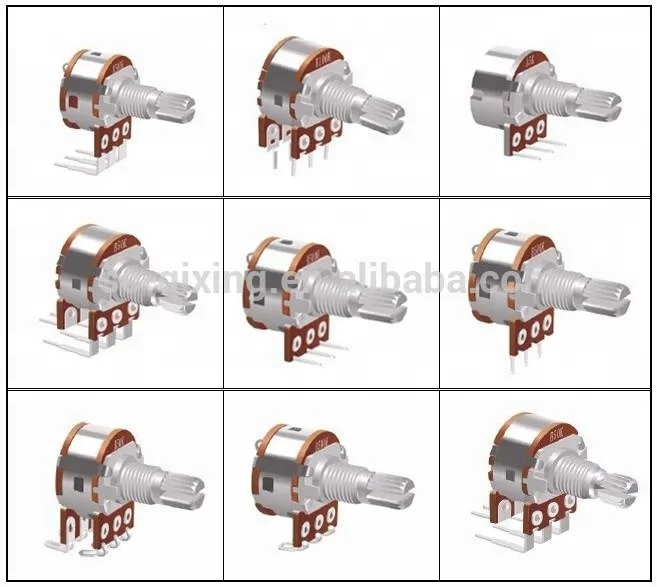

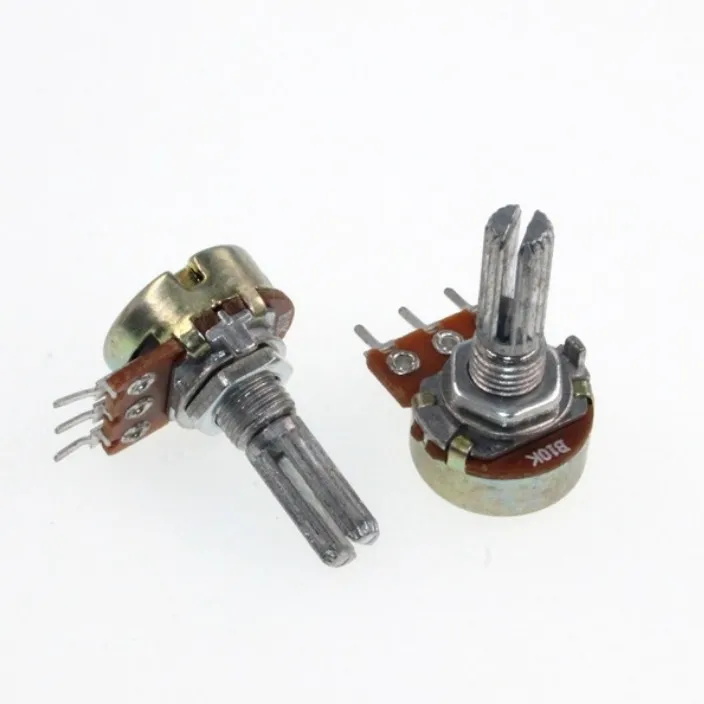

WH148 carbon film potentiometer on PCB board
| ||
WH148 carbon film rotary potentiometer with soldering wires
| ||

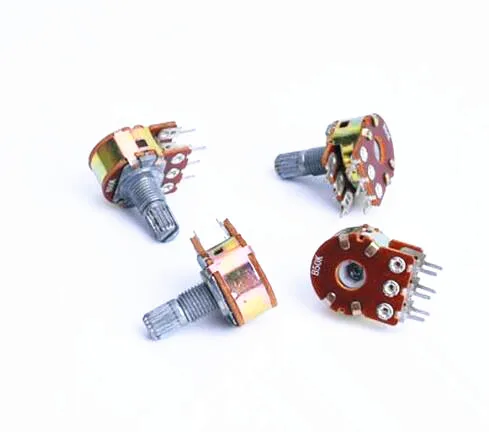

WH148 carbon film rotary dual potentiometer
| ||
WH148 potentiometer on PCB drawing
| ||
WH148 potentiometer with soldering wires drawing
| ||
WH148 dual potentiometer drawing
| ||
| WH148 Potentiometer Specification | ||
| Mechanical specifications | Total rotation angle | 300°±5° |
| Rotation torque | 2~20mN.m(20~200gf.cm) | |
| Shaft stop strength | 6Kgf.cm | |
| Push pull strength | 60N | |
| Electrical specifications | Total resistance | 5KΩ~2MΩ |
| Resistance taper | A,B,C | |
| Rated wattage | Curve B:0.125W | |
| Other curve B:0.063W | ||
| Max operating voltage | Curve B:200V AC | |
| Other curve B:150V AC | ||
| Insulation resistance | More than 100MΩat DC500V | |
| Dielectric | AC500V,1min | |
| Resistance tolerance | ±20% | |
| Rotational noise | ≤47mV | |
| Residual resistance | R≥250KΩ0.1%max of total resistance | |
| 250KΩ>R>10KΩ 20Ωmax 10KΩ≥R 10Ωmax | ||
| Tracking error | ~-40db±3db | |
| Mechanical life | Rotary life | 10,000cycles |
Our Packing
Our Factory
| ||
Production Line
| ||

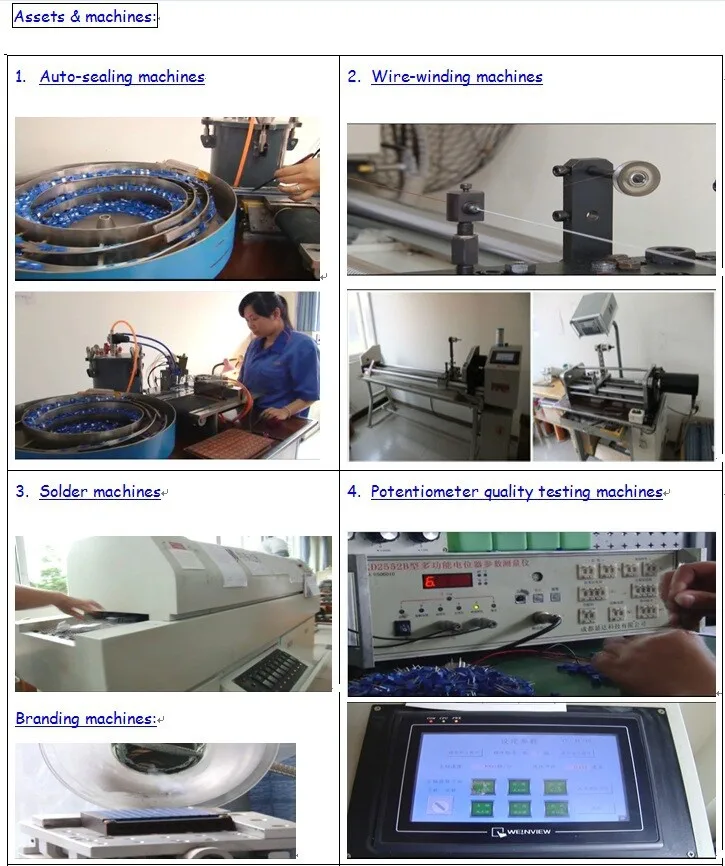

Assets & Mahines
| ||
Some Certification
| ||

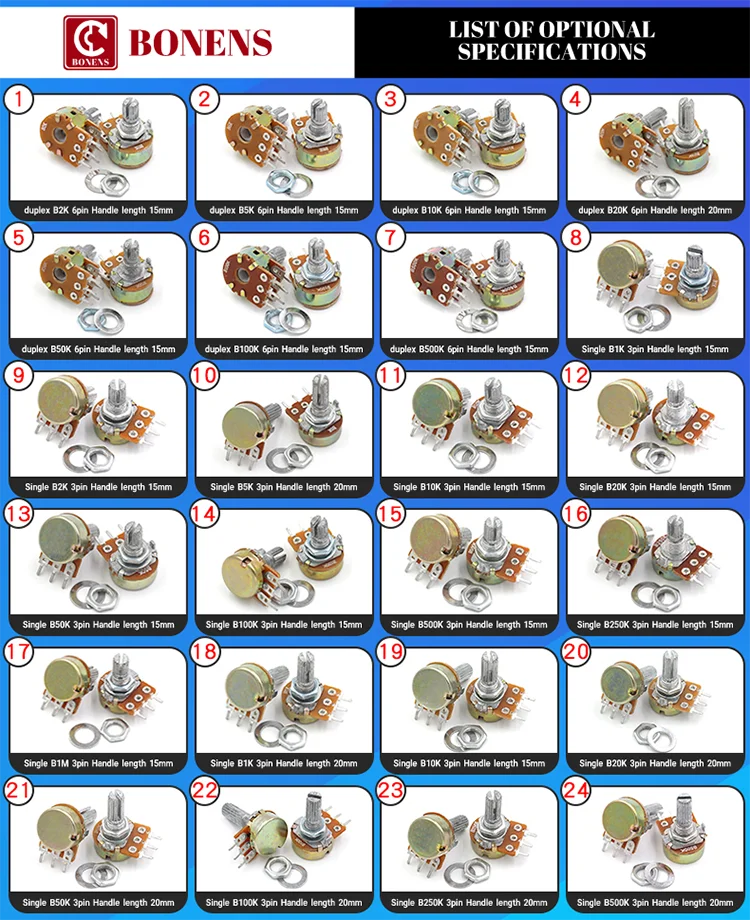

Other Potentiometer,Resistor,EMI filter from our factory
| ||
How to delivery
| ||
More informtion ,please kindly contact me
