HOTJIN
HOTJIN

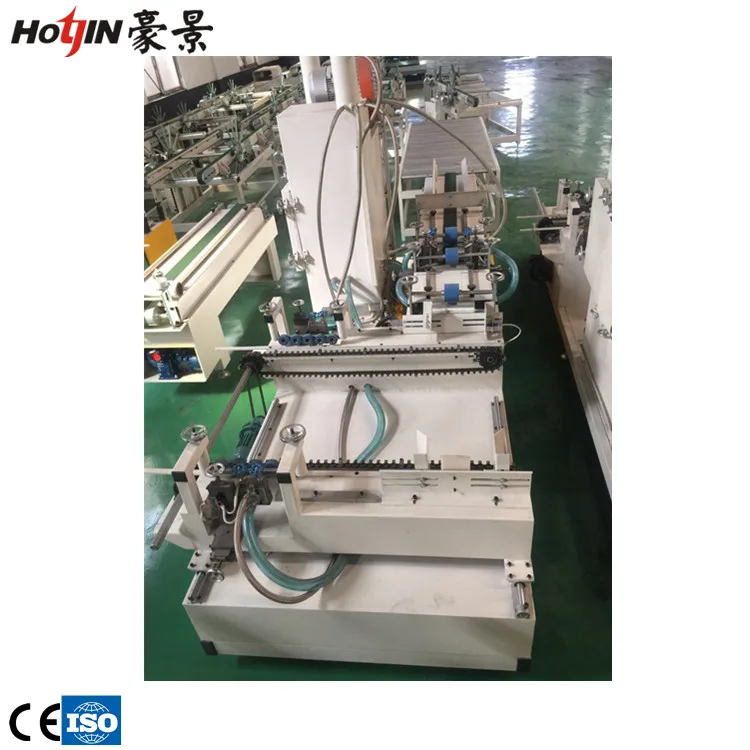

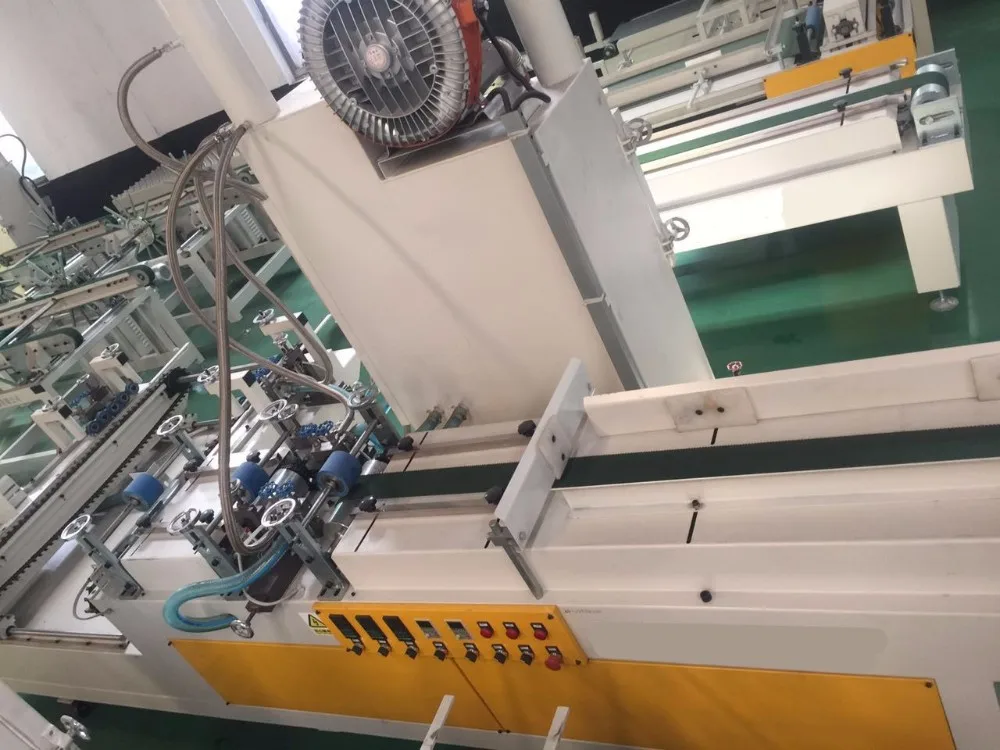

wax line

1. Function:
Make max into all grooves of wood flooring, ensure waterproof and in favor of connecting of flooring.
2. Major parameters:
1) Sealing wax floor length: 500-1300mm;
2) Sealing wax floor width: 80-350mm;
3) Sealing wax floor thickness: 6-25mm;
4) Sealing wax speed: 60-120m/min;
5) Overall dimension:5500×800×2200mm（Long side）
                                     2100×1700×1800mm（short side）
                                     1300×1100×1800mm（Vacuum wax box）

Technical Parameters

\t
model
\t
FZZ422Y
\t
power
\t
380v
\t
main motor power
\t
Long side conveyor motor
\t
1.1kw×1=1.1
\t
≈21KW
\t
Short side conveyor motor
\t
0.75kw×1=0.75
\t
Vacuum pump
\t
5.5kw×1=5.5
\t
Wax pump
\t
0.55kw×1=0.55
\t
Heating pipe
\t
2kw×6=12+1
\t
Processing size
\t
length
\t
810—1215mm
\t
width
\t
125—380mm
\t
thickness
\t
6—20mm
\t
Work efficiency
\t
0—90m/min
\t
The whole line size
\t
4400×1900*2200
\t
Remarks:total incoming line4×10square Equipment (to be reliably grounded)

Pre-sale

●Provide the information in time at customer requirement and make reasonable proposals and budgeting

●Give technical support for the customer's renovation of old facilities for free

●Provide service and support to the customer's other equipments

In-sale

●On-site planning for the customers by professional engineer

●Valuable advice and recommendations on the purchasing of other auxiliary accessories

●Free training for operators

After-sale

●For all sold prodcts ,provide one-year free door to door service,lifetime keep-up and maintenance service

●All-around keep-up,transportation and transformation of equipment

●Provide production and technical advisory service


Name：SUZHOU HOTJIN PRECISION MACHINERY CO.,LTD
Add：58 Pusha rd.,Puzhuang Industrial Park ,Wuzhong District,Suzhou city, Jiangsu province, China.
Tel：+86-512-66520585
Fax：+86-512-66520585
Post code：215105
Website：//www.hotjin.com.cn and //www.szhotjin.en.alibaba.com
