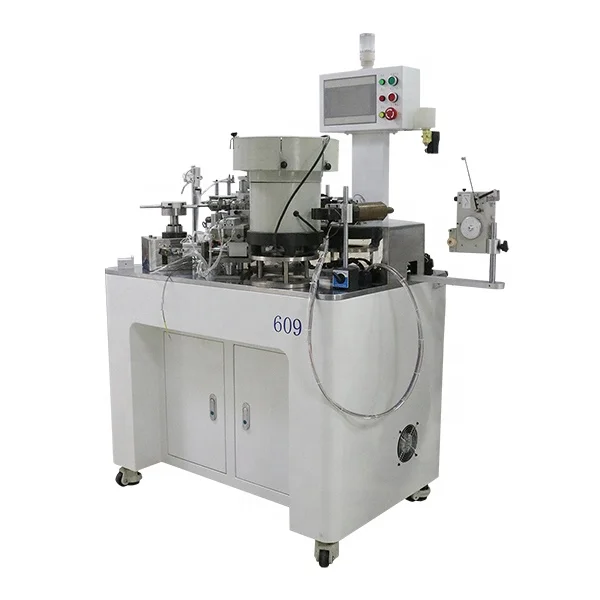

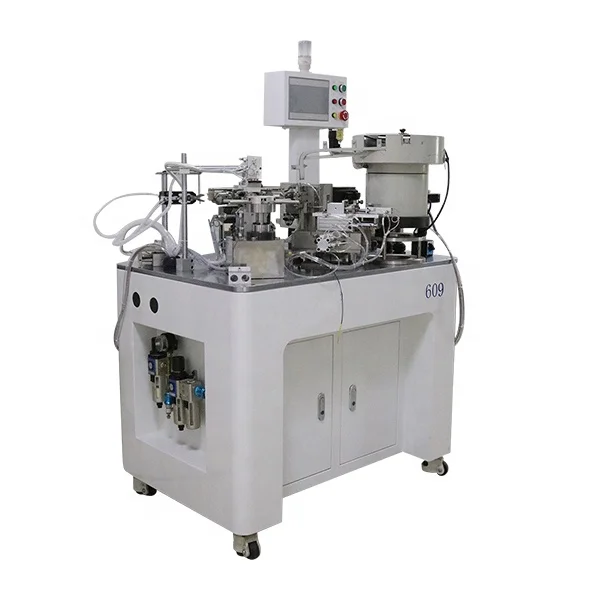

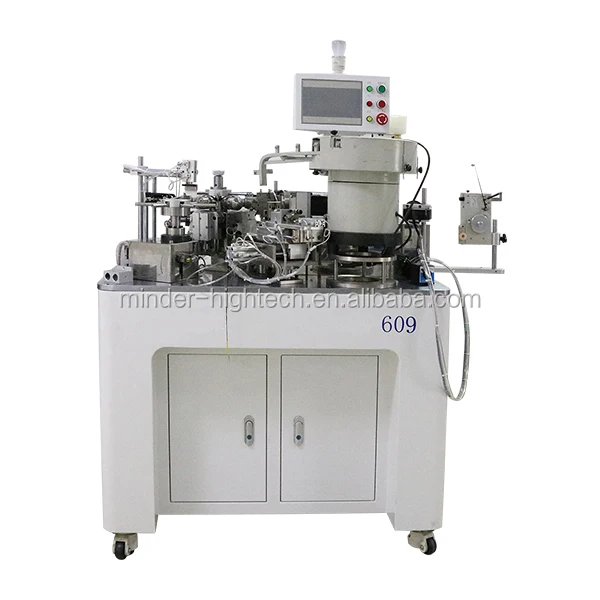

Automatic bobbin paper tube horn loudspeaker coil winding machine

Model

609

Power supply

AC220V±10% single phase 50/60Hz

Power consumption

About 2.8KvA

Wingding fork axle

1

Axle direction

Clockwise/ anticlockwise

Axis

3

Winding fork speed

Max.4800rpm(depending on the outside diameter of the flying fork)

Applicable wire diameter

0.02-0.45mm

Coil height

Max.10mm

Coil (inside) diameter

Max.Φ5mm

Coil (outside) diameter

Max.Φ30mm

Coil rotating method

6 fixtures spindles

Wire cutting method

Air pressure scissor

Coil welding and curing method

Fixture preheated, and heating curing after winding

Applying method of release agent

Programmable

Control system

Touch screen

Step memory

9999

Tensioner

Servo tensioner

Temperature

0-700℃

Gas supply

0.4Mpa~0.8Mpa

Dimension

750*1360*1560mm

Weight

350KG
