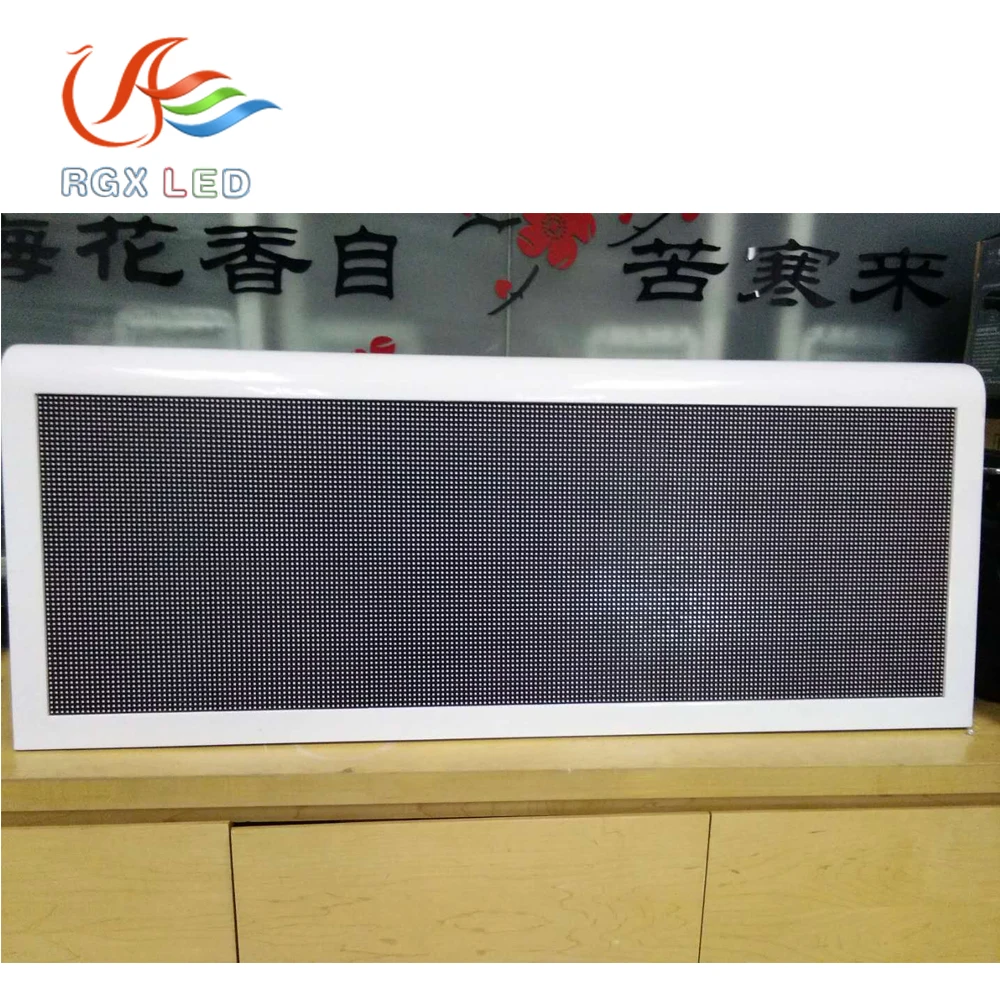

RGX Wifi 3G 4G control P5 Car Top LED Display panel for video screen 960x320mm
- Category: >>>
- Supplier: Shenzhen RGX Electronics Co. Ltd.
Share on (60769646970):
Product Overview
Description
Wifi 3G 4G control P5 Car Top LED Display panel for video screen 960x320mm
1. Hot eye-catching AD tool! Advertising effectiveness increased by 300%!
2. Simple installation,RGX WIFI, 3G, USB control system, say goodbye to the wire.
3. High definition, High brightness, Wonderful pictures/videos showed!
4. Aluminum shell, elegant, durable, better heat eliminable and more lightweight!
5. Usual car DC 12V battery power, 24 hours advertising is ok!
6. CE, RoHS, Hight quality product and 5 years warranty!
7. LED Chip: Supplied by Nichia of Japan & Cree of USA & Epistar of Taiwan or other high strictly selected LED chip, assure high definition show effect.
8. Wide viewing angle 120/160°, perfect and impressive viewing effect.
9. Easy Installation: Beautiful standard cabinet or your required cabinet, with aviation plug&socket+handle+lock+side lock, easy to connect cabinets.
10. Seamless Splice: good flatness cabinet with side lock, can make the screen show imagine without splice.
11. High quality IC selection: MBI5024/5035/5036/5039/5042, JXI5020, TLC59283 or other types you require.
12. Famous power supply selection: Meanwell, E-energy, Greatwall etc., CE certified.
Product Description
RGX P5 led display full color description:
Unit Module | Item: | RGX outdoor SMD led display Parameter |
Model: | P5mm full color outdoor led module | |
Pixel Pitch: | 5 mm | |
Pixel configuration: | 1R1G1B SMD 3in1 | |
Module Size: | 160mm * 160mm | |
Module Resolution: | 32dots(W) * 32dots(H) | |
Module Thickness: | 18mm | |
Module Weight: | 0.48 KG | |
LED type: | SMD 2727 | |
Max Power: | 18.5W | |
Pixel Density: | 40000 dots / SQM | |
Driving Method: | Constant Current Driving | |
Scan Method: | 1/8 Scan | |
Interface Way: | HUB 75 | |
Brightness: | ≥ 5500CD /SQM | |
Unit Cabinet | Cabinet Size: | (Support Customize) |
Power Supply Mode: | 5V/40A 5V/60A | |
Cabinet Resolution: | 96dots * 96dots | |
Best Viewing Distance: | 5-300M (according to the big screen size) | |
Optimal Viewing Angle: | Horizontal angle: 160 degree; Vertical angle: 90 degree | |
Environment Temperature: | Storage: -40 degree `~ +85 degree Work: -20 degree ~ +60 degree | |
Relative Humidity: | 10% ~ 95% | |
Power | Operating Voltage: | AC:100V~120V AC:220~240V |
Average Power: | 180-260W/ SQM | |
Max Power Consumption: | ≤ 600W | |
Current: | ≤ 20mA (single LED) | |
Control System | Computer: | Pentium4 or above P4 or above |
Operate System: | Win98/2000/NT/XP/7/10 | |
Control Mode: | Synchronization with PC | |
Main Technical Parameter | Driving Device: | IC Constant Current Driving (RGX) |
Refresh Rate: | ≥ 1920Hz | |
Gray/Color: | RGB each 256 grade, can display 16.7color | |
MTPF: | ≥ 9000hours | |
Power Switch: | RGX Brand Automatic Switch |

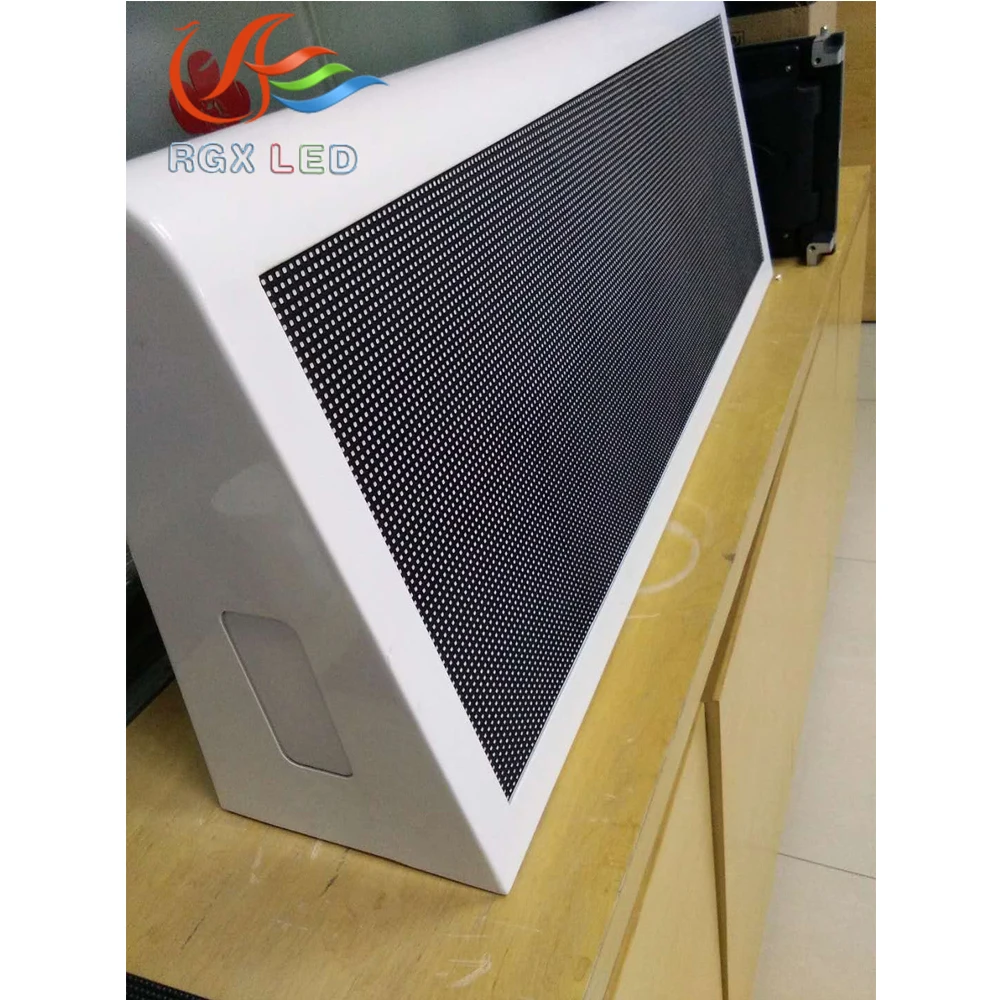

Show Photo Details:

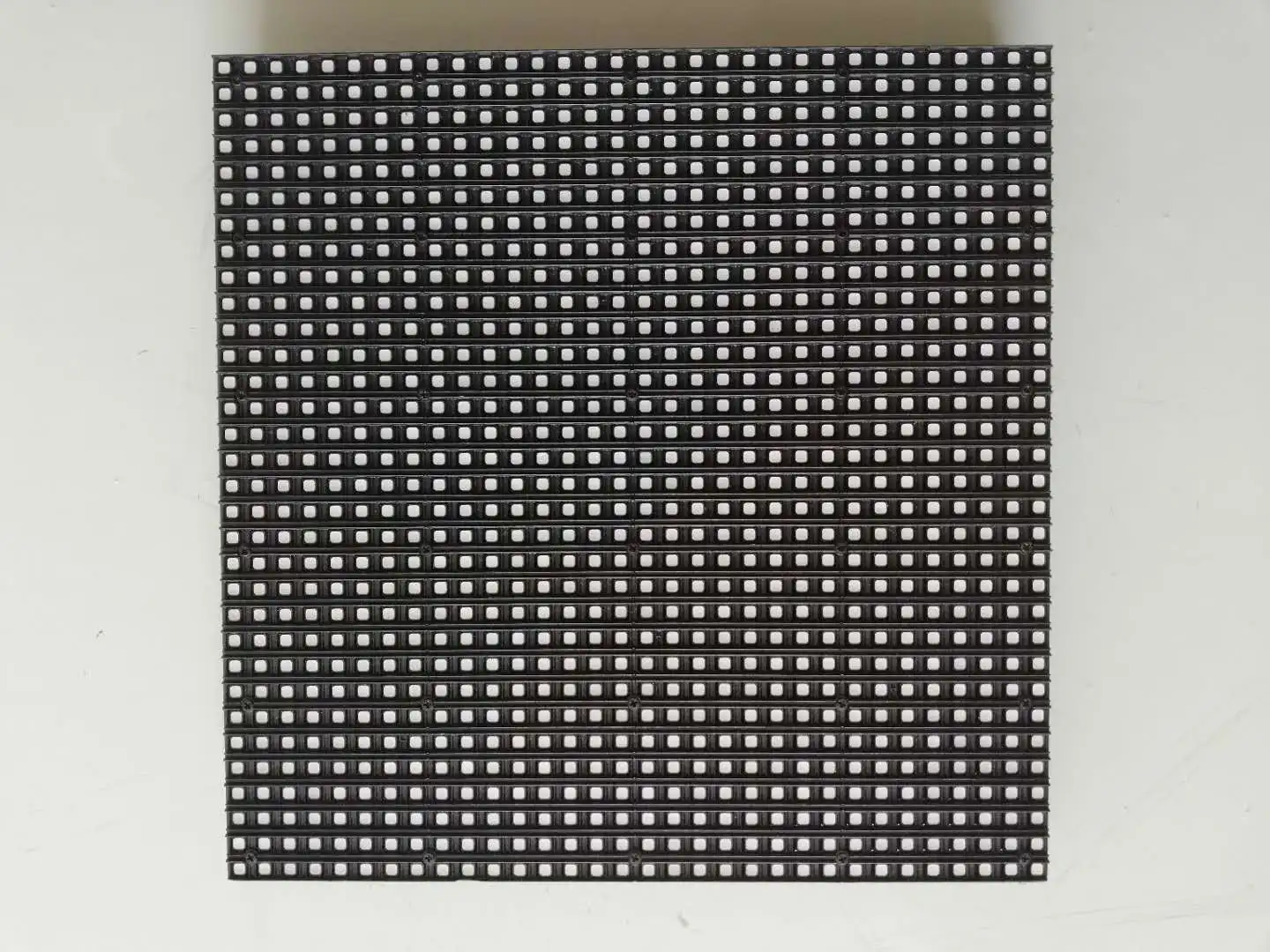

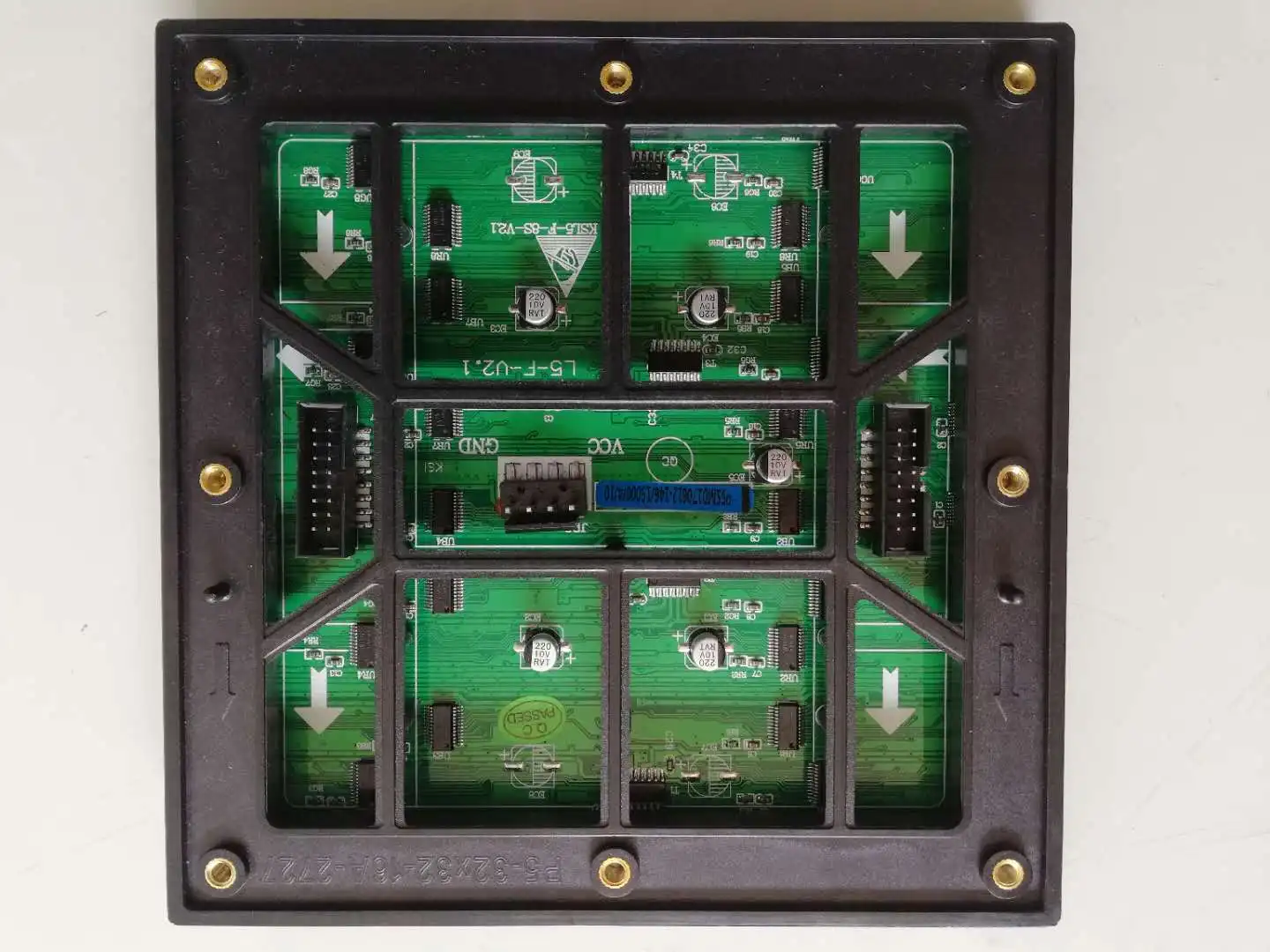

RGX LED P5mm module photo:

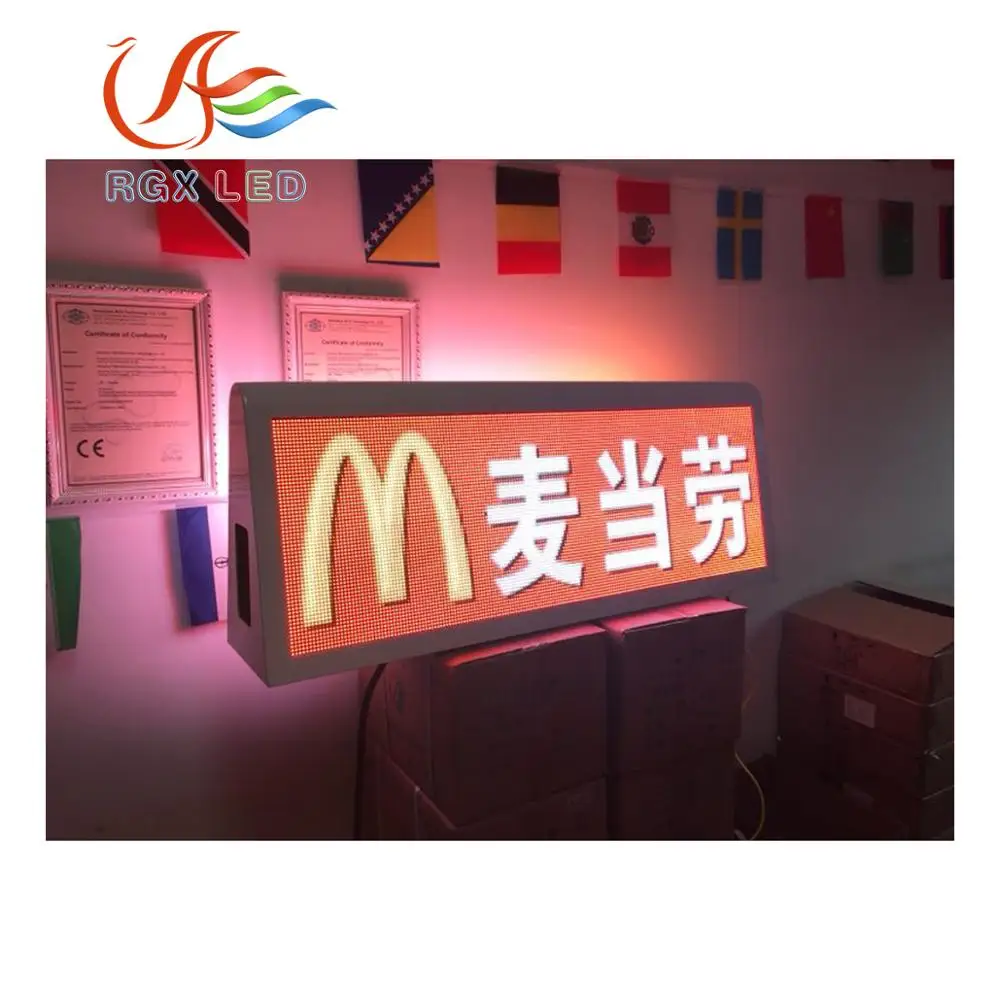

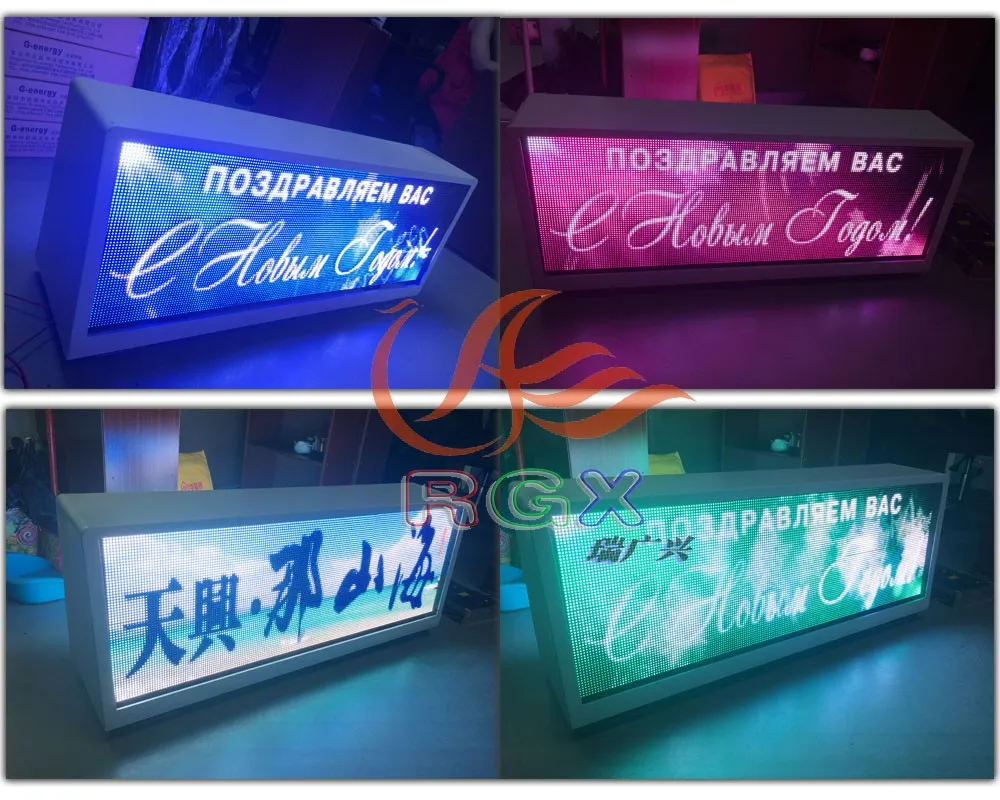

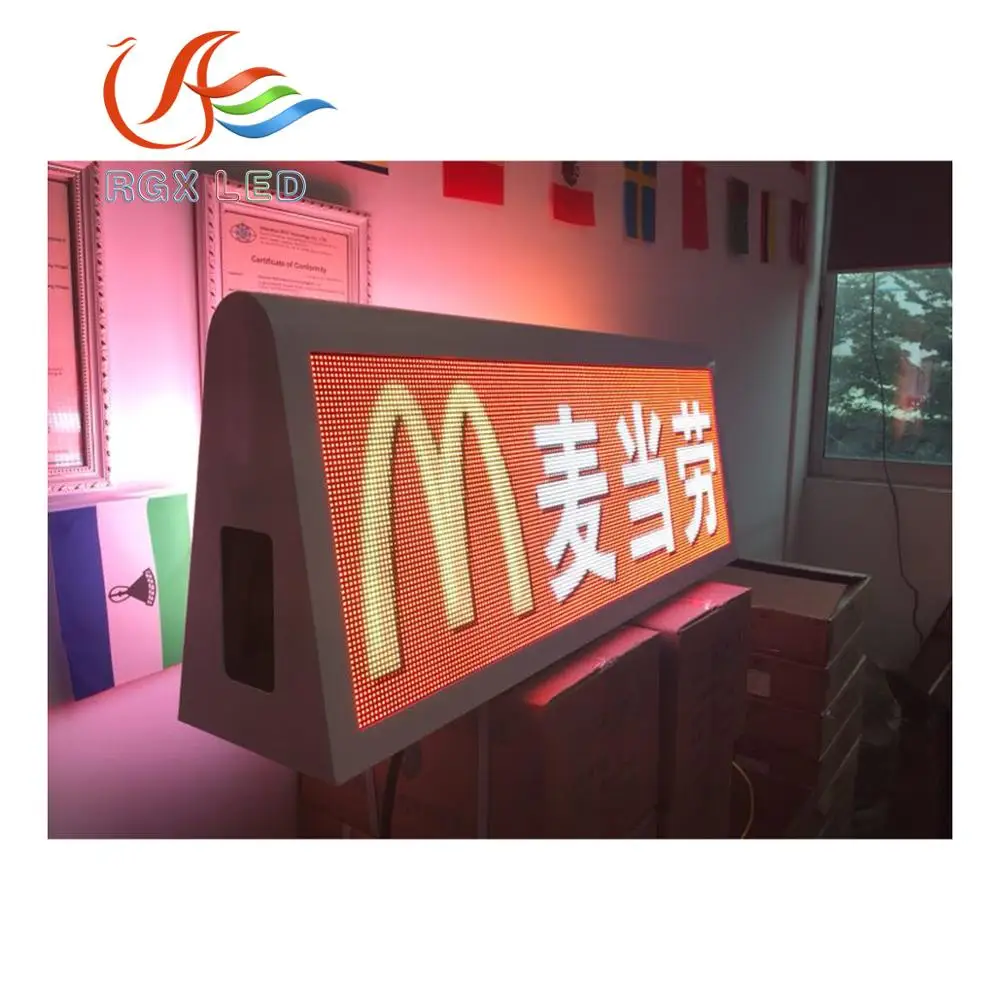

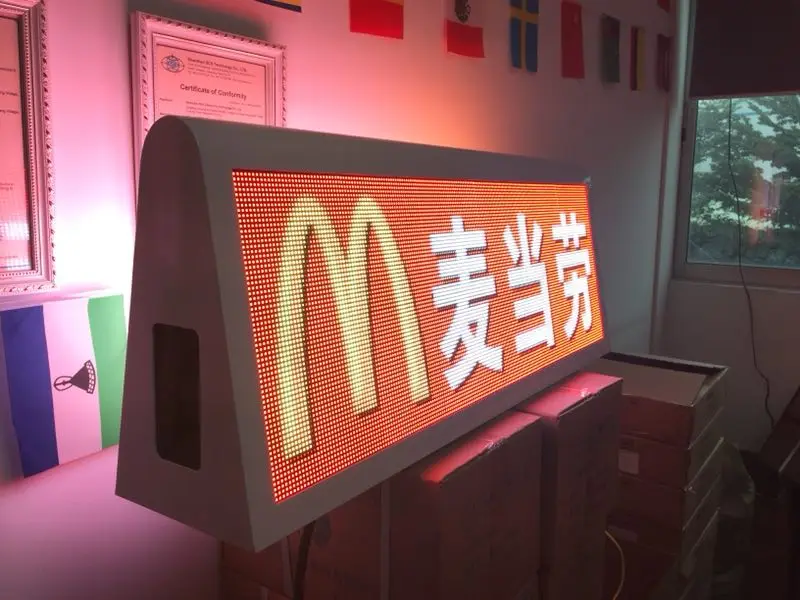

wifi 3G 4G control P5 LED taxi top display with double sides screen real show

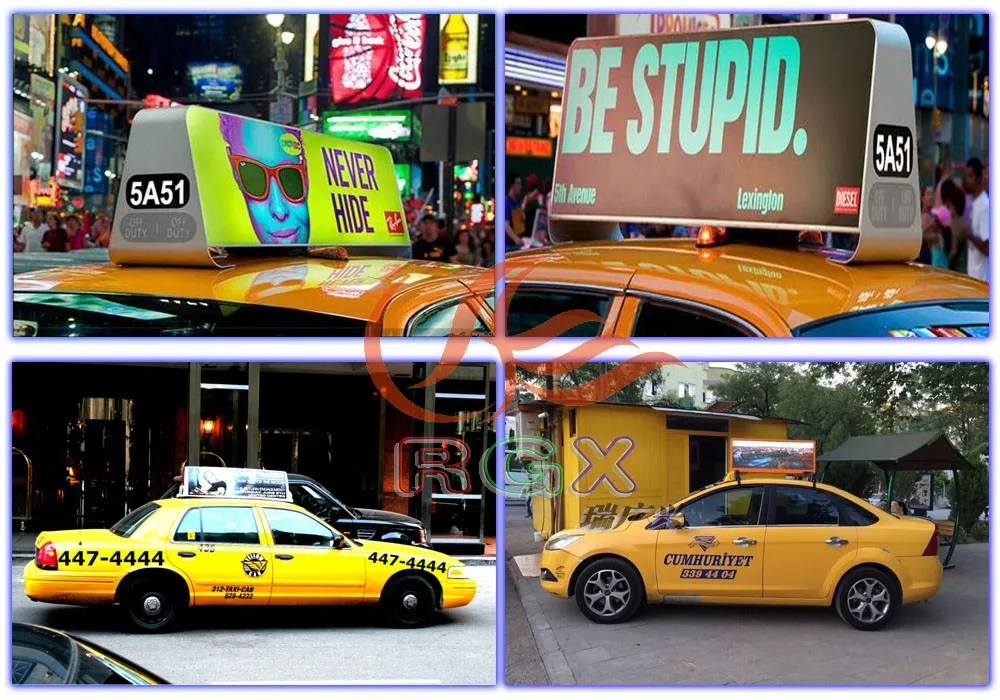

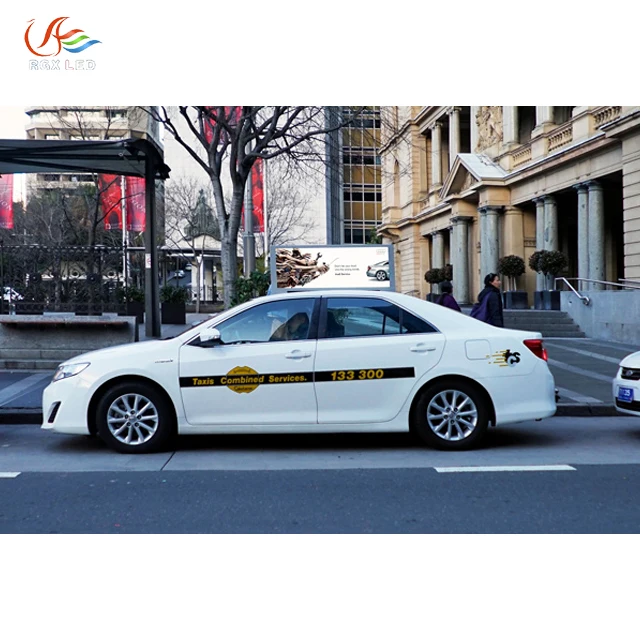

Application of Wifi 3G 4G control P5 Car Top LED Display panel for video screen 960x320mm
About Us
Quality Control
Test: Each producing step of full color led display we have strict test.

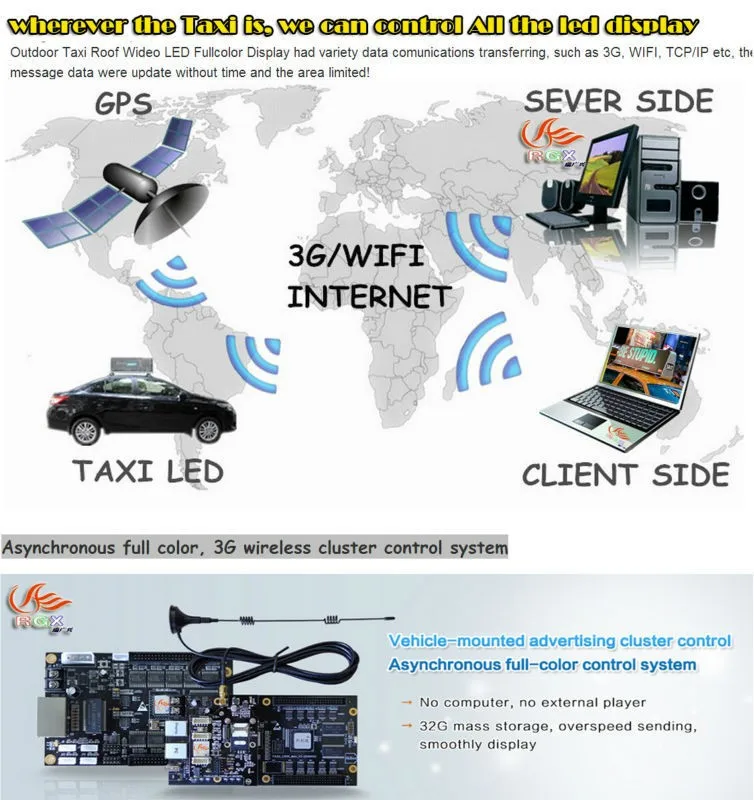

RGX led display screen system:

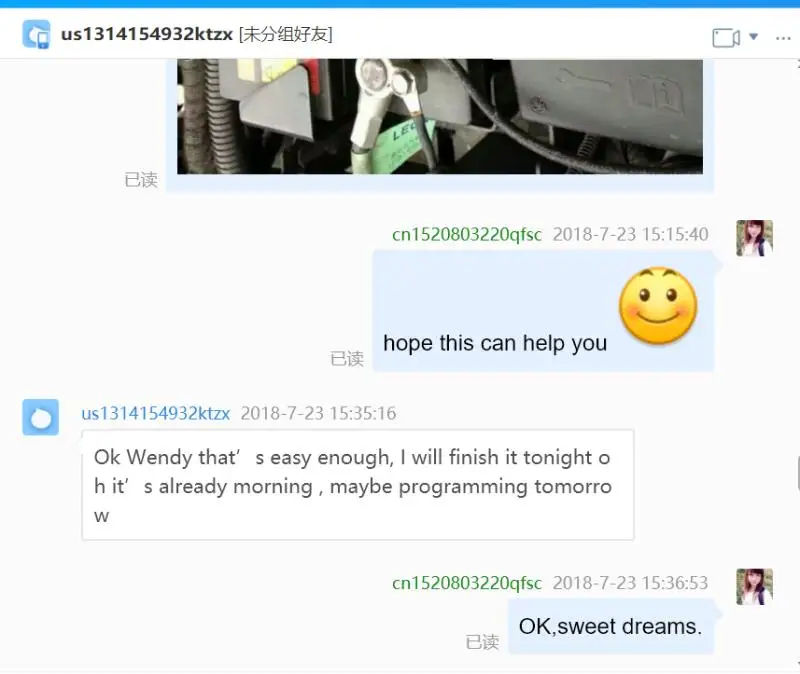

Tech. Support: If the LED display get some problem how do to do?
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
Any question please add my wechat/ whatsapp +86137 1700 8357 for quick response or send your detailed inquiries in the belows for free samples, click"send"Now.
