Atlas Copco Drill rigs and rock drills

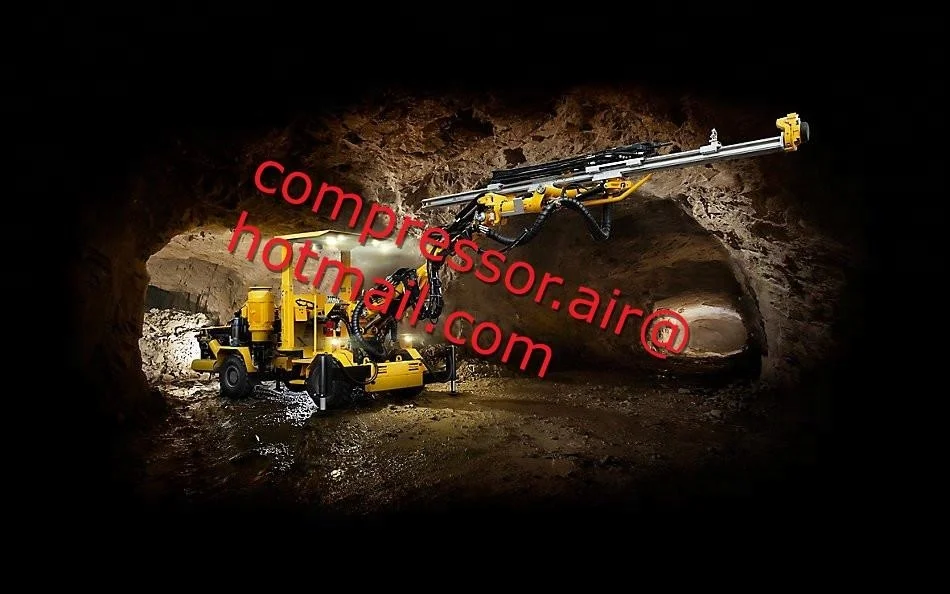

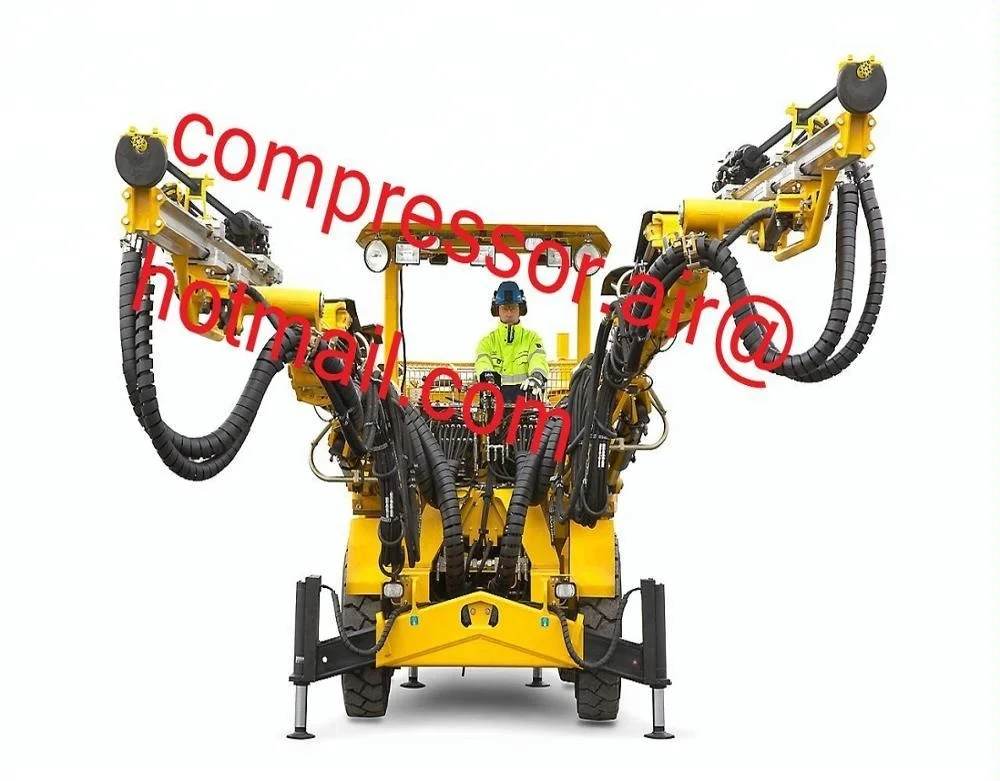

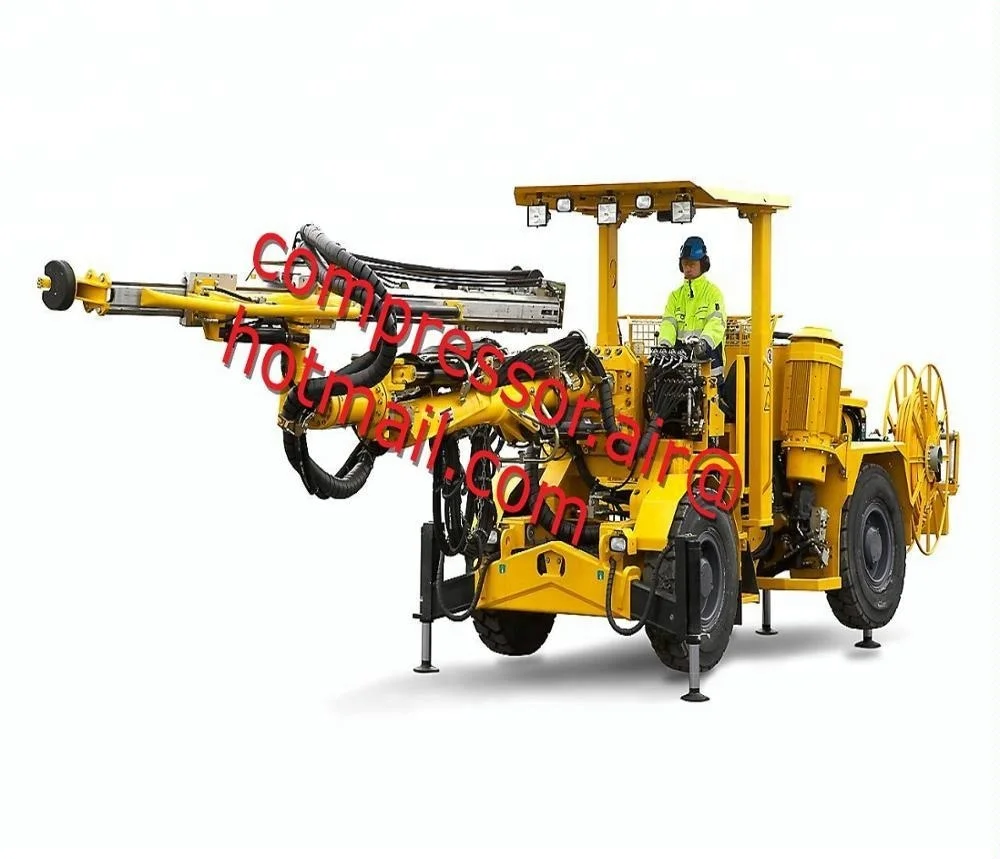

(AC Drill rigs and rock drills ) Cabletec LC: Cable bolting rig

Cabletec LC is a fully mechanized rig for long-hole drilling and cable bolting. It has a two-boom system for hydraulic tophammer long-hole drilling in combination with cable bolting. The rig features automatic drilling and cement handling systems that, together with the high capacity steel strand reel, ensures top performance and high quality bolt installations.

Technical data

Air system
Capacity, max	20 l/s at 7 bar
Cement grouting system
Cement mixer, volume	114 l
Cement silo, max load dry cement	1000 kg
Bolting system
Cable bolt	Standard 15.2 mm/bulb cable
Grout hose reel, max hole length	25 m
Grout hose diameter, outer	29 mm
Grout hose diameter, inner	20 mm
Steel strand cable reel load, max	1700 kg
Carrier
Protective roof, FOPS-approved	Yes
Power rating	120 kW at 2300 rpm
Tires	14.00xR24
Tramming speed on flat ground	>15 km/h
Tramming speed on incline 1:8	>5 km/h
Control system
Control system	Rig Control System, RCS
Dimensions and weight
Height with canopy	3133 mm
Height with cabin	3093 mm
Length	14333 mm
Ground clearance	265 mm
Turning radius, inner	4500 mm
Turning radius, outer	7400 mm
Width	2750 mm
Electrical system
Total installed power	105 kW
Voltage	400-1000 V
Frequency	50-60 Hz
Main motors	1x95 kW
Hydraulic system
System pressure	150 - 240 bar
Hydraulic oil tank volume	200 - 250 l
Positioning system
Boom	BUT 35BS
Boom extension, max	1600 mm
Boom lift	+45°
Feed extension (with 4' drill steel)	900 mm
Feed extension (with 5' and 6' drill steel)	1200 mm
Water system
Capacity, max	250 l/min at 15 bar
Rock drill
Rock drill	COP 1638, COP 1838ME, COP 1838MUX

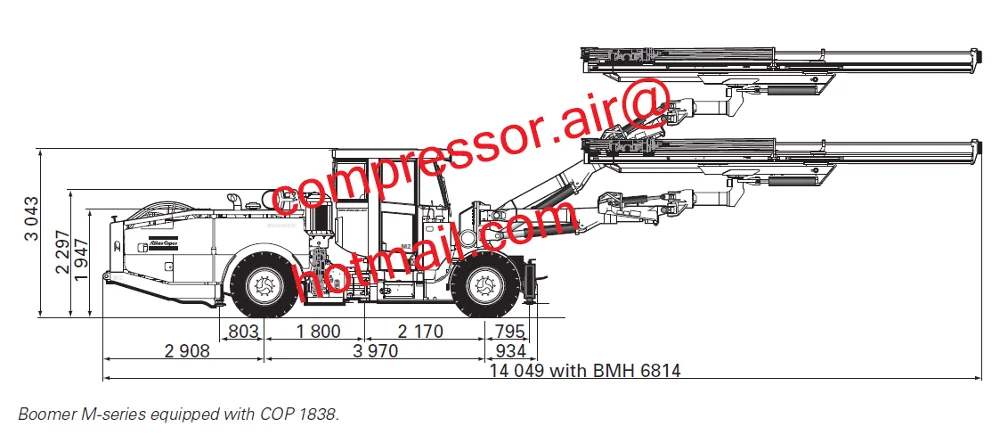

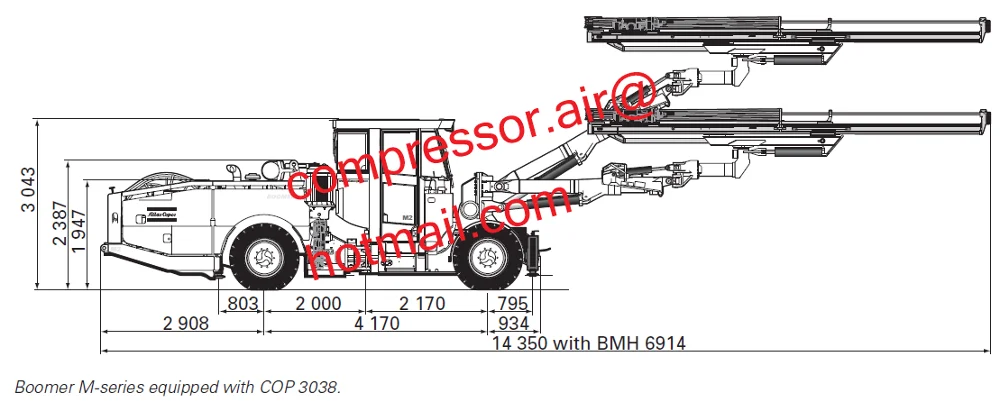

Boomer M

Boomer M is a robust face drilling rig for tunneling and mining applications.

Robust drilling rig

Unique bolting boom

Lower operational cost

The BUT 36S booms and side platforms on both sides of the operator station make it possible to swing the feed to a position where the operator can safely load bolts without going in front of the machine.

Reliable face drilling

Boomer M is a robust face drilling rig for tunneling and mining applications with a coverage area up to 65m2. An optional ROPS/FOPS certified cabin provides a comfortable operator work environment. The easy-to-use, ergonomically designed controls boost operator productivity. The BUT 36S booms and side platforms on both sides of the operator station make it possible to swing the feed to a position where the operator can safely load bolts without going in front of the machine. When you need high performance drilling, you can rely on the Boomer M to safely increase your production.

Downloads

Boomer M-series technical specification
Boomer M2 Battery technical specification

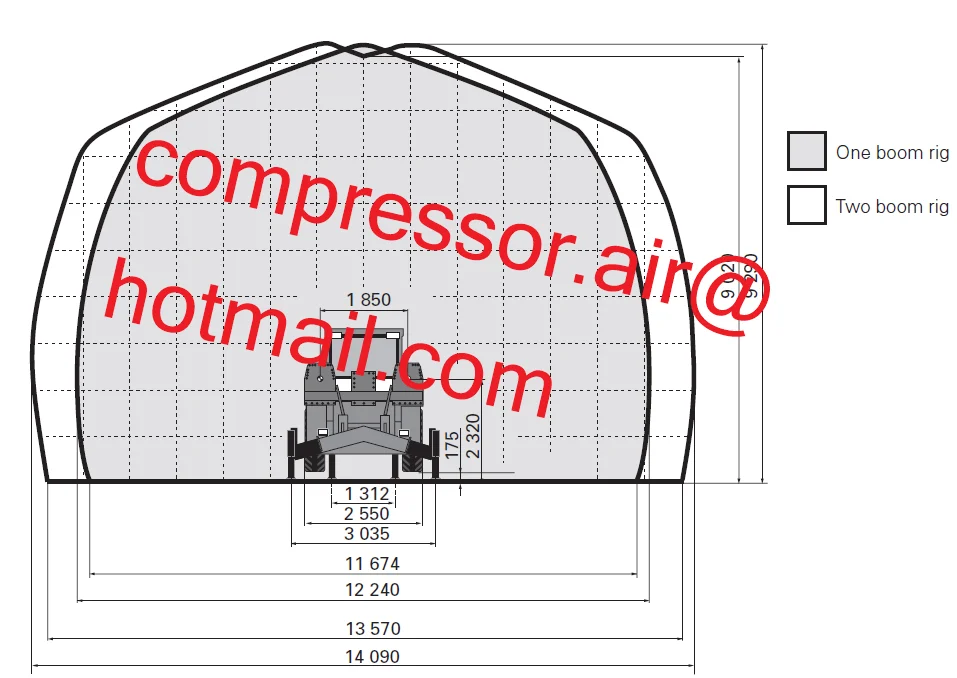

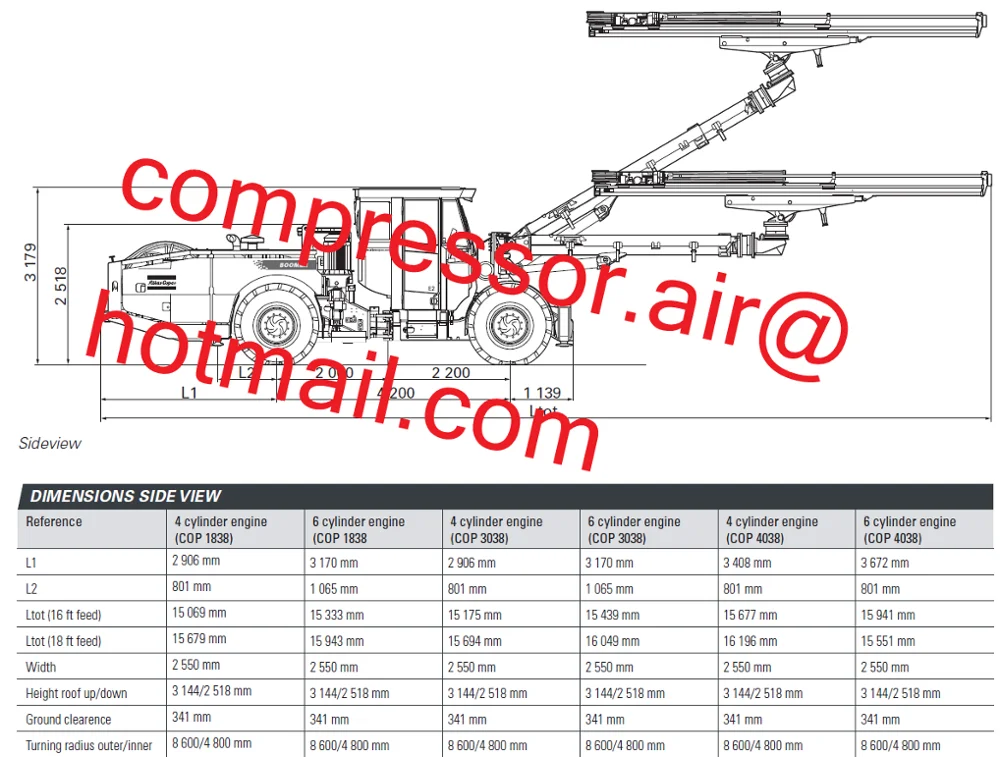

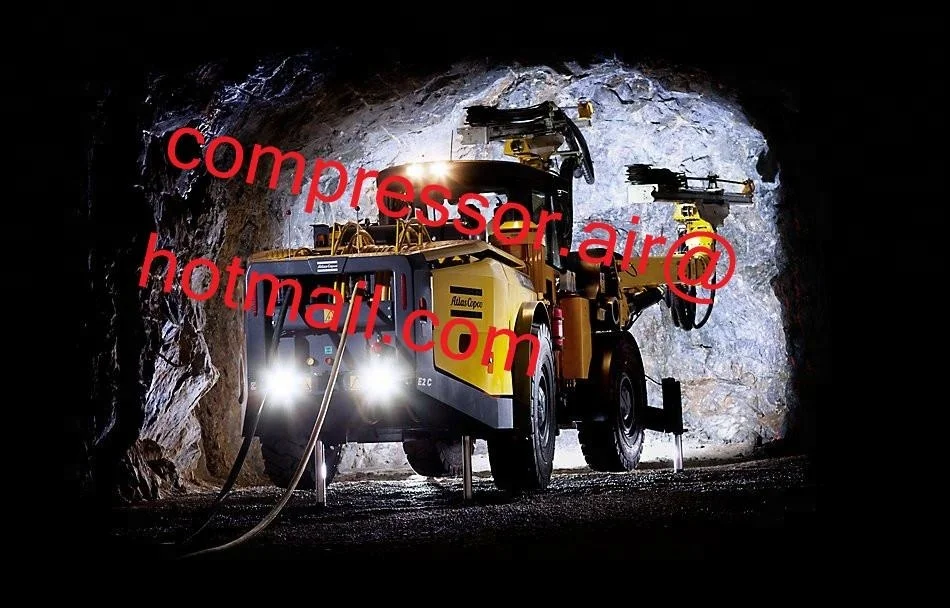

Boomer E

Ideal for large mining applications and construction projects

Concentrated power

Solid investment

Easy to control

Long-wearing drill steel, high drilling accuracy and reduced overbreak make Boomer E series a solid investment

Power for productivity

Boomer E1 and Boomer E2 rigs have extensive coverage areas of up to 112 m2, making them ideal for large mining applications and construction projects. Thanks to their compact design, these rigs can also fit in relatively small tunnels. The two robust and flexible BUT 45 booms and COP rock drills optimize productivity. Drilling is controlled by the computerized, award-winning Rig Control System to ensure precision, productivity, maximized uptime and lower costs. Long-wearing drill steel, high drilling accuracy and reduced overbreak make the Boomer E series a solid investment.

BOOMER E3/E4 SERIES

Hydraulic face drilling rigs for medium to large drifts and tunnels with cross sections up to 205 m²

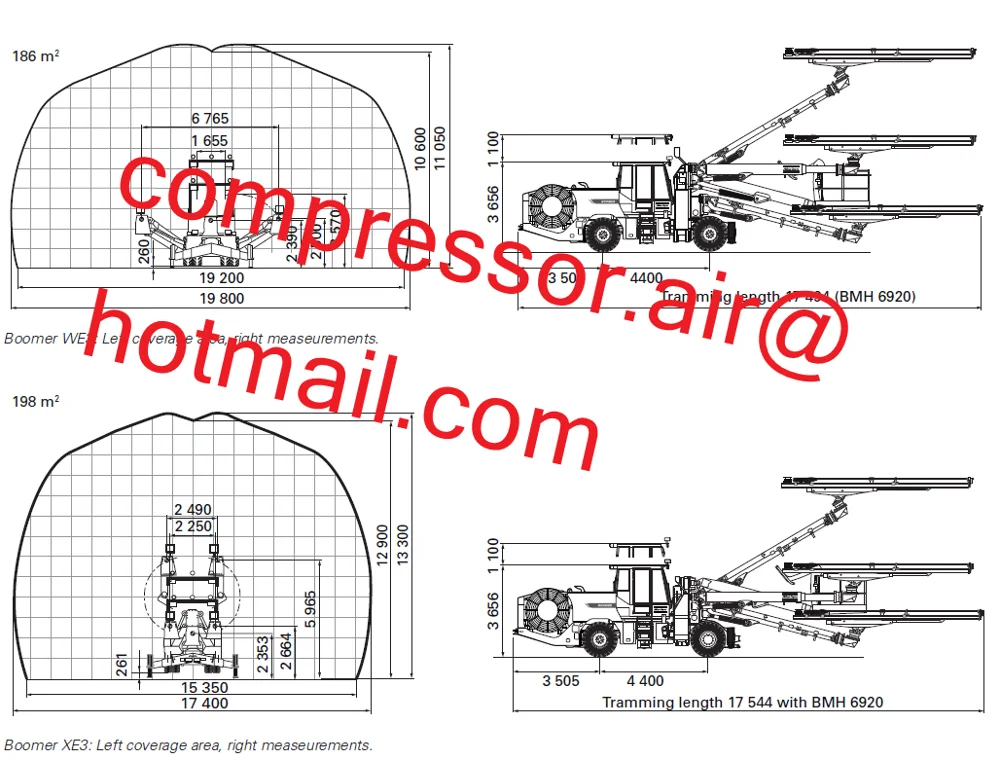

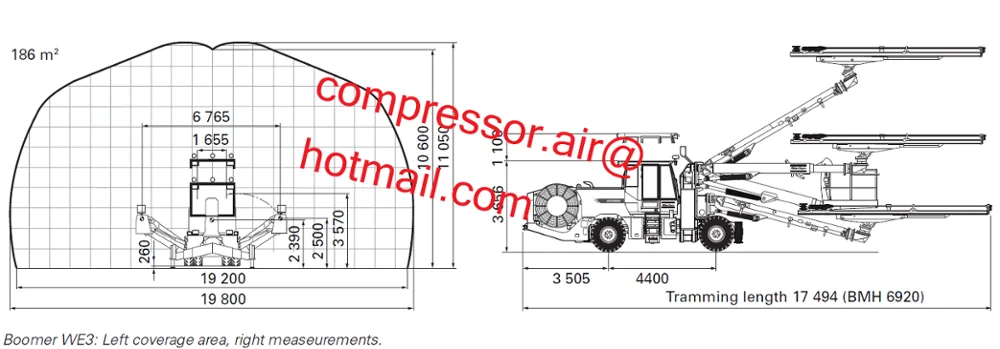

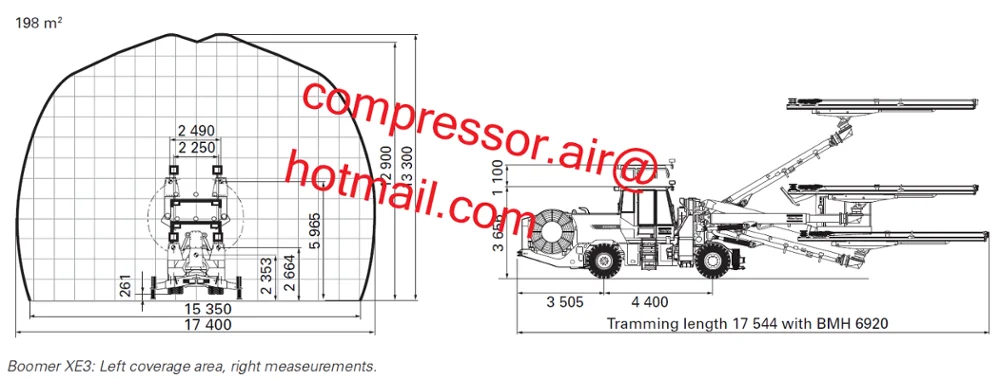

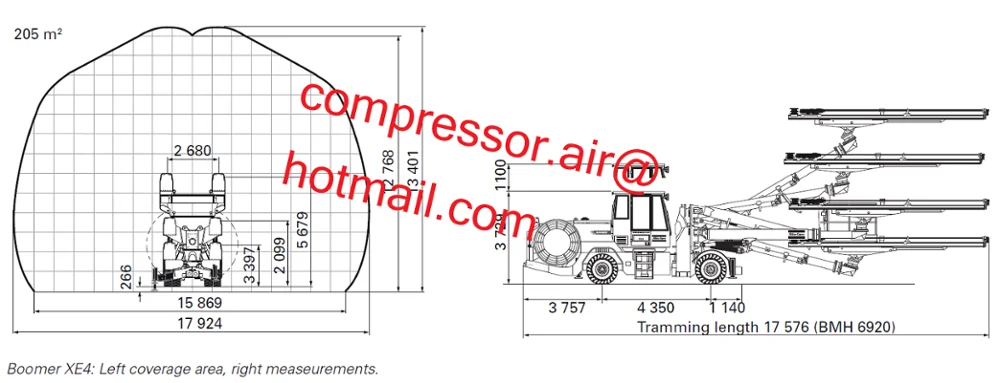

Boomer XE/WE

Hydraulic face drilling rigs for medium to large drifts and tunnels.

Safe, easy operation

Flexible and versatile

Smart investments

To optimize uptime, these rigs have self-diagnostic capabilities.

Powerful productivity

Boomer E3 and Boomer E4 are hydraulic face drilling rigs for medium to large drifts and tunnels with cross sections up to 205 m². Even in the toughest rock conditions, breaking ground is easy with the heavy-duty But 45 boom. Boomer E series drill rigs are equipped with our internationally acclaimed rig control system. To optimize uptime, these rigs have self-diagnostic capabilities. Given their long-lasting drill strings, high drilling accuracy and reduced overbreak. The hard working Boomer E3 and Boomer E4 rigs make excellent investments.

Downloads

Boomer E3/E4 series technical description

Suitable rock drill

Suitable rock drill
COP 1838HD+
COP 2238HD+
COP 3038
COP 4038

Face drill rigs

Mining and tunnelling jumbos for drifting / face drilling

Epiroc’s face drilling rigs are used for blast hole drilling in underground mining and tunneling. The rigs are equipped with up to four booms, covering cross sections from 6 m2 to 206 m2. We offer rigs with our reliable Direct Control System, DCS, or with the computerized Rig Control System, RCS, to which different levels of automation may be added. An extensive range of rock drills is available from 16 kW to 40 kW of impact power.

Smart underground drilling

With the optional Rig Control System you can add easy-to-use automated functions to increase safety, precision and production.

Highly effective and reliable

Epiroc offers the largest rock drill range on the market, including the world's fastest 40 kW rock drill to meet your needs in challenging conditions.
