CZJB 90 12 бесщеточный мотор 250 Вт 12 дюймов E велосипед мотор для центрального движения
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60769722961):
Product Overview
Description
Product Description
Integral Wheel Motor
LIGHT WEIGHT:3.2KG
Rated Voltage(V) | 24/36/48 |
Rated Power(W) | 180-350 |
Rated Speed(km/h) | 25-30 |
Temperature(℃) | -20～45 |
Rated Efficiency(%) | ≥82 |
Hall Sensor | Optional |
Integrate Speed Sensor | Optional |
Color | Shining/Black/Silver |
Wheel Size | 12" |
Redution Ration | 1:4.4 |
Weight（kg） | 3.2 |
Open Size(mm) | 120 |
Cable Location | Shaft Center Right |
Brake Type | V /Disc Brake |
Noise(db) | <55db |
Waterproof Grade | IP65 |
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.

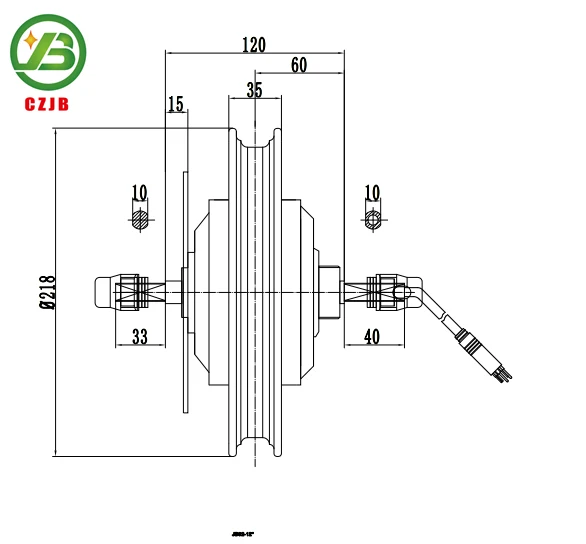

Installation specifications:
