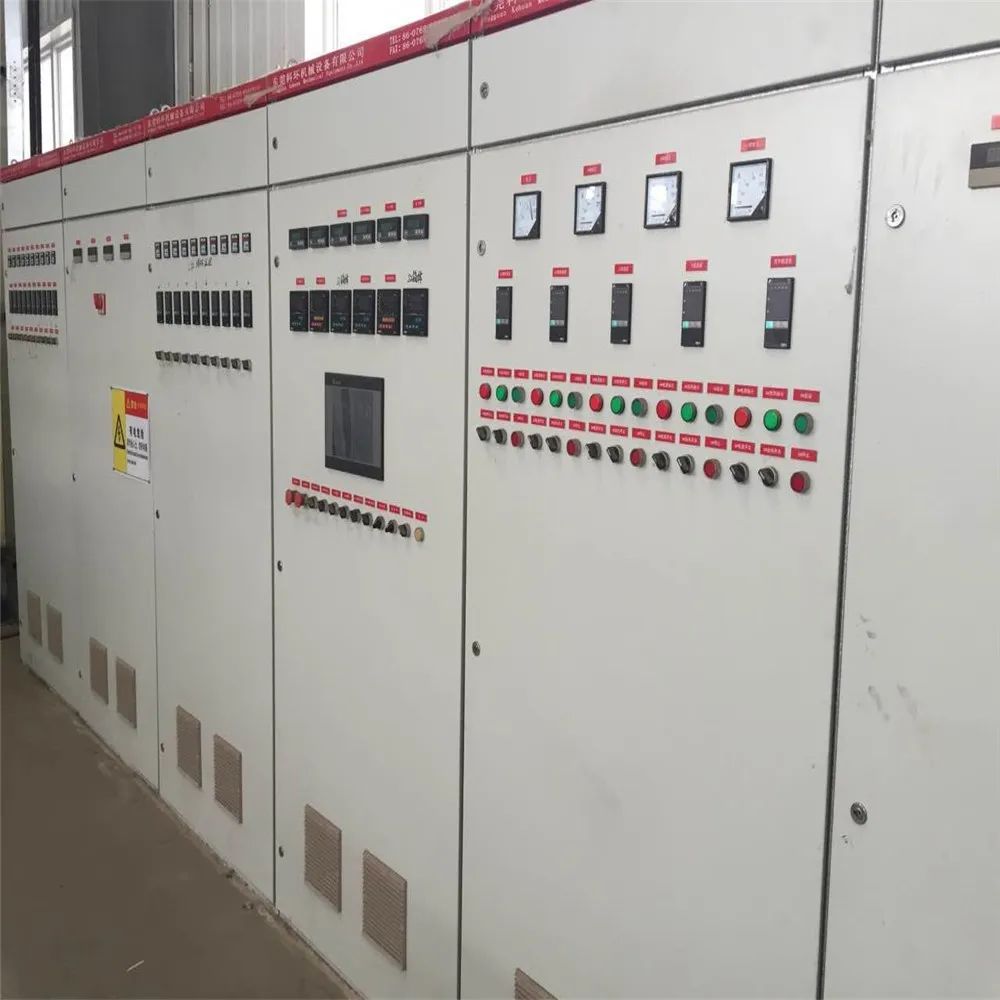

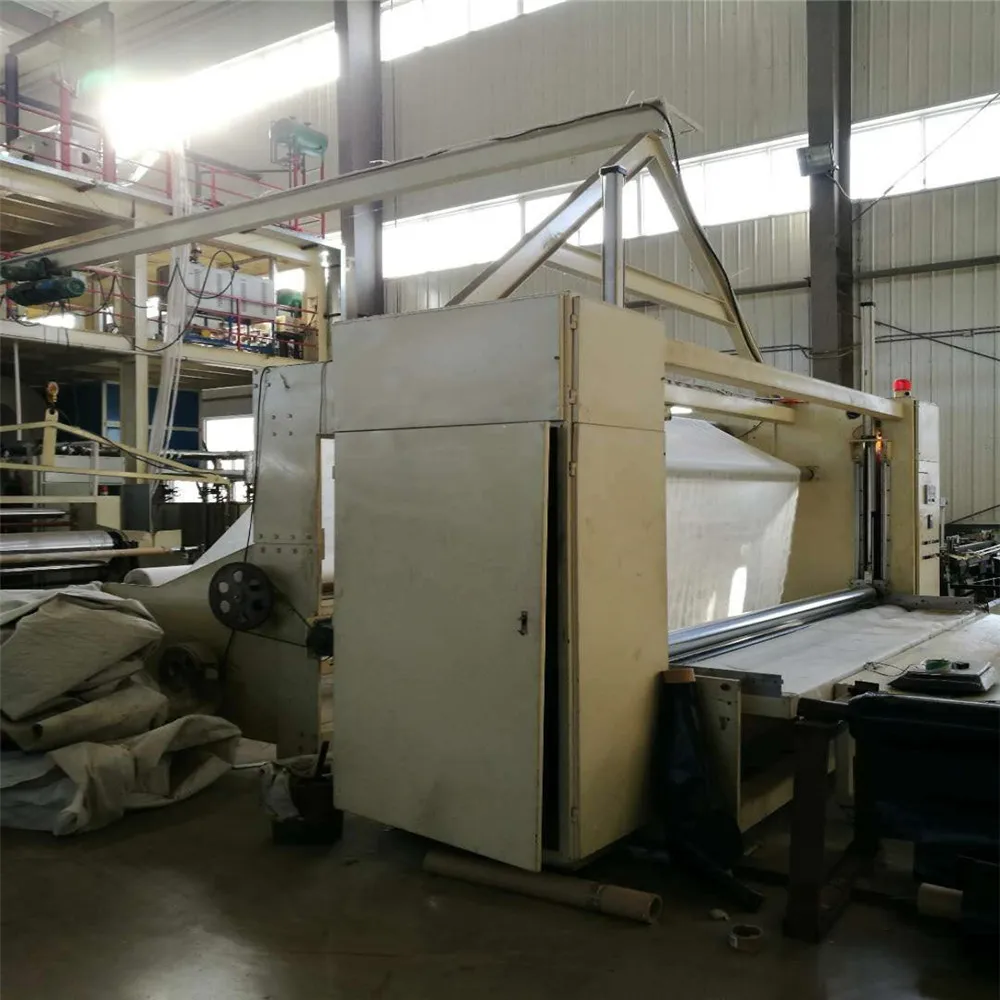

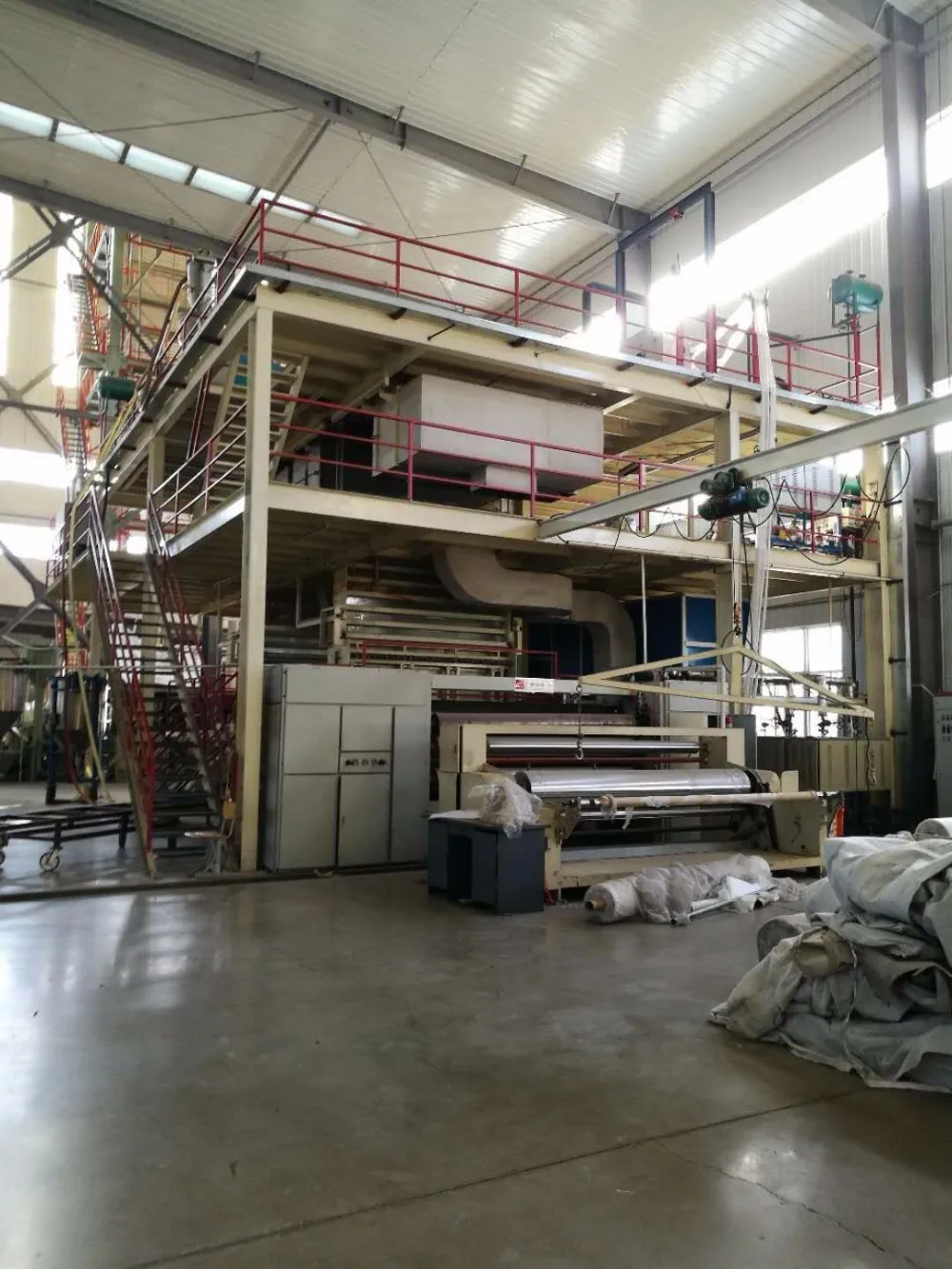

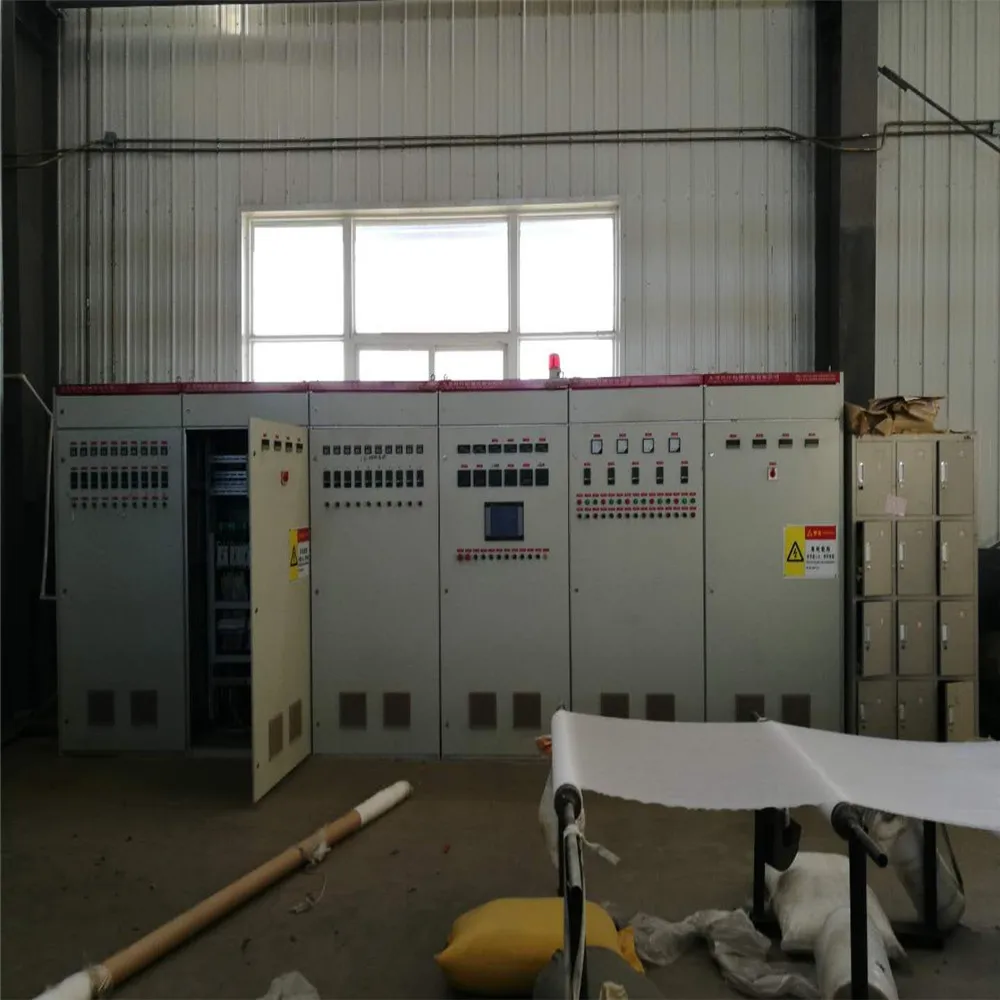

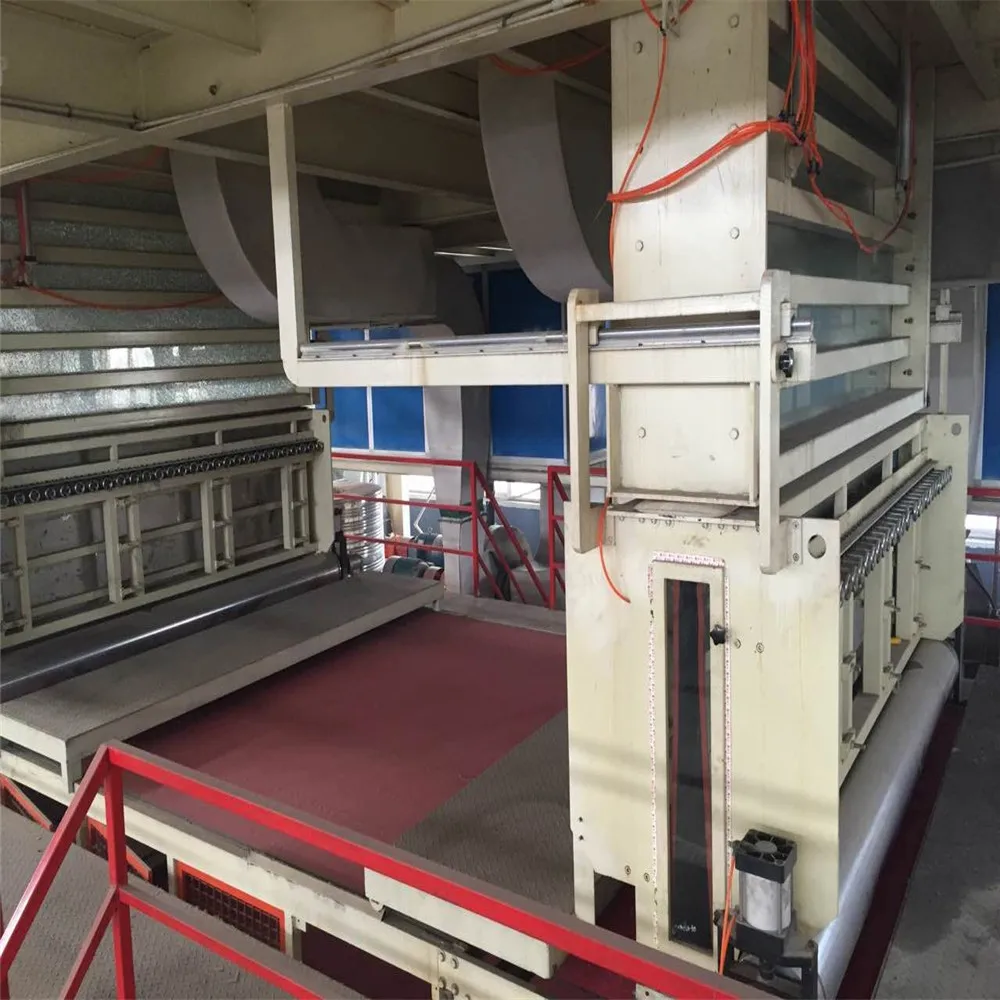

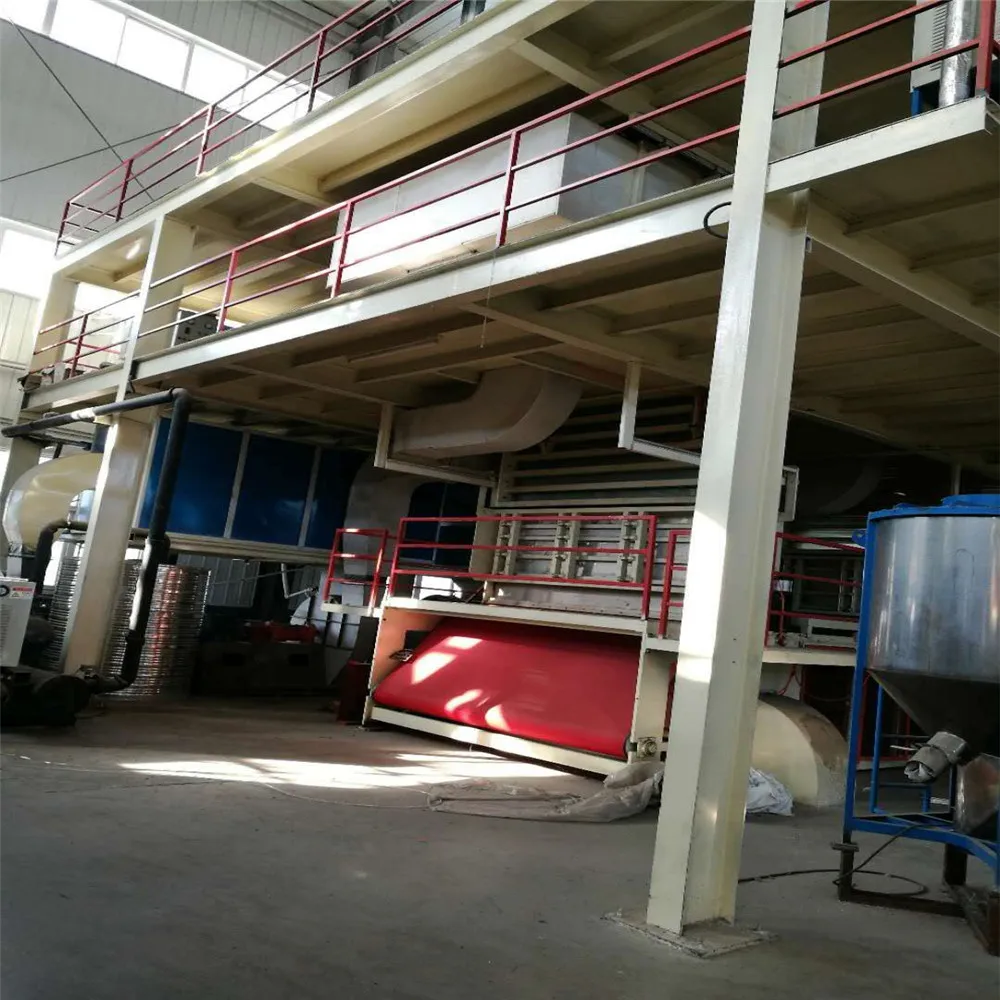

Second hand automatic nonwoven production line non woven fabric making machine

1. Production Line Requirement

(1) Main Meterial: Polypropylene chip

(2) Filament Number: 1.8 —3 DAN

(3) Maximum Package Diameter: 1200mm

(4) Product Weight: 6-200g/m2

(5) Machine Speed: 20 -250m/min

(6) Yield: 10t/Day(24h), calculated as 30g/ m2, 12t/Day(24h), calculated as 80g/ m2

(7) Raw Material Consumption:0.2‰

(8) About Average Power Consumption:500-800KWH/Ton

(9)Product Quality Standard: 1. Follow up the National and trade standard of Spunbonded non-wovens

                                                   2. As the sample provided by Party B

(10)Raw Material Main Index Requirements : PP Chip Melting Point: 166℃ MFI(230℃)≥25g/10min.Ash Content;<0.15%～0.25%

2.Production Process Flow:

Raw materialRim charge recycling Melting extrusionFilterMeasuringFilterSpinningCoolingAir-drawingAir-diffusionAir-webformingCoolingWindingSlittingPackaging

3.Workshop Layout:

(1)For-spinning width : 25M(Length)*12M(Width)*11M(Height)

(2) Suggested workshop height: 12m

(3) Foundation request: reinforced concrete,above 25cm thick
