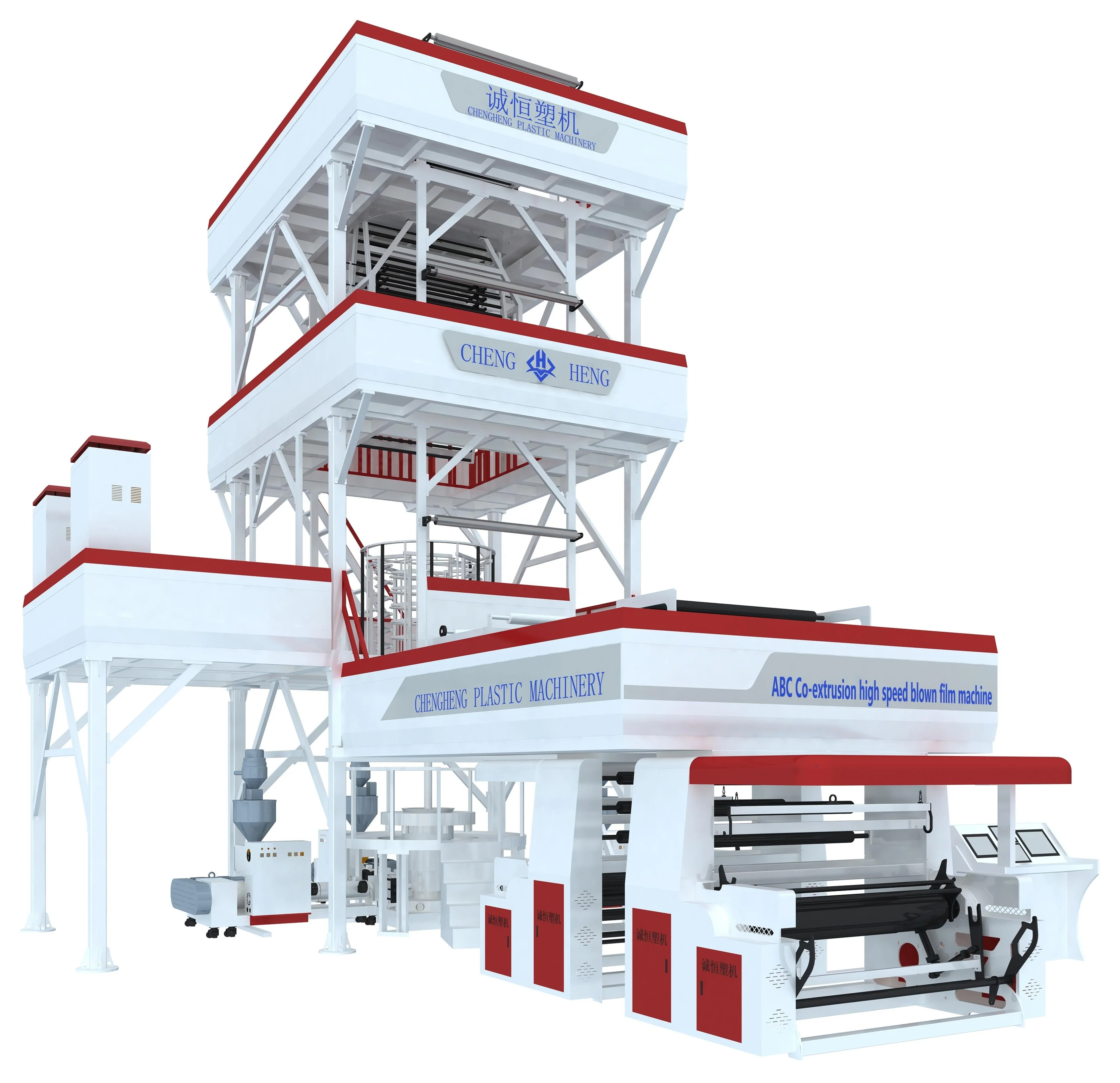

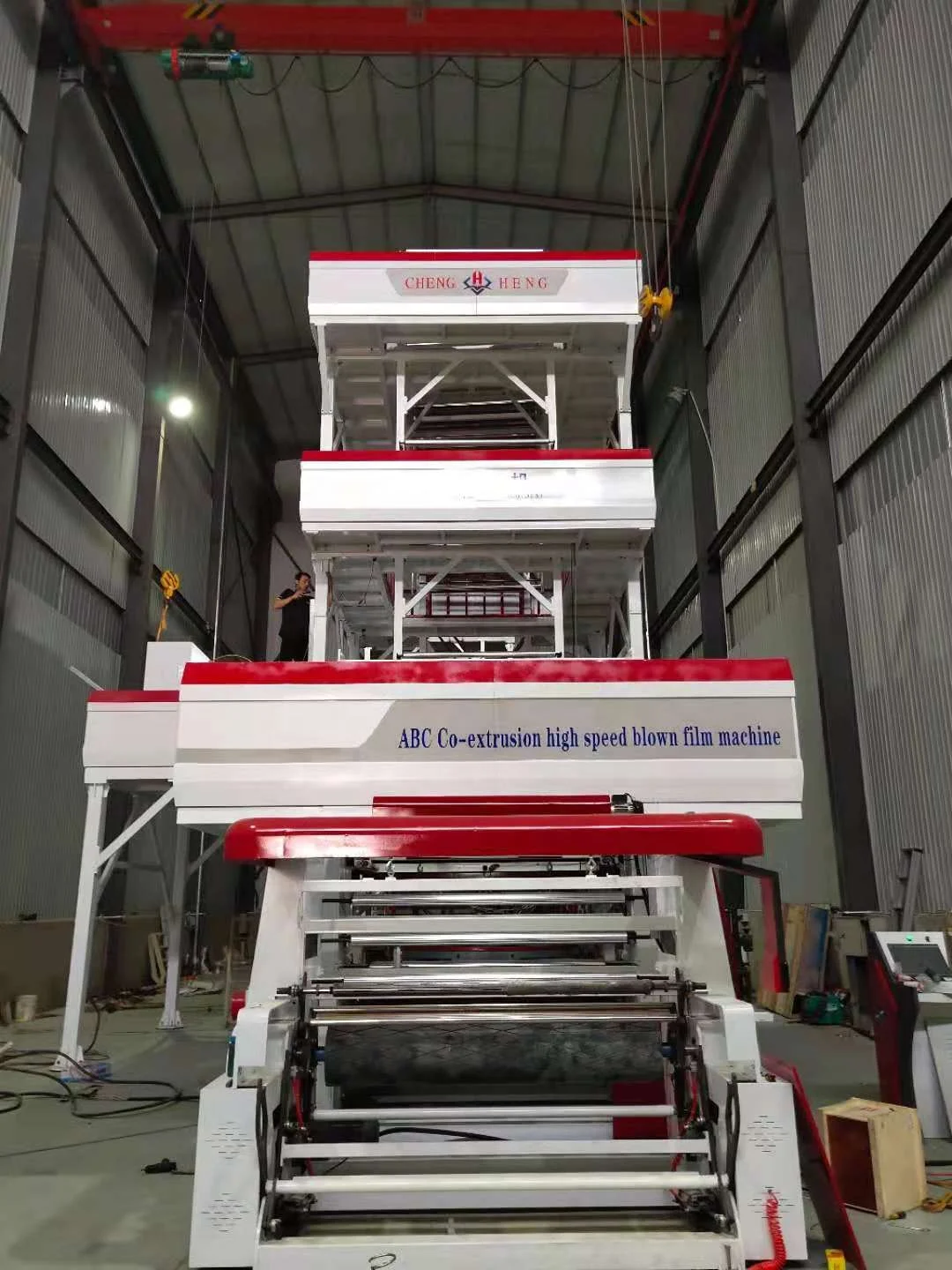

ABC 3 layers co extrusion film blowing machine
- Category: >>>
- Supplier: Hebei Chengheng Plastic Machinery Technology Co. Ltd.
Share on (60769793961):
Product Overview
Description
Product Description
Product Application
3-layers ABC co-extrusion blowing film machine enjoys special advantages and can produce both HDPE and LDPE Film. it improve the physical toughness of film through multi-layers co-extrusion. with one main extruder providing material for outer and inner layer. it reduces one man extruder configurations and achieves energy saving and low consumption.
CHSJ-ML series ABA film blowing machine | |||||||
Model | ML-ABC/40-45-40/900 | ML-ABC/50-65-50/1400 | ML-ABC/55-65-55/1600 | ML-ABC/65-75-65/1800 | |||
Film width | 250-700mm | 300-1200mm | 500-1400mm | 500-1600mm | |||
Film thickness | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | |||
Max output | 115kg/h | 135kg/h | 155kg/h | 185kg/h | |||
According to different width,thickness of film, die size and raw material characteristics to change | |||||||
Raw material | HDPE/LDPE/LLDPE | ||||||
Diameter of screw | Φ40/45/40,30/1 | Φ50/65/50,30/1 | Φ55/65/55,30/1 | Φ65/75/65,30/1 | |||
SACM 645 ,bimetallic ，five years guarantee | |||||||
Main motor | 15kw*2 ,18.5kw | 22kw*2 ,37kw | 30kw*2 ,37kw | 37kw*2,45kw | |||
100% Original three-phase variable frequency motor Equipped with inverter control | |||||||
Take up roller(mm) | 900mm | 1400mm | 1600mm | 1800mm | |||
Weight | 3800kg | 5200kg | 9800kg | 10200kg | |||
Machine size | 6.5*2.7*5 | 6.5*3*5.8 | 6.5*3.8*6.2 | 6.8*4*6.8 | |||
Main Features
1. Ceramic heater: Fast heating and save power cost
2. Simens motor and Inverter control
3. SCREW: SACM645 WITH BIAMETALICC TREATMENT 5 YEAR WARRANTTY
4. Special ambdoidal board 1set
5. Auto Ioader with dryer good for using recyle material 2set
6 .Corona treatment 1 set
Optional Device:
1.Automatic Hopper Loader with dryer
2.360°rotary die head
3.automatic back to back winder
4.Film Surface Treater

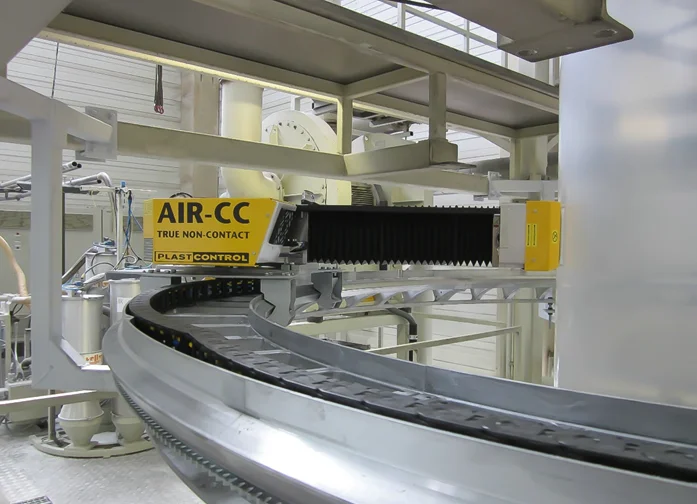

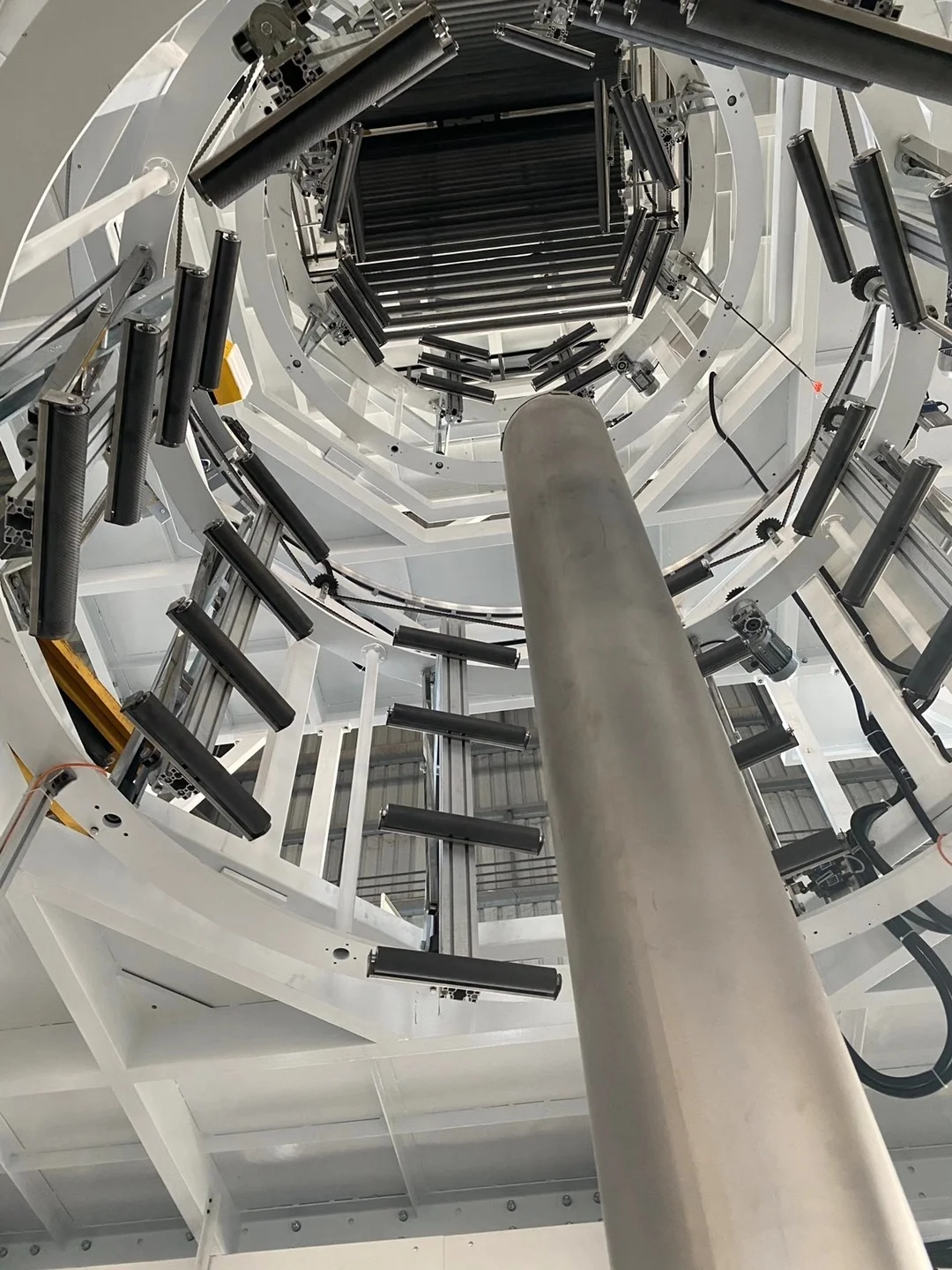

5.Oscillating Take Up Unit
5.IBC(Internal Bubble Cooling Computer Control System)
6.EPC(Edge Position Control)
7.Chiller
8.Heat Slitting Device
9.Gravimetric Dosing Unit
10.Thickness Measurement
11. Mechanics screen changer
12.Edge material recycling machine
Certifications
Detailed Images
Machine Parts
Screw: SACM645
SACM645 steel with hard with nitrogen with bimetallic treatment,5years warranty
Main Features
Heater: Ceramic heater
Advantage: Fast heating and save power cost
Machine Parts

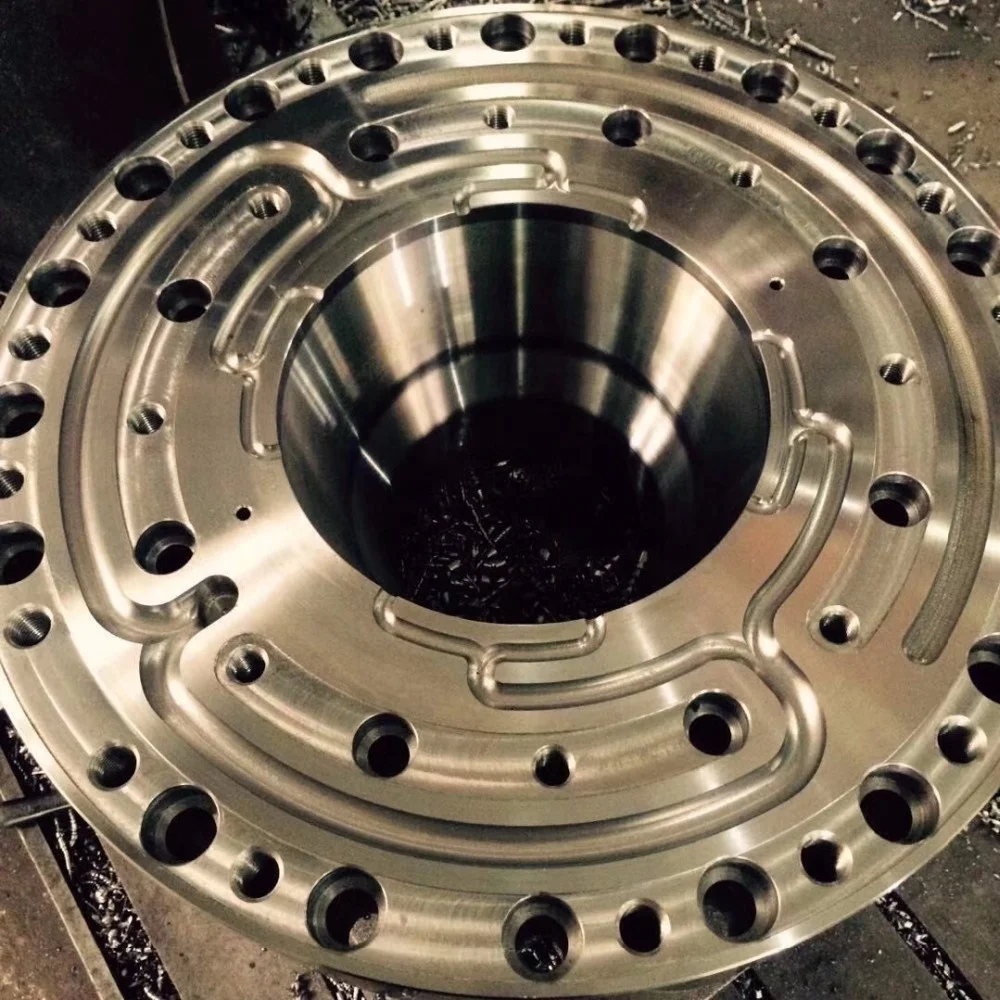

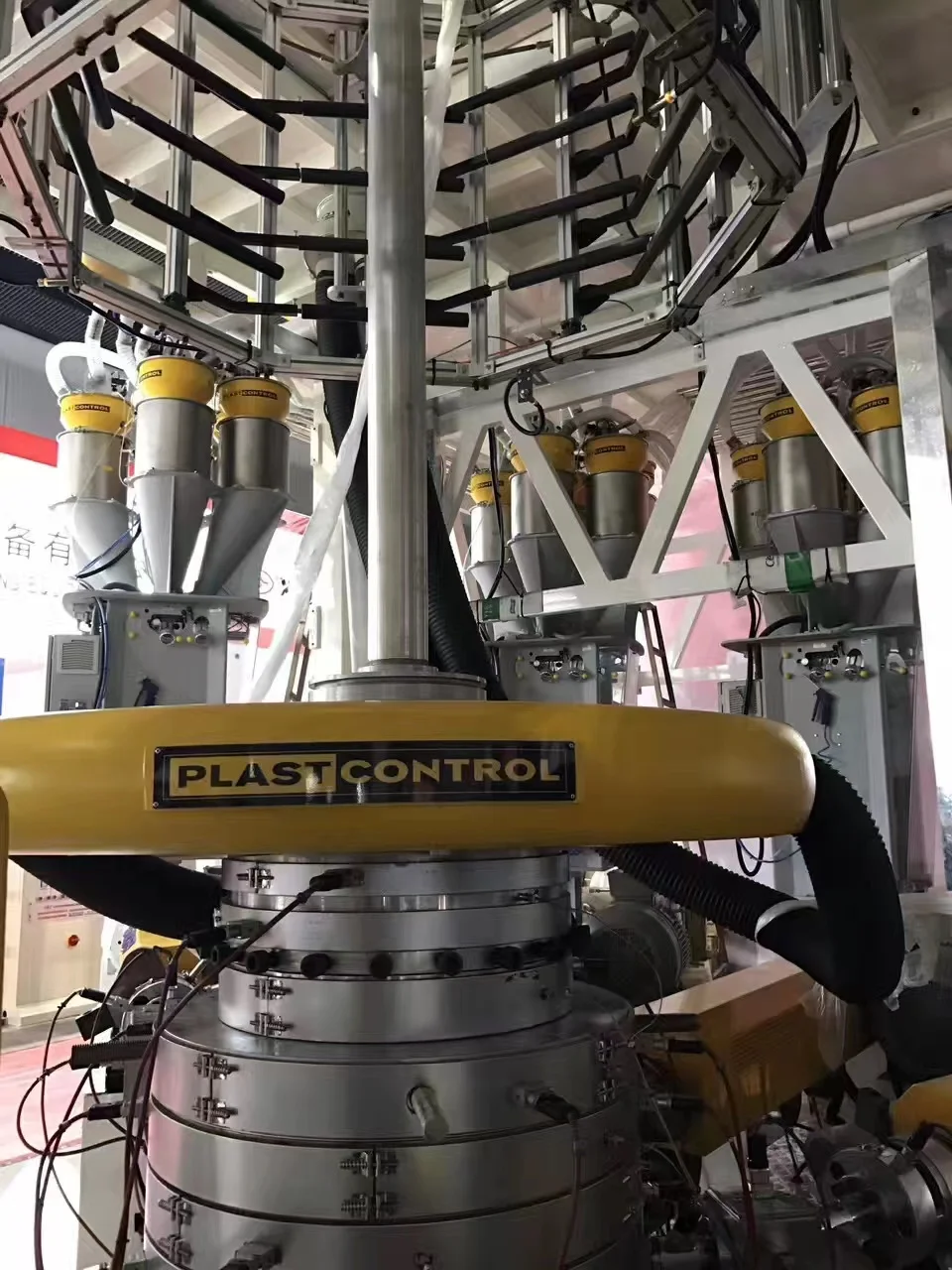

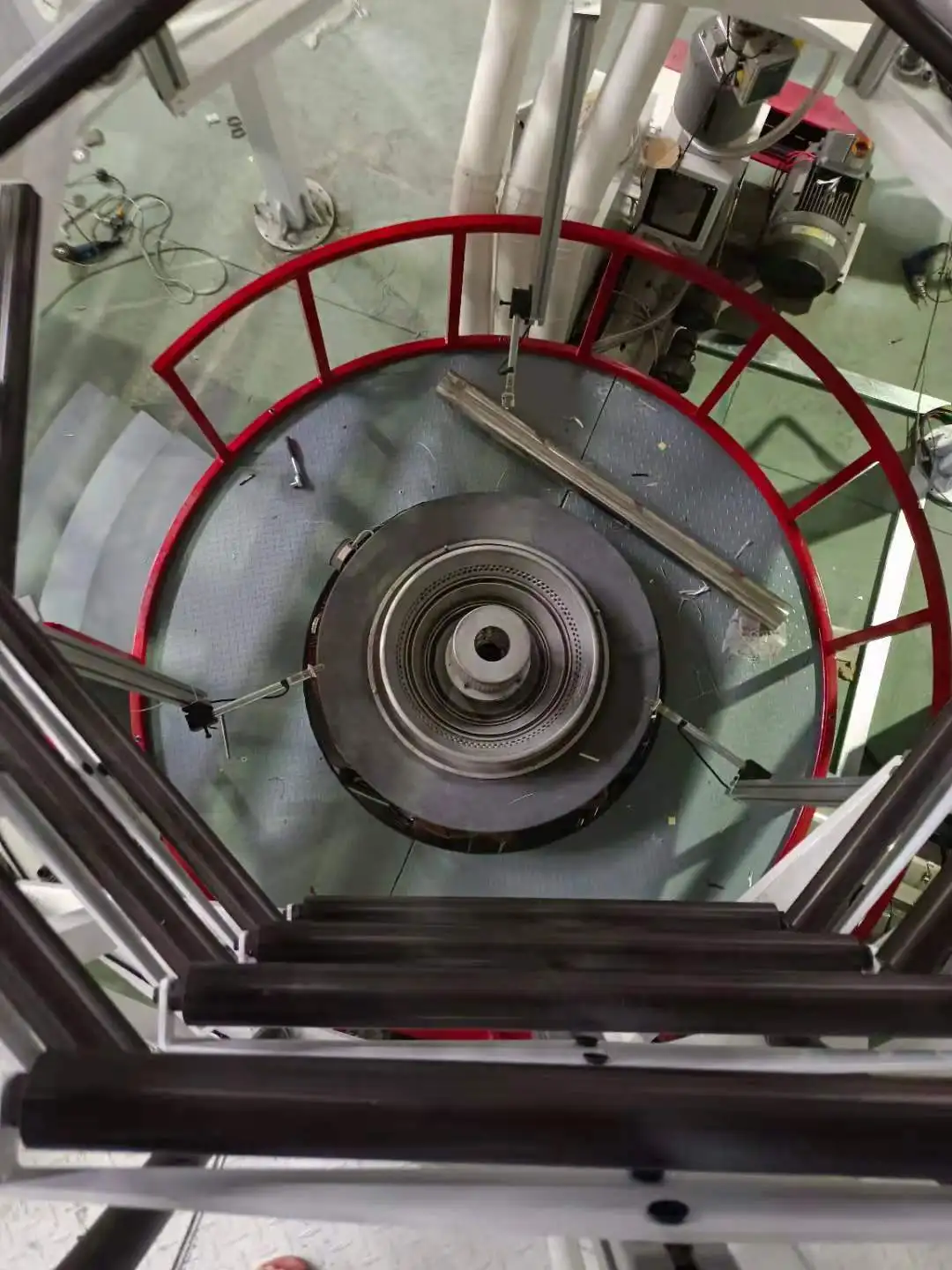

Name: Die head
Brand: Taiwan quality
High quality mould can make film thickness uniform
Main Features

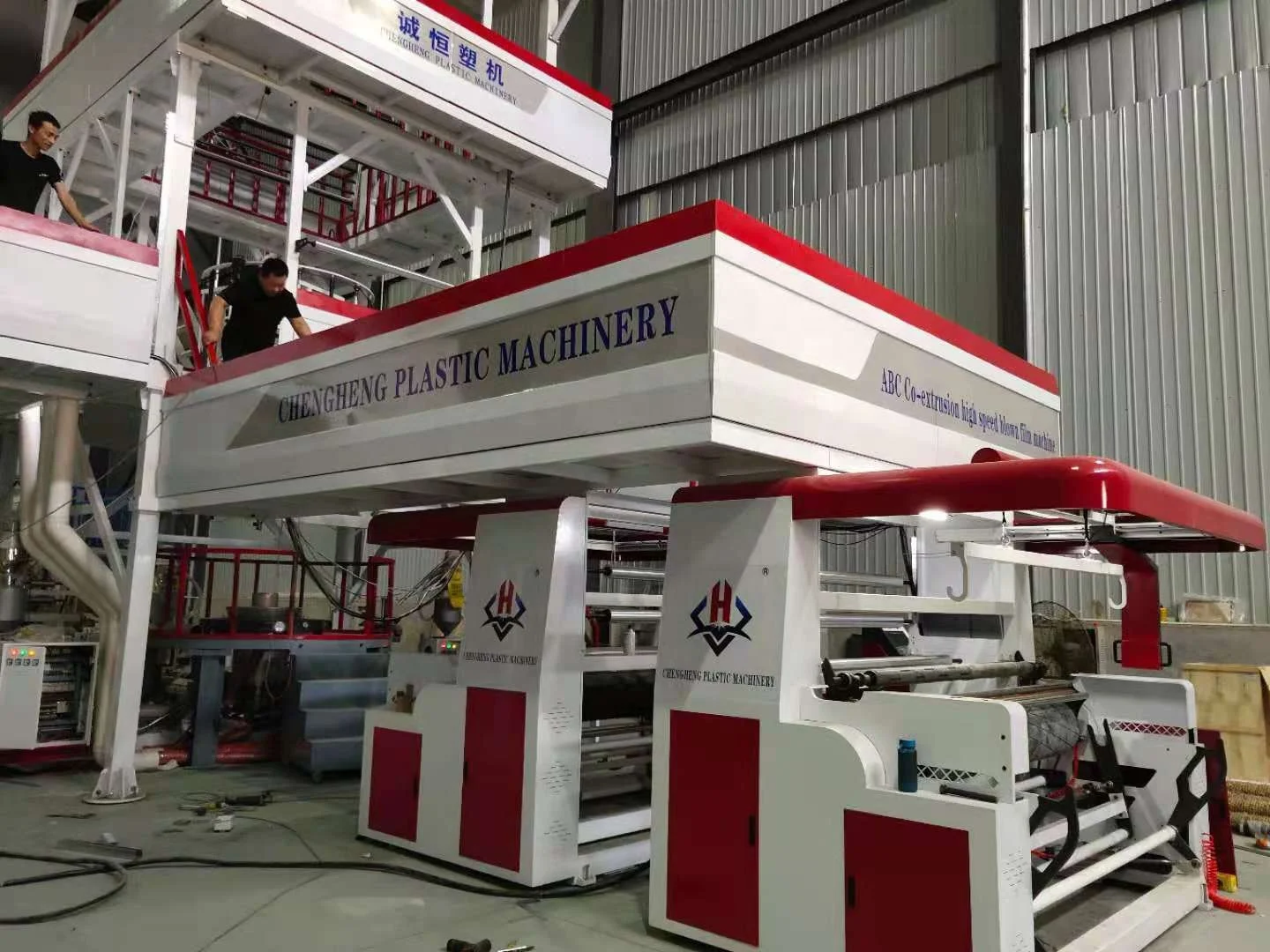

Name: auto winder
Original: China
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | different machine differnent size | |
Weight | 1.2 T-5T | |
Packaging Details | film packaging or according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | we will use pe film for packing or pack it according to customers special request. | |
