KNG-150 graphene nanoplatelets are stacks of multi-layered graphene sheets having a platelet morphology. The KNG-150 graphene nanoplatelets have a high aspect ratio (width to-thickness).
Graphene is the name given to a one-atomic-thick, two-dimensional (2D) layer of graphite with carbon atoms arranged in a six-numbered-ring plane.
Graphene nanoplatelets is consisted of more than ten carbon layers, the thickness of graphene is ranging from 5-100 nm. Graphene nanoplatelets have high aspect ratio (width–to–thickness) in structure feature which leading to great advantages in forming the conducting network in a polymer matrix.
Bulk Powder Characteristics
Bulk Powder Characteristics
Appearance
Bulk Density
Powder conduvtivity
Specific Surface area
A black and grey powder
0.15-0.2g/ml
12000S/m
30-60m
Graphene Nanoplatelets Properties
Graphene Nanoplatelets Properties
Diameter(D50)
Thickness
Carbon content
True density
Thermal conductivity
Tensile Modulus
Young's Modulus
~5um
<15nm
>98wt%
~2.25g/cm3
~3000W/mK
~1000Gpa
~1060Gpa
SEM
Application Cases
Applications
The high-performance composite nano-additives.
To improve composites thermal conductivity and diffusion , anti-static electricity properties, tensile strength , stiffness, corrosion resistance and lubricant properties.
Packing

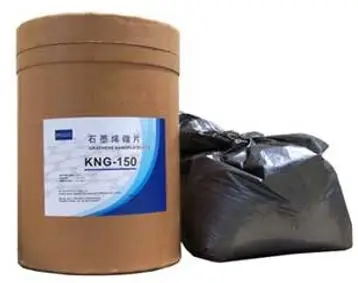

KNG -150 package: 20kg (44.1 lbs) or tailor-made for your specific need.
Use methods
KNG -150 is suggested to mix with the target polymer via the general plastics machines.
Some kinds of performance graphene nanoplatelets master batches are available.
