ADMT 1B Long Range Electrical Resistivity meter

Product Overview

Description

 Best Quality CE&ISO9001

ADMT-1B Long Range Electrical Resistivity meter



Product Description

    ADMT-1B Long Range Electrical Resistivity meter is a improved electrical water detector that uses the latest circuit design and devices, which make a high measuring precision.
It uses the humanized human-computer interface, waterproof shell etc.
   ADMT-1B Long Range Electrical Resistivity meter could use four-electrode detection method, central gradient array method etc.



Through apparent resistivity parameter, it is widely used in seeking groundwater, seeking mineral, hydrology, environmental protection, engineering geophysical exploration and other fields.





Technical Specifications of   ADMT-1B Long Range Electrical Resistivity meter



Voltage range: -2500mV~+2500mV
Voltage resolution: 0.01uV
Input Impendence: ≥50MΩ
SP compensation range: ±2500mV
Currency channel: 6A,±4% ±1 bit
Currency resolution: 0.02uA
Anti-jamming on 50HZ: better than 80dB
Max. transmitting power: 6000W
Max. power supply: 1000V
Max. Currency: 6A
Power supply Waveform: pulse width 1-60 seconds, duty ratio1:1, Bipolar
Internal storage: 2GB(extend to 32GB)
Power supply: 14.8V 5200mAH lithium battery
Working environment: -20℃~+60℃,95%Rh

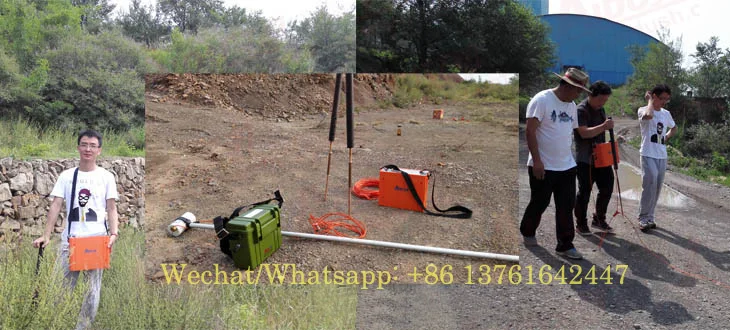

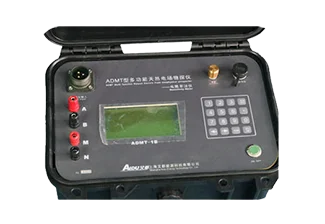

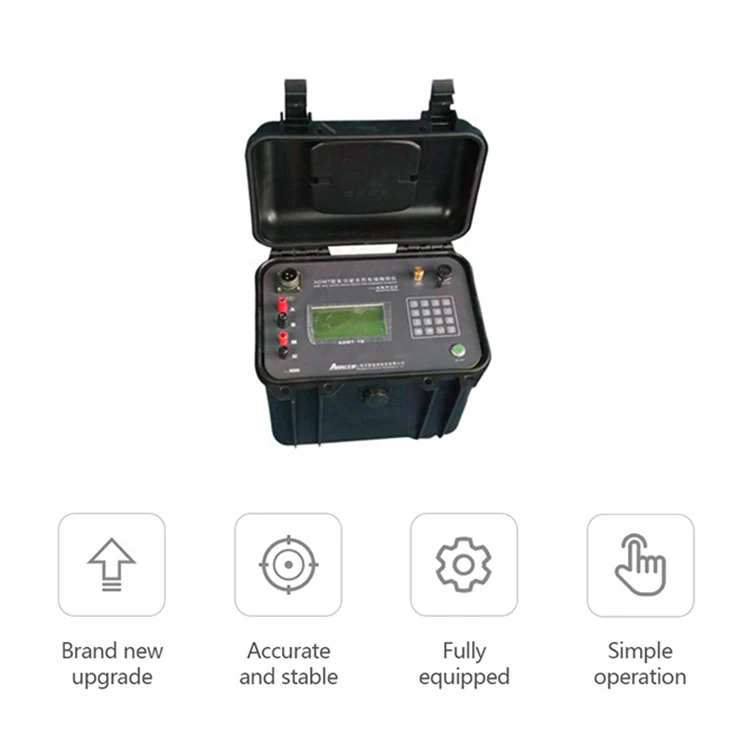

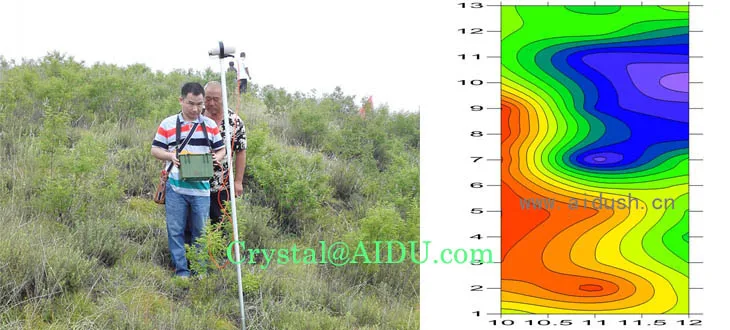

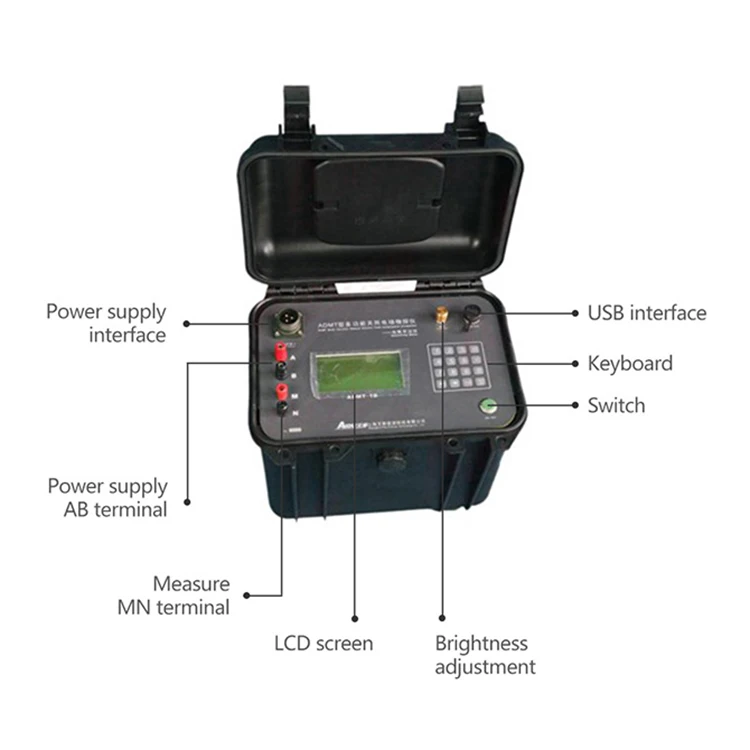

Pictures of ADMT-1B Long Range Electrical Resistivity meter :









Main Applications of ADMT-1B Long Range Electrical Resistivity meter :

     ADMT-1B Long Range Electrical Resistivity meter By utilizing the apparent resistivity parameters, it is widely used in hydrology, environmental protection, engineering geophysical exploration, metal and non-metal mineral resources exploration.
Microcomputer controlled, direct-reading resistivity, various electrode arranging mode, data protection against power-failure
     ADMT-1B Long Range Electrical Resistivity meter,This instrument applies to Electrical Prospecting such as Vertical Electrical Sounding, Electrical Profiling, Charging Method and Spontaneous Potential Method, etc. on ground and in trench.

    Others Applicatiions Like below:

1. Solid mineral, oil, gas and water exploration.
2. Hydrology, engineering exploration, environmental monitoring, the basic theory research.







 Main Feature of ADMT-1B Long Range Electrical Resistivity meter :

1. High Accuracy: use the most advanced circuit design, single chip microcomputer control, automatic noise reduction,
digital filtering to highly improve survey accuracy and stability.
2. Easy to Operate: humanized man-machine interface, built-in all kinds of formulas to read VP, IP, RO, M, TH... parameters
3. More Parameters: could measure VP, IP, SP, RO, M, TH...
4. Complete Equipment: four poles to detect depth, intermediate gradient, combined profile, five poles, three poles etc....about 30 kinds
5. Safe and Stable: Protections with over voltage, over current, battery and battery display, data protection after interrupt of electrical power
6. Artistic and Durable: use thin file switch panel, ABS shell













Successful Cases-Best Quality CE&ISO9001 -ADMT-1B Long Range Electrical Resistivity meter:
