Colposcope Digital imaging System is the combination of digital imaging technology and

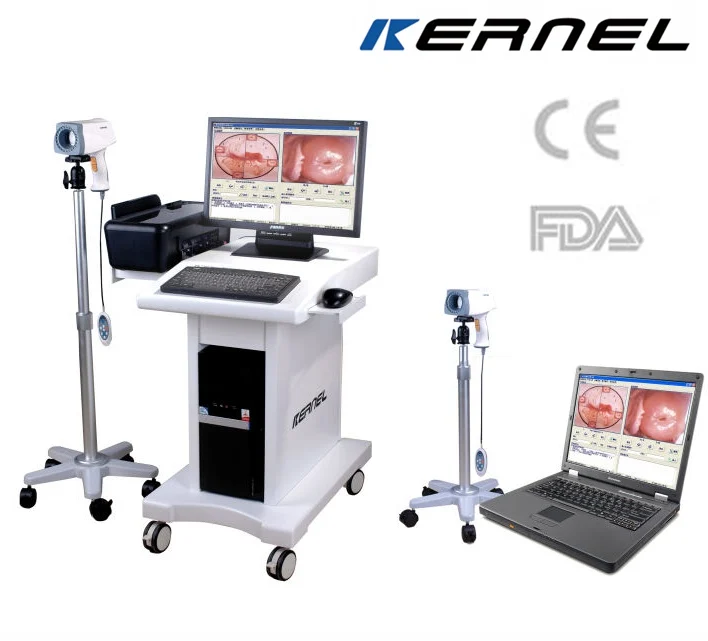

colposcope,which is suitable for clinical gynecological examination of vulva,vagina,cervix and other parts.It can enlarge the observed image to a certain multiple,and find small lesions that cannot be detected by the naked Eye.With this amplication effect,doctors can clearly see the skin of the cervix and the genital epidermis through the large-screen display of the very small details of the lesions,help to improve the accuracy of the dignosis of cervical,genital and other pathological changes,for the early detection of diseases to provide evidence,so that the cure rate of disease greatly improved.And through the computer can be observed image collection,processing,Clinical diagnosis,report editing,query statistics,A greater degree of role in the use of colposcope,better to meet the future medical imaging"digital"development requirements.
Image Sensor
1/4 inch Sony CCD
Effective Pixels
800,000 pixels
Magnify times
Total 216x (Optical 18x)
Light cource
24pcs LED
Horizontal Resolution
700TVL
Depth of Field
4.1mm～73.8mm
Certificates
CE, FDA, ISO13485
Working distance
200～400mm
Color saturation
90%
Focus mode
Fast autofocus, Manual focus

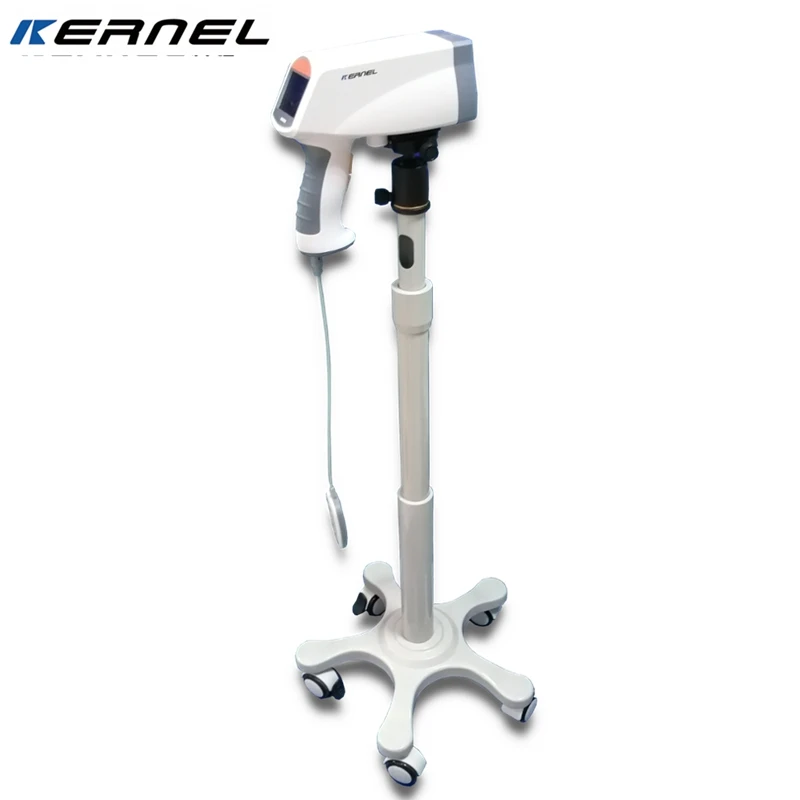

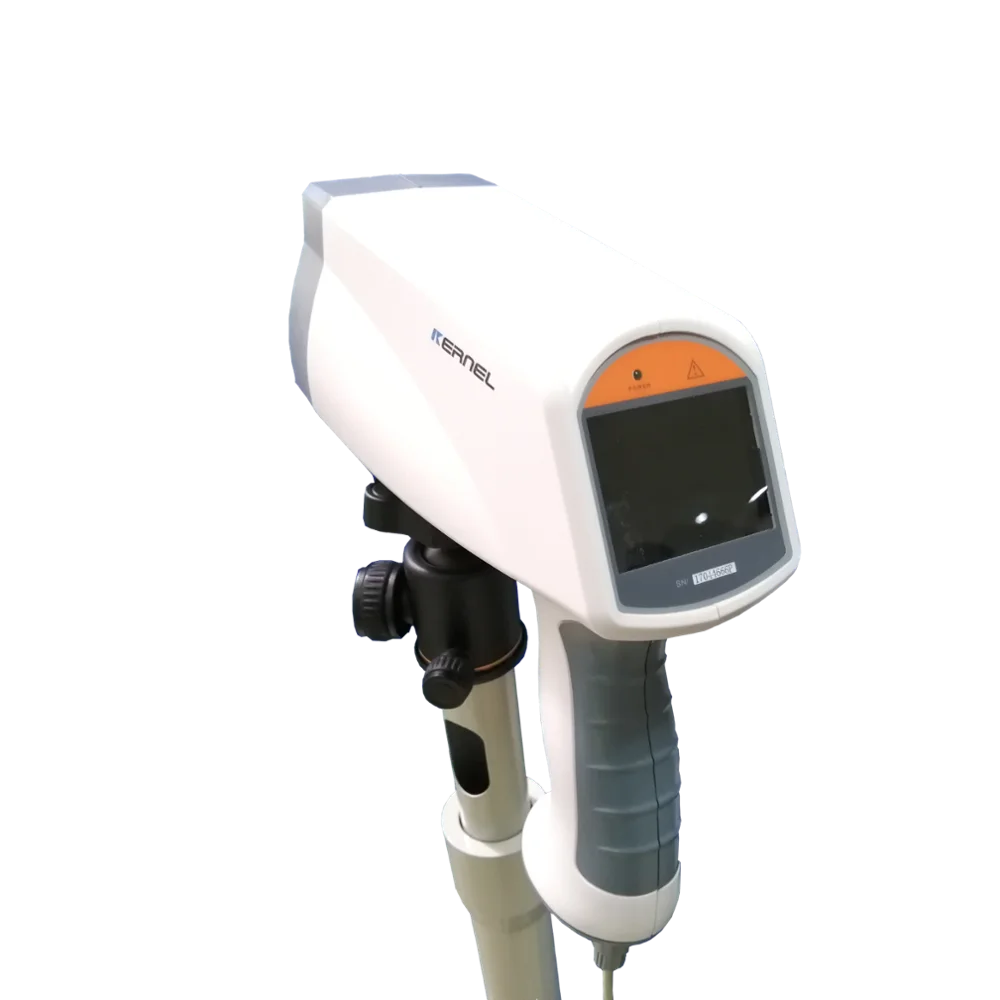

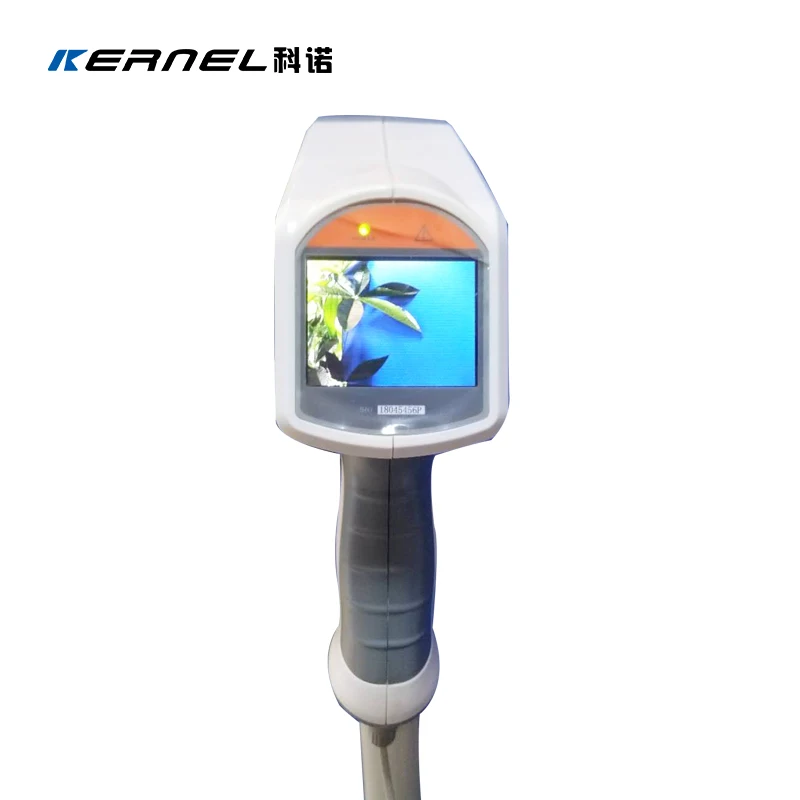

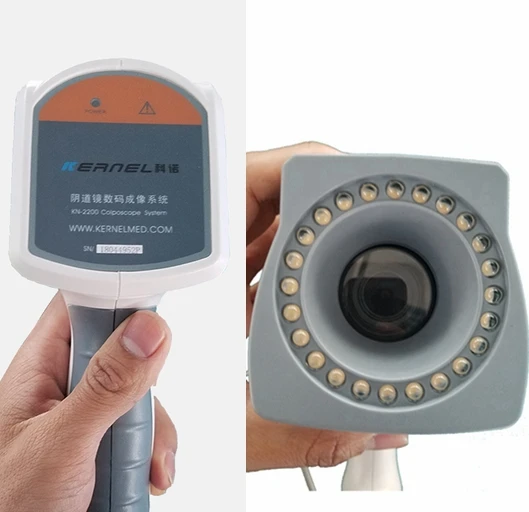

1.Camera 1/4 inch color CCD, 0.8 million effective pixels, 18 times Optical zoom, 12 times digital zoom, Horizontal resolution 700 LINE. Adopt 24 groups of energy-saving and eco-friendly white LED light source, with high brightness, long life, uniform illumination, High Color rendering index, do not producing heat etc. Hand-held zoom button, convenient for doctors to observe pathological changes at the same time. 2.Control handle Adopt Palm-type handle design, humanized operation panel, Silicone button Oval layout, can realize zoom, focus, imaging mode, acetic acid timing, image marking, brightness adjustment and other functions with single hand. 3.Bracket Full-damping PTZ, 360° adjustment, can automatically fixed at any Angle. 4.Vertical stand New vertical stand, flexible and simple operation,and lightweight can adjust the height of the lens up and down. Three-segment design of the stand, easy to disassemble, convenient for doctors to Carry.
Optional parts
Related Products
Applications
The KN-2200 is the perfect colposcopy machine for the OBGYN office. These high quality digital video colposcopes will cut down exam time by up to 50% while giving the user the ability to store and record information for future reference. No more drawing what you see.
Kernel KN-2200 can also be used with organizations that fight against sexual assault. Using the KN-2200 colposcopes, these facilities conduct exams and gather evidence to help advocate for the victims of these atrocious crimes.
Kernel KN-2200 colposcopes have been used in many teaching hospitals and conferences to educate the up and coming generation of gynecologists. Because there's no dials and knobs to manually focus the lenses like on the traditional optical colposcopes, training for the digital video colposcopes finish 3 - 5 times as fast.. The image can be transmitted to a large screen or computer to educate a room full of residents or clinicians all at the same time.
Tele-medicine is the wave of the future. Kernel's colposcopy equipment has been integrated with numerous telemedicine solutions to offer convenience and cost effective care. partners with outreach programs for rural areas or countries that does not have ready access to women's health facilities or equipment. Our hope is to create a world where medical care is easily available and affordable to all.
Company Introduction
>>HISTORY OF KERNEL
1997—Kernel company was established.
1998—KN-601 Series Patient Monitor enter the market.
2002—Pass ISO9001 International Quality System.
2003—KN-2200 series Colposcope won the bid in the UN and awarded as the UN Supplier.
2004—Kernel Buildingwas set up.
2006—KN-4000 series UV Phototherapy enter the market.
2007—KN-601 series Patient Monitor get CE certificate.
2008—"KERNEL" Regarded as the well-known trademark by the Industrial and Commercial Bureau.
2012—KN-7000 LED photodynamic therapy device & KN-4000 series UV Phototherapy passedCE.
2014—KN-4000 series UV Phototherapy passedFDA.
2016—KN-2200 series Colposcope passed FDA.
2018—KN-5000 series excimer 308 targeted phototherapy, KN-9000B woods lamp launched.
2019—New product KN-8000 series hair loss therapy device and laser hair growth helmet.
>>>>>>>>>>>>>>We never stop striving for perfection
