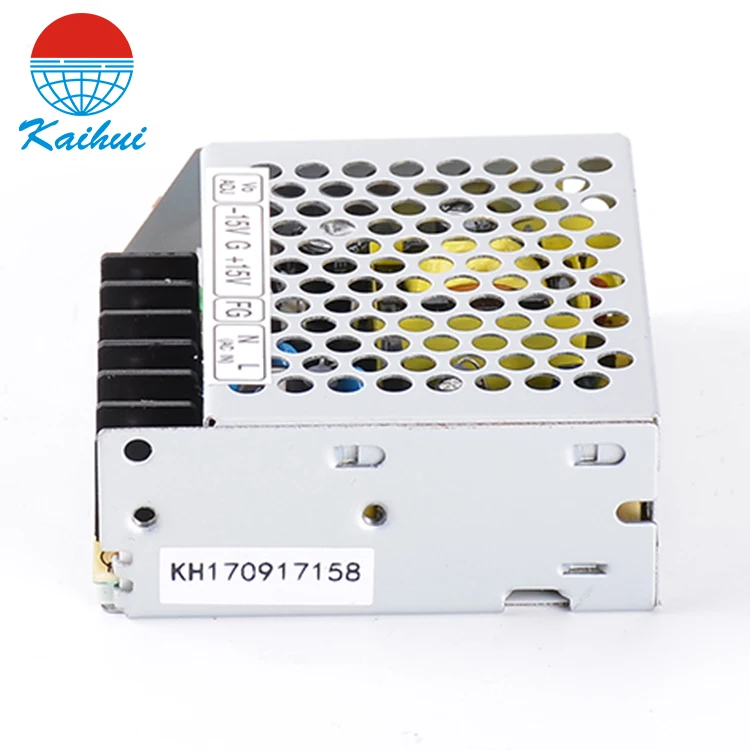

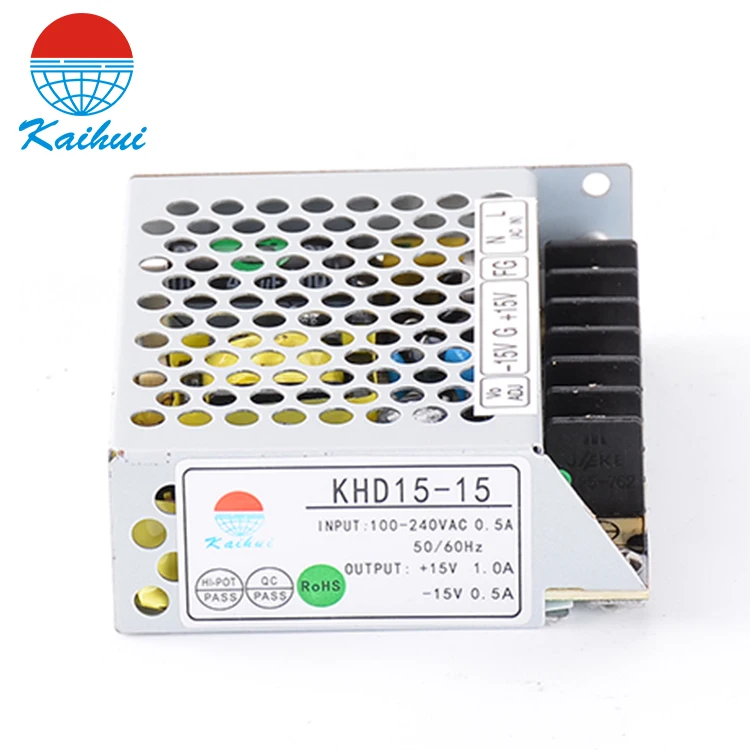

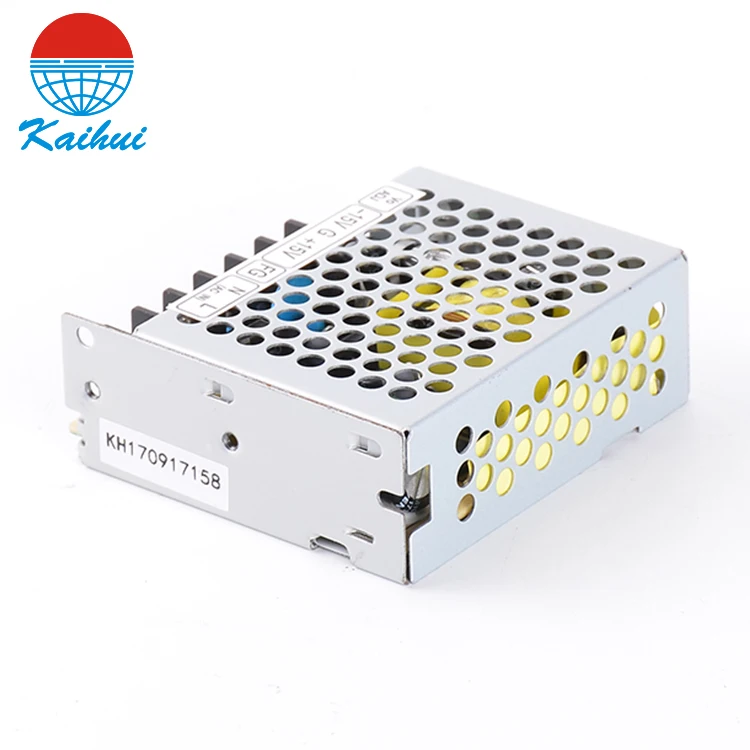

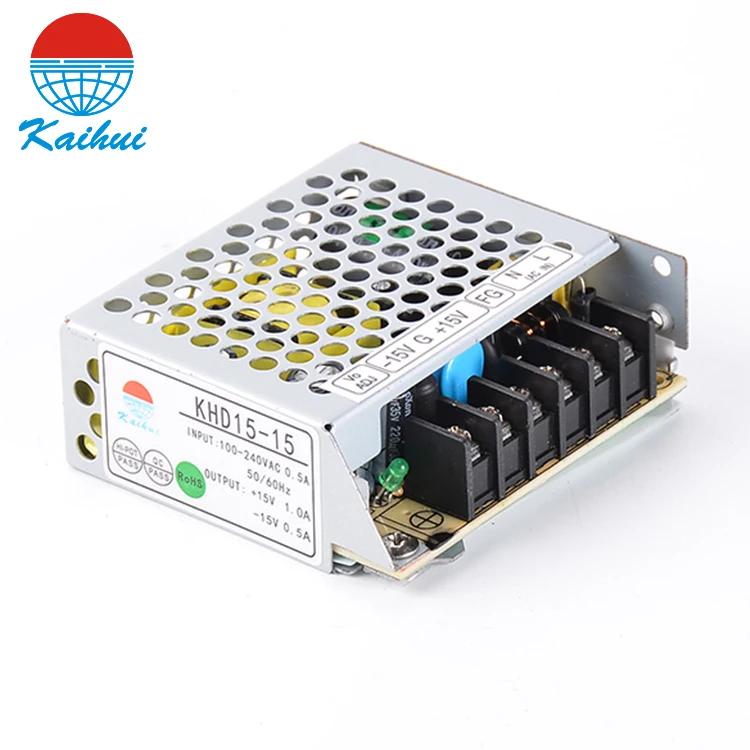

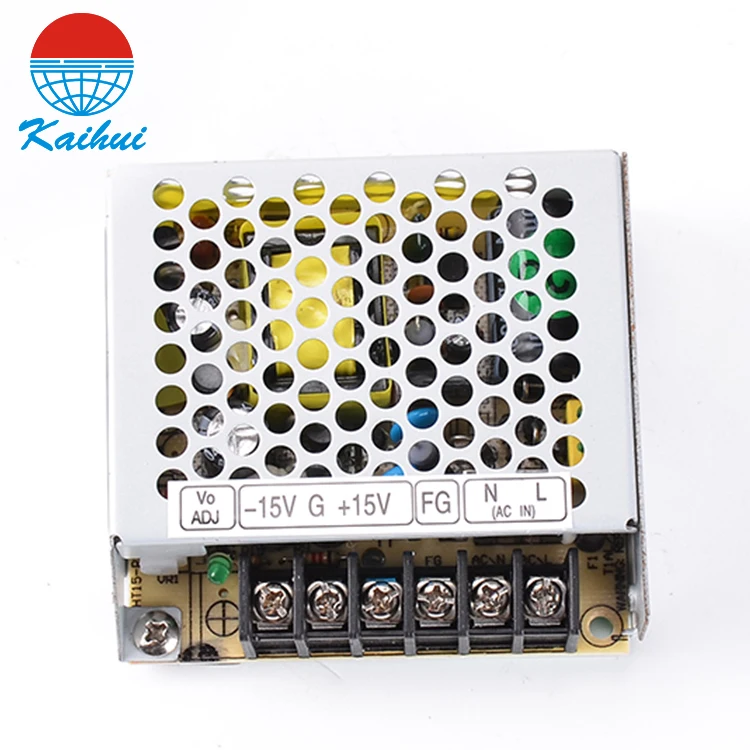

Power Supply Source smps 15v 15v 22.5W Dual Output Type Unit

3,Wide range ofAC input voltage

                        Model No.

Specification

KHD-15-12

KHD-15-15

Output

Output Voltage

+12V

-12V

+15V

-15V

Rated Current

1A

0.5A

1A

0.5A

Current Range

0.1-1.5A

0.1-1A

0.1-1A

0.1-0.5A

Rated power

18W

22.5W

Ripple

100mVp-p

100mVp-p

100mVp-p

100mVp-p

Adjustable output range

CH1:±10%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Keep up time

800ms, 30ms, 16ms/115VAC    300ms, 30ms, 50ms/230VAC

Input

Input Voltage range

88~264V AC,100~370VDC

Input current

0.4A/115V    0.2A/230V

Input frequency

47~63Hz

Efficiency

84%

84%

Inrush current

30A@230V

Leakage Current

<0.3mA@240V

Protection

Over load

105~150%,Hiccup,automatic recovery

Short circuit

Hiccup,automatic recovery

Output overvoltage

------

Over Temp.

------

Environment

Working Temp.,Humidity

-10~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

Safety&EMC Standards

Safety standards

GB4943,EN60950

Pressure

I/P-O/P,I/P-FG:1.5KV;O/P-FG:0.5KV DC 1min.

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

GB9254,EN55022 CLASS B

Others

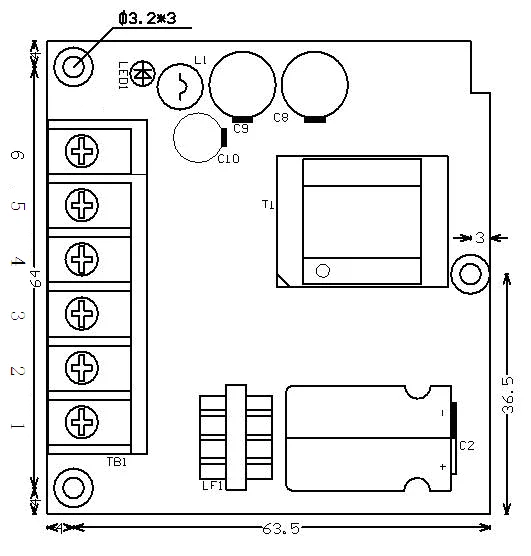

Dimension

74*68*27mm

Weight

0.15Kg

Note

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connected to the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line Regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output from minimum load to 100% load change measured.
