Laboratory 500L horizontal cylindrical autoclave sterilizer WS 500YDA
- Category: >>>
- Supplier: Guangzhou Jiangbin Trade Co. Ltd.
Share on (60769875263):
Product Overview
Description

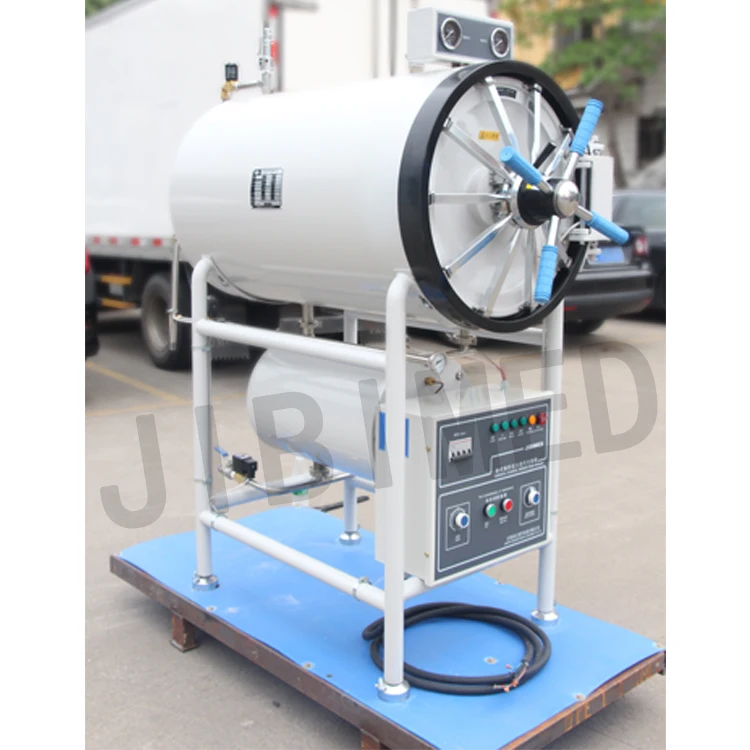

Laboratory 500L horizontal cylindrical autoclave sterilizer WS-500YDA
Product Application
The horizontal autoclave,which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization.The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing.This unit is ideal equipment for clinics,scientific research institutes and other organizations to sterilizer surgical instruments,fabric glassed,culture media etc.
Main Features
1)Sterilizing course automatic sterilization controlled,easy to operate.
2)With drying function,suitable dressing drying.
3)With over-temperature,over-pressure auto-protect device.

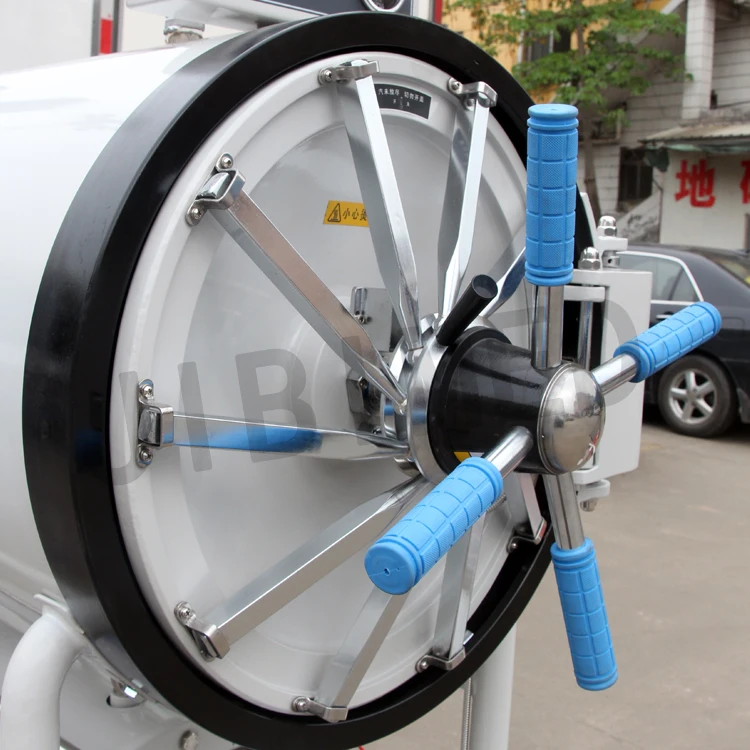

4)The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5)The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam be exhausting to the water tank.
6)The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7)Fully stainless steel structure.
1)Sterilizing course automatic sterilization controlled,easy to operate.
2)With drying function,suitable dressing drying.
3)With over-temperature,over-pressure auto-protect device.
4)The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5)The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam be exhausting to the water tank.
6)The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7)Fully stainless steel structure.
Technical Data:
| Model technical data | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA |
| Sterilizing chamber volume | 150L φ440*1000 | 200L φ515*1000 | 280L φ600*1000 | 400L φ700*1100 | 500L φ700*1300 |
| Wroking pressure | 0.22Mpa | ||||
| working temperature | 134℃ | ||||
Adjustment of temperature | 40℃-134℃ | ||||
Time of sterilization | 0-60min | ||||
Time of drying | 0-60min | ||||
Heat average | ≤± 2℃ | ||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |

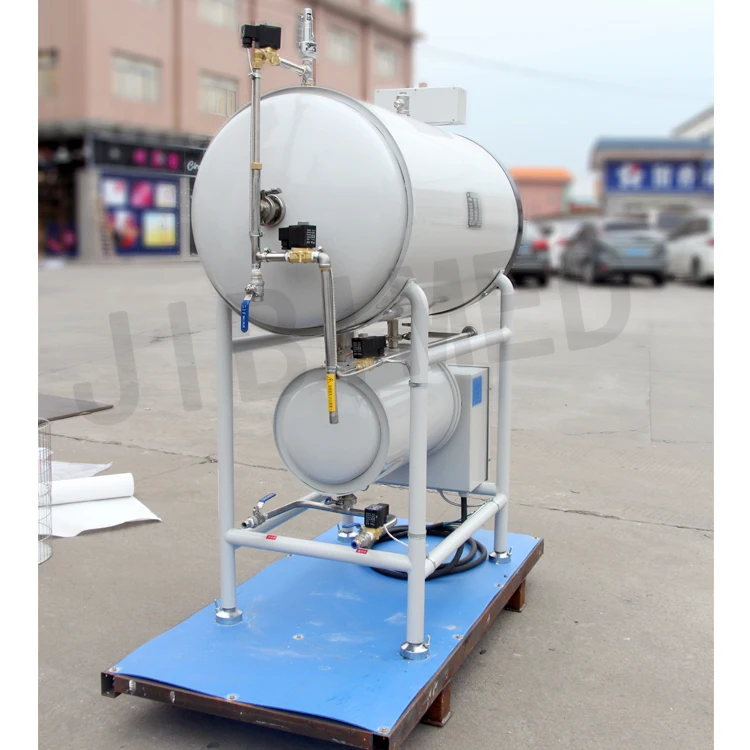

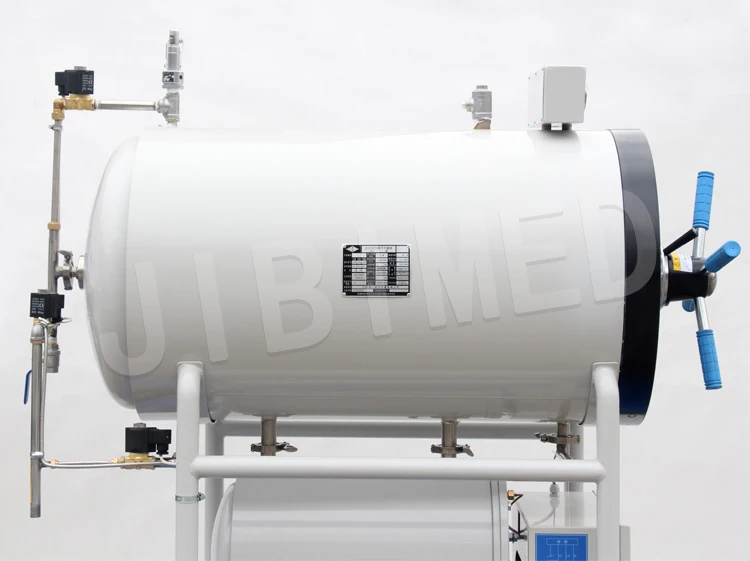

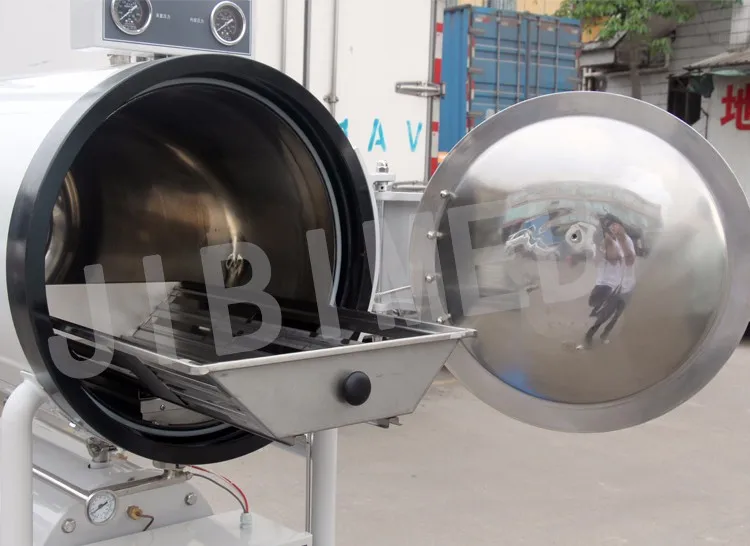

Detailed Images:
Delivery detail:
1.We ship autoclave by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get the autoclave,takes 3~ 5 days to arrive.
2.We can also help you ship the autoclave by air cargo which you need to go to Air port to take autoclave home,it takes about 2-7 days to arrive.
3.If autoclave are large quantity and you not need the autoclave so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what delivery way ,depending on your actual requirements.
Related Products:
Certifications:
Our Autoclave has CE,ISO 9001 and ISO 13485 Certificate
Our Service:
