shoe mould making cnc machine 21000rpm spindle speed vertical machining center
- Category: >>>
- Supplier: Ningbo Kaibo CNC Machinery Co. Ltd.
Share on (60769878029):
Product Overview
Description

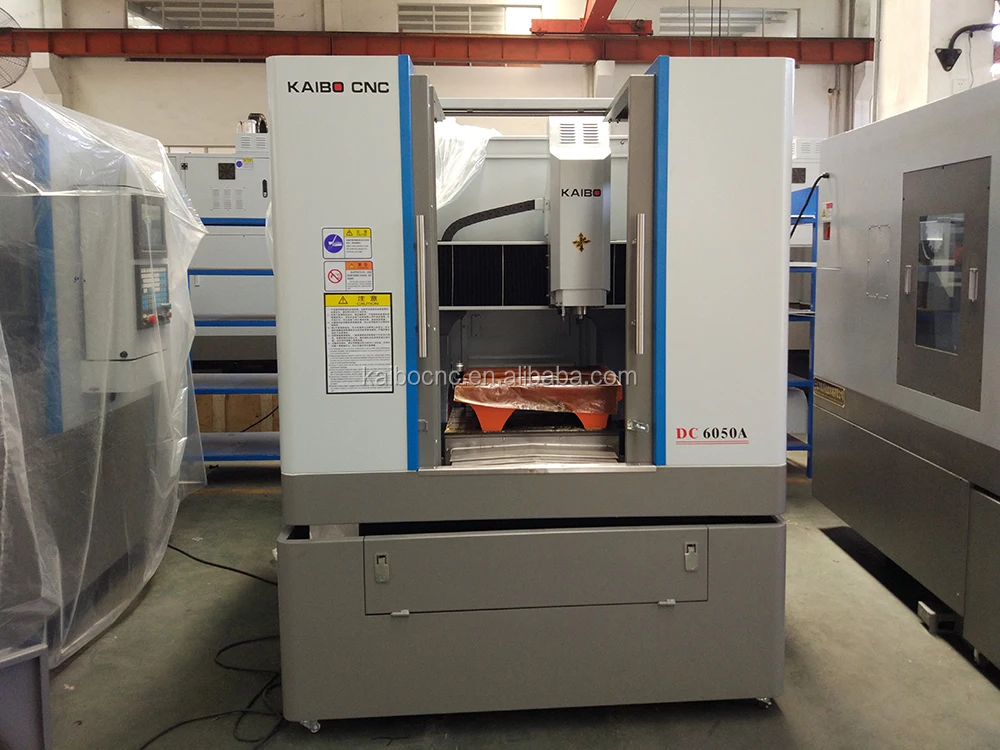

CNC MILLING MACHINE DC6050A
PRODUCT DETAILS
PRODUCT FEATURES

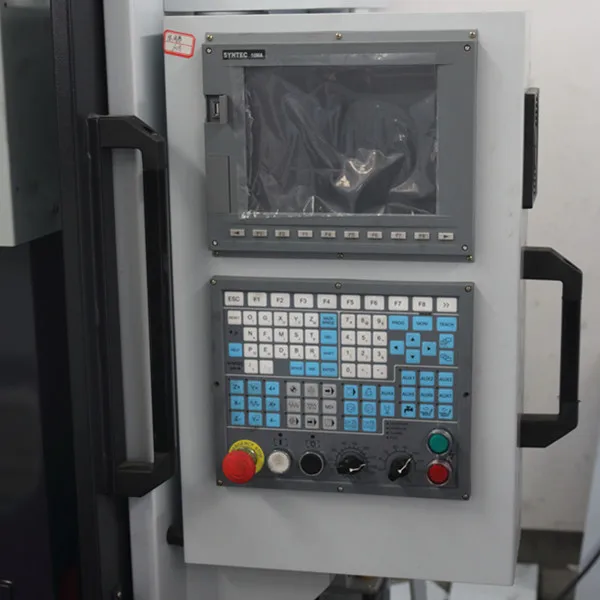

Controller: Taiwan Syntec
X/Y/Z axis travel: 600/500/170mm
Spindle: ER20/3kw/21000rpm
Optional for 3/4/5axis
Optional for loading automatic tool changer
X/Y/Z axis travel: 600/500/170mm
Spindle: ER20/3kw/21000rpm
Optional for 3/4/5axis
Optional for loading automatic tool changer
PRODUCT PARAMENTERS
Parameter/Model | DC-6050A | ||
Accuracy | Positioning accuracy | 0.01mm | |
Repeat positioning accuracy | 0.005mm | ||

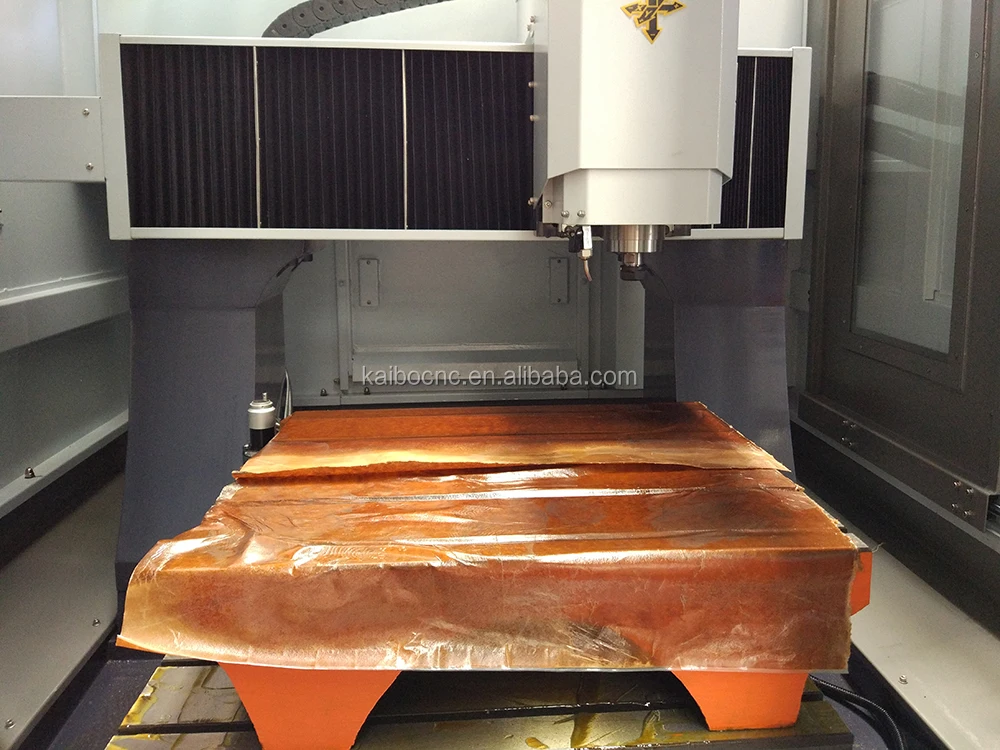

Worktable | Worktable size | 600*530mm | |
T-slot size | 5T-12-105mm | ||
Max. load | 250Kg | ||
Travel | X/Y/Z axis travel | 600/500/160mm | |
Gantry width | 660mm | ||
Beam to worktable | 380mm | ||
Spindle nose to worktable | 170-330mm | ||
Door open width | 600mm | ||
Feed | Max. feeding speed G00 | 15m/min | |
Max. working speed G01 | 10m/min | ||
X/Y/Z axis motor power | 750w/750w/750w | ||
Spindle | Spindle motor power | 3KW | |
Spindle Max. speed | 21000rpm | ||
Tool holder | ER20(Φ3.17-Φ12) | ||
Common | Power supply and total capacity | 3P/380V/50Hz/9KVA | |
Machine weight | 2500Kg | ||
Dimension | 1850*1800*1910mm | ||

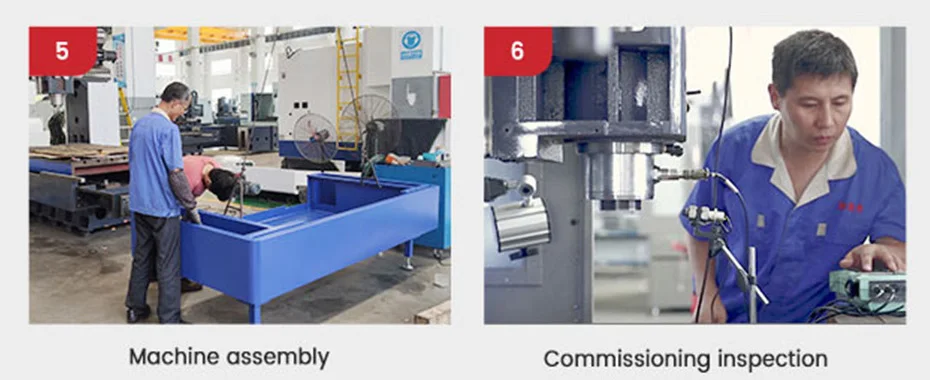

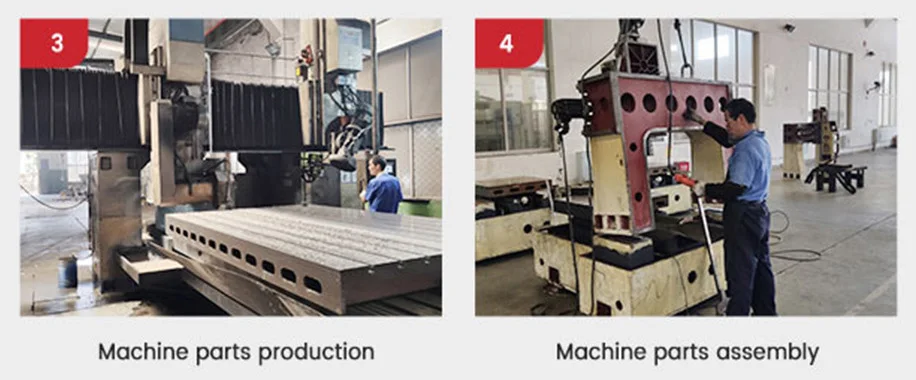

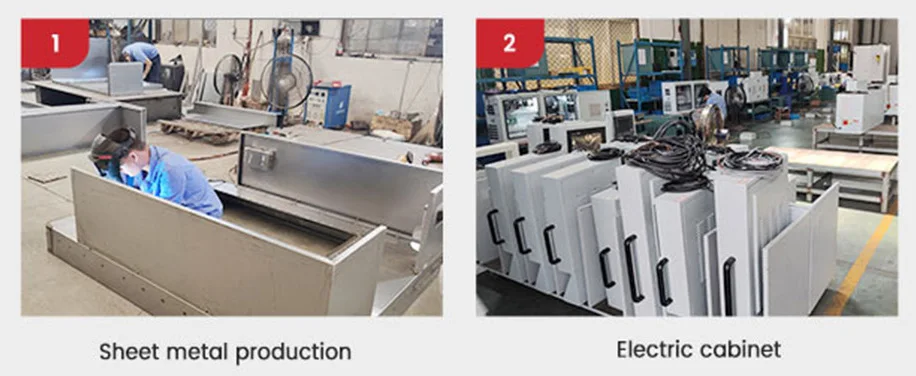

PRODUCTION PROCESS

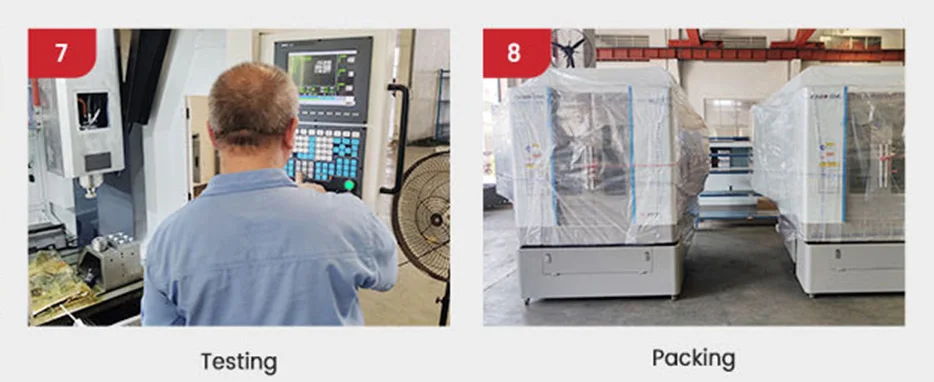

QUALITY INSPECTION

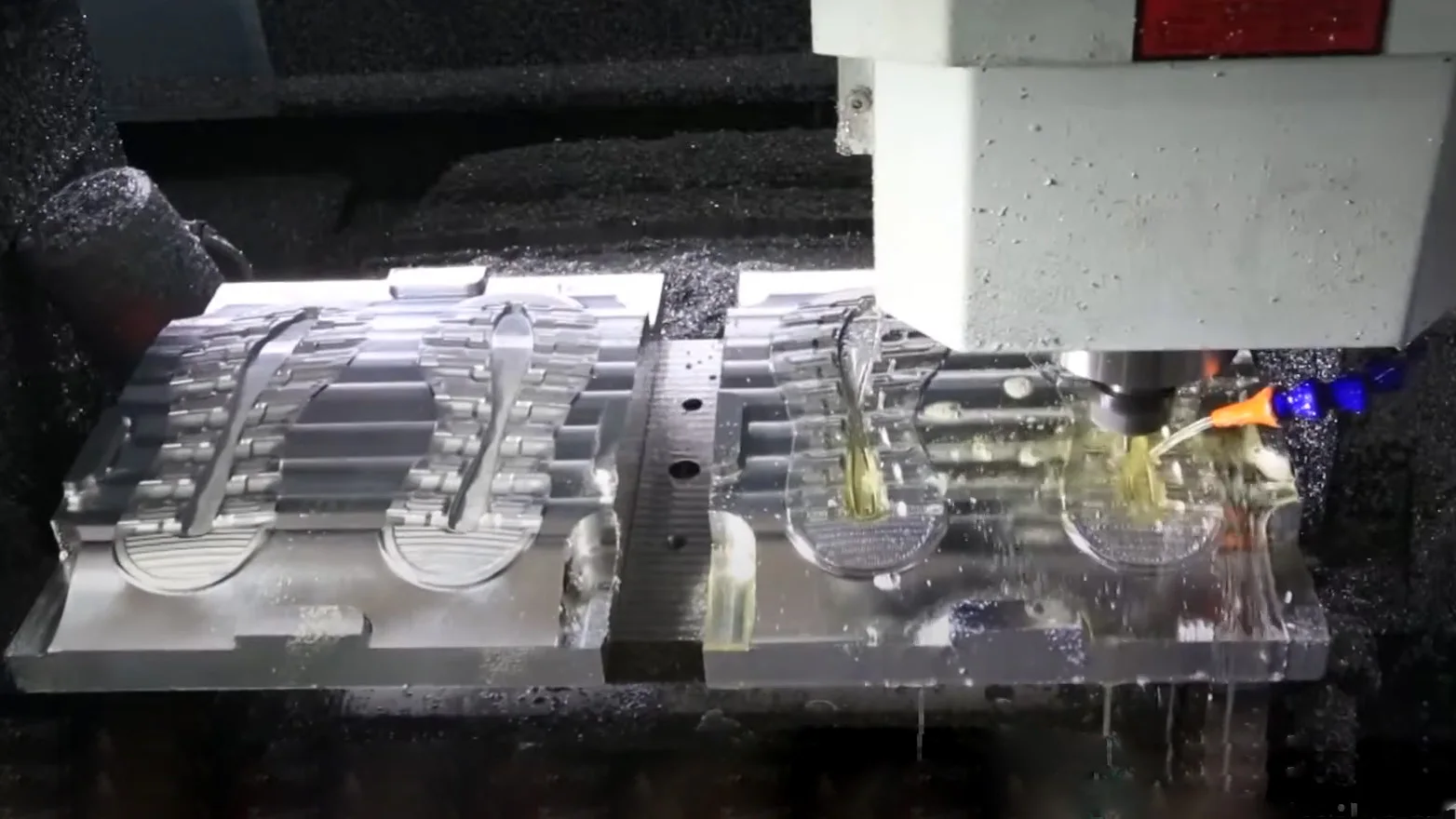

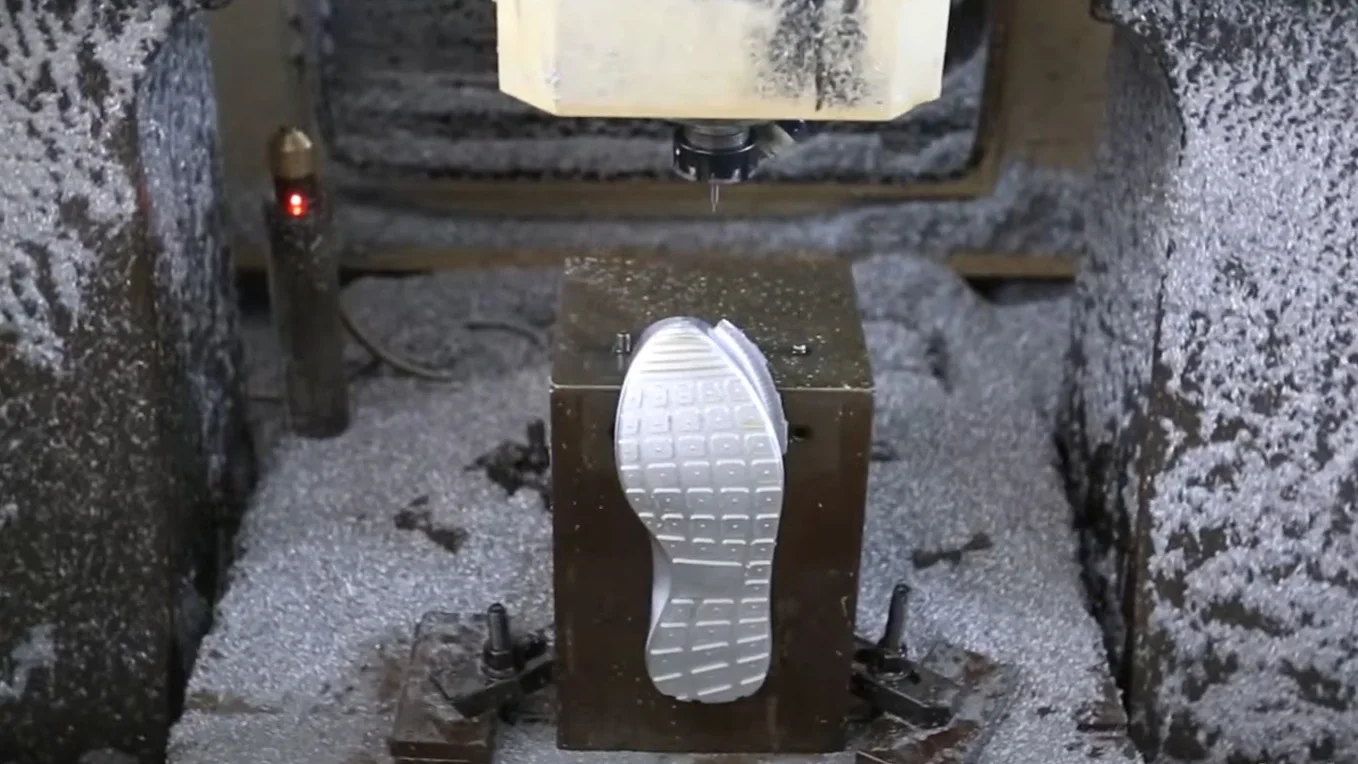

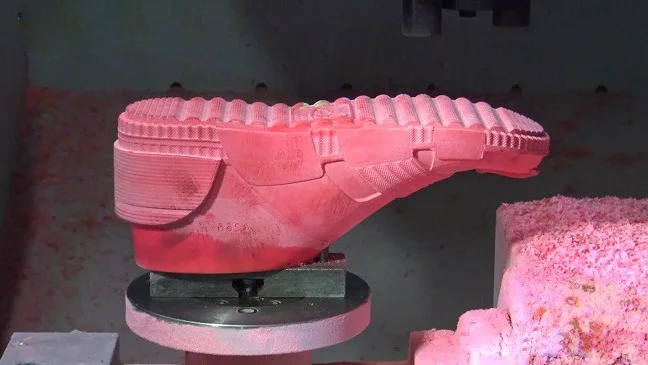

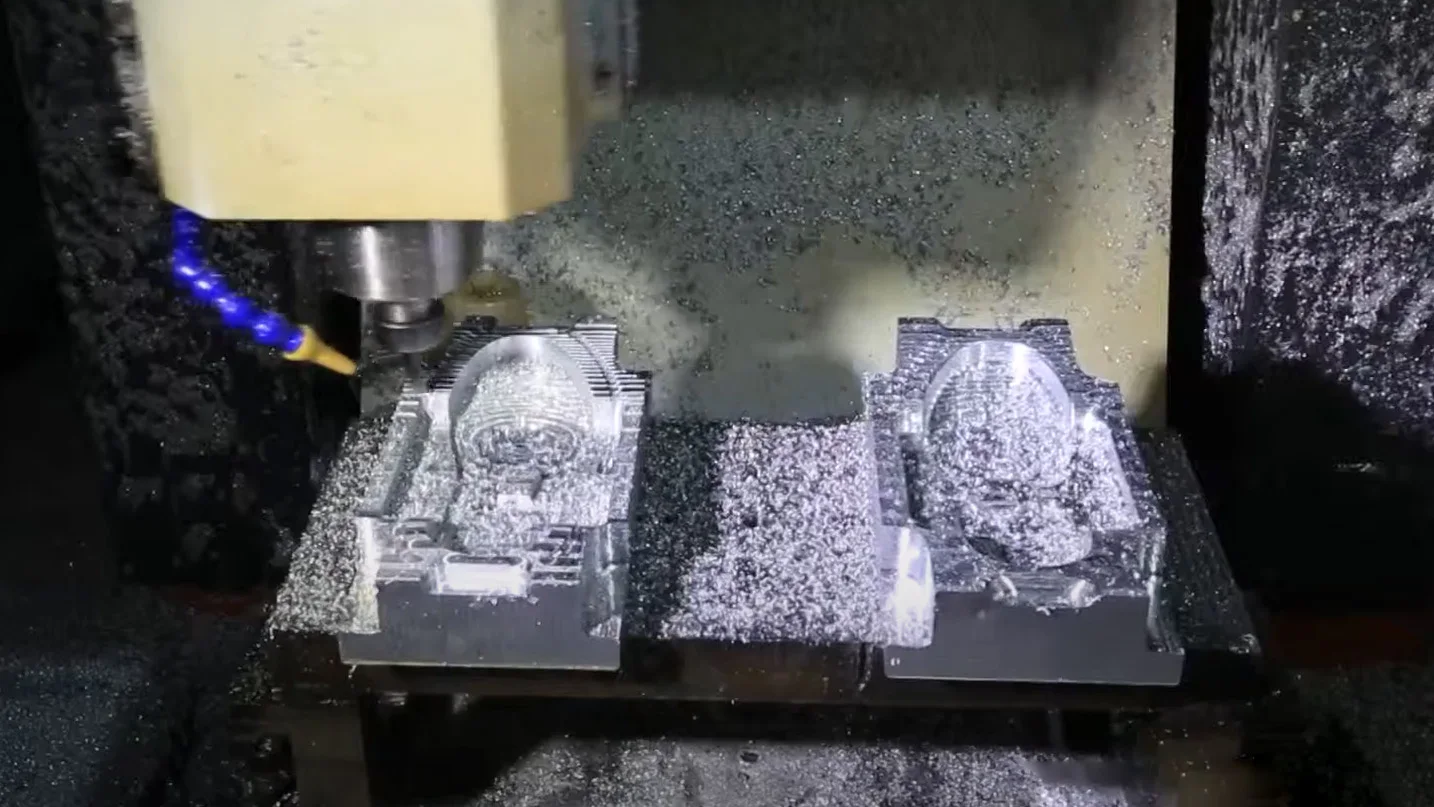

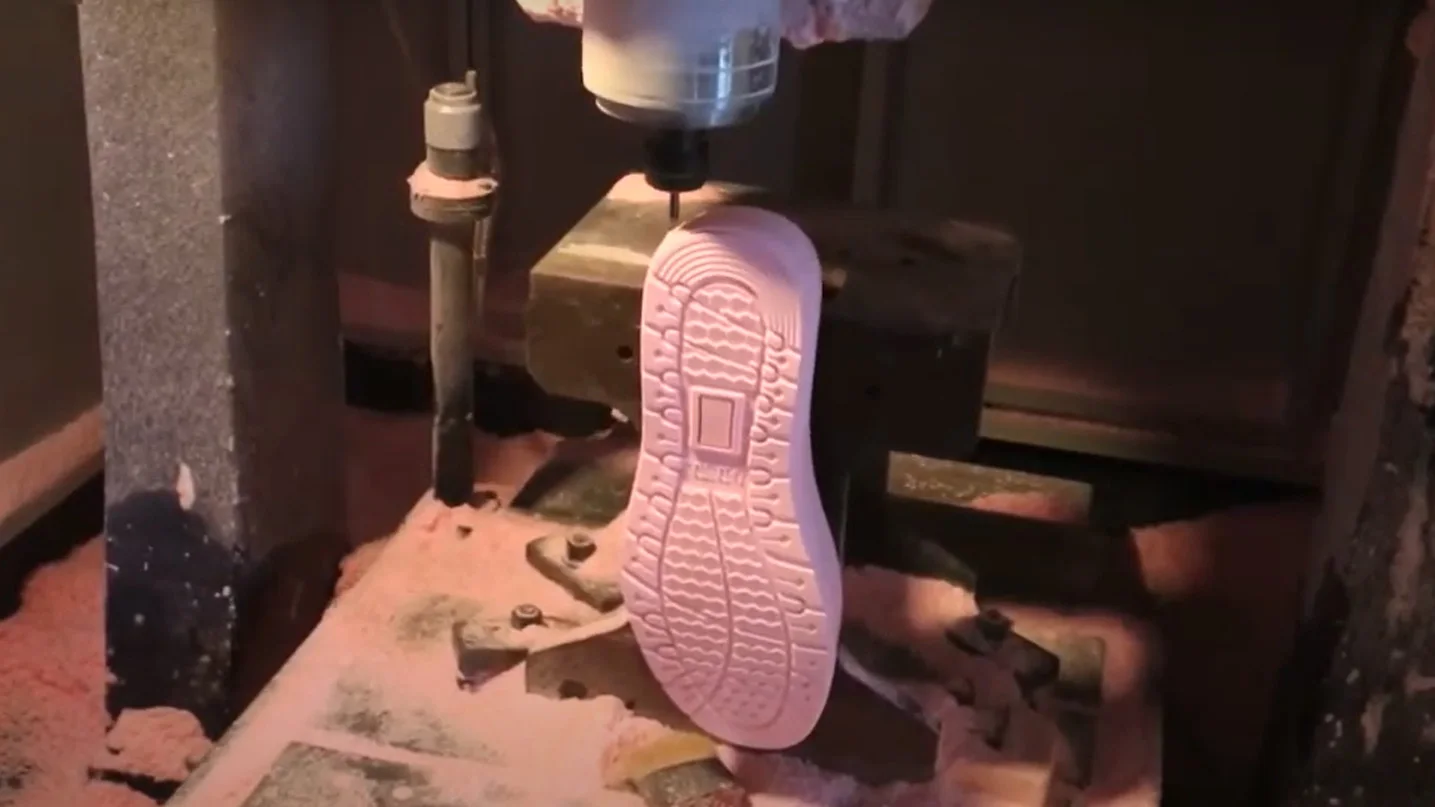

KAIBO CNC MACHINE IN SHOE MOULD INDUSTRY
Ningbo Kaibo CNC Machinery Co., Ltd.
