Android EMV PCI Card Payment System Anti tamper Smart Offline EDC POS Machines With Printer HCC Z100
- Category: Financial Equipment >>>
- Supplier: Shenzhen Hcc Technology Co. Ltd.
Share on (60769889547):
Product Overview
Description
Product performance description
Android Smart POS Terminal, support MSR, smart card and NFC card, with 5MP camera, 4G, 3 G and 2 G network, and Wifi+Bluetooth, with 58mm printer
O/S is Android 7.0,
EMV L1,L2 and PCI certificate version
1. Provide EMV/PCI kernal;
2. Anti-tamper
Product Paramenters

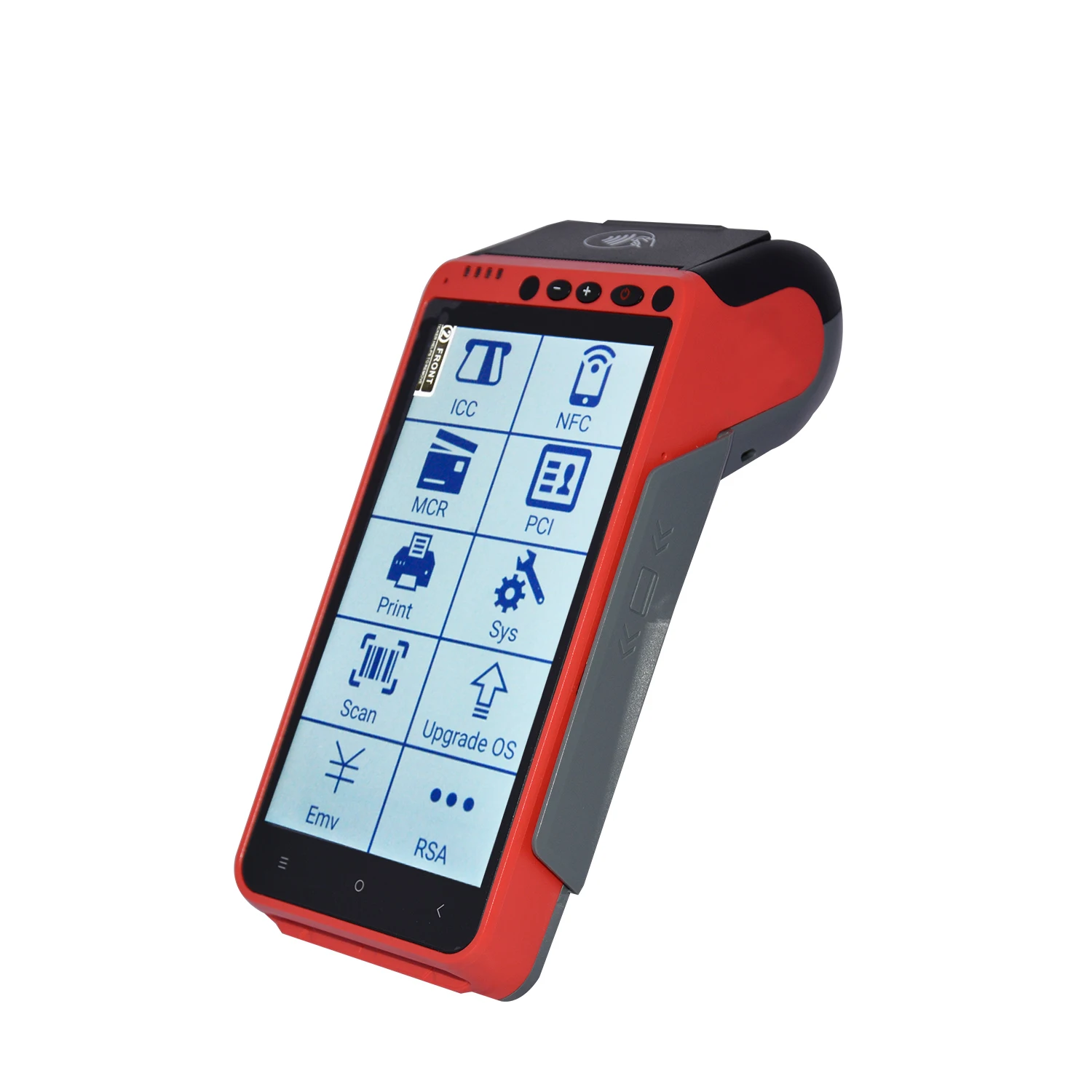

Android EMV PCI Anti-tamper Smart Offline POS Machines with Printer HCC-Z100
General

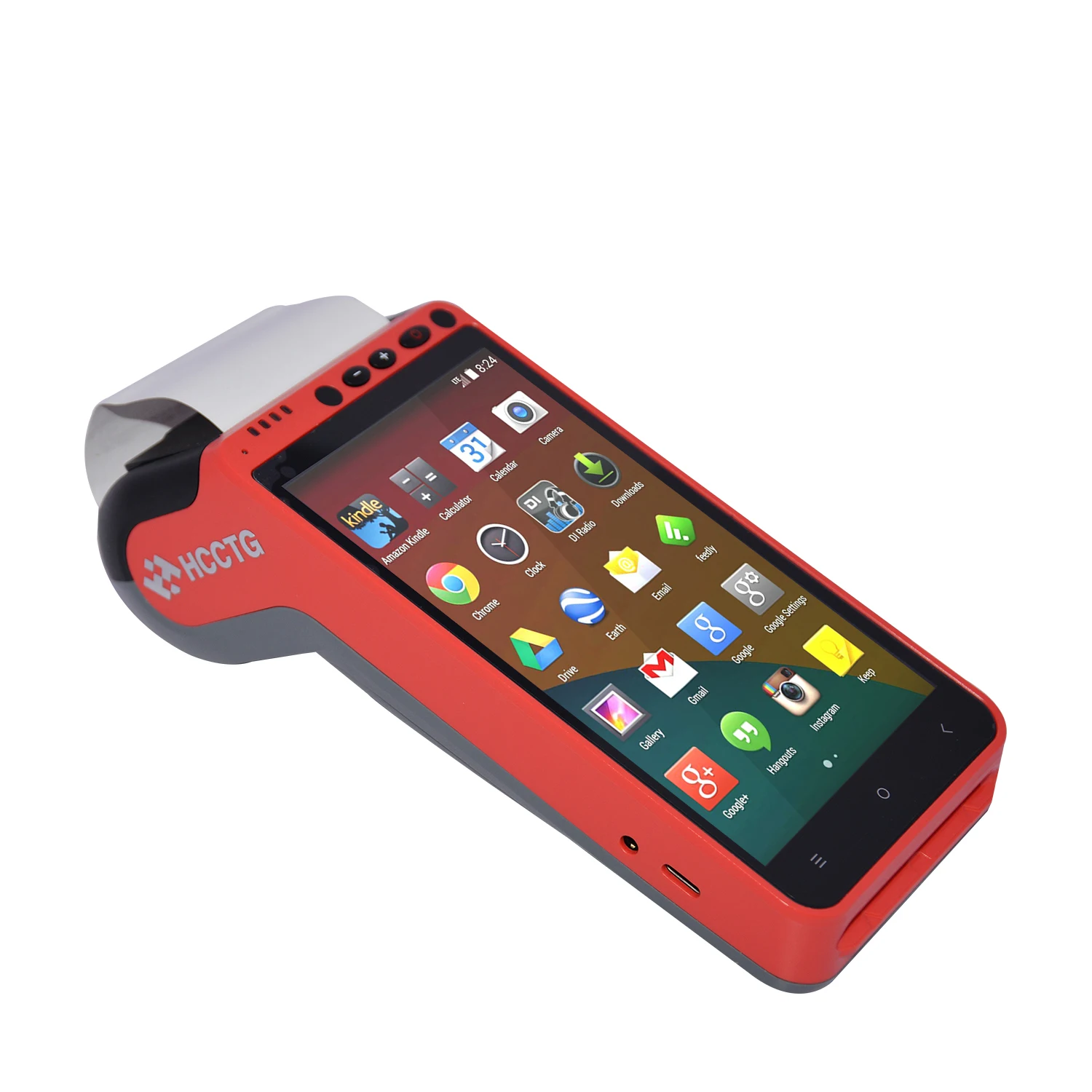

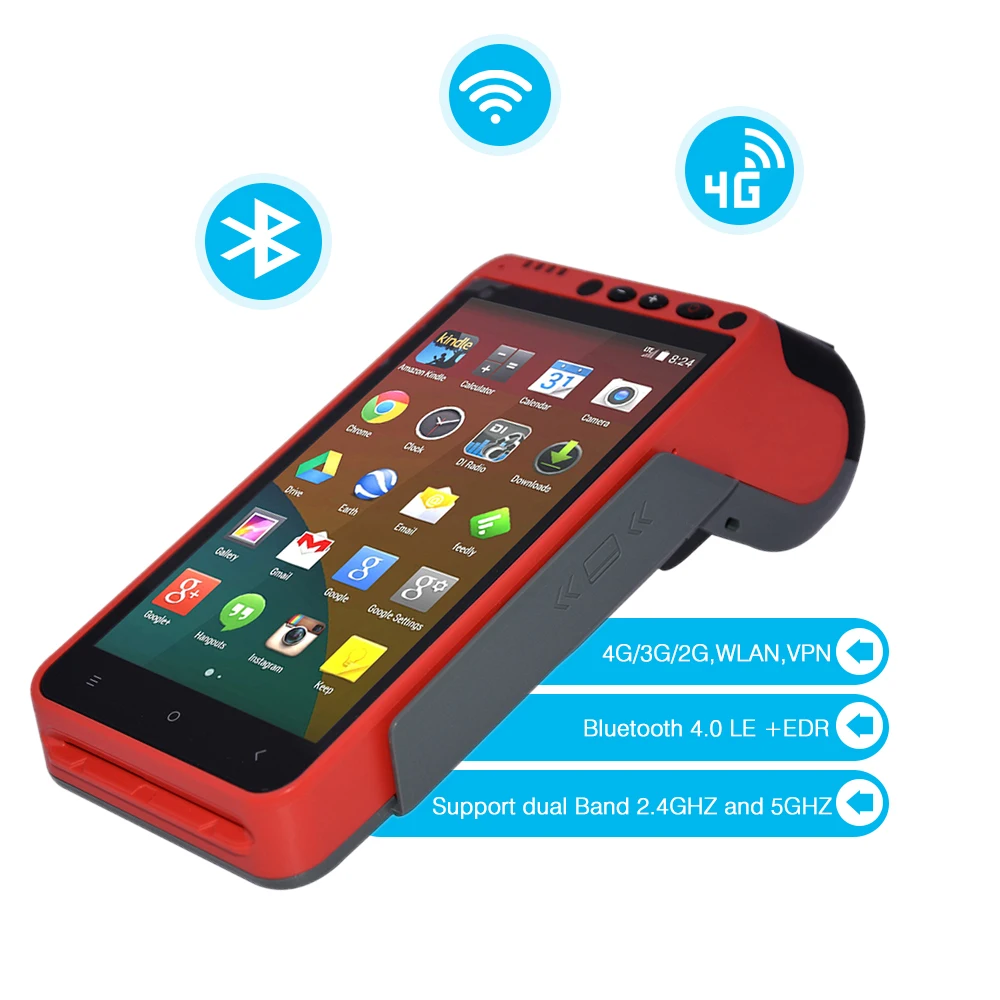

The HCC-Z100(CS10) is the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
The HCC-Z100(CS10) is the cutting-edge secure electronic payment terminal powered by safe-Android 7.0 operation system. It comes with a 5.5 inch high definition colorful display, industrial level thermal printer and flexible configuration for various barcode scanner scenarios. A wide range of advanced connectivity options are supported for global 2G/3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.
Empowered by Quad-core CPU and massive memory, HCC-Z100(CS10) enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Basic Characteristics | Panel | Ultra-sensitive capacitive touch screen, can work with gloves and wet fingers | |
Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys 3 Virtual keys: Menu, Home, Back | ||
Input | Chinese/English ,and supports handwriting and soft keyboard | ||
Interfaces | Micro SD Card Slot | 1 PCS | |
SIM Card Slot | 2 PCS MICRO SIM | ||
PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | ||
USB Port | 1PCS TYPE C USB | ||
Power | Battery | Li-ion battery, 7.4V /2600mAH | |
Charging Port | Type C USB Port ,5V DC,2A | ||
Environment | Operating Temperature | -10°C to 50°C | |
Storage Temperature | -20°C to 70°C | ||
Humidity | 5% to 95% Relative Humidity, Non-Condensing | ||
Certification | Electromagnetic | CE,RoHS,FCC | |
Payment | PCI PTS 5.X ,EMV L1&L2,Paypass , Paywave | ||
Anti-tamper | With Anti-tamper function | ||
Optional | Fingerprint | Semiconductor capacitance 18mm x 12.8mm imaging area 256 x 360 pixel array Crossmatch FBI certified 508dpi | |
Front camera | 2 Megapixel Fixed Focal Camera | ||
Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | ||
Positioning | GLONASS, Bei-Dou satellite navigation system | ||
Fiscal Module | Russian format | ||
Remarks: | ||
Standard configuration | Optional modules | |
Support MSR, Smart card and NFC card, Support 5MP camera & 58mm printer , Support 4G 3G and 2G network, and Wifi+Bluetooth ... | Fingerprint、2D Barcode Scanner etc. | |
Price Description：
▷The price on the product detail page is the standard configuration price;
▷Please consult us for the price of the optional modules.
☛Click here to contact us
Details Images
Payment
Magnetic Card reader
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional

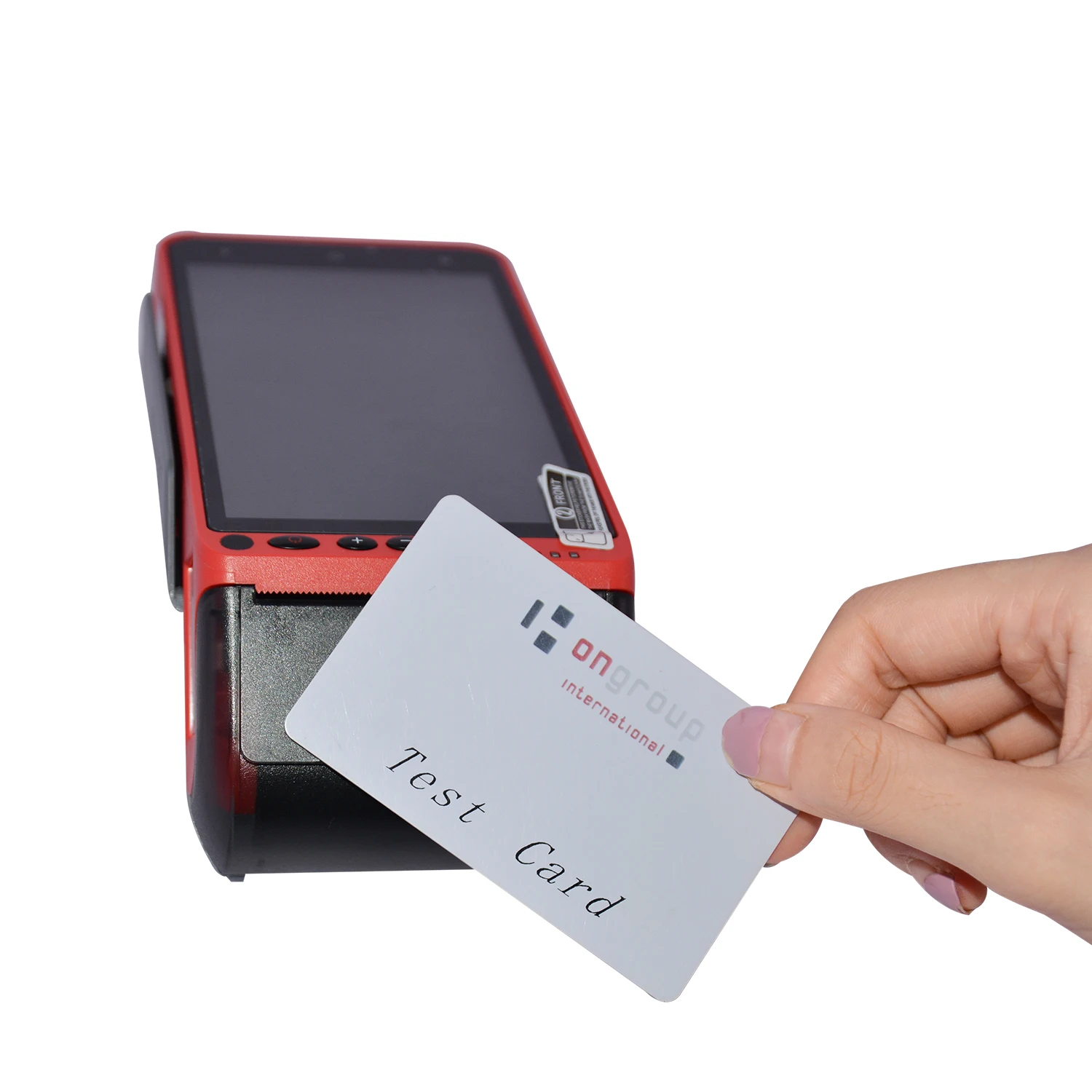

Contactless Card reader
Supports 14443A / 14443B、NFC-F（JIS 6319-4）、NFC-V（ISO 15693）、ISO-DEP（ISO 14443-4）、FeliCa、MIFARE、DESFire

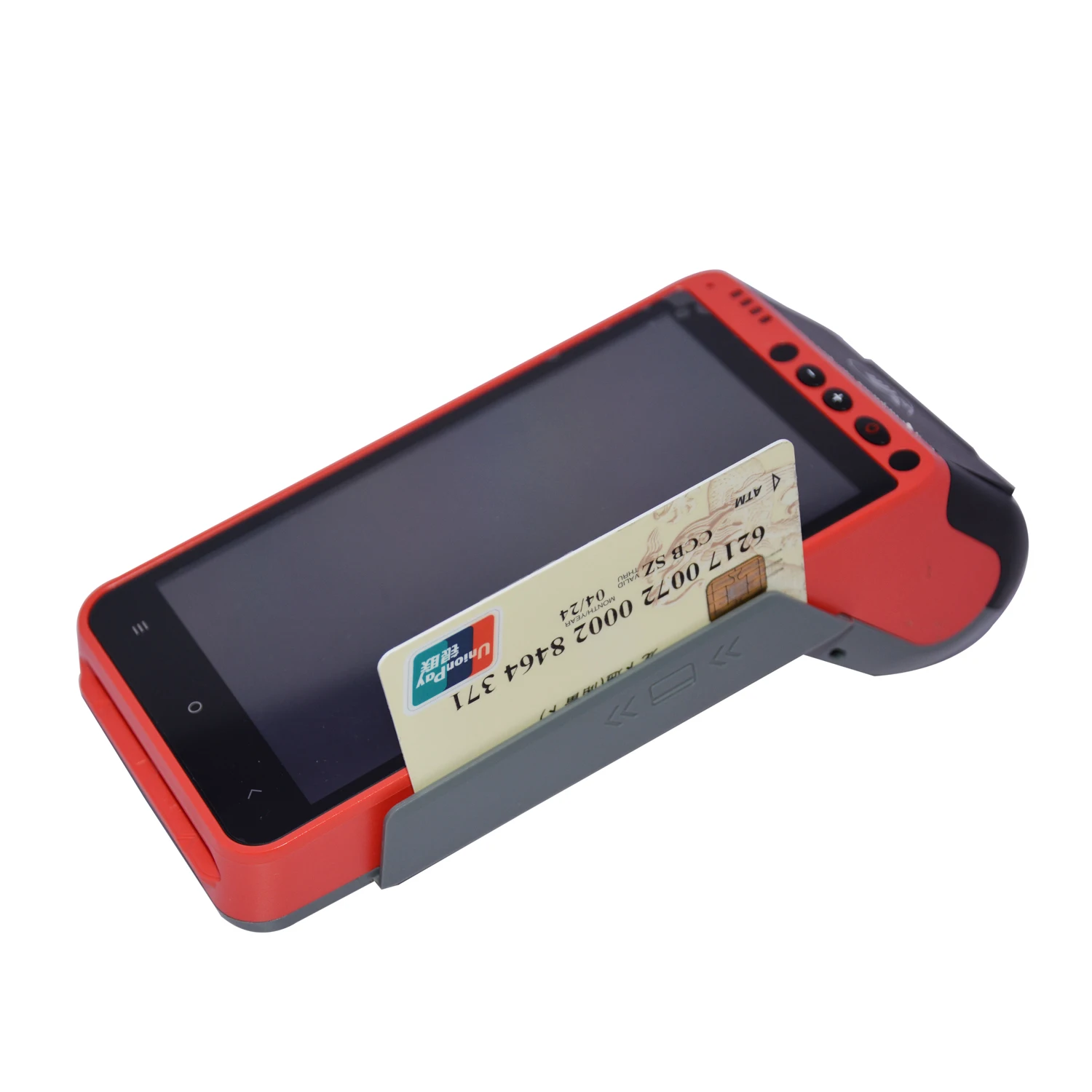

Smart Card reader
Supports ISO7816 standard;
AT24C01、AT24C02、AT24C04、AT24C08、AT24C16、AT24C32、AT24C64、AT88SC101、AT88SC102、AT88SC153、AT88SC1608、SLE4442、SLE4428;
AT24C01、AT24C02、AT24C04、AT24C08、AT24C16、AT24C32、AT24C64、AT88SC101、AT88SC102、AT88SC153、AT88SC1608、SLE4442、SLE4428;

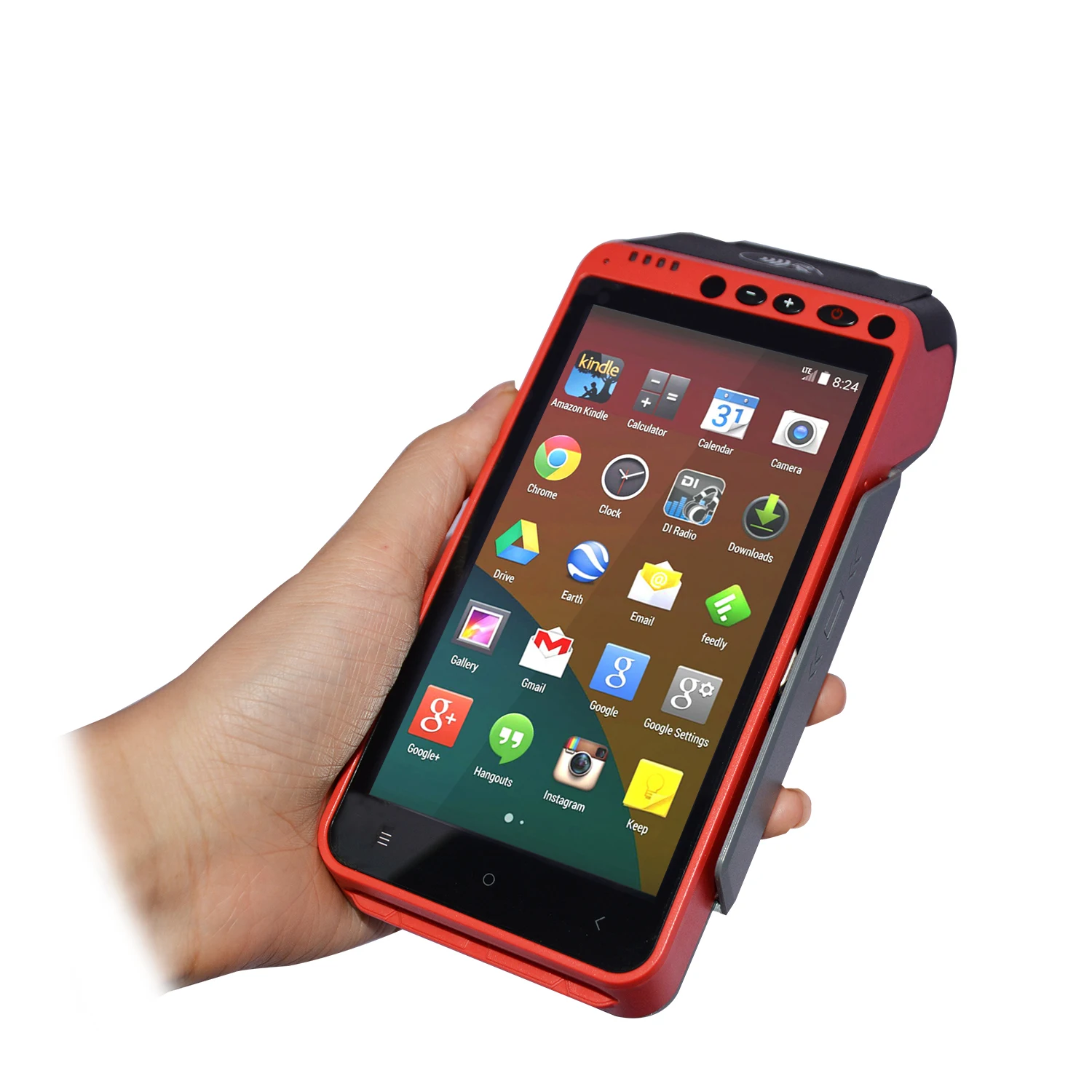

Exterior
5.5 inch TFT IPS LCD
resolution 1280*720
5MP camera with LED flash and auto-focus function
High-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll;
Seiko Printing Head
58mm printing paper ;
40mm paper roll;
Seiko Printing Head

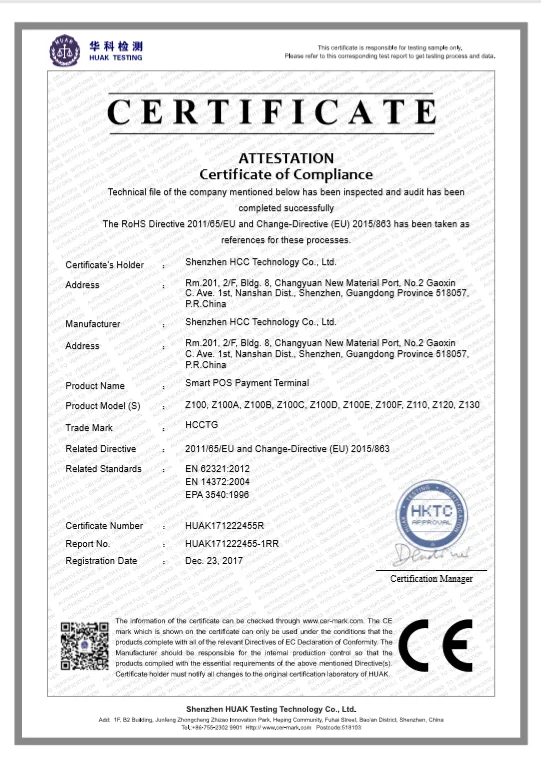

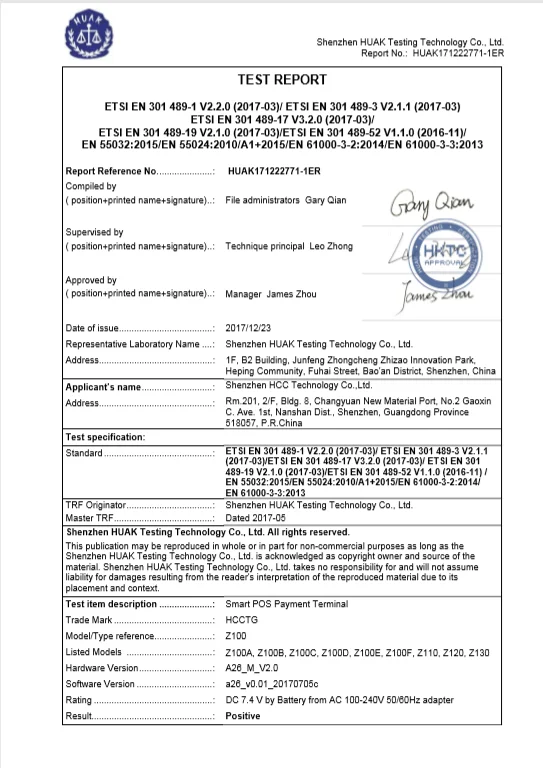

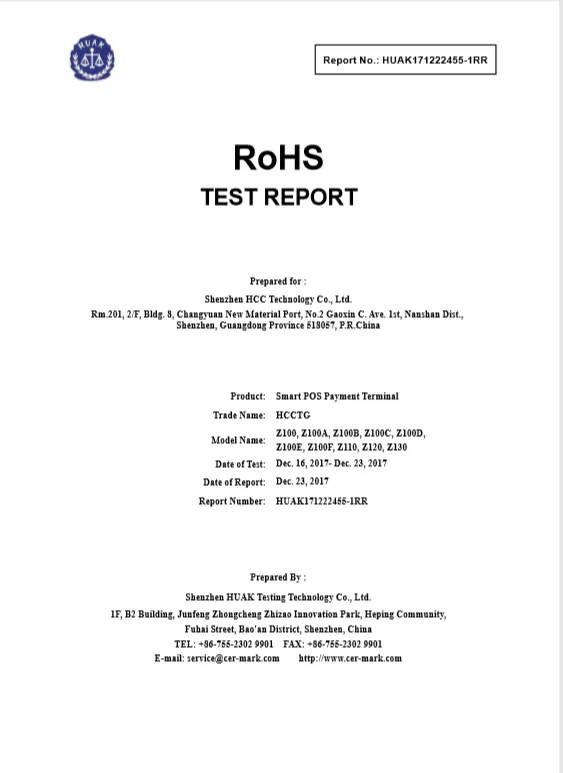

Our Certifications
