gas hot water 1 ton steam portable steam boiler
- Category: >>>
- Supplier: Henan Swet Boiler Co. Ltd.
Share on (60769890057):
Product Overview
Description
Product Description
gas hot water 1 ton steam portable steam boiler for for industrial production

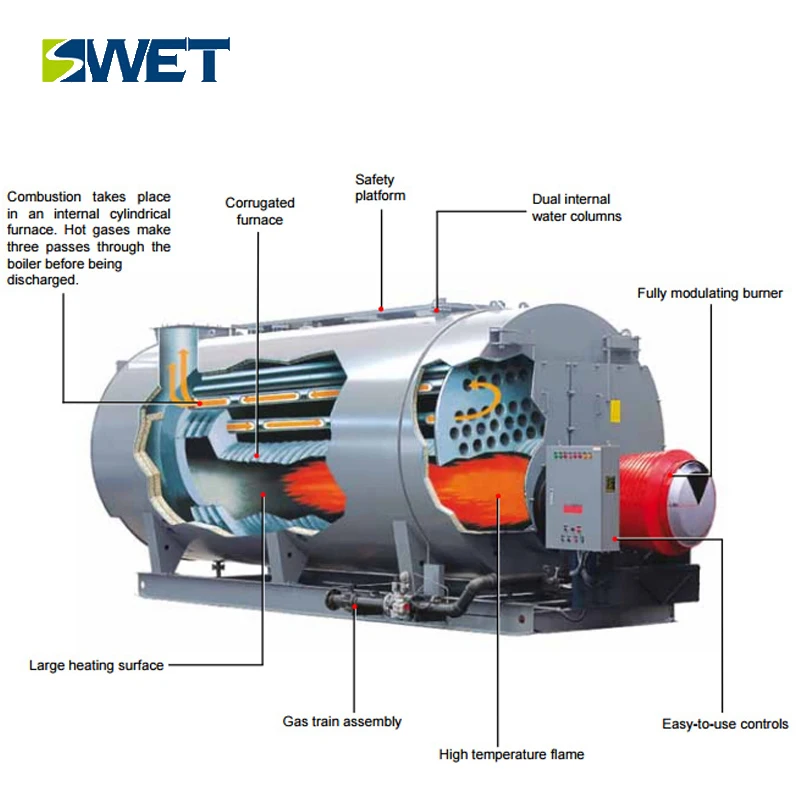

This oil &gas steam boiler is five-return fire tube steam boiler. The burning control, water feed, programs run, etc, is full automatic.It equipped with a bias furnace tube structure, and high temperature gas into the atmosphere through five-return smoke tube, smoke chamber. It equipped with good performance burner and advanced techniques. This fantasy boiler is safe and reliable, and also has the advantage of compact structure, simple operation, easy installation, high efficiency, less pollution and noise, etc
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,

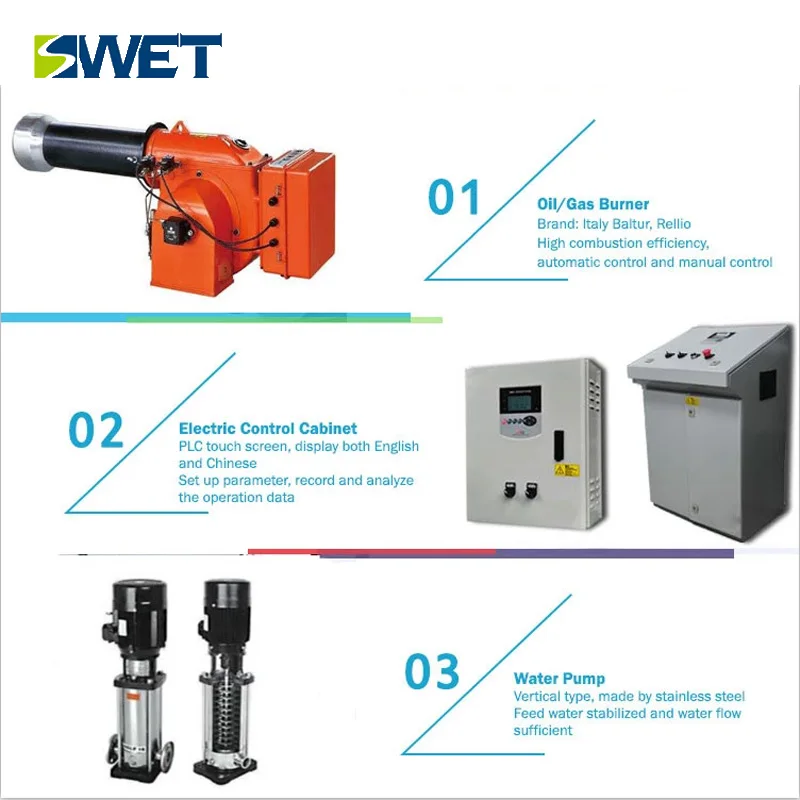

Boiler Parts
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,
Technical Parameters
| WNS series automatic gas (oil) steam energy saving boiler product selection formWNS series automatic gas (oil) steam energy saving boiler product selection form | |||||||
| Model | Rated capacity | Working pressure | Steam temperature | Feed temperature | Testing efficiency | Gas consumption | Outline dimension |
| Unit | t/h | Mpa | ℃ | ℃ | % | Nm³/h | mm(L*W*H) |
| WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 97.62 | 1407.5 | 8660*3520*4831 |
| WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 97.51 | 1459 | 8870*3550*3750 |
| WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/197/204 | 105 | 97.2 | 1126 | 7450*3520*4090 |
| WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 96.75 | 837.25 | 6370*2812*3514 |
| WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 96.7 | 659.25 | 6000*2920*3403 |
| WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 96.58 | 433.51 | 5470*2770*3195 |
| WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 96.48 | 409.33 | 5160*2410*3015 |
| WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 96.3 | 334.23 | 4880*2710*2600 |
| WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 95.99 | 245.12 | 4762*2447*2469 |
| WNS2-1.0(1.25)-Q(Y) | 2 | 1.0/1.25 | 184/197/204 | 20 | 95.81 | 163.72 | 4030*2010*2210 |
| Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | |||||||
Advantages
1. Boiler with light oil and gas for fuel, can also be used for city gas or liquefied petroleum gas, wide fuel adaptability, high efficiency and energy saving, low operation cost.
2. The boiler adopts full butt welding wet back structure, low layout of whole corrugated furnace boiler structure, elastic and thermal expansion good, safe and reliable.
3. Using 80mm thick aluminum silicate fiber insulation layer, light weight, good heat insulation effect, small heat loss.
4. The boiler computer control, high degree of automation, all kinds of safety protection device is complete, easy to operate, safe and reliable operation.
5. The boiler automation instrument and auxiliary reasonable, advanced and reliable.
company infomation
Henan Swet(original name DeSheng) Boiler Co.Ltd (former Kaifeng Boiler Plant ) was established in 1954 , located in the historic city of seven dynasties . It is a key enterprise in China engaged in A-class Boiler and D1 ,D2 pressure vessel .
It holds level 1 boiler installation permit ,three 4generations of hard work ,strive to built one hundred enterprises.Our main products including circular flow bed (CFB)boiler ,gas boiler,coal boiler,biomass boiler,oil boiler,power plant boiler , energy-saving boiler,solider waste boiler, high-efficiency boiler, electric hot water boiler,high-pressure boiler,fully automatic control boiler,wood chip biomass steam boiler,chain grate boiler,condensing boiler ,natural gas steam boiler ,water tube boiler,fire tube boiler ,full artificial intelligence boiler and another industrial boiler.
Enterprise Scale :Factory covers an area of 130000 square meters , the building area of 60000 square meters. Company technical force is abundant ,existing staff of more than 1100 people , engineering and technical personnel 217 people ,senior engineer 12 people .
Company Equipment : Company established a complete set of quality guarantee system ,and have obtained the ISO9001 certificate.Sophisticated equipment, advanced technology, the existing 343 sets of various devices, including large equipment are:1200 tons of hydraulic press, cutting plate machine, forging machine, 9m chamfering machine, 30 x300 and 50x2500 crimping machine,two lines of membrane wall, lines of serpentine tube , CNC plane drilling ,CNC drum drilling ,CNC cutting machine , D159 big pipe bender.
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,
Packaging & Shipping
Certifications
gas hot water boiler,1 ton steam boiler,portable steam boiler,gas hot water boiler,1 ton steam boiler,portable steam boiler,
1.Our firm business idea is "Set examples, make friends and explore the market by selling our boiler".
2.We will provide full range services to our customers, by virtue of advanced technology , superior product
and competitive price.We guarantee the product quality by strict management, and win customer satisf-
action by excellent services .The comprehensive service advisory systems throughout the sales process
help us achieve perfect combination of products and services.
3.Leading Hi-tec for the industry is our eternal pursuit.
2.We will provide full range services to our customers, by virtue of advanced technology , superior product
and competitive price.We guarantee the product quality by strict management, and win customer satisf-
action by excellent services .The comprehensive service advisory systems throughout the sales process
help us achieve perfect combination of products and services.
3.Leading Hi-tec for the industry is our eternal pursuit.
FAQ
1. How to get a boiler price list?
Pls tell us below to confirm a boiler model and offer the right boiler price:
1) What is the application of the boiler?
2) What is the capacity per hour do you need?
3) Which fuel do you want to use for your boiler, coal, biomass, gas & oil, or others?
4) What is the pressure of your boiler?
Any more questions,please sent your inquiry below
Contact information
Mobile/Whatsapp: +8615038108829
Website: www.swet-boiler.com
