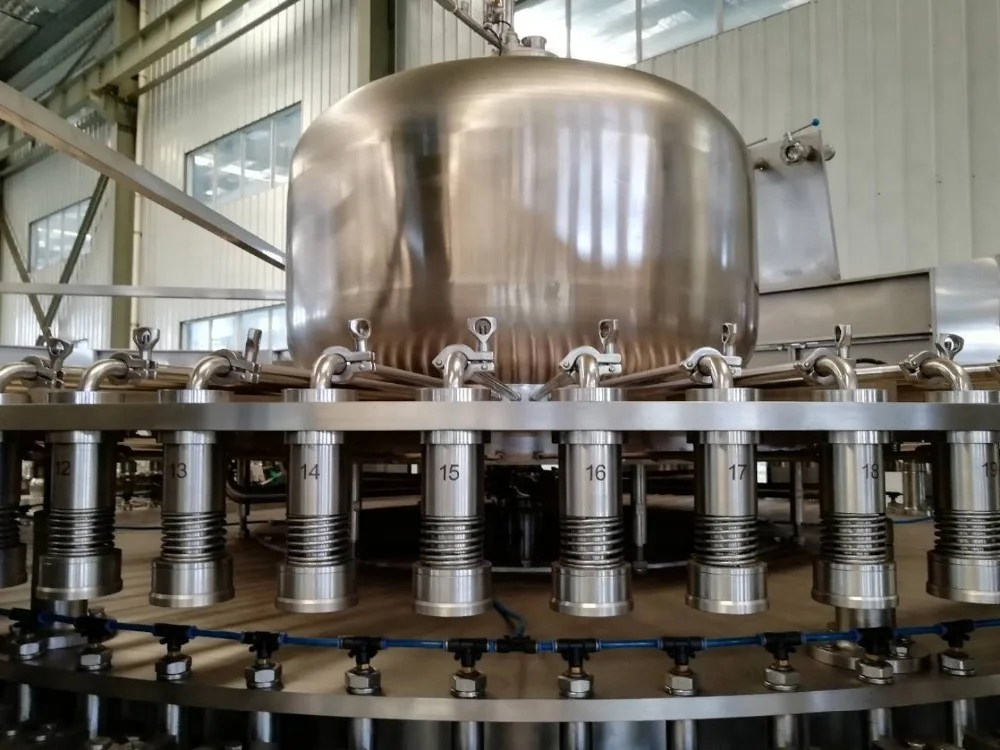

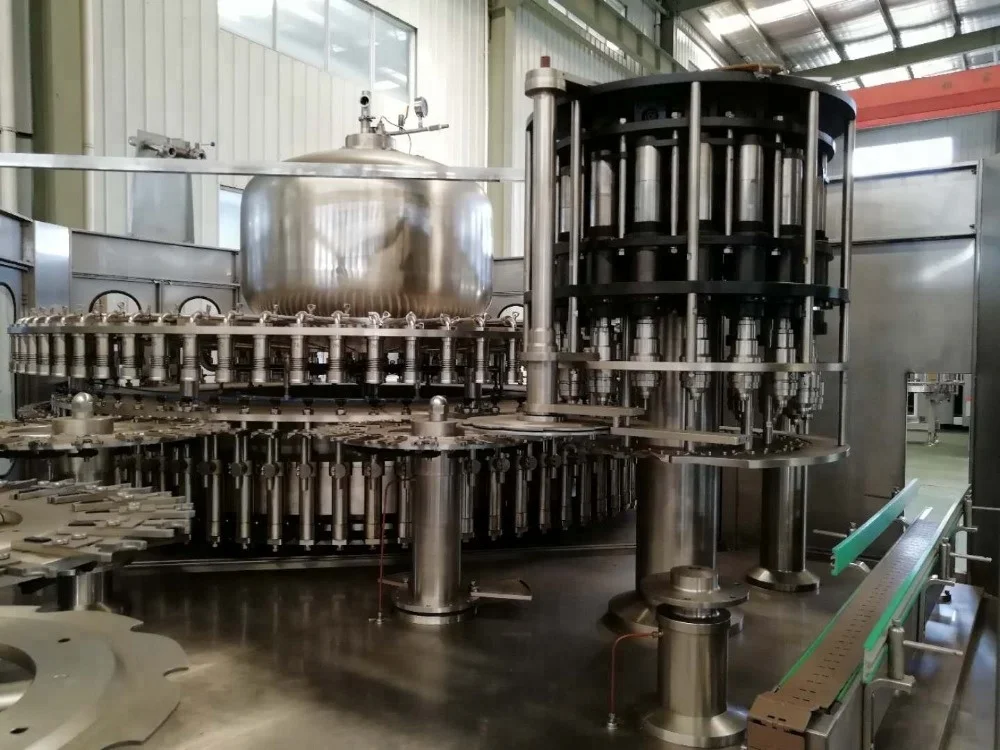

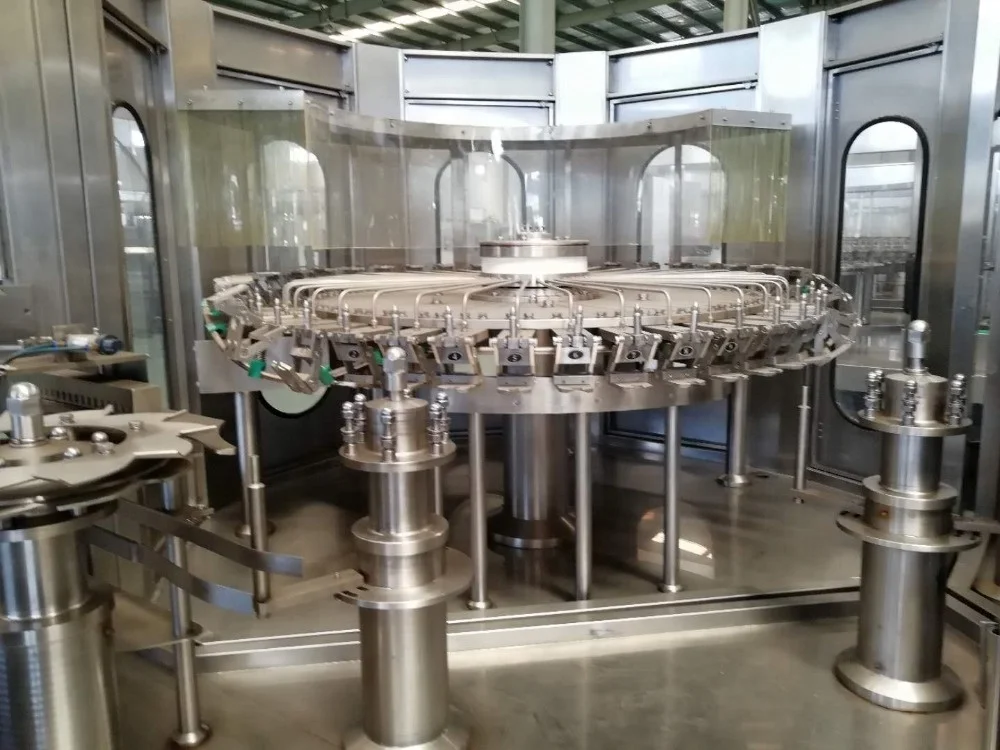

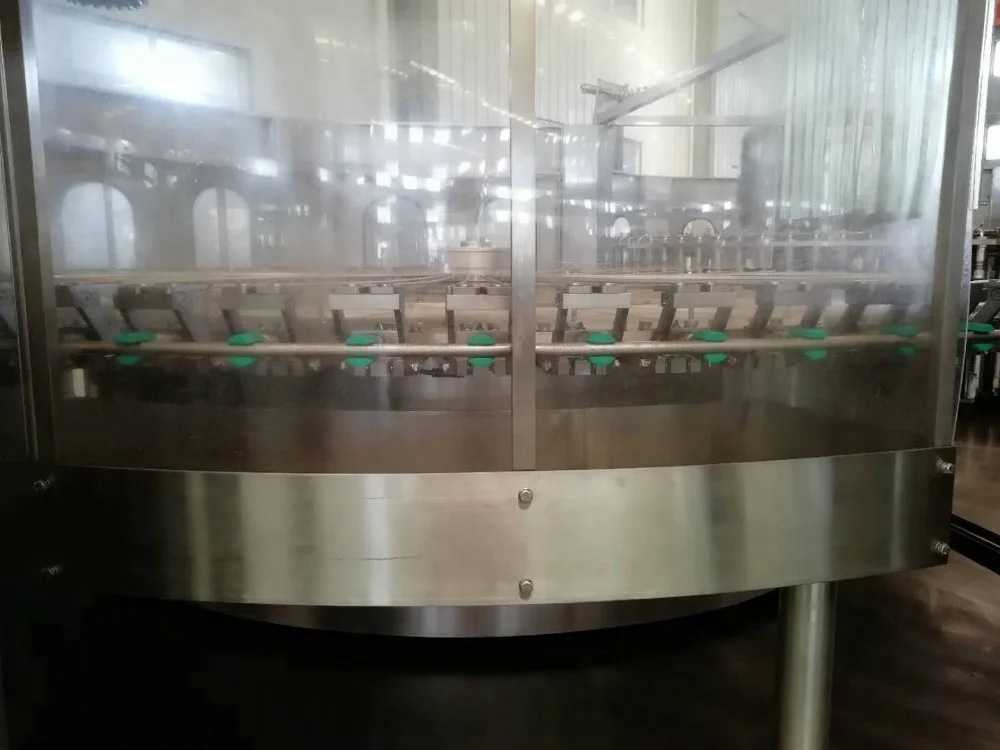

Full Automatic High Capacity Beer Filling Machine

Product Overview

Description

JR80-80-18DP 28000B/H(500ml) Beer Washing Filling Capping Machine (3-in-1)
The machine is mainly used in the beer filling operations.The three functions of bottle washing,filling and capping are integrated in one body of the machine.The whole process is automatic.The machine is used to fill beer in bottles made of polyester or glass.The machine is conveniently adjustable to fill various types of bottles.The filling operation is faster and more stable due to the new isobaric filling operation.The output and benefit of the machine is higher than the machines of the same specifications.The advanced OMRON programmable logic controller(PLC) is adopted to control the machine to run automatically.Air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section.which can adjust speed and coordinate with transducer of the main machine to make the output of moving bottle forward steadily and reliably.It is conveient to operate with higher automation due to every part of the mahcine which is inspected to run with photo electrical detector.The machine is an ideal-preferred equipment for beer makers.

Washing Workstation	80
Filling Workstation	80
Capping Workstation	18
Production Capacity	28000B/H (500ml)
Machine Power	15kw
