Manual brake winch&2600lbs hand winch SC2600
- Category: >>>
- Supplier: Yuhuan Jiansu Mechanical And Electrical Manufacturing Co. Ltd.
Share on (60769915613):
Product Overview
Description

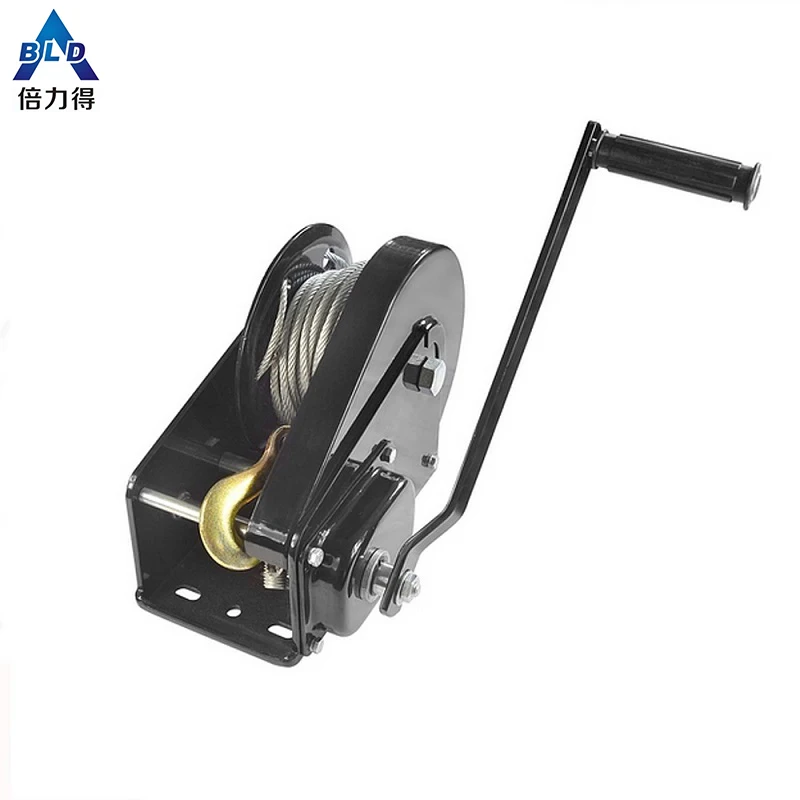

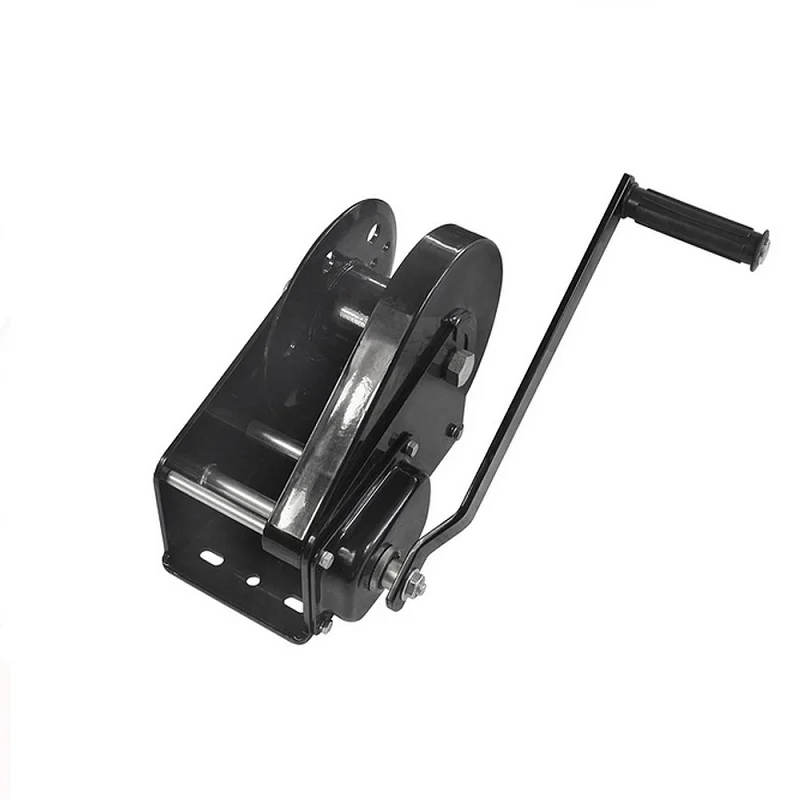

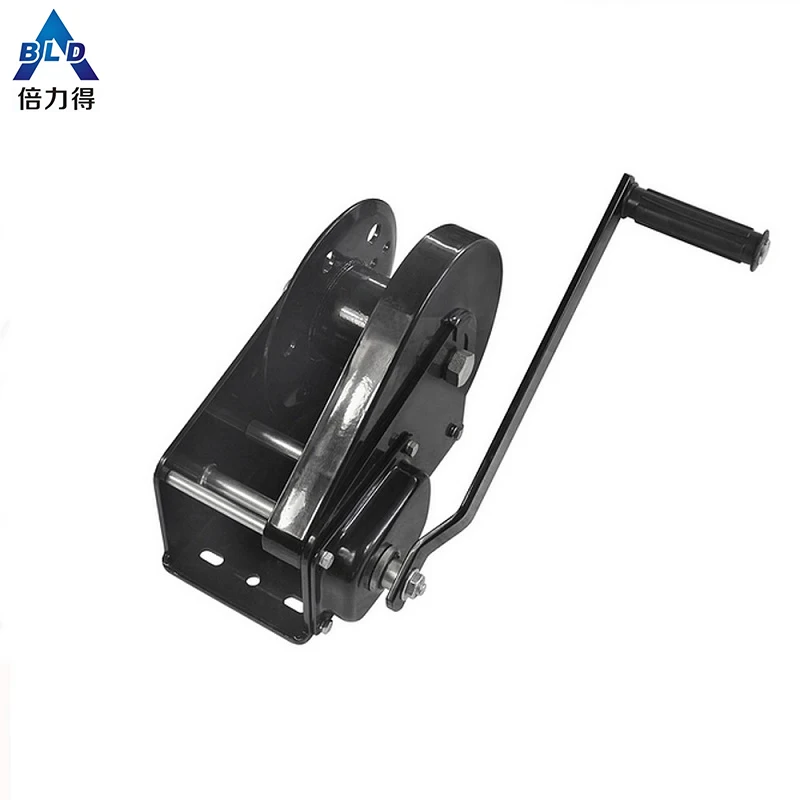

Manual brake winch&2600lbs hand winch SC2600
Specification:
Type: Manual Brake Winch
Work Load: 2600lbs
Max. Capacity: 17.5KN
Gear Ratio: 10.0/1
Brake Winch With Wire Rope
Cable Size: 5.5mmx10m
Net Weight:10.3KG

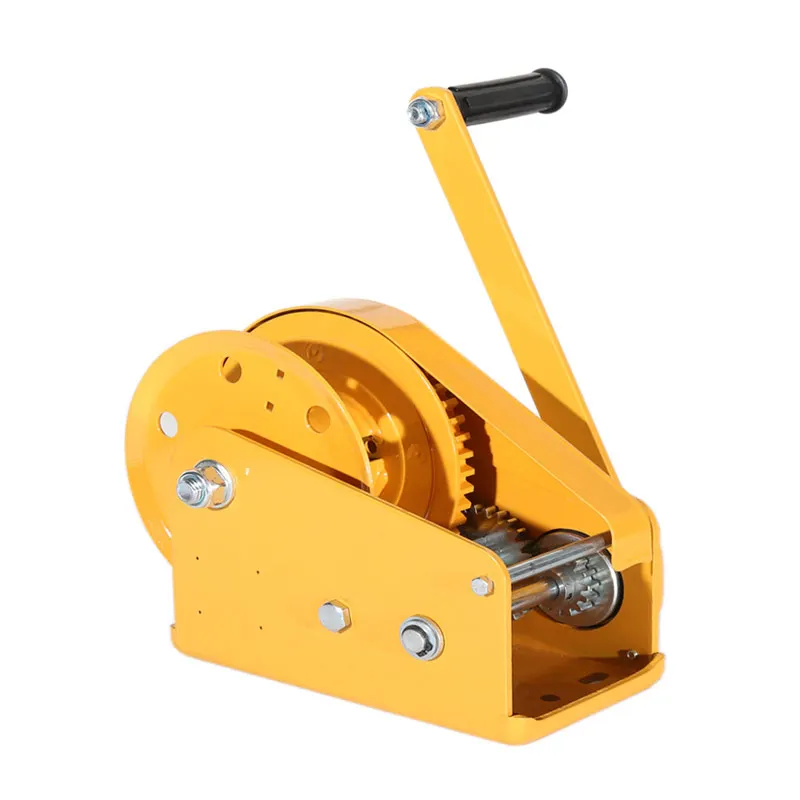

More Model options for Brake Winch:
| SPECIFICATION | ||||||||
| Item No. | Rated Capacity(KG) | Max Capacity(KN) | Cable Size(Dia.x L) | Strap Size(Dia.x L) | Gear Ratio) | Pcs/Carton | Packing Size(cm) | N.W(one pc) |
| SC1200 | 550 | 8 | 4.5mmx10m | 50mmx7m | 4.2:1 | 6 | 51*36.5*25.5 | 3.8kg |
| SC1800 | 800 | 12 | 5.0mmx10m | 50mmx10m | 5.0:1 | 4 | 40.5*33*45 | 8.1kg |
| SC2600 | 1100 | 17.5 | 5.5mmx10m | 50mmx10m | 10.0:1 | 4 | 42.5*31*48.5 | 10.3kg |
Features
1.large drum hub to maximize cable life.
2.self-activating automatic brake hold the load securely when crank handle is released
3.With cable or strap.
4.safety guard cover available
5.Top quality with competitive price.
6.Widely used in the double beam bridge crane and gantry crane
7.Easy to install and high quality.
8.Compact structure and reasonable design.
