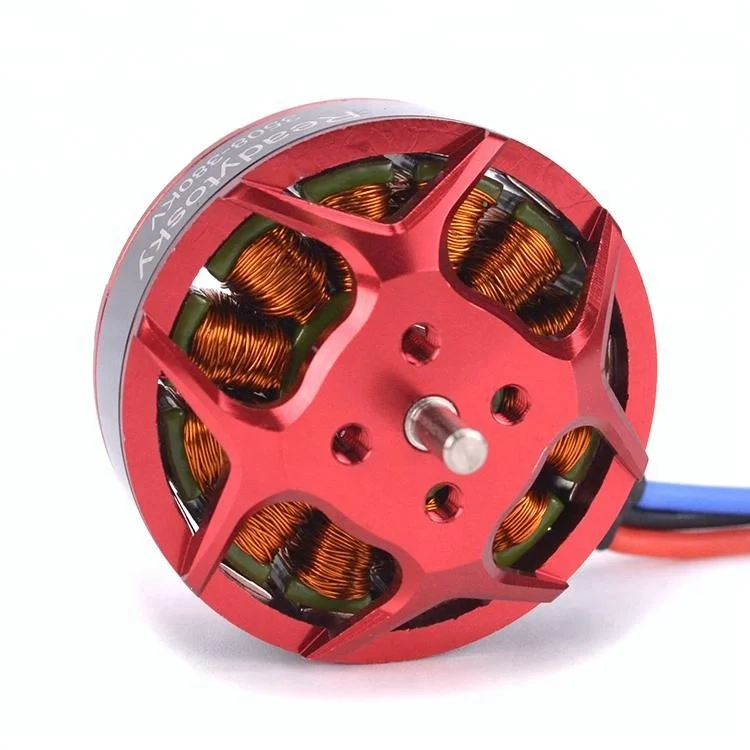

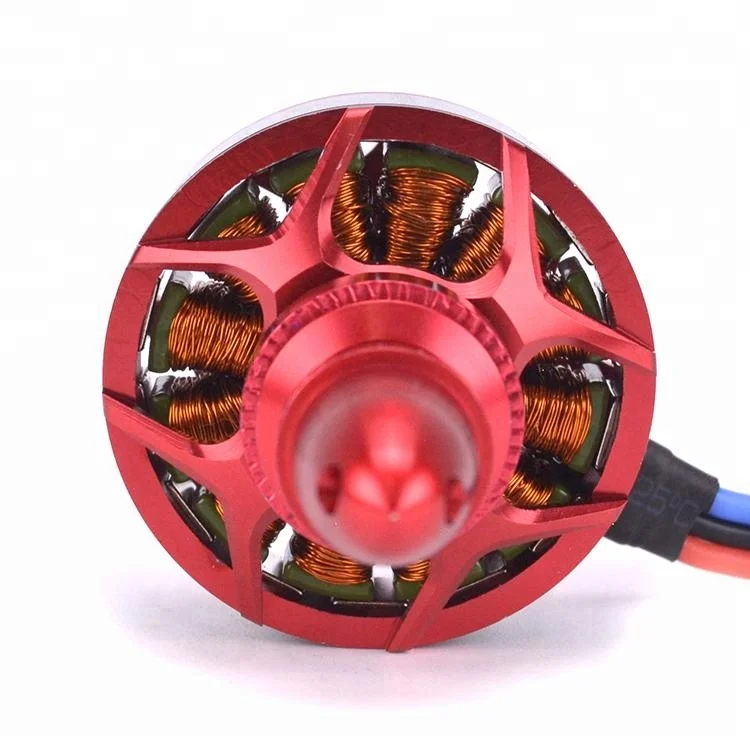

High quality 3508 380KV Remote Controller Frame Metal Hsp Brushless V3508 Brushless Rotor Copter
- Category: >>>
- Supplier: Dongguan Hsk Rc Technology Co. Ltd.
Share on (60769927751):
Product Overview
Description
Product Description

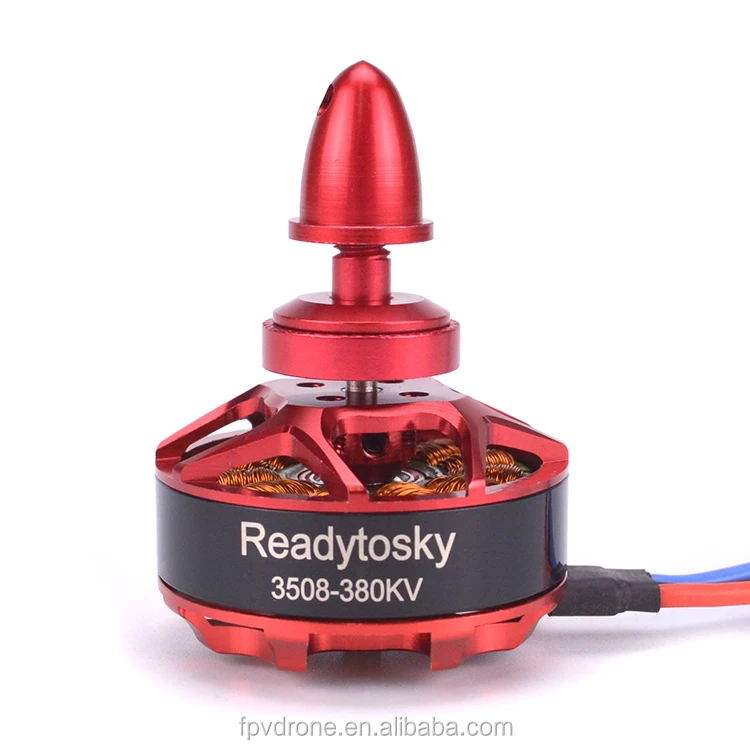

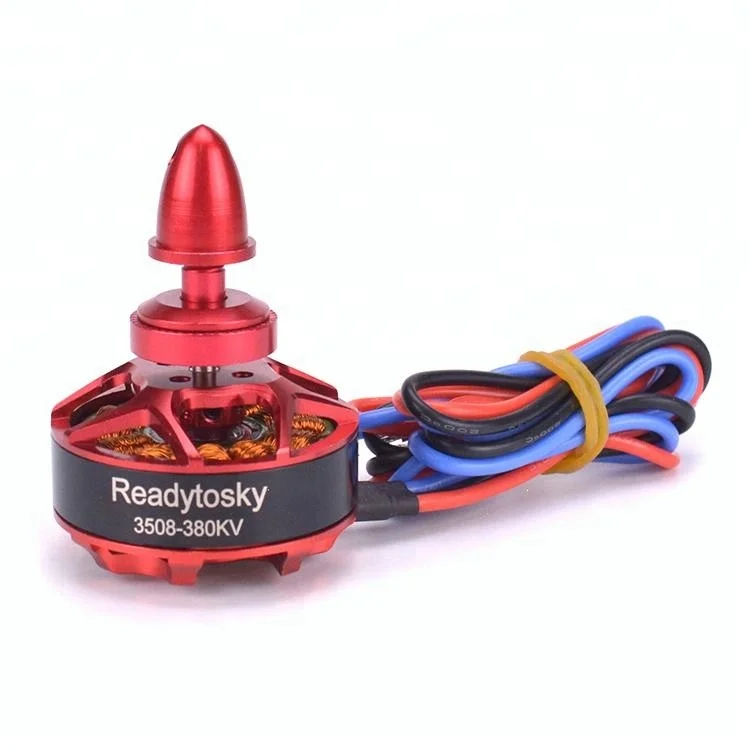

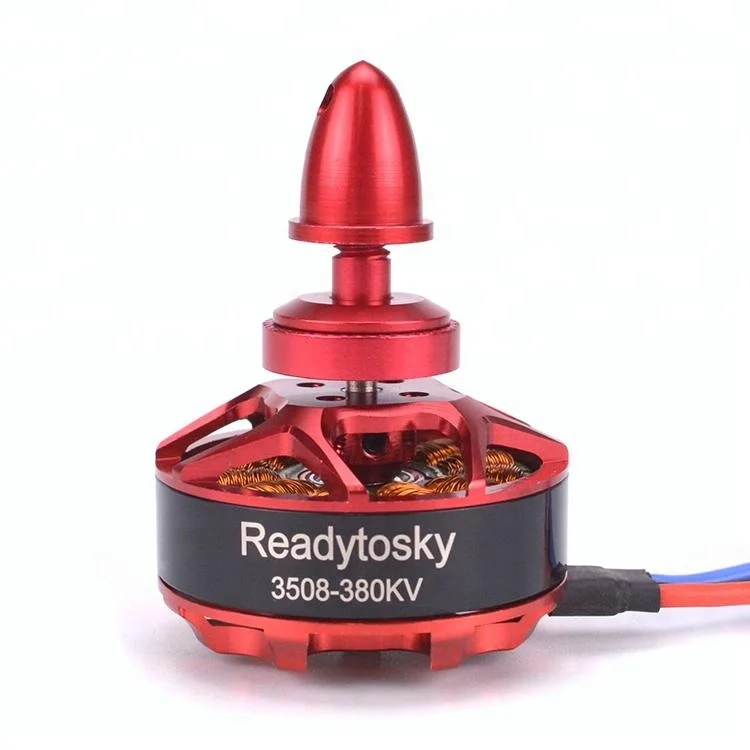

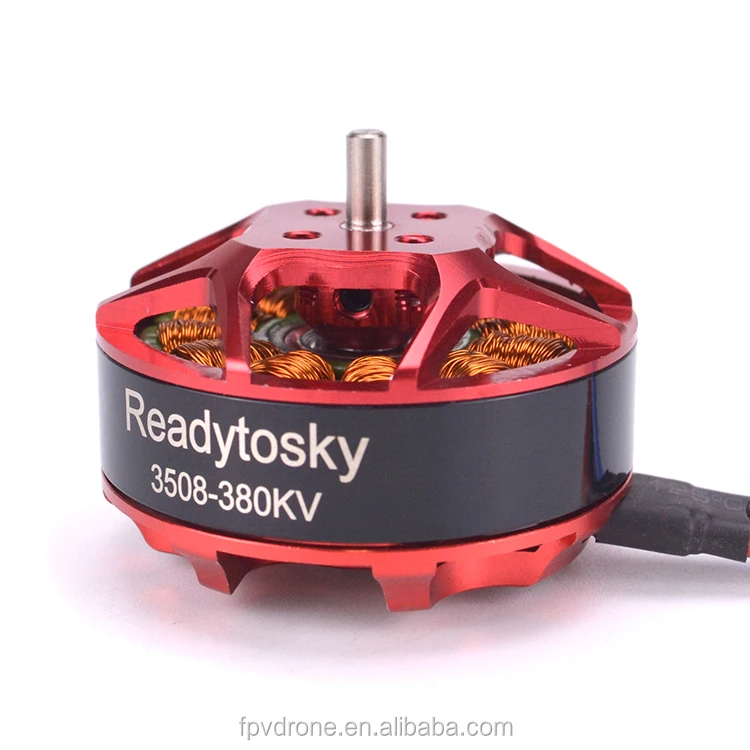

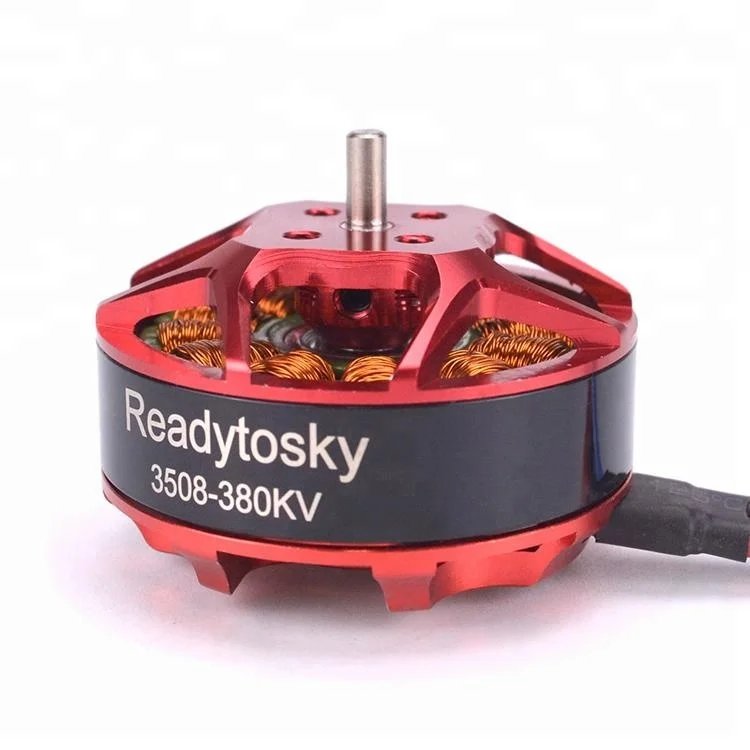

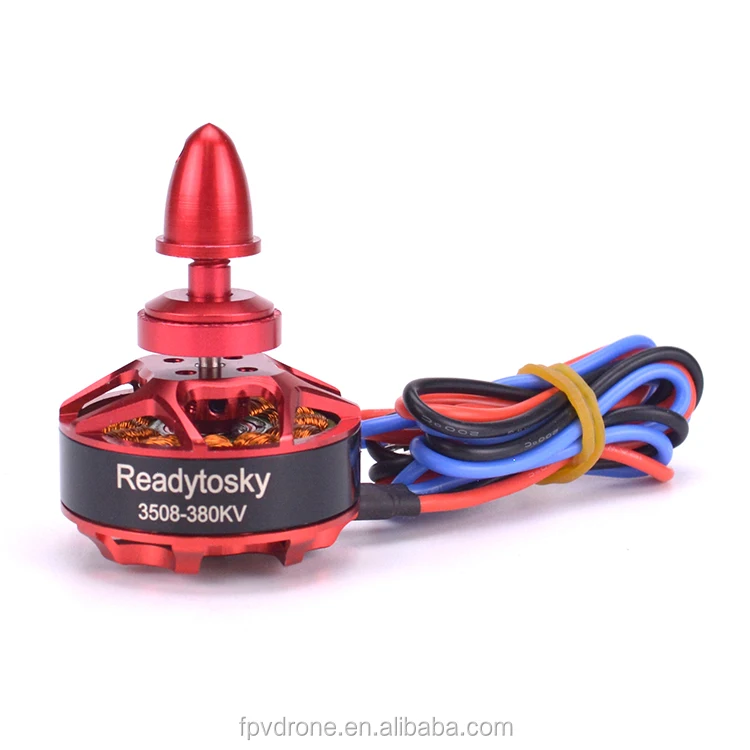

High quality 3508 380KV Remote Controller Frame Metal Hsp Brushless V3508 Brushless Rotor Copter
Description:
Flat design, multi pole exterior rotor brushless motor, large torque, high efficiency

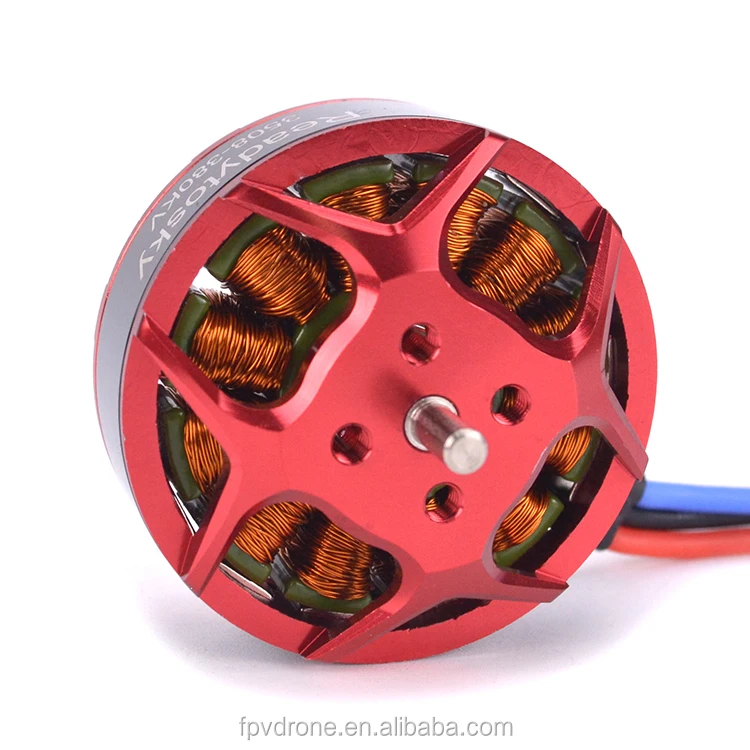

Multiple mounting holes at the bottom of the motor, which is compatible with the mainstream multi-rotor on the market
Excellent consistency, stability and clear positioning, tested by the professionals
High efficiency, reliable brushless motor for Vtol
Motor go through rotation testing
Light weight and great exterior design
Long life Japanese NMB ball bearings
Efficient Japanese Kawasaki stator steel
Unique wiring method and elaborate technology
The best efficiency based on the relevant pull
Specifications:
Stator Dia:35mm
Stator thickness:8mm
No. of stator arms:12
No. of stator poles:14
Motor KV:380KV
No load current(A/10V):0.3A
Motor resistance:135m
Max continuous current:22A/30S
Max continuous power:330W
Weight:106g
Outside Dia:42mm
Shaft Dia:3.2mm
Body length:26.5mm
Overall shaft length:33mm
Max.lipo cell:4S
Recommanded Prop(inch): APC12 * 3.8 APC14 * 4.7 DJI14 * 5.5

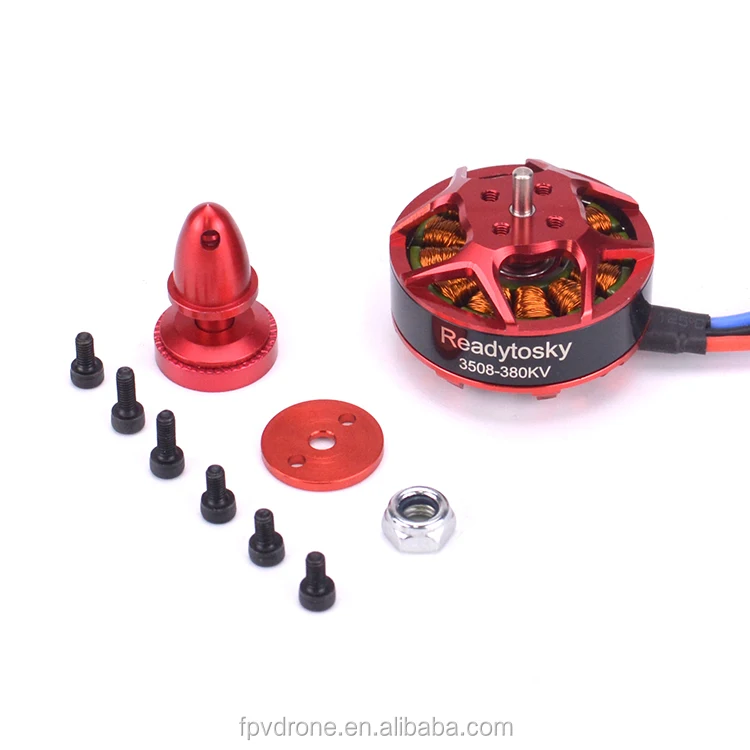

Package included:
1pcs*3508 380kv motor
