Medical Syringe Needle Assembly Machine

Product Overview

Description

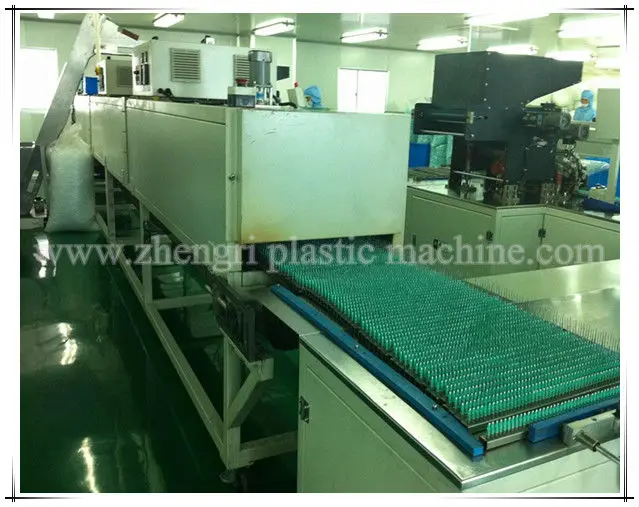

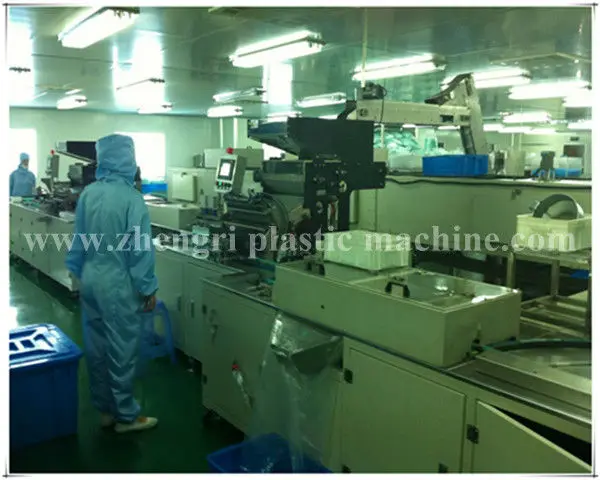

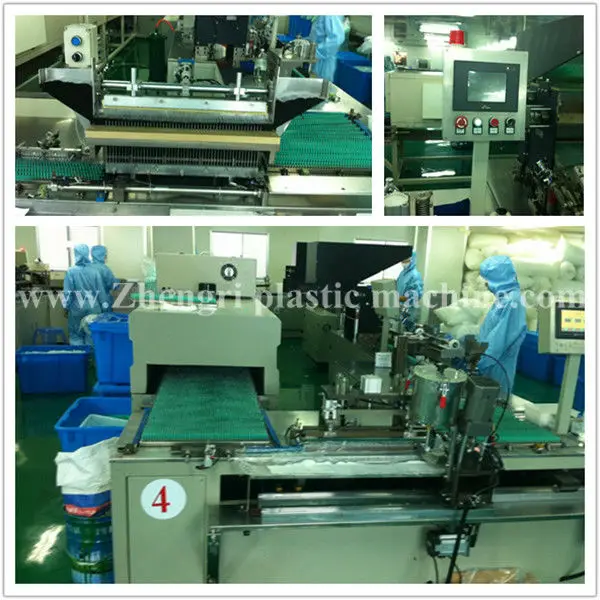

Hypodermic Needle Assembly Machine

 Automatic needle feeding base station - Automatic needle feeding - Automatic glution - Drying-

Automatic block checking - Automatic waste rejecting - Automatic oil soaking - Automatic jacketing

- Automatic pressing sleeve and blangking



1.Simultaneity assembly 50pcs Cannula each time.

2.It can assembly following size needle with different needle positioning.

3.Small type It applied to diameter range 0.4~0.55mm)

4.Average type (It applied to diameter range 0.6~0.8mm)

5.Large type( It applied to diameter range 0.9~1.2mm)

6.Extra large type( It applied to diameter range1.2~1.6mm)

7.Capacity:25,000~35,000pcs per hour (for master)

8.Operation of worker: 6 person( including 4 operators and 2 inspectors)

9.Extra air pressure: ≥0.60Mpg

10.Extra airflow: ≥800Nl/min

11.Power supply: 380V * 50Hz*15Kw*3P+N+PE

12.8Kw for Normal working time

13.15Kw for working after half an hour

14.Dimension: 7m(L)*2.2m(W)*1.7m(H)

15.Weight: abt. 3ton











At the beginning of the sales, we will have professional sales engineers communicate with you, confirming your detail requirements, then choose the most suitable machine for your reference. We accept custom-tailored for your specific needs.



If the equipment failure caused by the quality problems. We provide a year free warranty from the day equipment

arrived at your place.



If the equipment failure caused by non-quality reason. We also can guaranteed provide actively cooperation,

repair and maintain the machine.



Life time guarantee supply spare parts, truly worry-free purchase.

If you have any questions, contact us. We will try our best to serve you.
