Steel Bevel Gears

Product Overview

Description



Qualiry Steel Bevel Gears



1.Technical Details





Specifications
Precision grade	JIS B 1704 :1978  grade 3
Gear teeth	Gleason
Pressure angle	20°
Material	S45C
Heat treatment	0
Tooth hardness	less than 196 HB



2.Dimensions









1.Ratio :1,1.5, 2, 2.5 ,3,4, 5

2.Module :1 , 1.5 ,2 2.5 ,3 ,4 ,5 ,6 ,8

3.Custom manufacturing according to custom's drawing

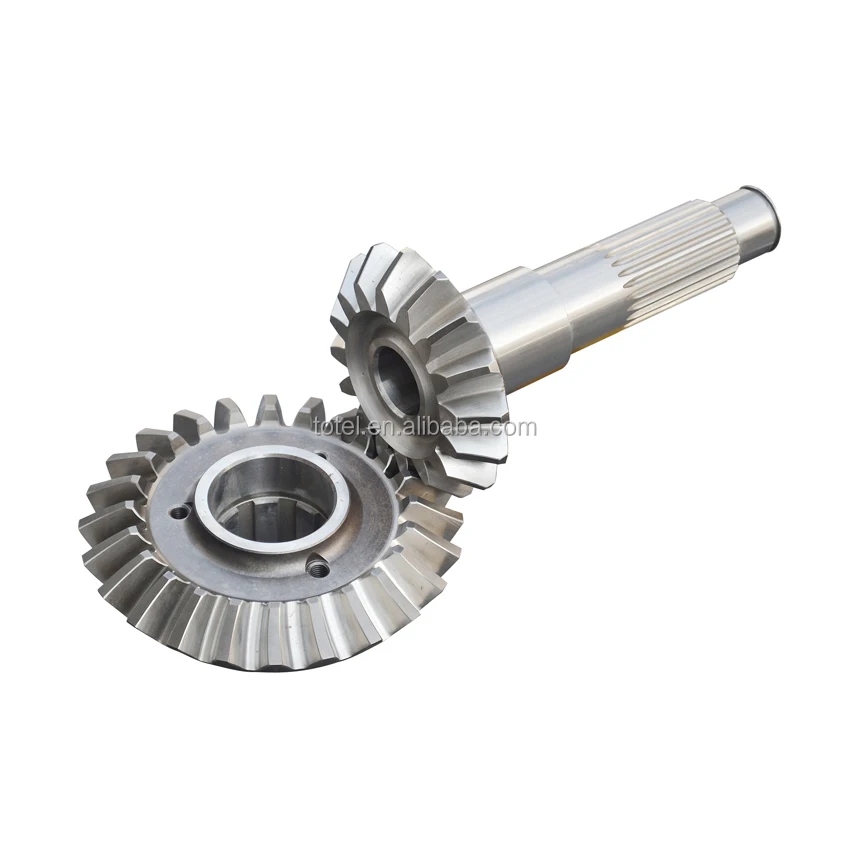

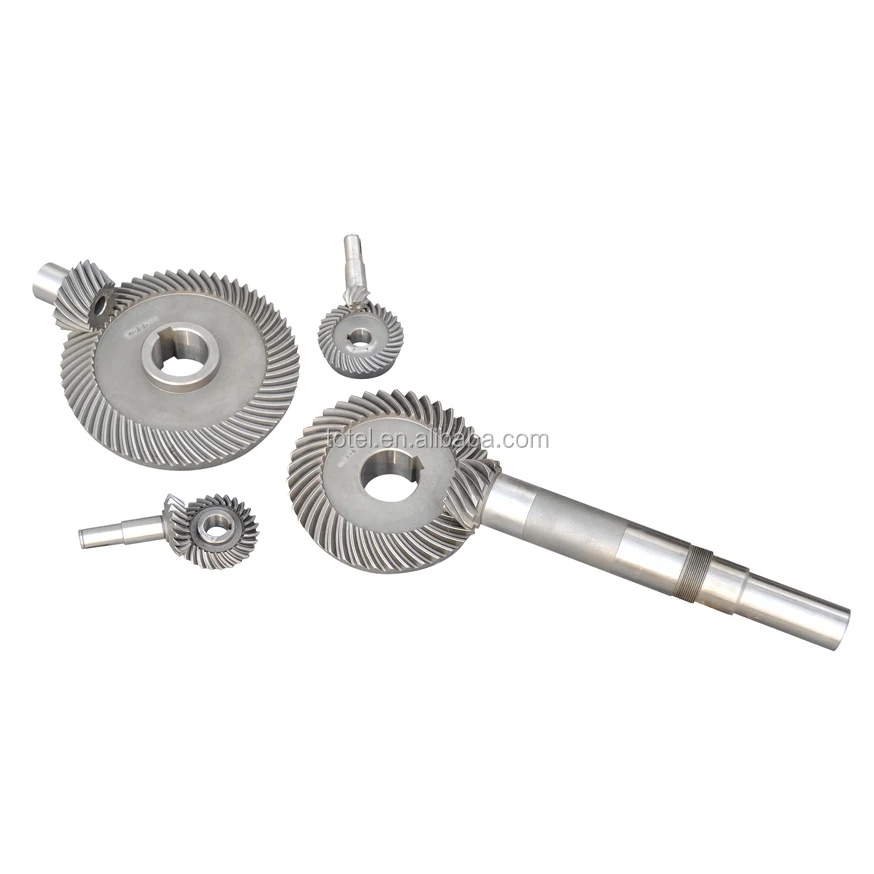

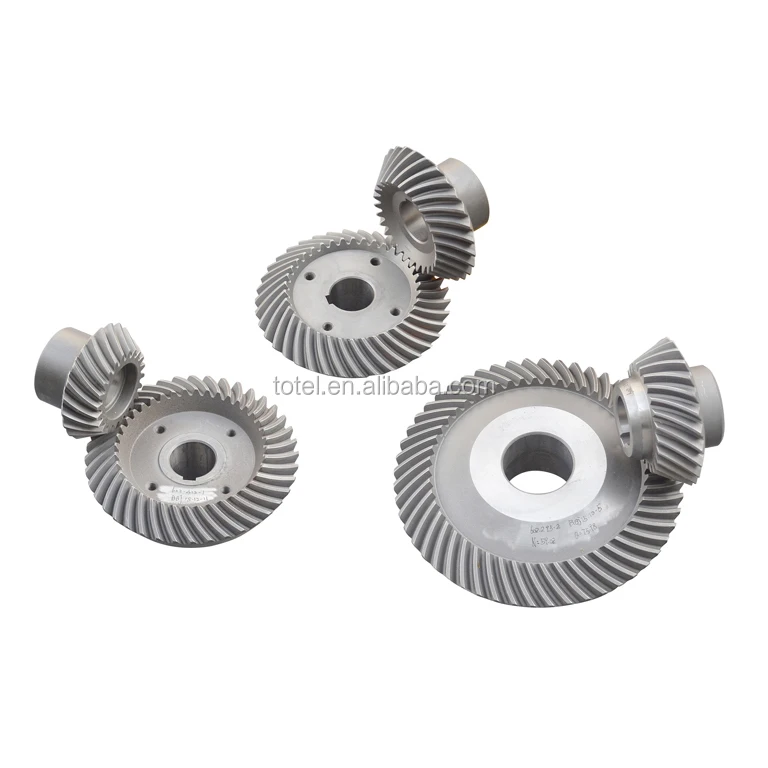

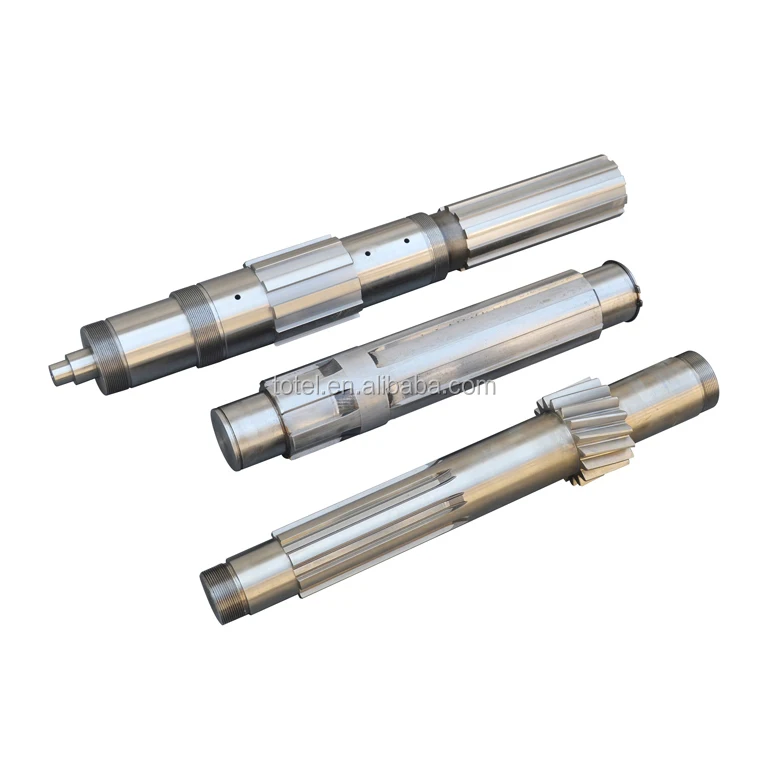

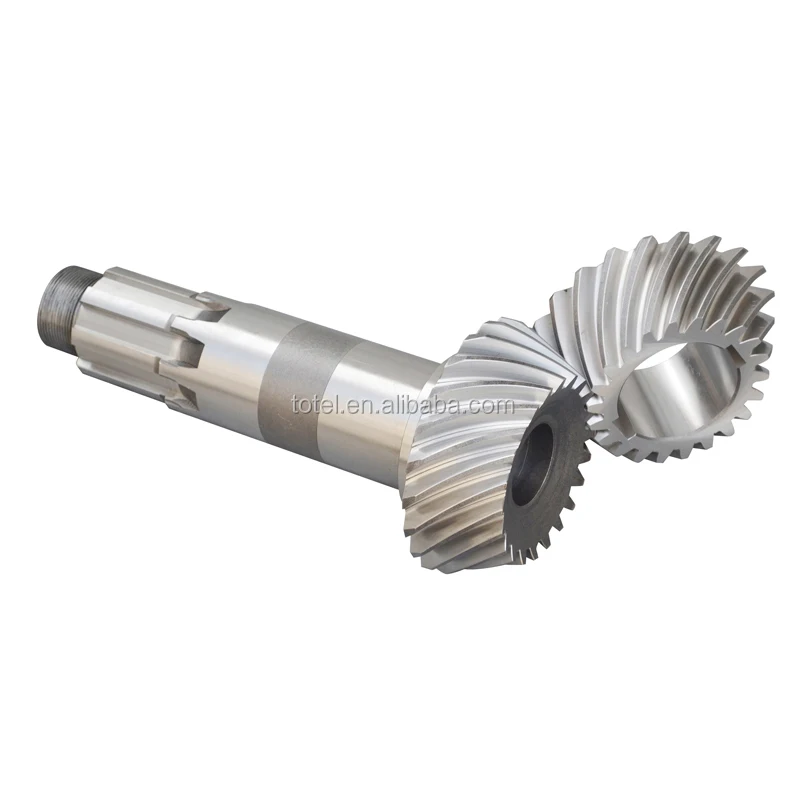

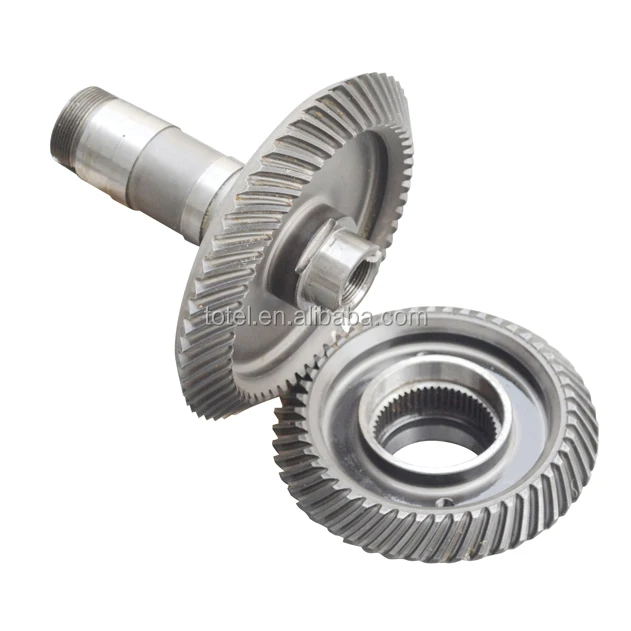

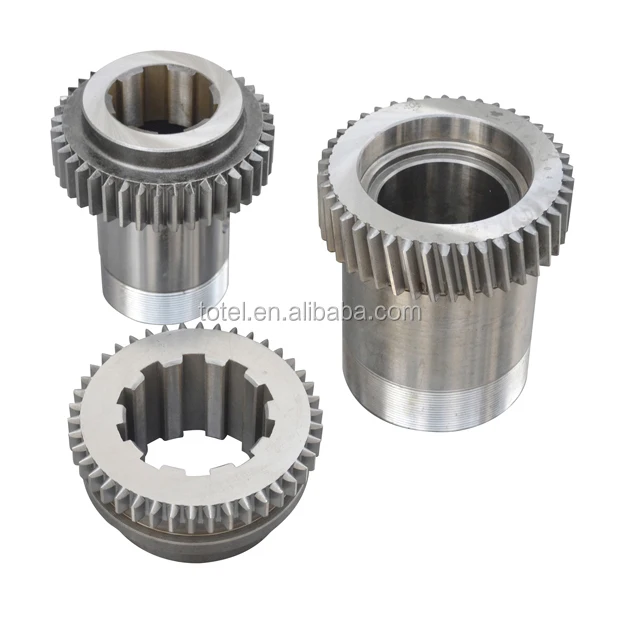

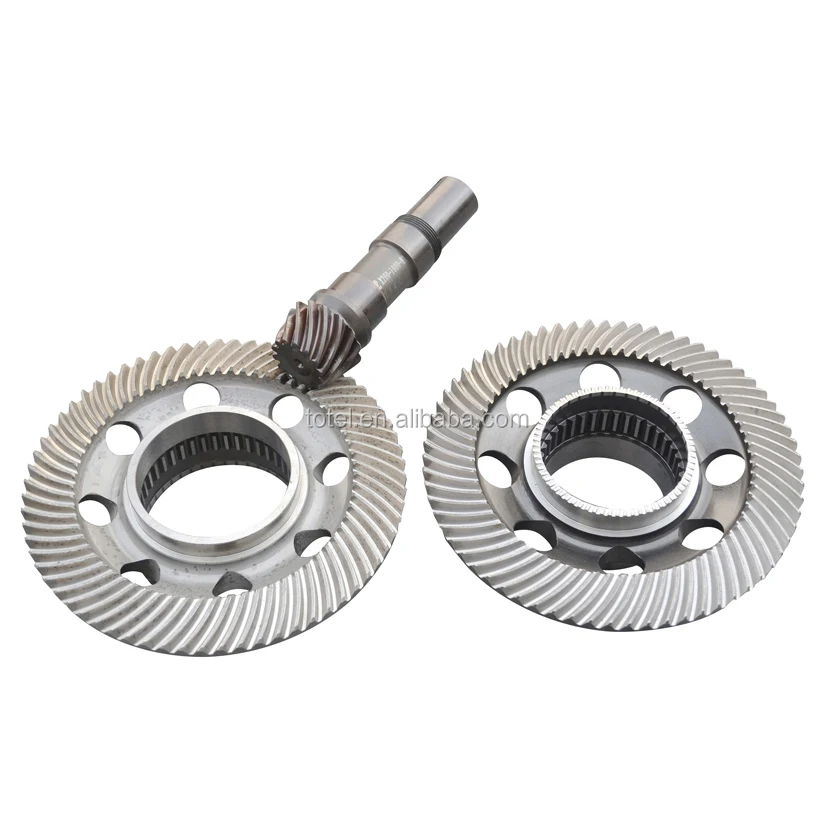

4.Photo of part products













3.Equipment and workshop



Gear Grinding Machine









CNC Machine





Testing Center





Heat Treatment Equipment
