rubber block cutting machine rubber granules grinding machine manufacturer

Share on (60769945285):


Price:$50,000.00

Quantity:


Product Overview

Description


Product Description

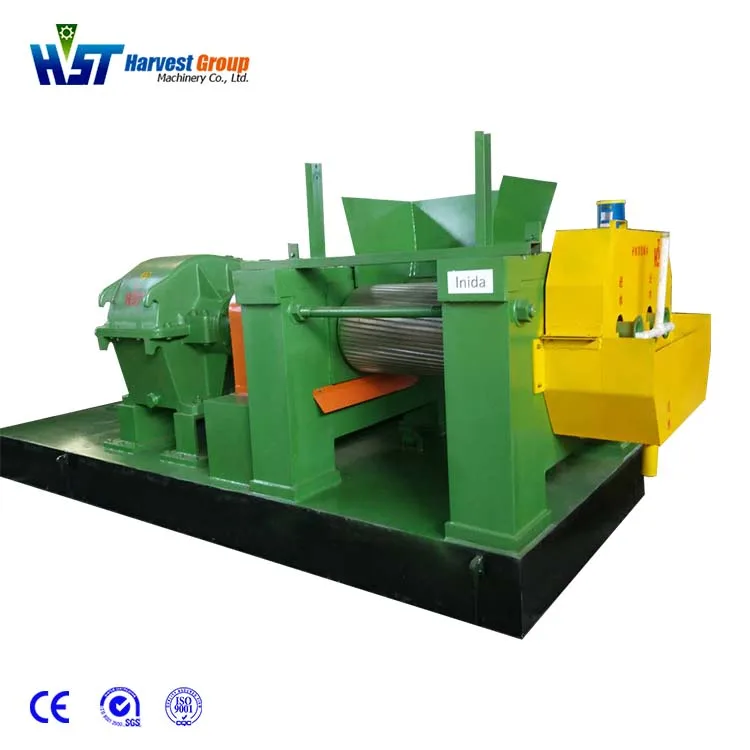

rubber block cutting machine rubber granules grinding machine manufacturer

Product Application

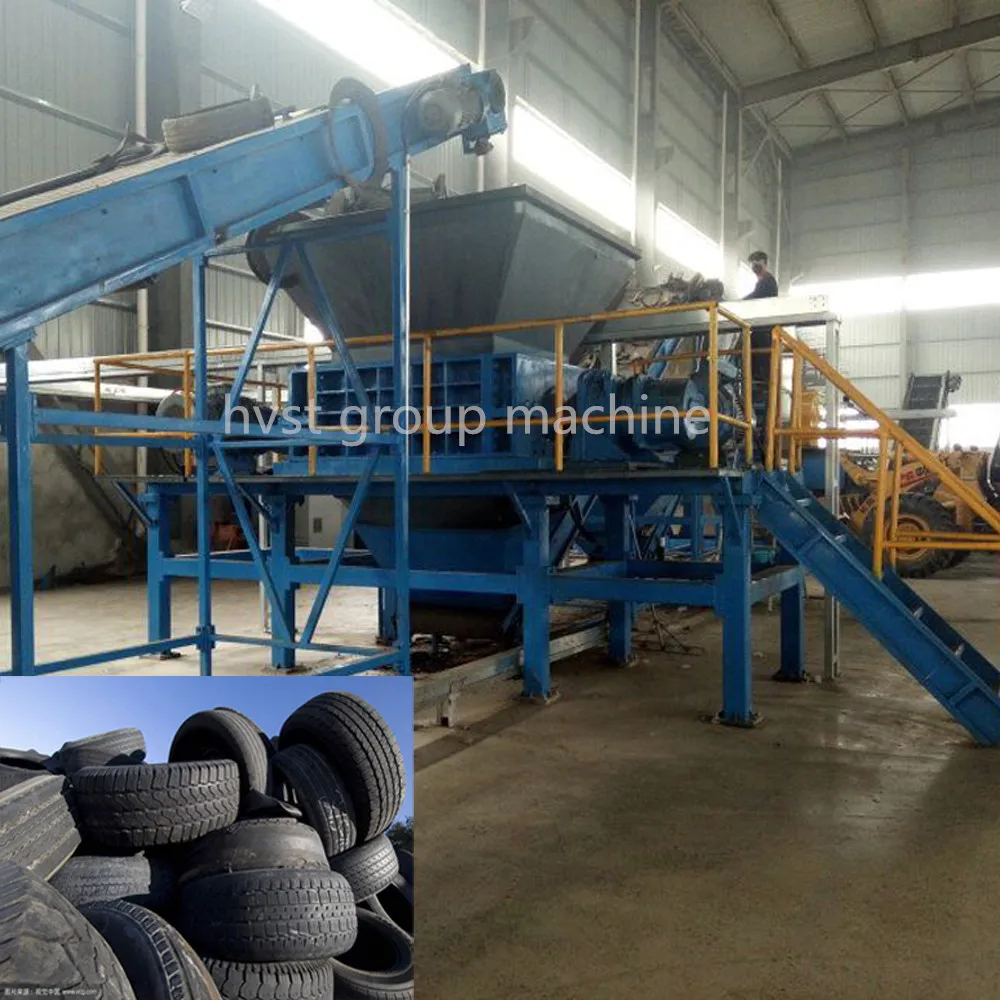

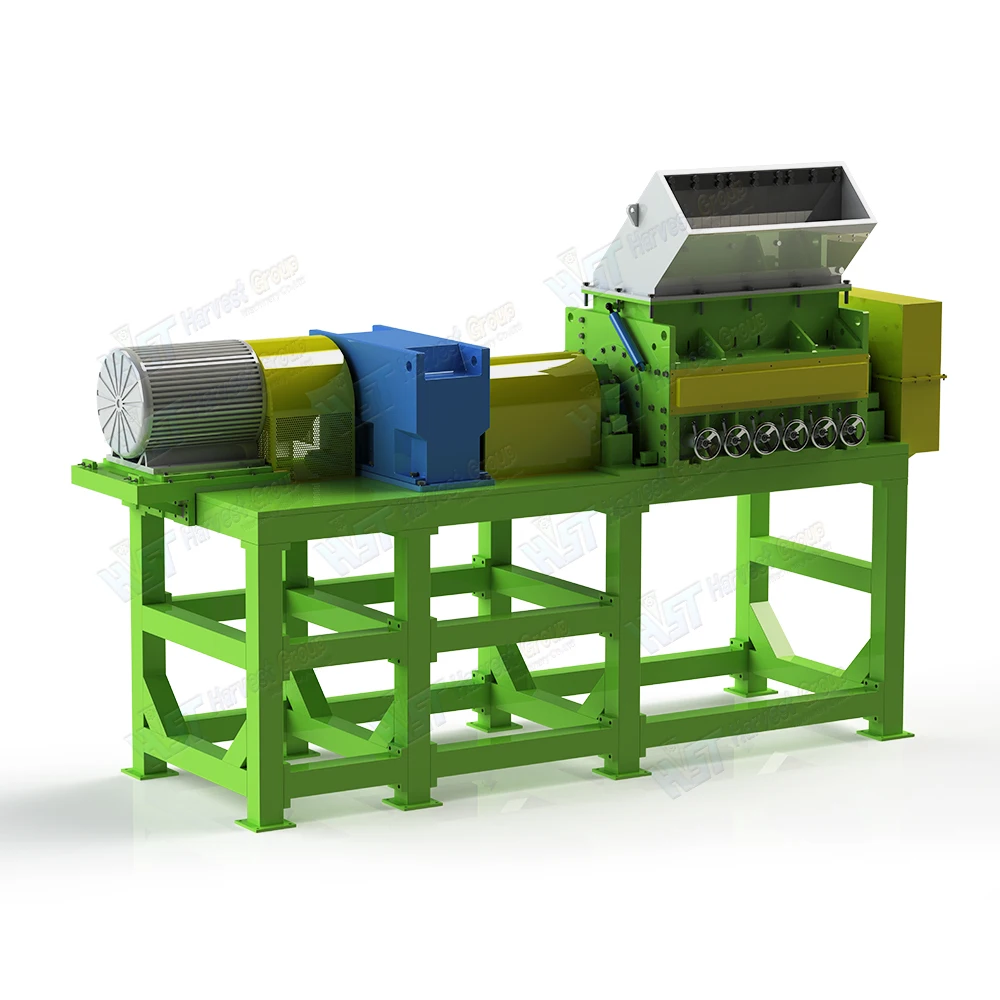

Double-shaft shredder, also known as shear shredder,which used to reduce the size of the material by cutting, tearing and squeezing.This shredder is widely used in waste plastics, waste rubber, wood, crop stalks and other large volumes of waste.

\t
SPECIFICATIONS FOR TIRE SHREDDER
\t
Model
\t
TS-900
\t
TS-1200
\t
Capacity
\t
1-3 ton/h
\t
3-6 ton/h
\t
Max feeding size
\t
=< 900 mm whole tire
\t
=< 1200 whole tire
\t
Output size
\t
50*50 mm
\t
60*60 mm
\t
Number of blades
\t
16 pcs
\t
20 pcs
\t
Main motor
\t
22 kw * 2
\t
55 kw*2
\t
Discharging motor
\t
5.5 kw
\t
5.5 kw
\t
Dimension
\t
2.8*2.1*2.4 m
\t
4.8*2.8*3.5 m
\t
Weight
\t
6.2 ton
\t
 15.6 ton

Main Features

1) Heavy blade, is made of alloy tool steel and wear-resistant mold steel casting, high crushing power.

2)Thick frame plate,can be resistant to high torque, much stronger.

3) Set the start, stop, reverse and overload auto reverse control functions.

4) low-speed, high-torque, two-shaft, rotary shear

5) Easy to adjust, low maintenance costs, economic and durable.

6)The thickness of the blades and the number of blades can be replaced according to different materials.

Capacity
\t

          Model
\t
capacity for 20-30mesh

  rubber powder
\t
capacity for 5-10mesh

  rubber powder
\t
XKP-350
\t
3ton per day
\t
6ton per day
\t
XKP-400
\t
6ton per day
\t
12ton per day
\t
XKP-450
\t
8ton per day
\t
16ton per day
\t
XKP-560
\t
10ton per day
\t
20ton per day
\t
XKP-560D
\t
20ton per day
\t
40ton per day
Detailed Images



Machine Parts

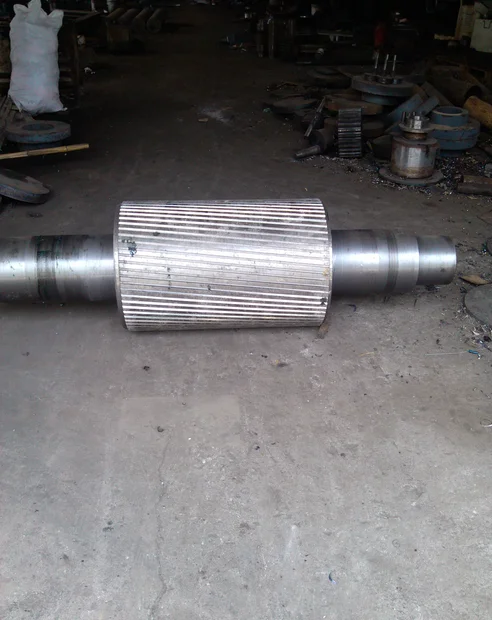

Name: rollers of tire crusher machine

Function: crushing the rubbers into rubber powder in different size.
Materials: 5Cr6MnMo alloy
Using time: more than 20 years


Machine Parts

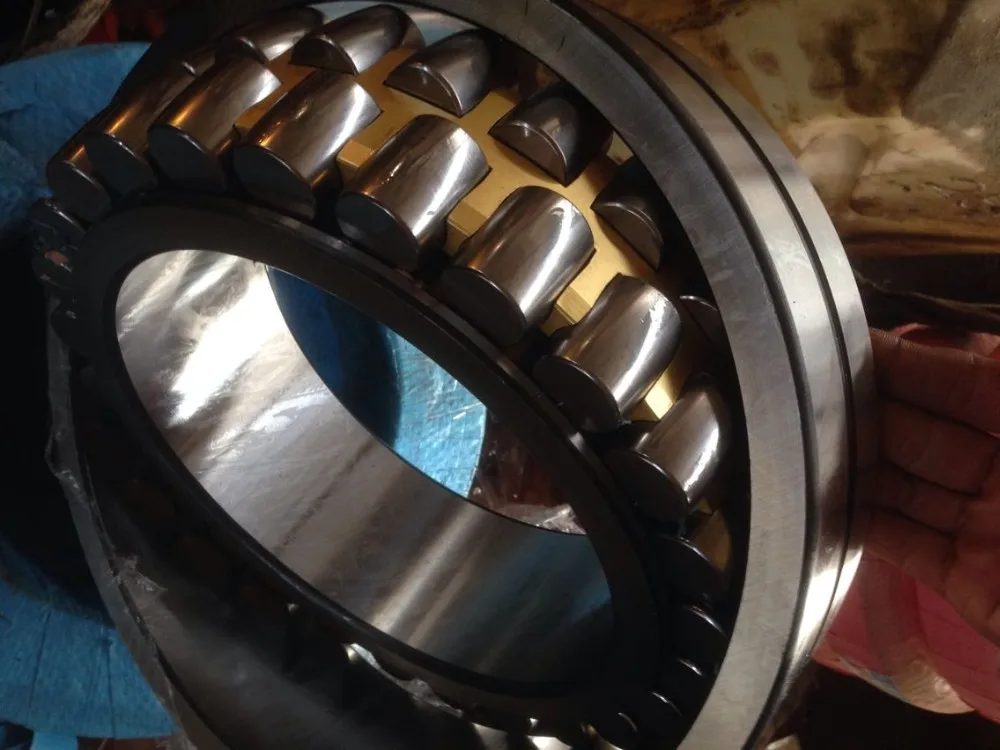

Name: Bearing of tire crusher machine

Brand: SKF or Chinese Brand
Quantity: 8 pieces in each machine

There are 8 pieces of bearing in the machines. to keep the machines low noise and hgih speed, will help save 30% electricity



Machine Parts

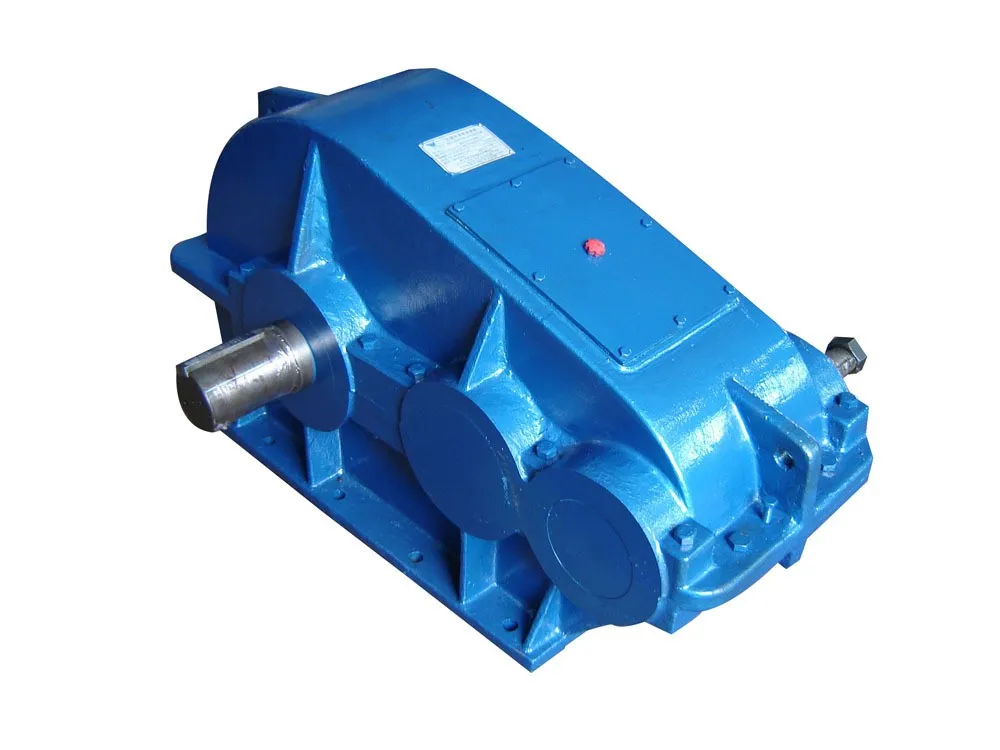

Name: Reduction box
Brand: JZQ Series
Original:China

Domestic famous reduction box, good quality.

work effect
\t\t\t\t\t\t\t\t\tCertifications \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur case \t\t\t\t\t\t\t

ZHENGZHOU HARVEST MACHINERY CO.,LTD


Zhengzhou Harvest Machinery Factory was established in 1987,it's one of the earliest professional manufacturers of nail making machine and tire recycling machines.With advanced production experience,first-class management technology and the professional after-sale service team,our products not only occupythe domestic market, but also export overseas continuously,which has received unanimous praise from our clients.Our factory always aims to put customers' needs at first place,and has consistently tried to upgrade its products for more than 20 years. The main products now , nail making machine and tire recycling production line , have already obtained good market for their high quality and reliable technology.
