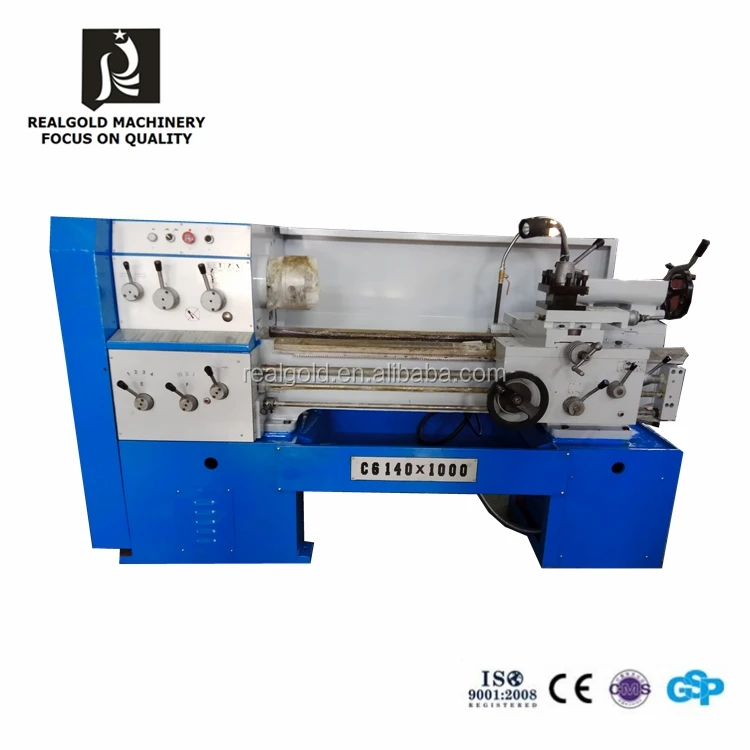

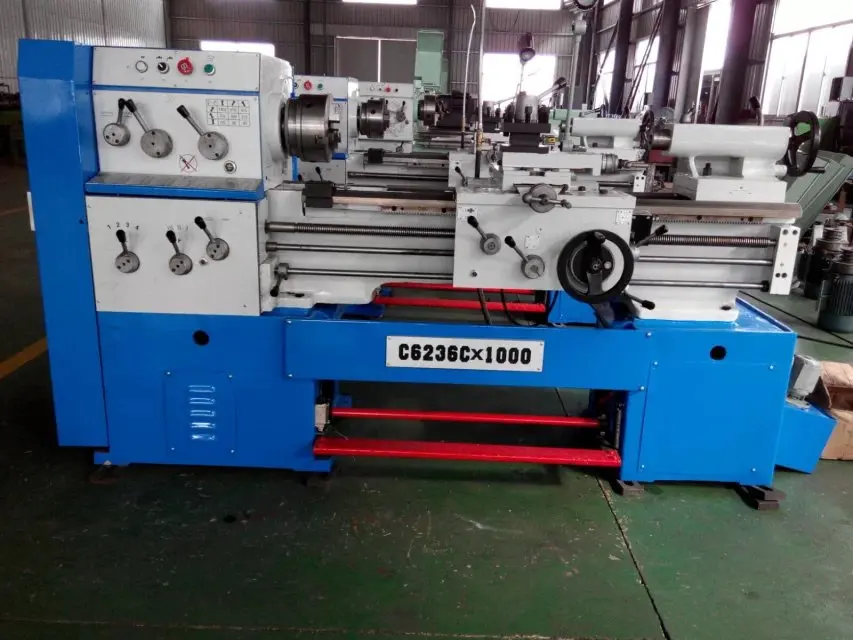

Economical C6136 C6140 C6150 mini Lathe machine for sale
- Category: >>>
- Supplier: Tengzhou Realgold Machinery Co. Ltd.
Share on (60769956332):
Product Overview
Description
Product Description
|
Model |
C6136 |
C6140 |
C6150 |
|||
|
Capacity |
Max. Swing over bed |
360mm |
400mm |
500mm |
||
|
Max. Swing over carriage |
190mm |
230mm |
330mm |
|||
|
Max. Swing over gap |
520mm |
560mm |
660mm |
|||
|
Center distance |
750/1000/1500mm |
|||||
|
Bed width |
360mm |
|||||
|
Spindle |
Spindle bore |
52mm |
||||
|
Spindle nose |
C6 |
|||||
|
Spindle taper |
MT6 |
|||||
|
Spindle speed(number) |
40-1400rpm(9 steps) |
|||||
|
Feed |
Metric thread range |
0.25-14mm(19kinds) |
||||
|
Inch thread range |
20-40 inch |
|||||
|
Module threads range |
0.5-3.5(11 kinds) |
|||||
|
Carriage |
Cross slide travel |
180mm |
180mm |
222mm |
||
|
Compound rest travel |
95mm |
|||||
|
Toolholder section |
20*20mm |
|||||
|
Tailstock |
Taper of tailstock sleeve |
MT4 |
||||
|
Dia. Of tailstock sleeve |
65mm |
|||||
|
Travel of tailstock sleeve |
140mm |
|||||
|
Main motor power |
4kw |
4kw |
5.5kw |
|||
|
Packing size (L*W*H) |
||||||
|
Center distance 750mm |
2220*1150*1590mm |
|||||
|
Center distance 1000mm |
2470*1150*1590mm |
|||||
|
Center distance 1500mm |
2970*1150*1590mm |
|||||
|
Net weight / Gross weight (kg) |
||||||
|
Center distance 750mm |
1350/2000 |
1400/2050 |
1500/2150 |
|||
|
Center distance 1000mm |
1450/2100 |
1500/2150 |
1600/2250 |
|||
|
Center distance 1500mm |
1600/2250 |
1650/2300 |
1750/2400 |
|||
|
Standard accessories: 3 jaw chuck Center & center sleeve Wrenches Oil gun Tool box |
Optional accessories: Steady rest Follow rest 4 jaw chuck Face plate |
|||||
Why choose us
Realgold machinery is professional machine tool manufacturer in China Mainland, we have more than 30 year experience in product design and manufacture, we always follow the best Technology design & manufacture idea in our products, try our best to provide our customer the most cost-effective machine tool and accessories.
Assembly and QC
Production capacity
Realgold machinery with top class production capacity and we always follow the excellent technological idea to make our product with the best quality in same class.
Parts in stock
Processing capacity
Realgold machinery has a complete production line for lathe machine, which including of some special machines with just for our machine design body, just need once clamping and finished kind of production processes, improve processing efficiency, save cost and ensure accuracy

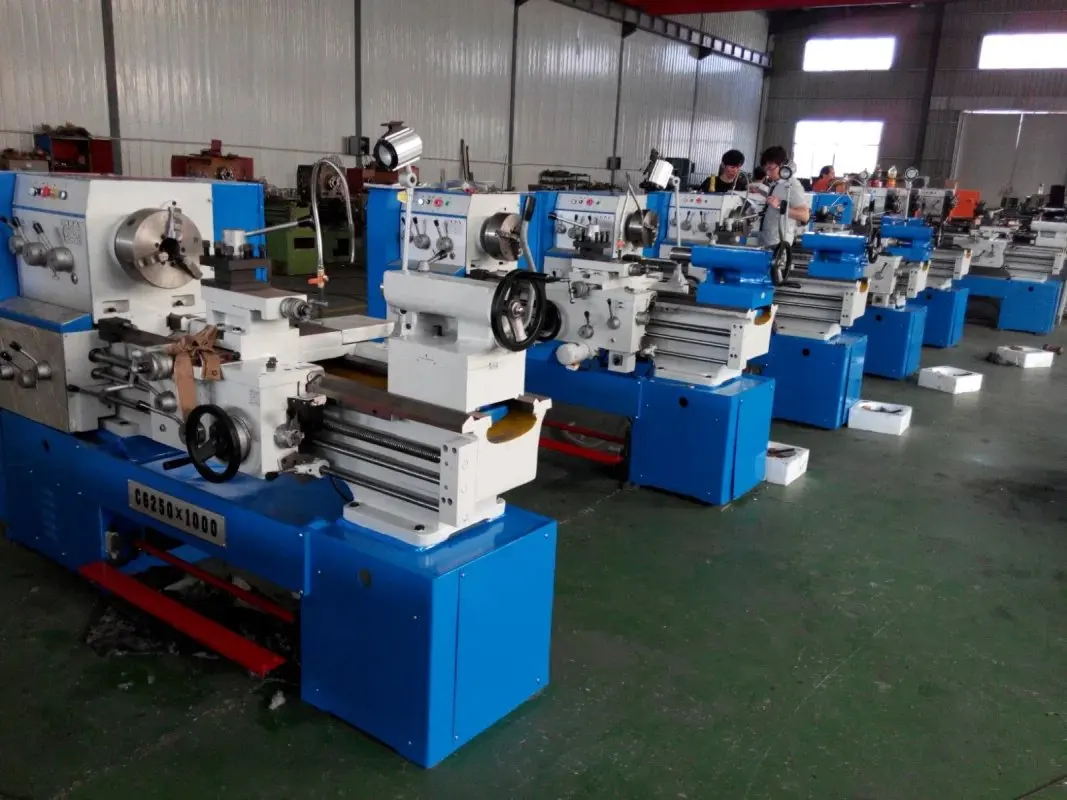

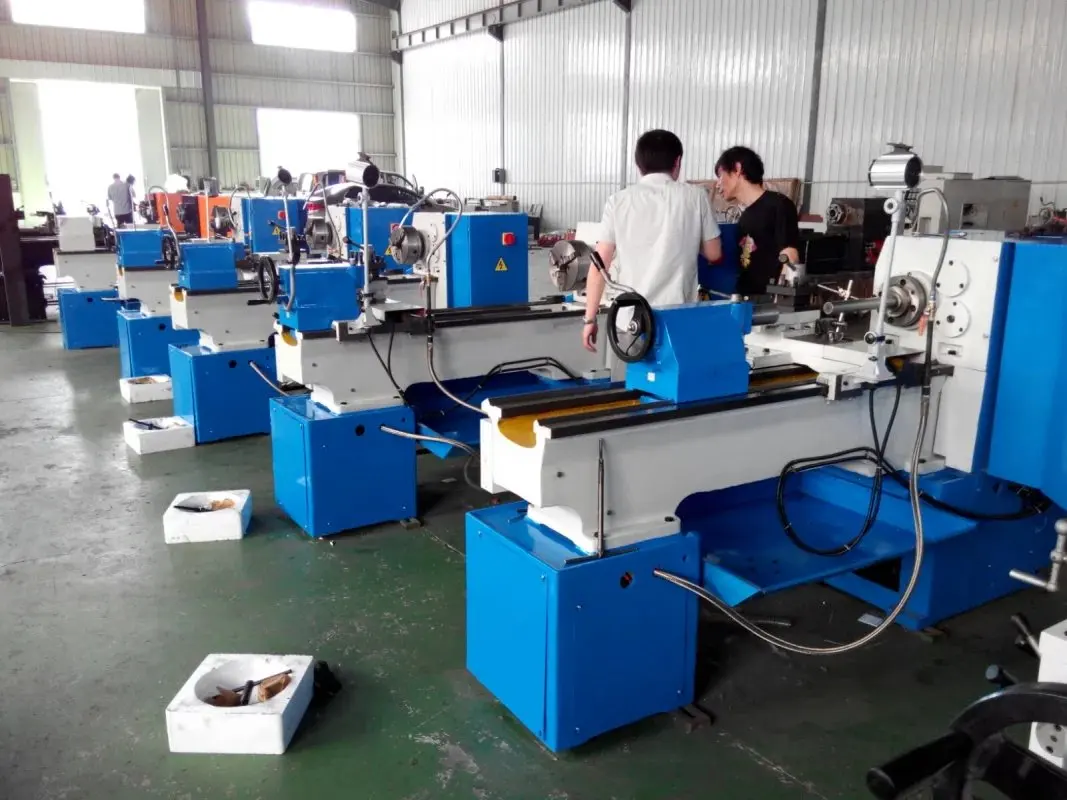

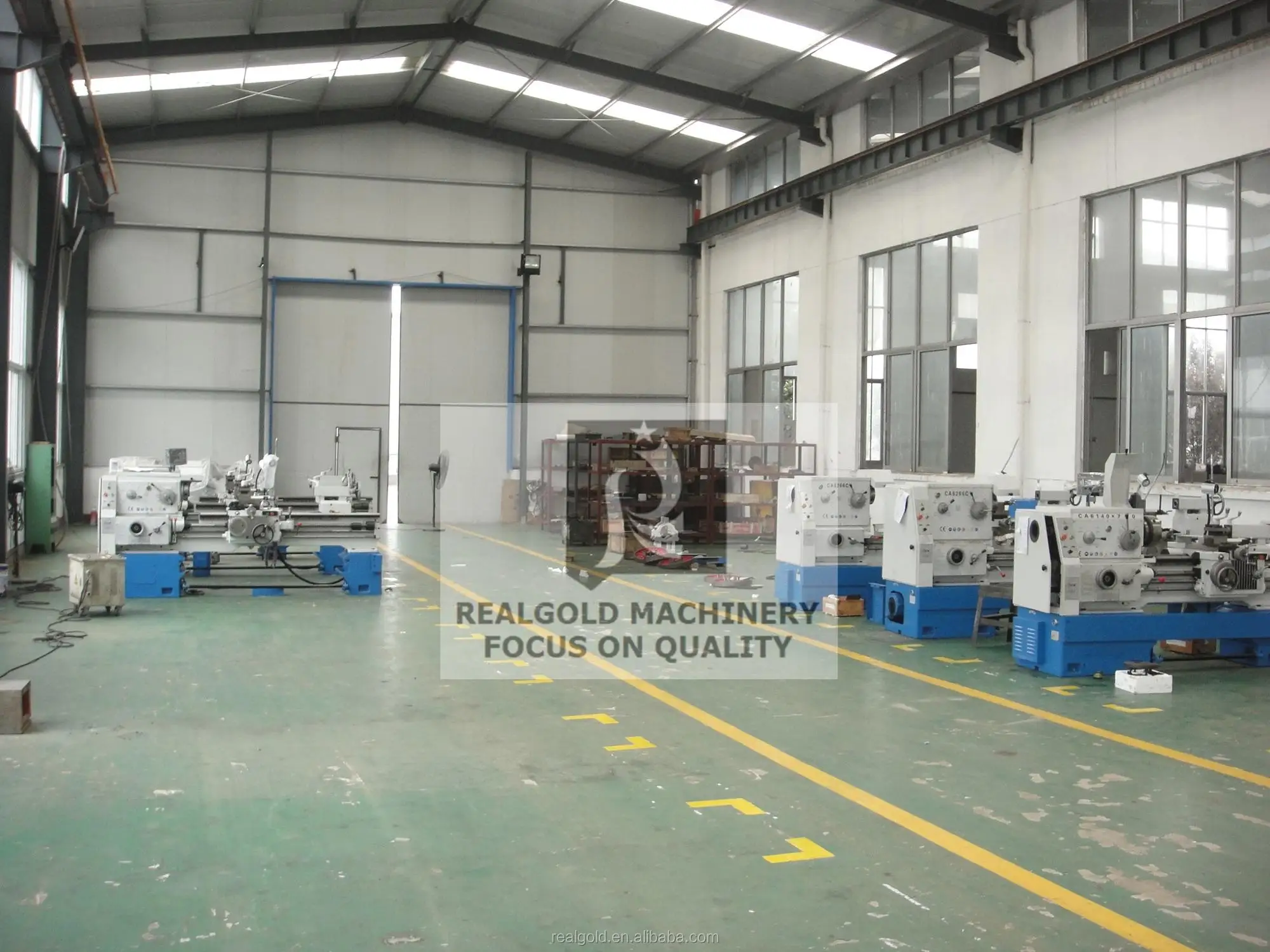

Our workshop
Certifications
Our Services
18 months warranty,
Within 18 Hours Feedback is Our Promise
REALGOLD Fast Facts:
♦ 97% Client Retention Rate
♦ 10,000+ Cooperate Clients
♦ 25 Years of Brand Operating, 15 Years of Machine Tools Building
♦ 100% Focus on Our Clients Best interests
18 months warranty,
our quality confidence and customers’ peace of mind.
We will supply parts or service for repairs at no cost for a period of 18 months after bill of lading date. Extended warranty is available at the time of purchasing.
