High quality guide rail warehouse elevator hydraulic cargo lift with CE certification
- Category: Other Material Handling Equipment >>>
- Supplier: Foshan Xinsheng Mechanical Equipment Co. Ltd.
Share on (60769998542):
Product Overview
Description

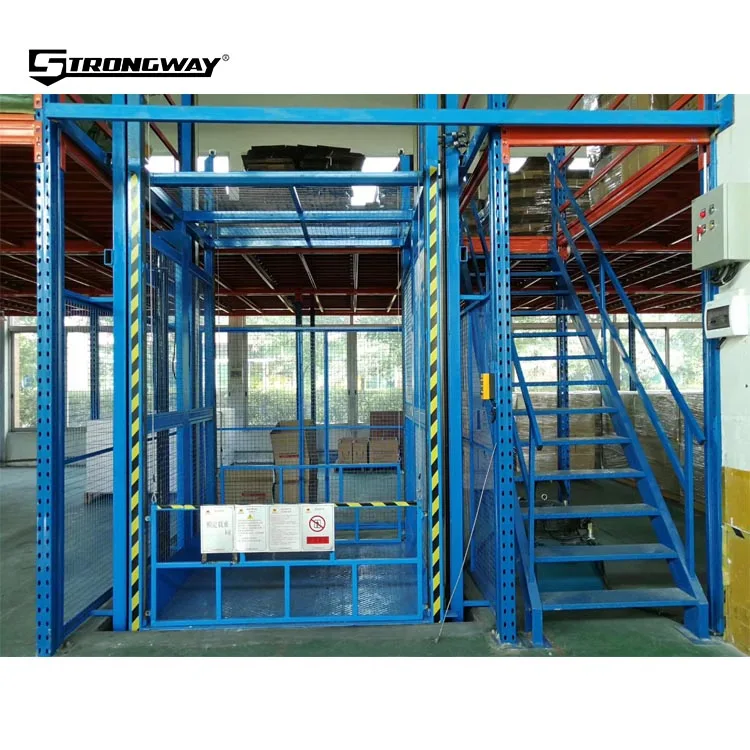

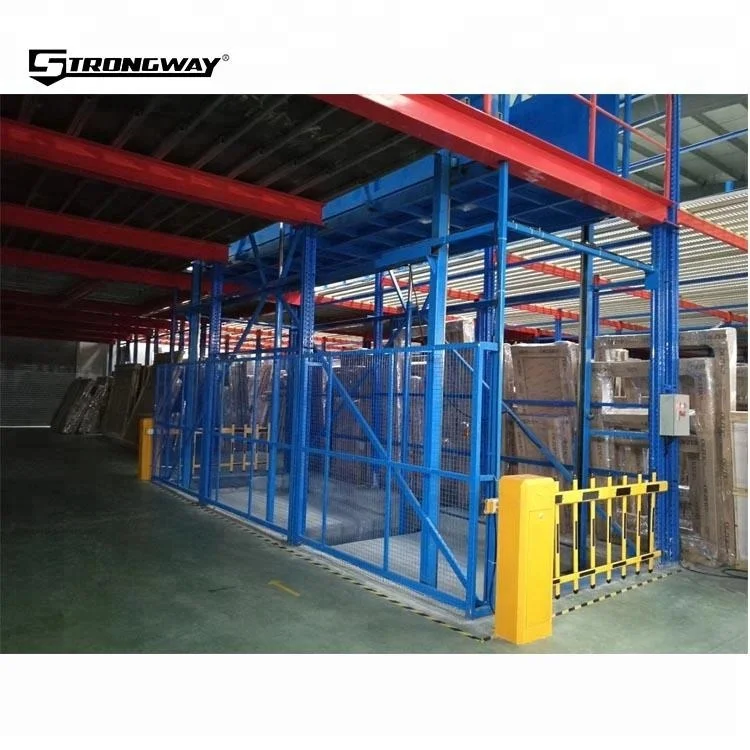

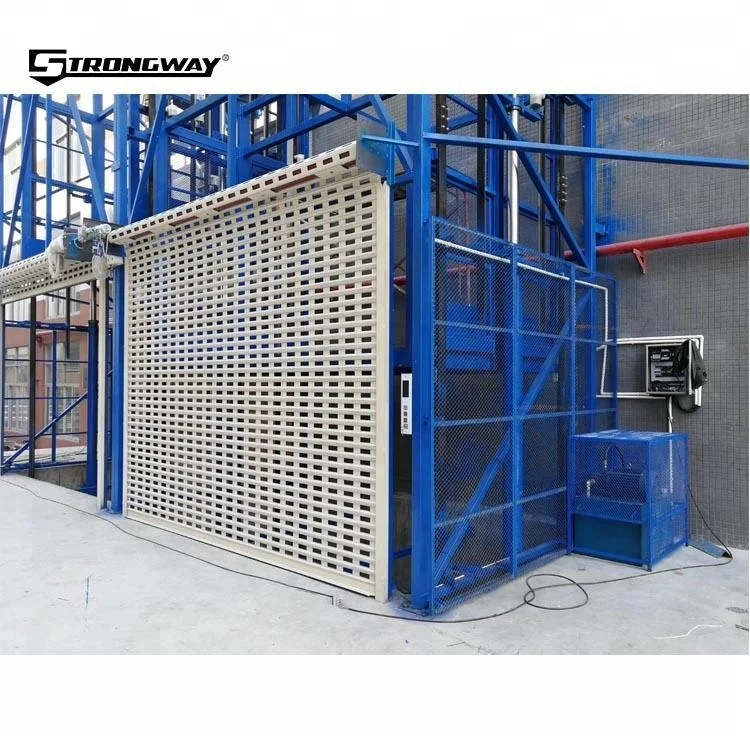

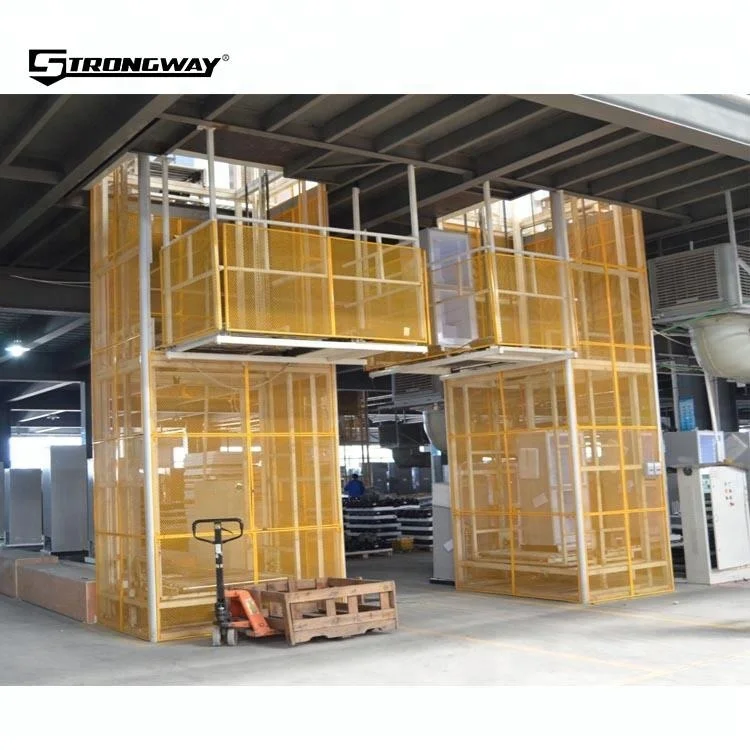

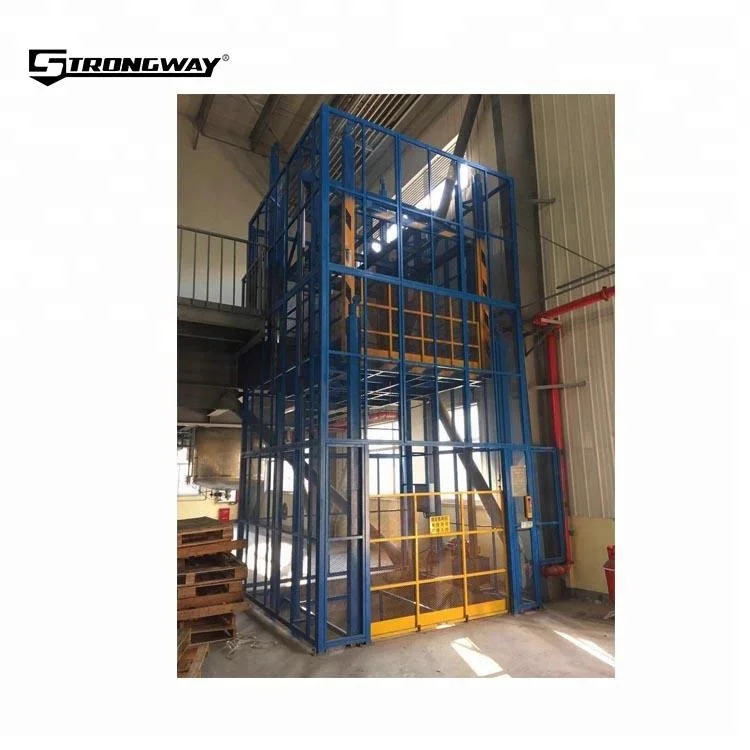

High quality guide rail warehouse elevator hydraulic cargo lift with CE certification
Hydraulic Guide Rail Cargo lift is mainly applied to cargo transportation up and down between different working floors, it is the best option for places with stereo garage, or two to three-stories underground garage where pits are not allowed, or difficult narrow spaces such as the top height can’t meet the required height. As our cargo lift minimum height is very low, which is suitable for vertical transportation with no lifting point need on top for industrial areas with large capacity, high floor height, and grounds with no pits.
Hydraulic guide rail cargo lift has various working types, including single column, double column, four-column, Unilateral, Bilateral, and multilateral delivery. It makes easy and low-cost floor cargo transportation possible with steady movements, simple operation, and mufti-protection for hydraulic and batteries.
Customers can choose different configurations according to different requirements for installation environment and operation conditions for the most effective using.
Product Description
Key parameter:
1.Model: HIDL
2.Load capacity: 3000KG
3.Lifting height: 8800MM
4.Platform size: 2200*2000MM
5.Overall dimension: 2200*2600MM
6.Minimum height: 85MM
7. Loading and unloading direction (forth and back, or one direction): B direction
8.Platform guardrail height:2200mm;
9.Number of floors(including the ground) : 3
Configuration:
1.Motor power: 3.7KW
2.Motor voltage: 380V/50Hz
3.Gear pump: 14ml/r
4.Panel-frame material:80*50*5MM/80*40*3MM rectangular tube
5.platform panel material: 4MM checkered plate
6.Stand column: 12# Joist Steel (I-Beam)
7. Number of cylinders:2
8. Cylinder tube: 70*85MM fine drawn tube
9. Plunger lever: 60MM Hard chrome plated rod
10.Platform guardrail material:80*50*5MM rectangular, 25*2 square tube
11. Lifting platform frame material: 8# Channel steel
12. Lifting chain: LH1044
13. Lifting form: Self-locking correlation
14.M height: 2200MM
15.Peripheral frame material: 25*2MM square tube
