Пневматические фитинги для труб с нажимным захватом, прямой быстроразъемный штекер
- Category: Pneumatic & Hydraulic >>>
- Supplier: Yueqing Hengxin Pneumatic Co. Ltd.
Share on (60770030171):
Product Overview
Description

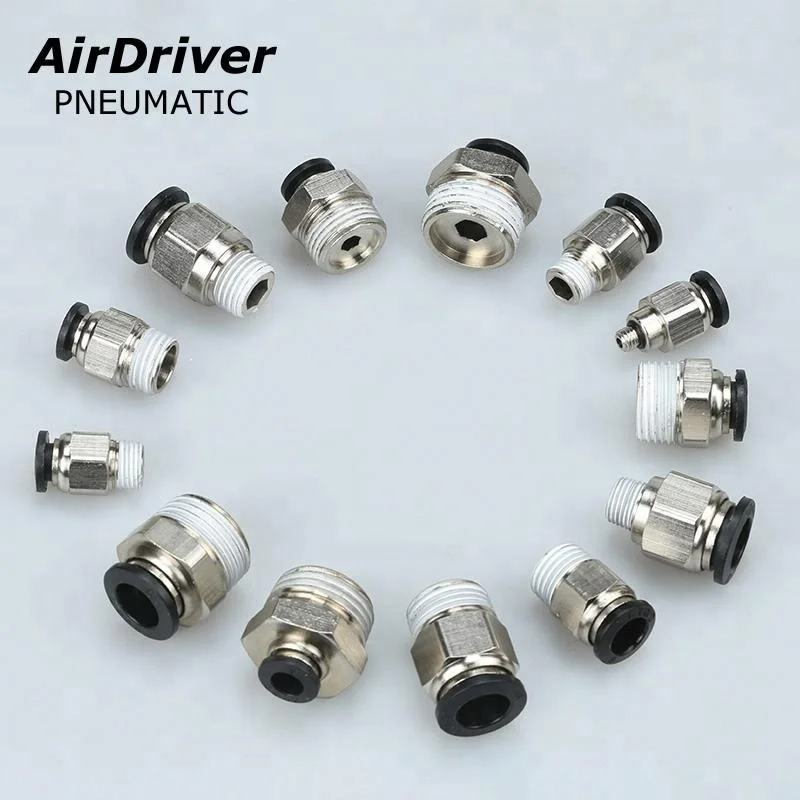

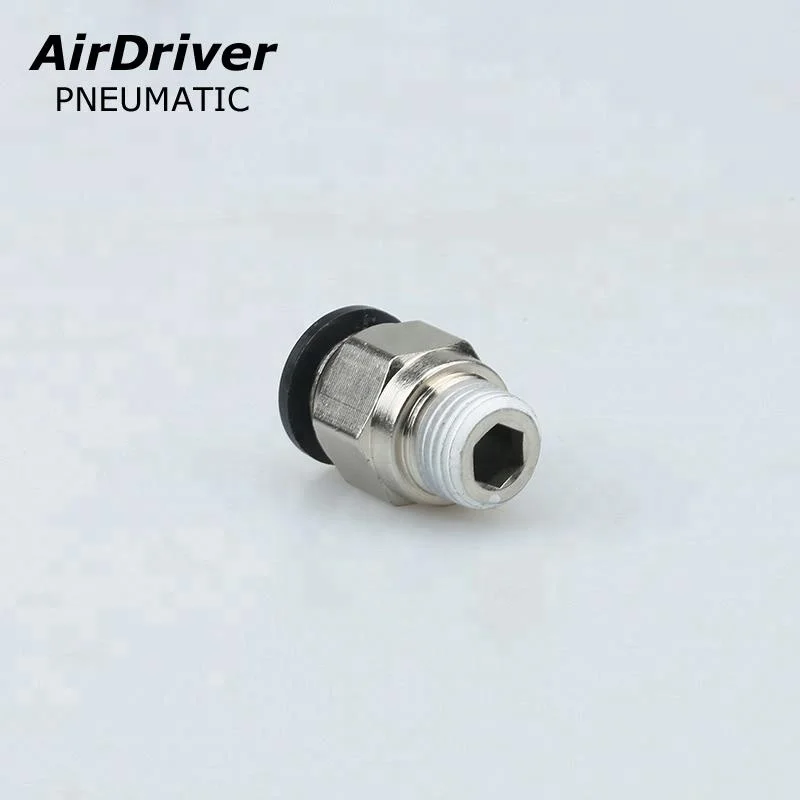

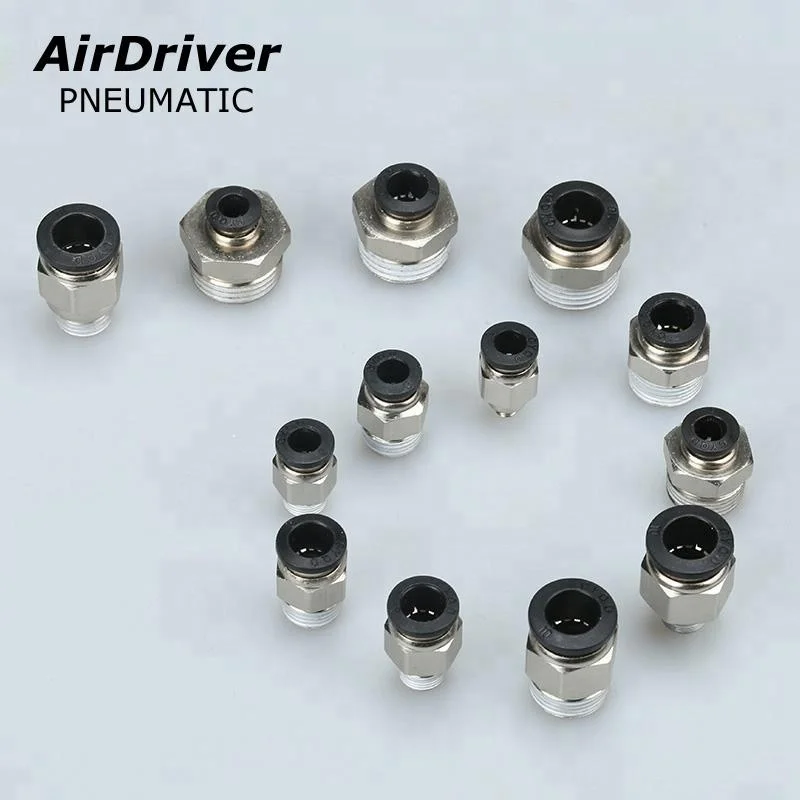

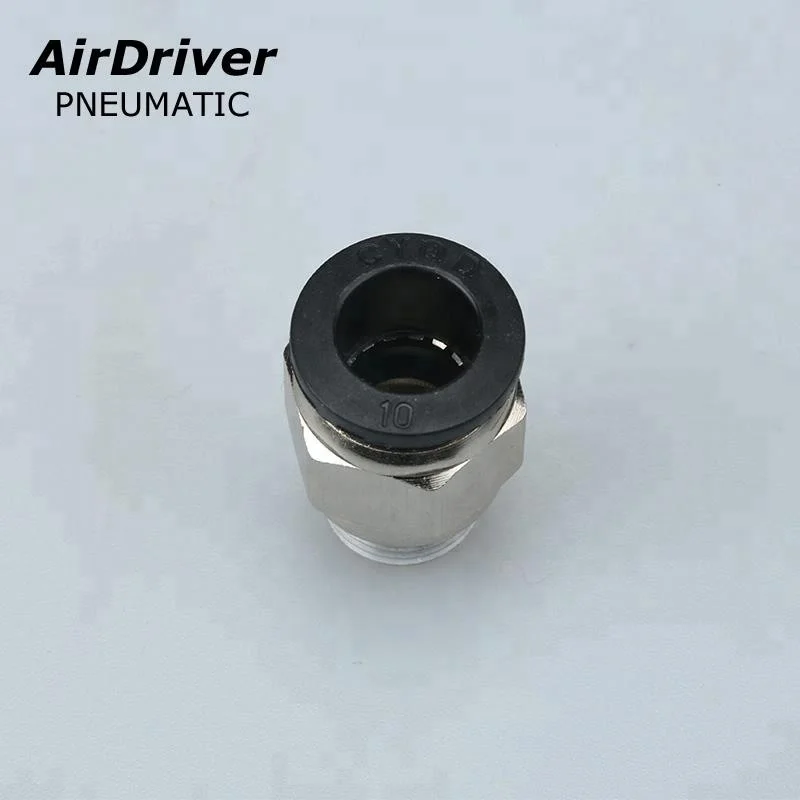

PC push in pneumatic pipe fittings male straight quick connector
Product Description
| PC | 8 | - | 01 | |||
| <1> | <2> | <3> | ||||
| <1>Model:PC | ||||||
| <2> Tube Out Diameter(mm) | ||||||
| Metric Size(mm) 4/5/6/7/8/9/10/11/12/13/14/15/16 | ||||||
| Inch Siz(mm) 5/32" 3/16" 1/4" 5/16" 3/8" 1/2" | ||||||
| <3>Thread Size | ||||||
| Metric Size M3/M5/M6/M8/M10/M12/M14/M16/M22 | ||||||
| 55°G-Thread (BSPP,G) | ||||||
| Code | 01 | 02 | 03 | 04 | 06 | |
| Thread | G1/8" | G1/4" | G3/8" | G1/2" | G3/4" | |
| 55°Taper Pipe Tize(BSPT,PT) | ||||||
| Code | 01 | 02 | 03 | 04 | 06 | |
| Thread | R1/8" | R1/4" | R3/8" | R1/2" | R3/4" | |
| 60° American Standard Taper Pipe Thread(NPT) | ||||||
| Code | U10 | N01 | N02 | N03 | N04 | N06 |
| Thread | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
| Work Fluid | Clean compressed air, Vacuum | |||||
| Thread Type | M Thread, G Thread, PT Thread, etc | |||||
| Tube Type | Metric & Inch | |||||
| High Operating Pressure | 1.6 MPa | |||||
| Pressure Range | 0 ~ 0.9 MPa | |||||
| Ambient & Fluid Temperature | 0 ~ 80 ℃ | |||||
| Sleeve Color | NPT, PT, G, etc | |||||
| Recommendede Tubes | PU Tube, Nylon Tube, etc | |||||
| BSP Thread Data | 1/8" BSP thread---------Thread Outside Diameter: 9.728mm | |||||
| 1/4" BSP thread---------Thread Outside Diameter: 13.157mm | ||||||
| 3/8" BSP thread---------Thread Outside Diameter: 16.662mm | ||||||
| 1/2" BSP thread---------Thread Outside Diameter: 20.955mm | ||||||
| 3/4" BSP thread---------Thread Outside Diameter: 26.441mm | ||||||
| 1" BSP thread-----------Thread Outside Diameter: 33.249mm | ||||||

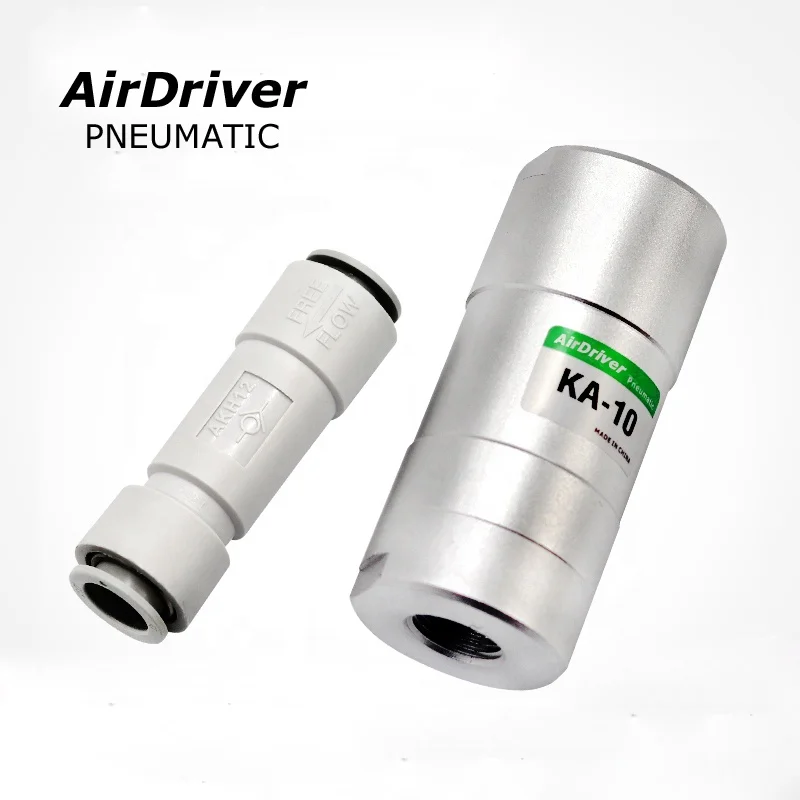

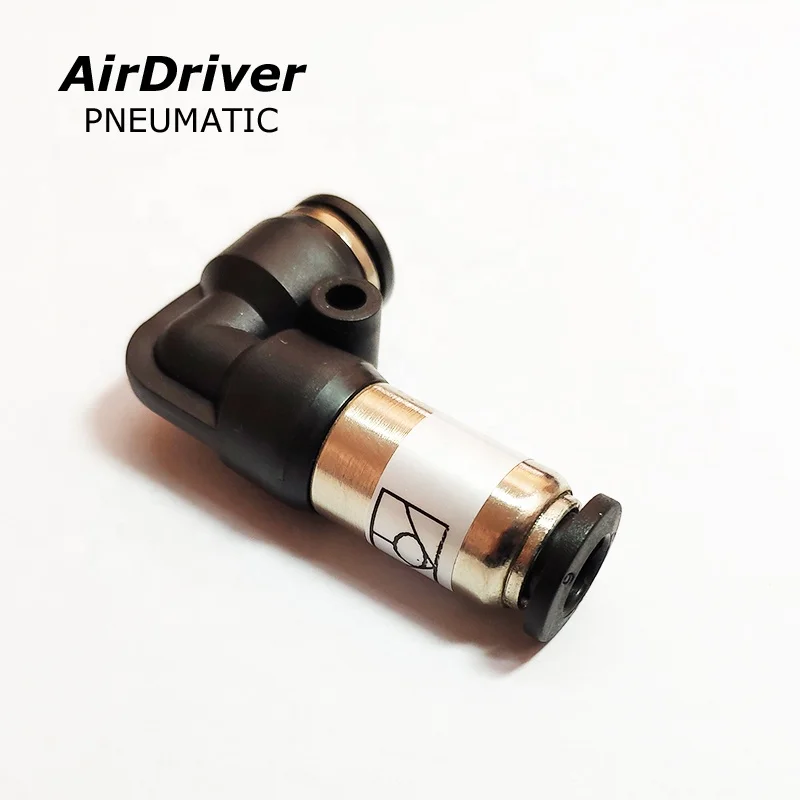

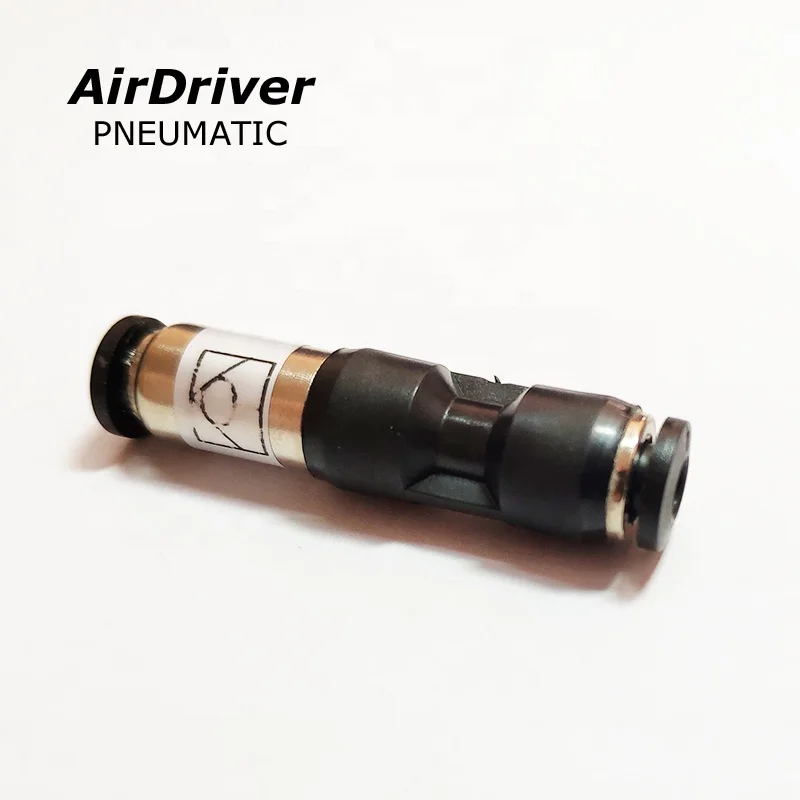

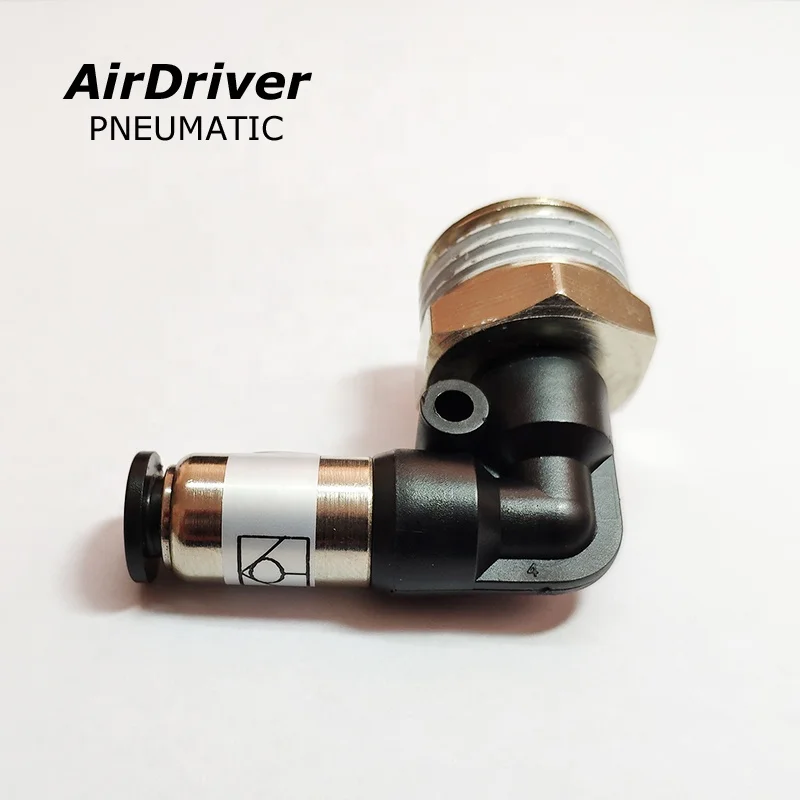

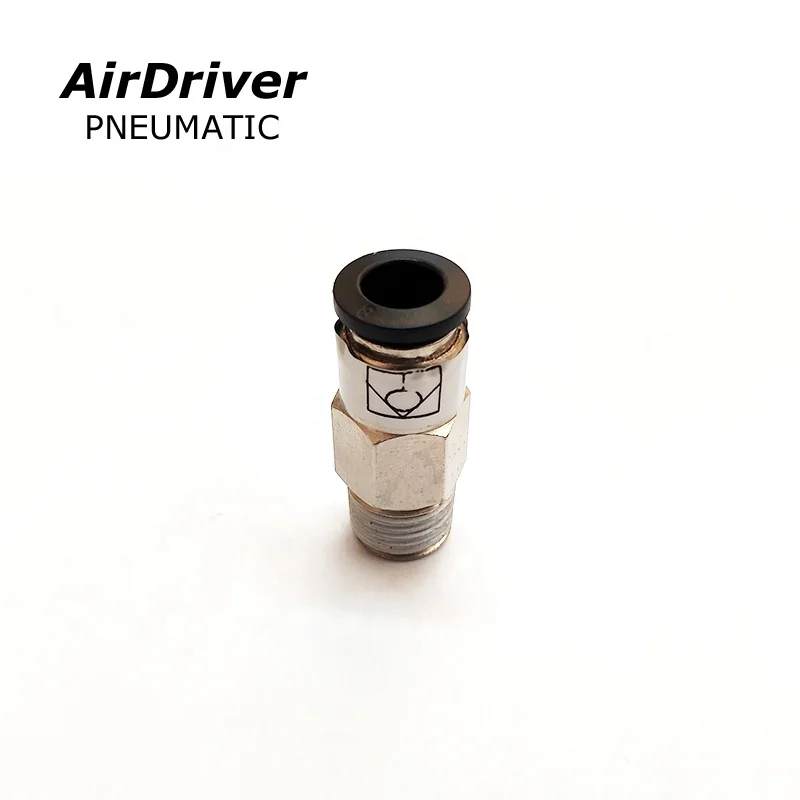

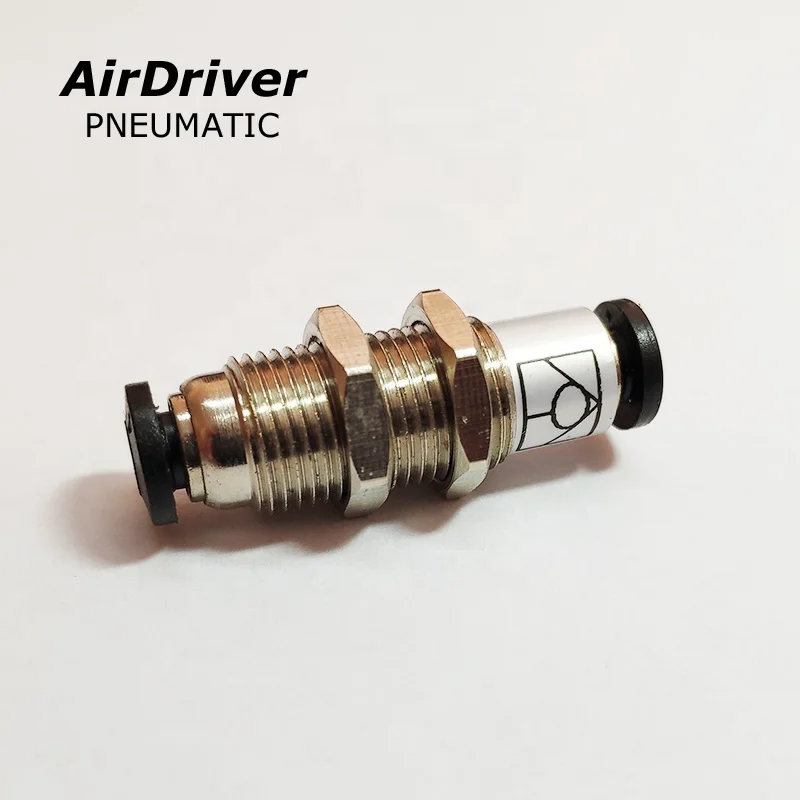

One way Check valve
Packaging & Shipping
Packing: Standard export cartons,and OEM packing is accpeted.
Shipment: Sample order ship in 3days by express.regular order ship in 7-15days by normal air/ocean from NINGBO or SHANGHAI port.
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping
Our Services
Why choose us:
1:Various style for completely series pneumatic products for you to choose
2: High quality with competitive price,100% tested before shipment
3: Sample order & small quantity order is accepted
4: Large stock & fast shipment
5: Factory location near by shipment port,convenient transportation and low cost
