Top selling Car display 10.1 10 inch tft lvds lcd controller video screens with capacitive touch panel

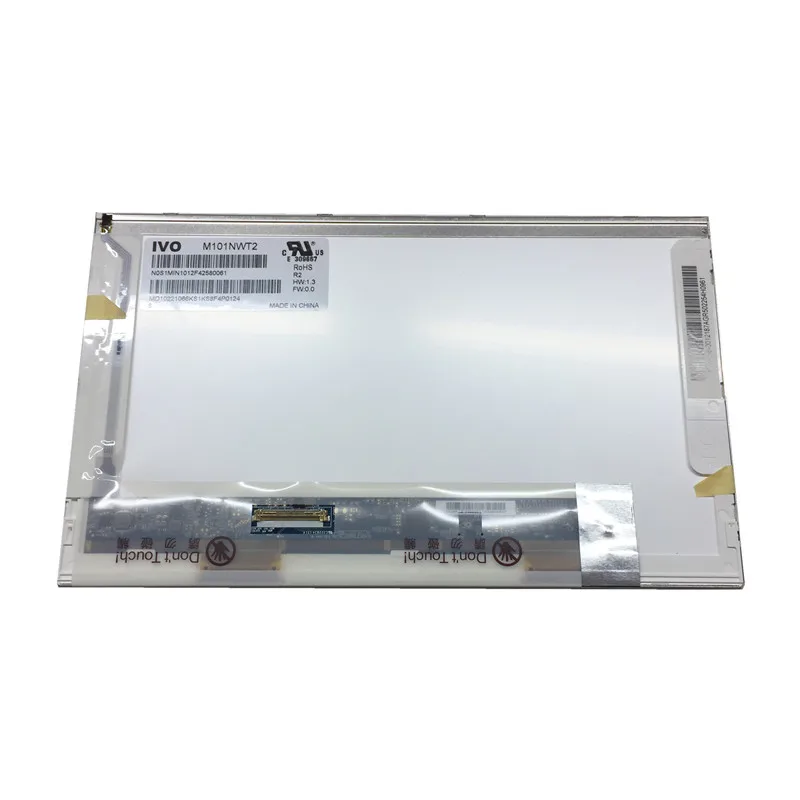

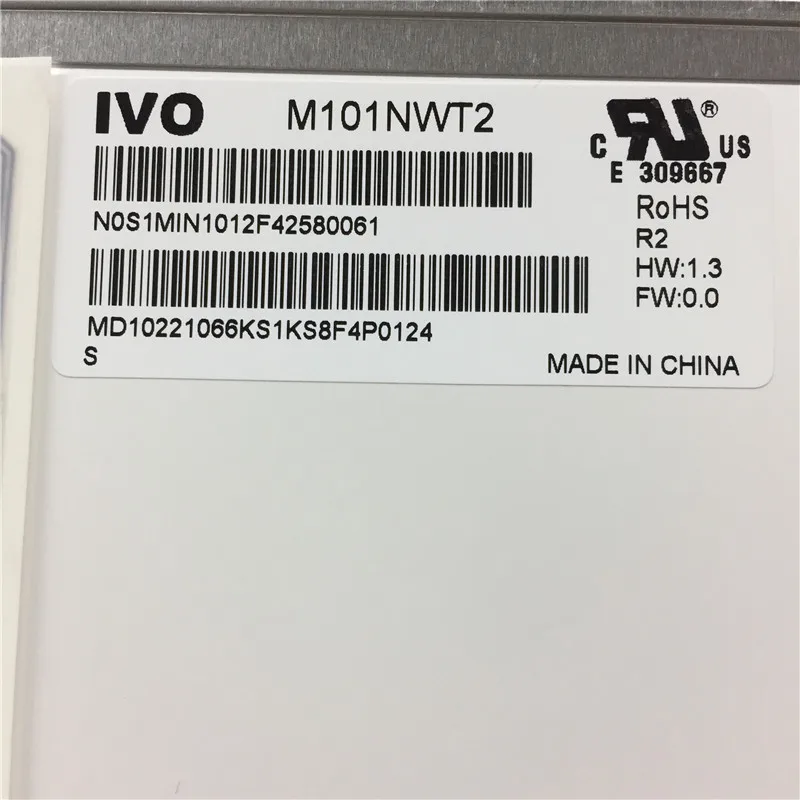

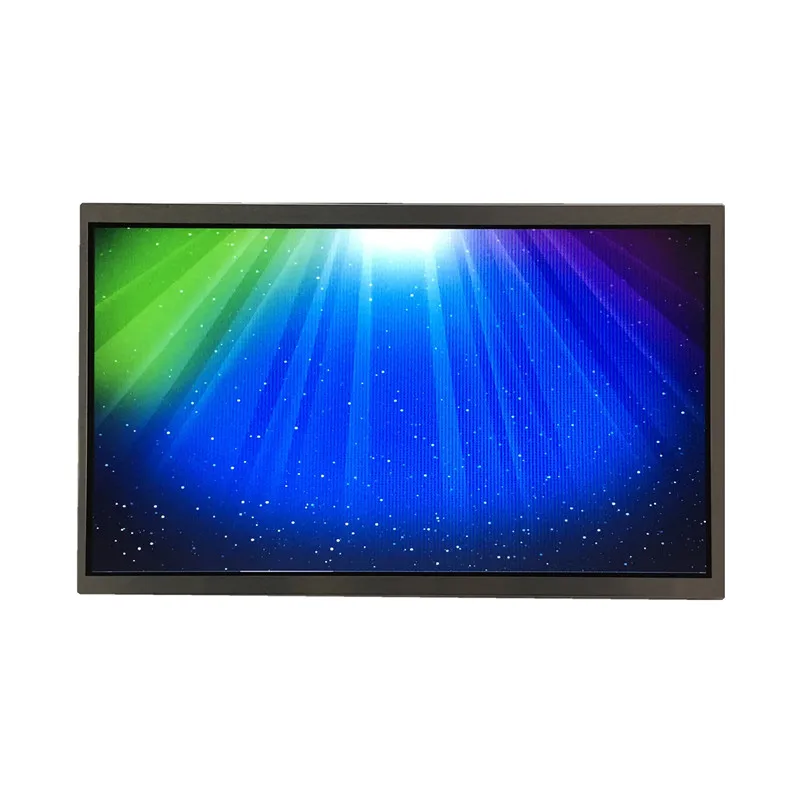

The M101NWT2 R1 is a Color Active Matrix Thin Film Transistor (TFT) Liquid Crystal Display (LCD) module, which uses amorphous Silicon TFT as a switching device. It is composed of a TFT LCD panel, a timing controller, voltage reference, common voltage, column driver, and row driver circuit. This TFT LCD has a 10.1-inch (diagonally measured) active display area with WSVGA resolution (1,024 horizontal by 600 vertical pixel array).
Features
10.1” TFT LCD Panel
LED Light-bar Backlight System
Supports WSVGA (H:1,024 lines, V:600 pixels) Resolution
Compatible with RoHS Standard
| Bezel Area(mm) | 226.42 × 128.48 (H×V) |
| Luminance | 200 cd/m² (Typ.) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Good View at | 6 o'clock |
| Color Depth | 262K 45% (CIE1931) |
| Outline Shape | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Refresh Rate | 60Hz |

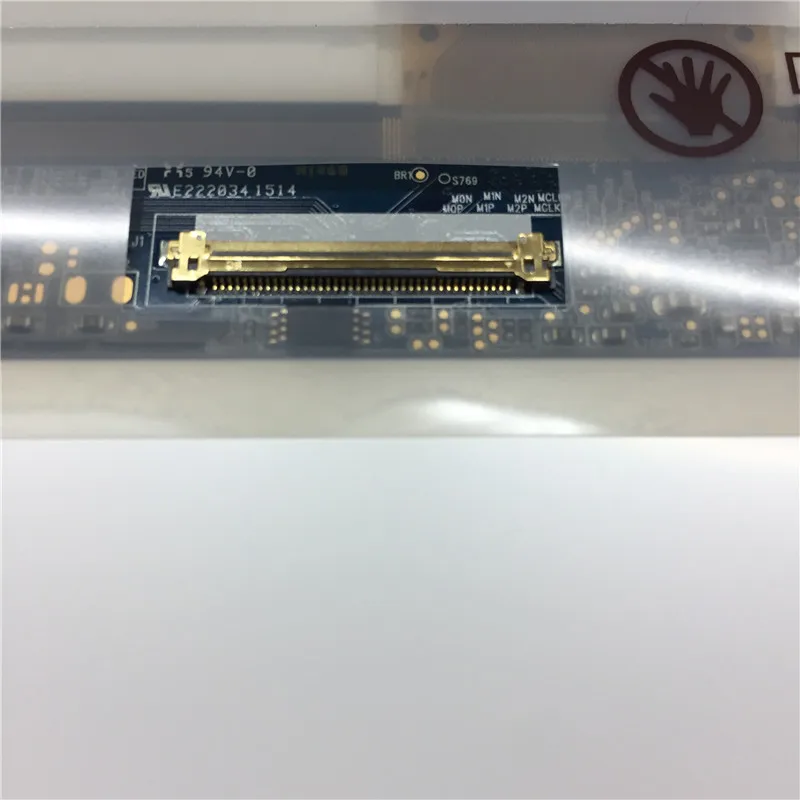

| Signal Type | LVDS (1 ch, 6-bit) , Connector , 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. RatingsS | torage Temp:-20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 235 × 143 × 5.2 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Response | 3/5 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally White, Transmissive |
| Backlight | WLED , 10K hours , With LED Drive |
| Used for | Netbook PC |
| Touchscreen | Without |
