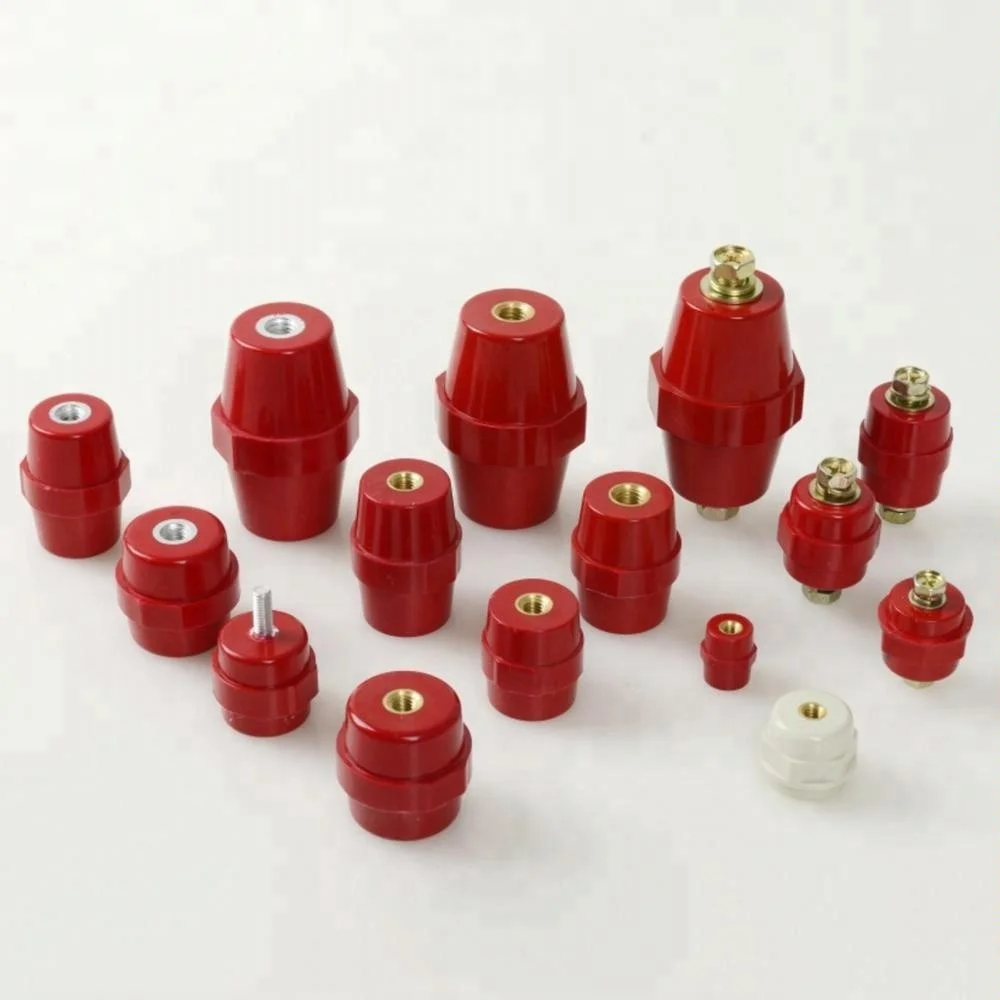

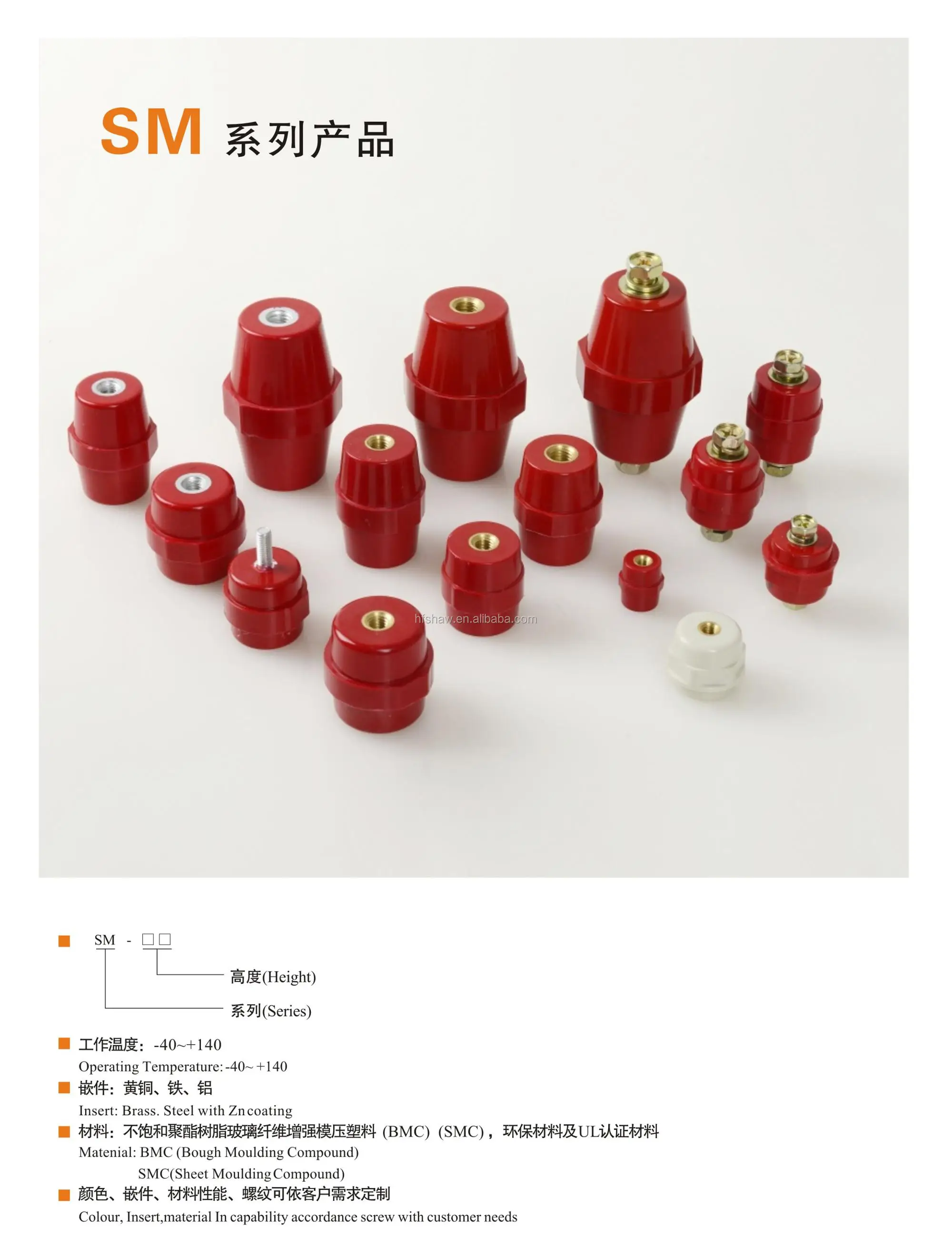

High Quality SM Bus Bar Busbar Insulator BMC DMC Insulator

Product Overview

Description

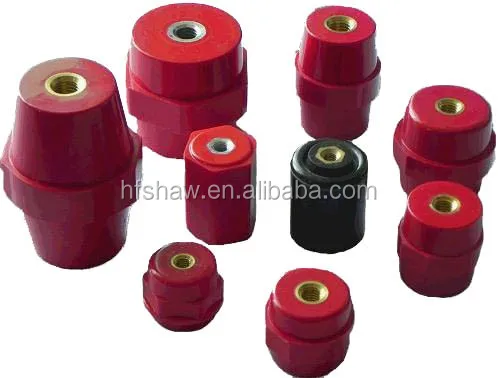

Bus Bar Insulator





Feature:

1) Material: DMC, bulk molding compound, unsaturated polymer with fiber glass
2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

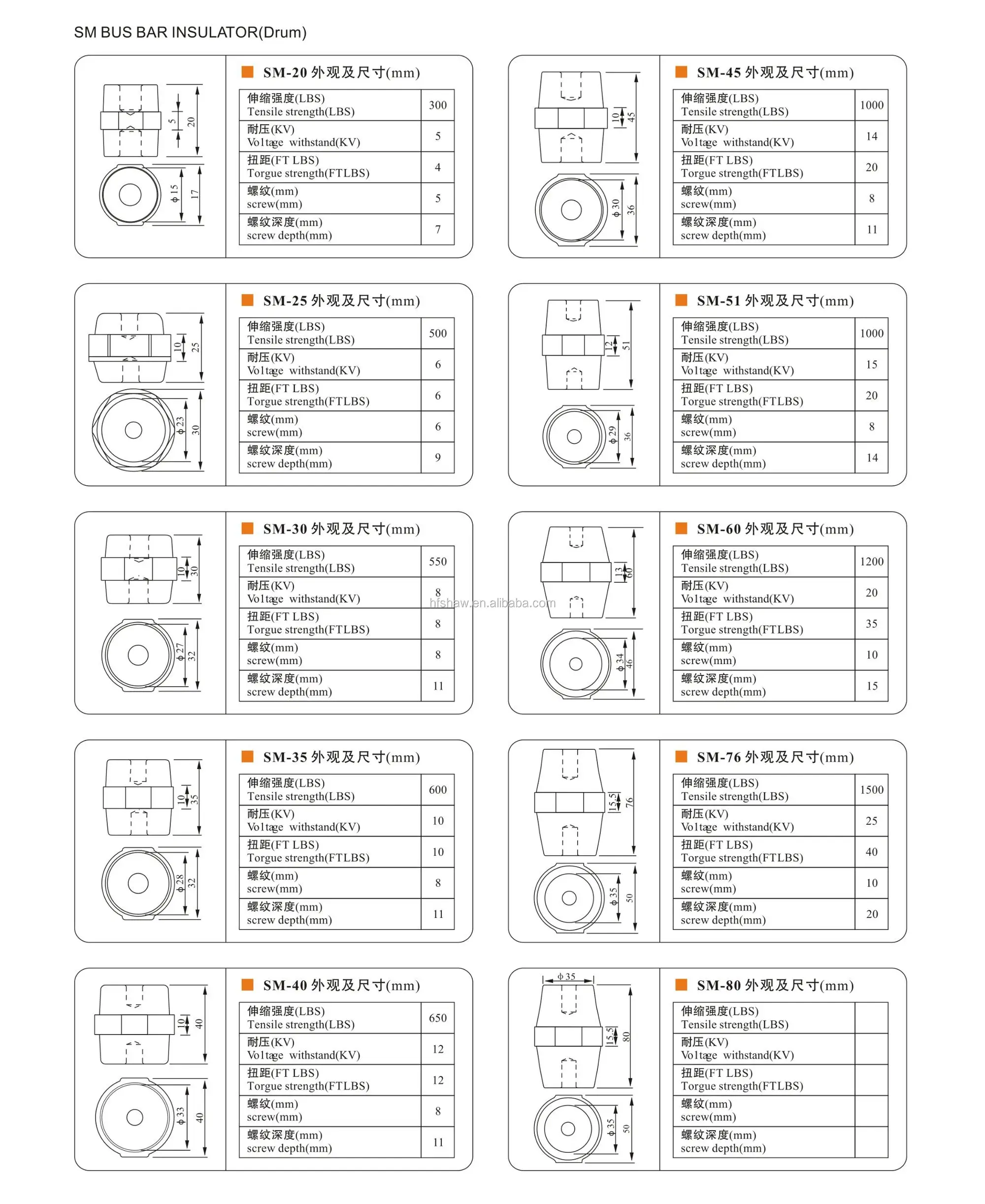

VALUES	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
TENSILE	500	550	600	650	1000	1500
STRENGTH(LBS)
TORGUE STEENGTH	6	8	10	10	20	40
(FTLBS)
VOLTAGE	6	8	10	12	15	25
WITHSTAND(KV)
SCREW(mm)	6	8	8	8	8	10
WEIGHT(G)	28	44	50	86	83	233
