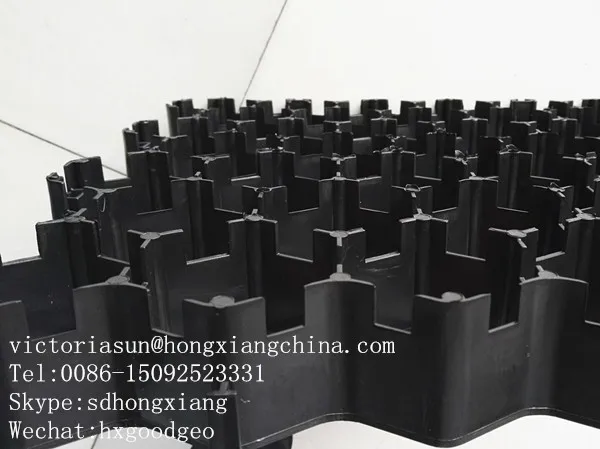

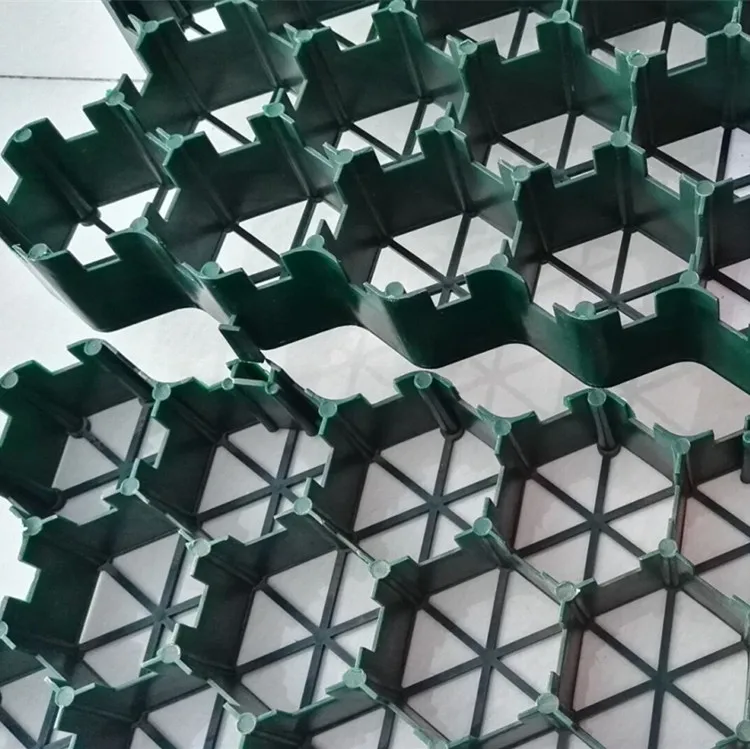

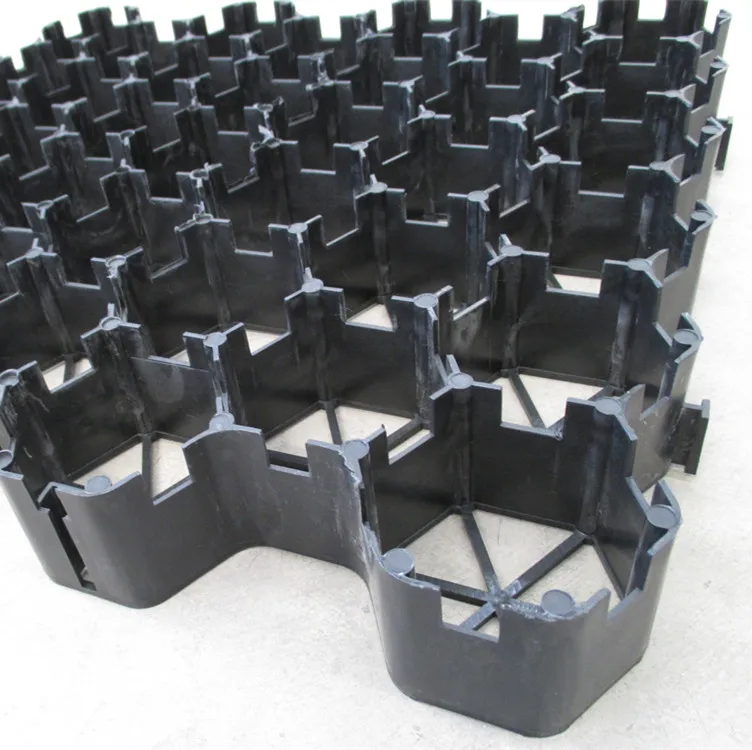

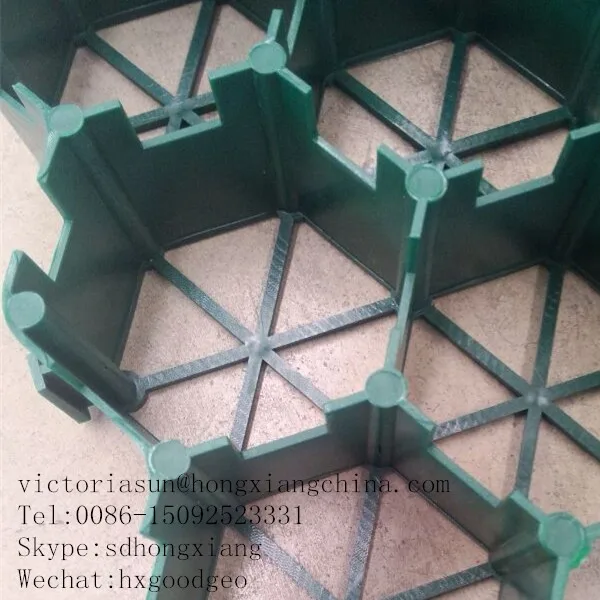

With a Average compressive strength >3Mpa.Grass Paver stabilize the soil to support heavy vehicles like fire trucks while allowing turf to grow. Manufactured frommodified macromolecular weight HDPE, glass fiber, nanometer Oxides, pigment (standard proportion).these grass pavers are a sustainable solution for areas of high traffic that might otherwise be covered with traditional asphalt or concrete.
Features:
Perfect Greening: Grass grids offer 95% grass area, completing green effect could absorb noise, dust, heat and reduce the glare produced by the ground reflection.
Save investment: Grass grids combined parking garage and greening.

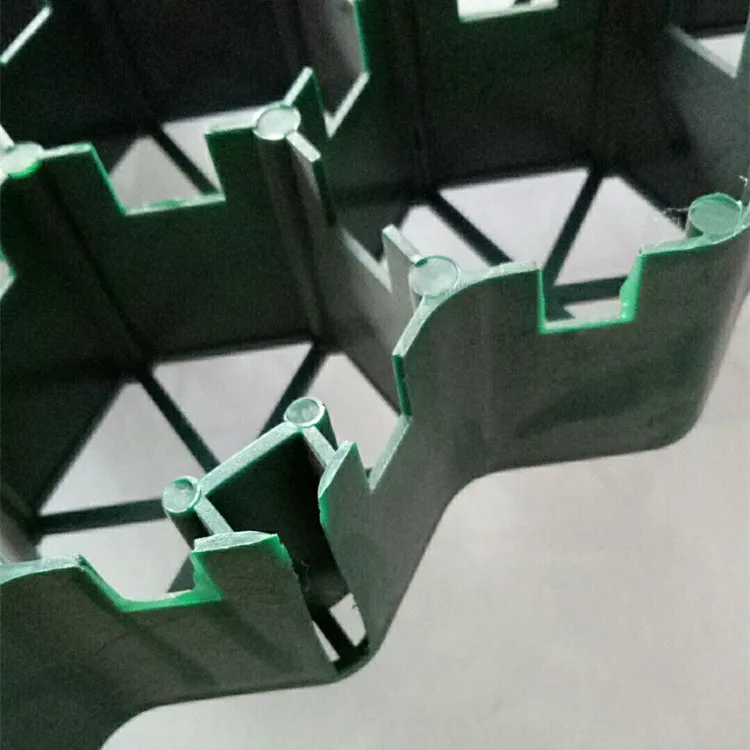

Formation integrity: a unique and strong grass grid snap-lap the whole pavement together into a flat overall, to avoid local depression, suitable for exercise, entertainment and leisure.
High strength and durability: Grass grid using patented technology, the maximum compression capacity of 200 tons/sqm, greater than regulatory requirements of the saving fire plane 32 tons/sqm. It's stable performance, anti-UV, anti acid corrosion, wear pressure, making the fire exits, fire climb surface into a green surface.
Permeability: load-bearing layer of gravel to provide a good permeability function, the excess water into the ground and increase underground water storage to prevent subsidence. It's not only could oxygen permeability also can purify the air.
Protection of grass: load-bearing layer of gravel to provide a certain amount of water features, enabling the growth of grass, grass can grow to the gravel layer.
Water conservation: Grass has water conservation functions to reduce urban waterlogging.
Good weather resistance: can be used for snow riding channel for -40-90 C.
Material
HDPE/PP
Specification
410mm(L)×390mm(W)×38mm(H)
410mm(L)×390mm(W)×50mm(H)
410mm(L)×390mm(W)×70mm(H)
Supporting Capacity
200ton/square meter
Weight
≥3.5Kg/m2
Average compressive strength
>3Mpa
Anti-pressuring cylinder wall thickness
≥2.0mm
Anti-pressuring cylinder compressive strength
:≥200ton/m2
Anti-pressuring cylinder pore number
≥4
Shape
square or round
Application:
Applications for Grass Paver, Plastic Driveway Paver, Gravel Stabilizer:
♦Parking Lots ♦Fire Lanes & Access Roads ♦Pathways & Driveways ♦Mud Control ♦Erosion Control ♦Golf Courses ♦Green Roofing ♦Green Spaces & Landscapes ♦Playgrounds & Public Spaces ♦Equestrian & Livestock Facilities

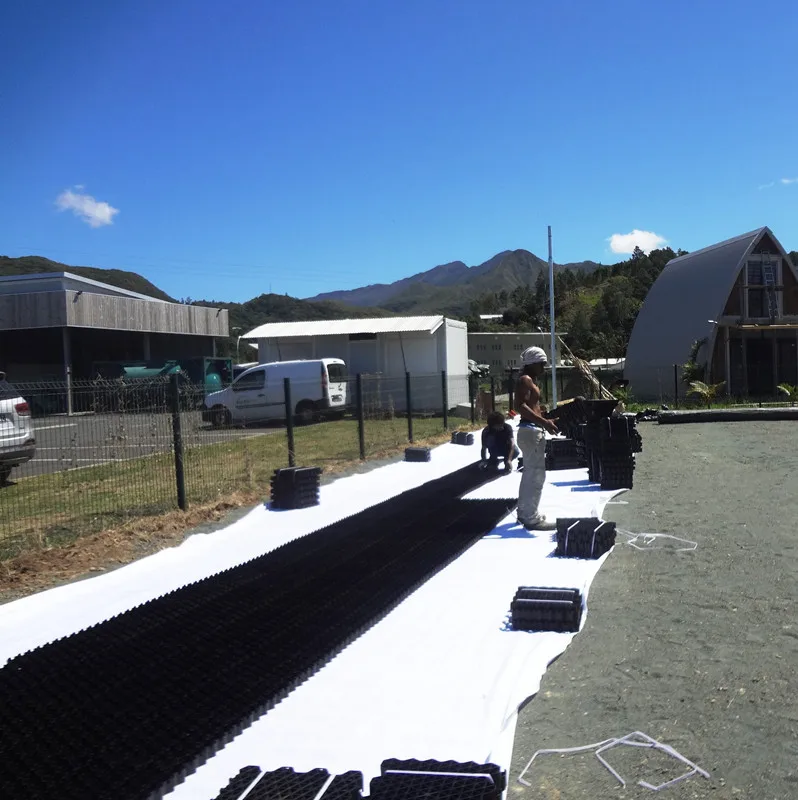

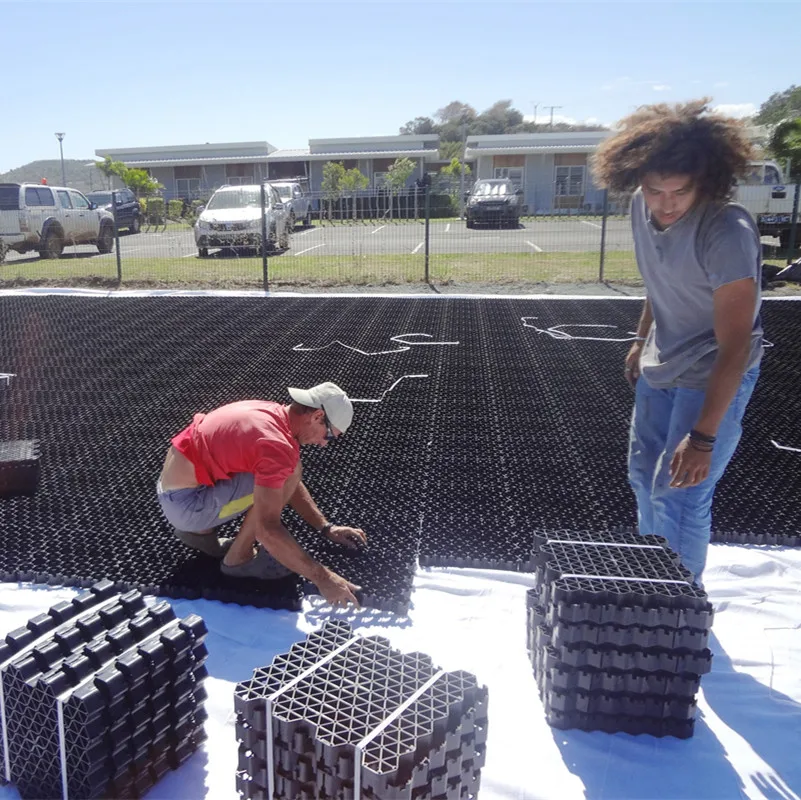

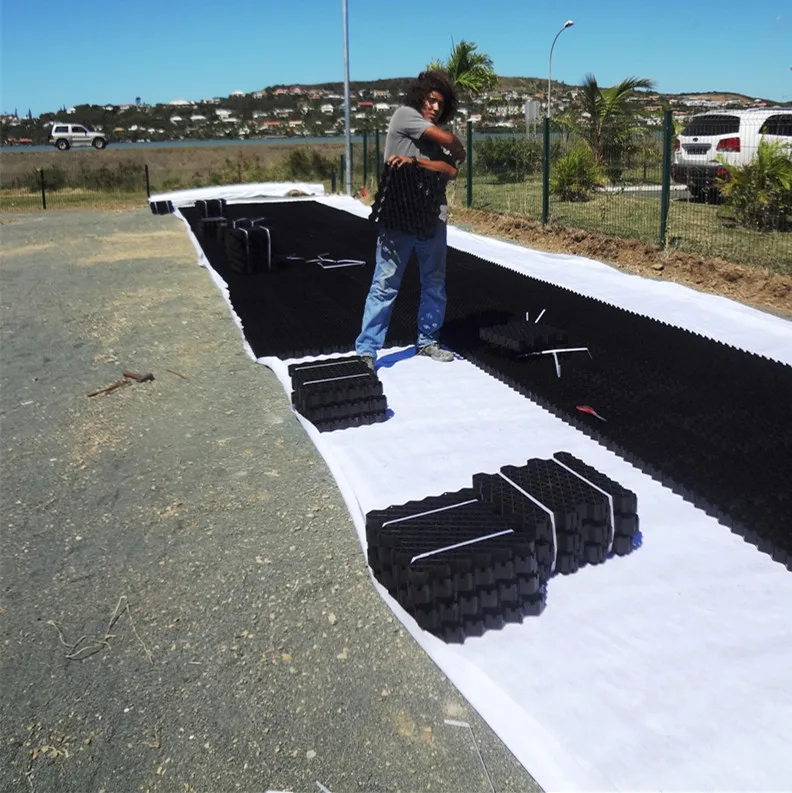

Construction suggestion 1. Foundation soils should be tamped; compactness achieves more than 85%. 2. Paving 300 thick crushed stones as supporting layer (fire traffic lane is 600 thick), roller compaction. 3. Paving 20 thick crushed stones and coarse sand as the level. 4. Paving grasses standard can cut off to the proper shape, between the standard leave several millimeters. 5. Sowing soil in standards, 1 centimeter to upper layer. 6. Sowing turf or seed. When sowing, turf must be compacted. After the grass grows well, it can park the car.

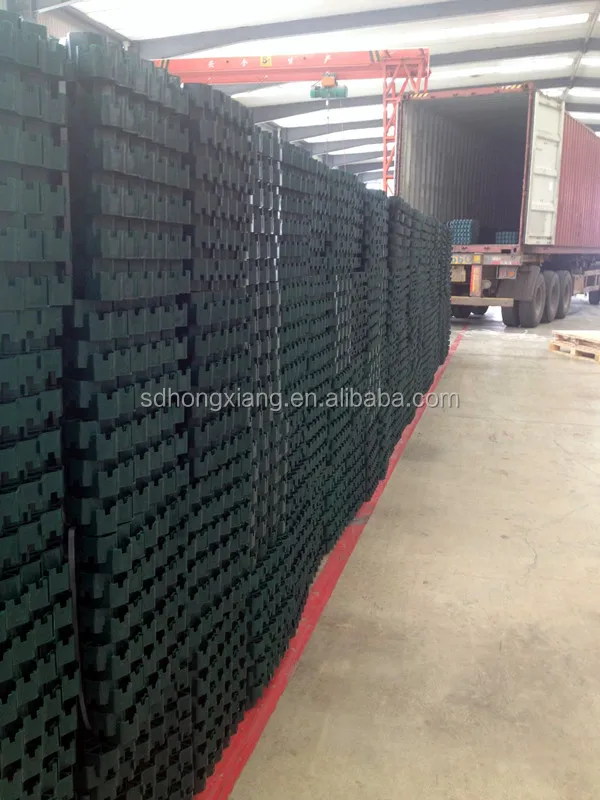

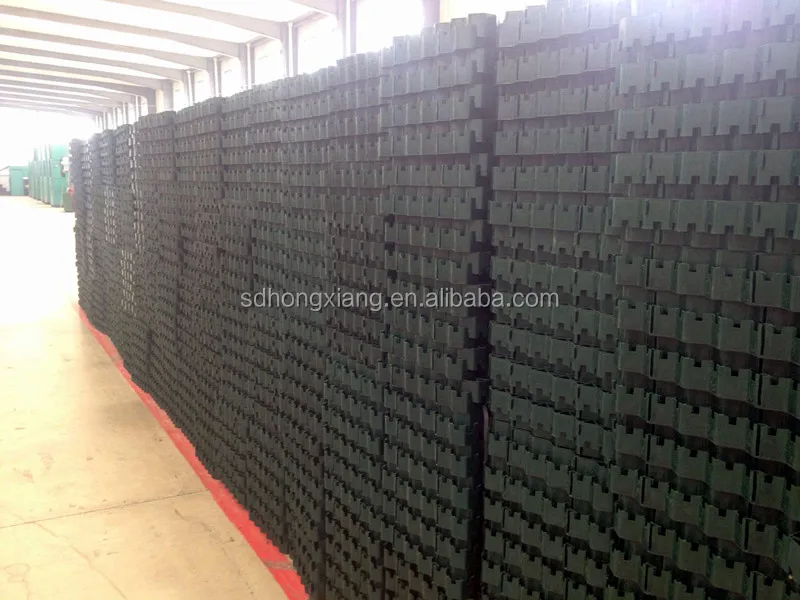

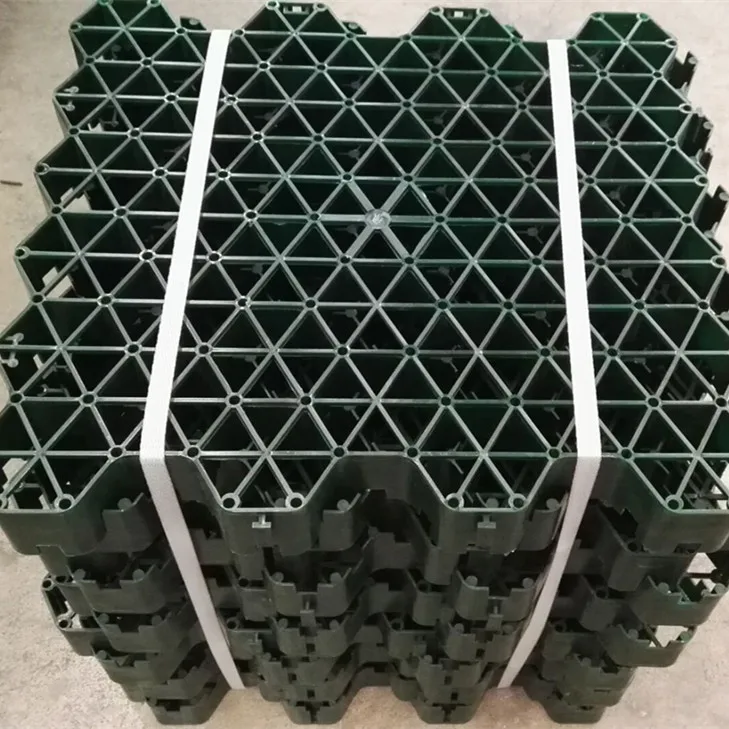

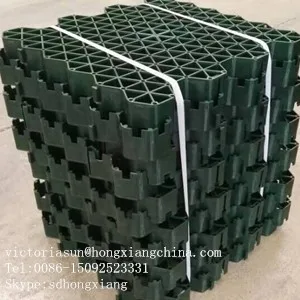

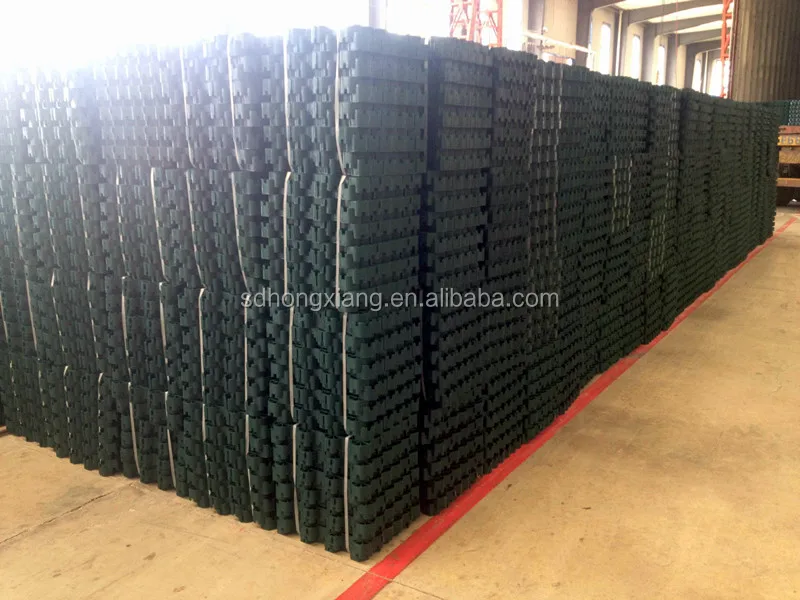

Packaging & Shipping
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
And here are some test machine pictures in our test room:
