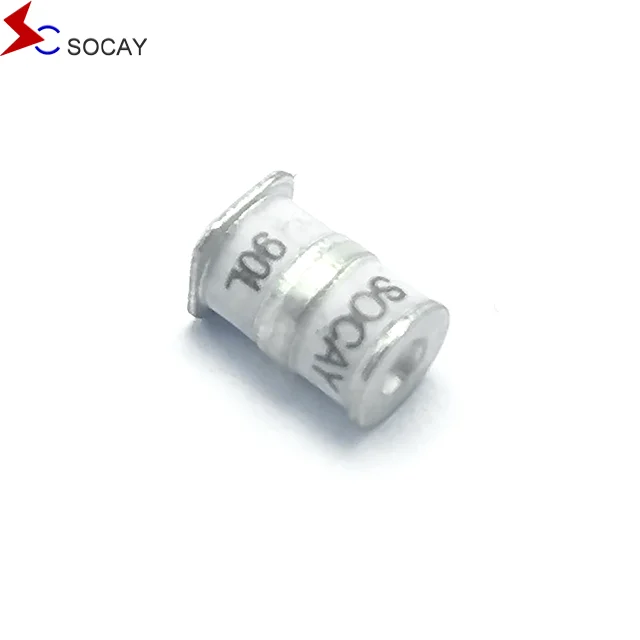

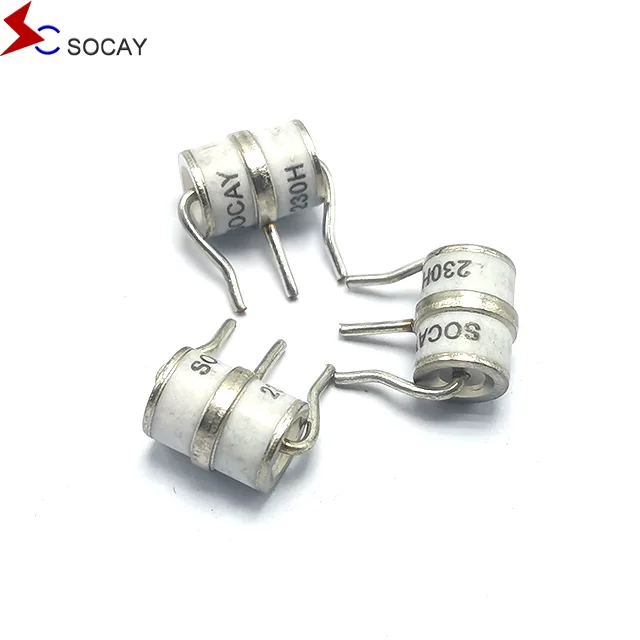

Overvoltage Protection 3 Pole Surge Protector Ceramic Surge Arrester
- Category: >>>
- Supplier: Shenzhen Socay Electronics Co. Ltd.
Share on (60770170895):
Product Overview
Description
Materials | Leaded Device: Nickel-plated with Tinplatedwires Surface Mount: Dull Tin-plated |
SOCAY XXXM/H XXX -Nominal voltage L -5KA | |
Glow to Arc Transition Current | < 0.5 Amps |
Glow Voltage | ~60 Volts |
Storage and Operational Temperature | -40 to +90°C |
Weight | SC3E5-XXXL ~0.66g SC3E5-XXXLSMD ~0.68g |
Climatic category (IEC 60068-1) | 40/ 90/ 21 |
Non-Radioactive RoHS compliant Low insertion loss Excellent response to fast rising transients Ultra low capacitance 5KA surge capability tested with 8/20μs pulse as defifined by IEC 61000-4-5 | |
Communication equipment CATV equipment Test equipment Data lines Power supplies Telecom SLIC protection Broadband equipment ADSL equipment, including ADSL2+ XDSL equipment Satellite and CATV equipment Consumer electronics |

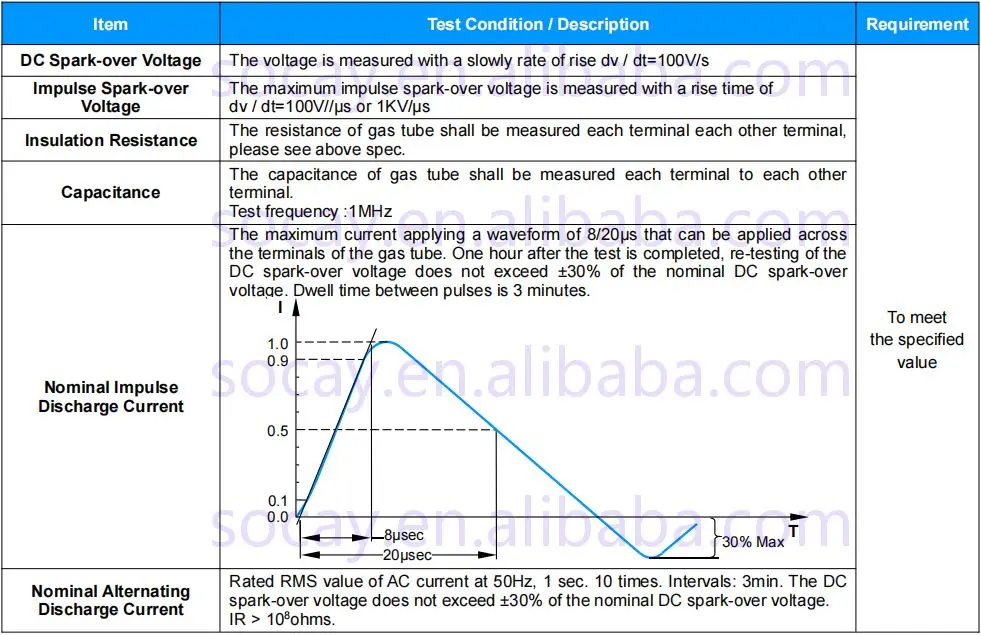

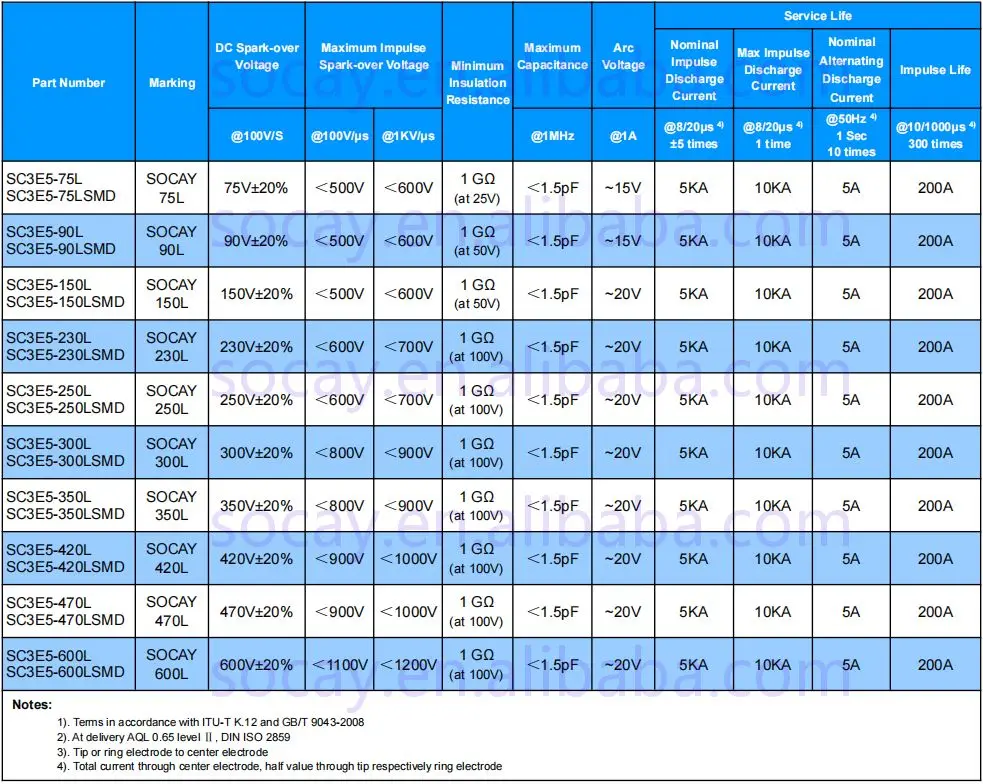

Electrical Characteristics
Electrical Rating

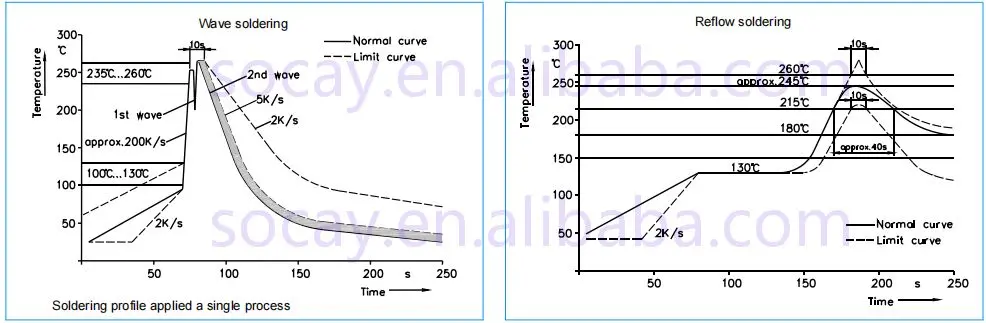

Recommended Soldering Profile

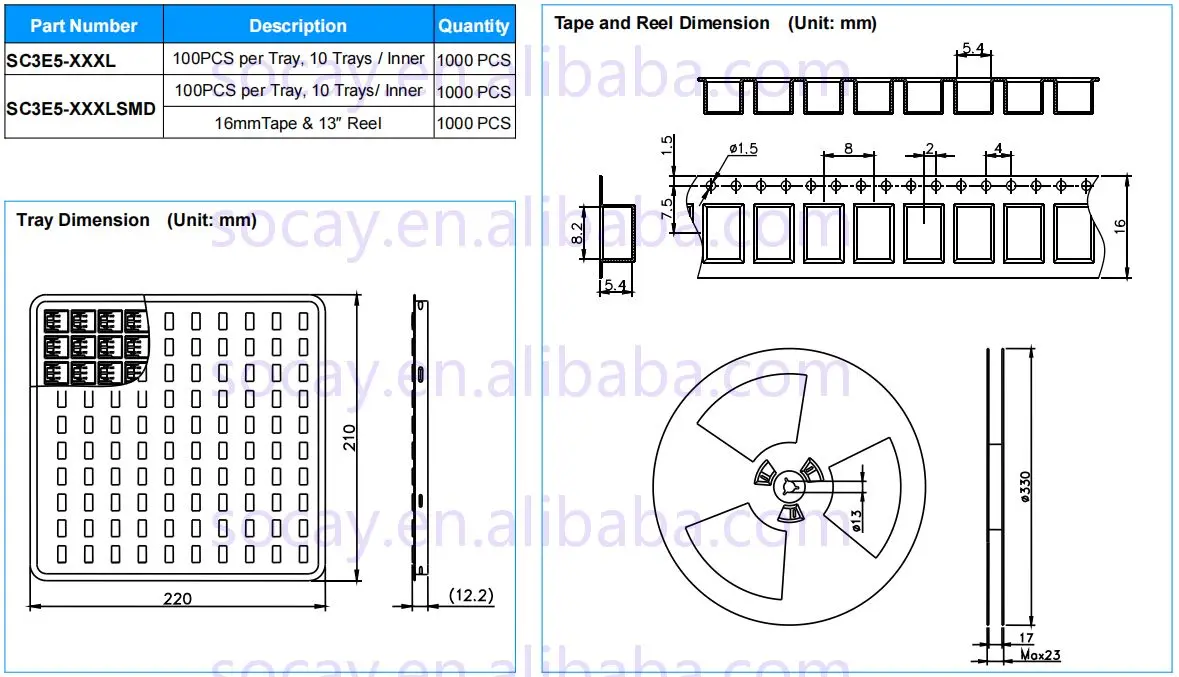

Packaging Information
Please feel free to contact us if you have any question.
Contact Person: Alice Xu
Phone Number/WhatsApp/Wechat: +8618775040331
Email Address: socay122@socay.com Factory Address: Floor 4, Building C, Hengxing Science park, No.19 Minqing Road, Longhua District, Shenzhen
Website: www.socay.com

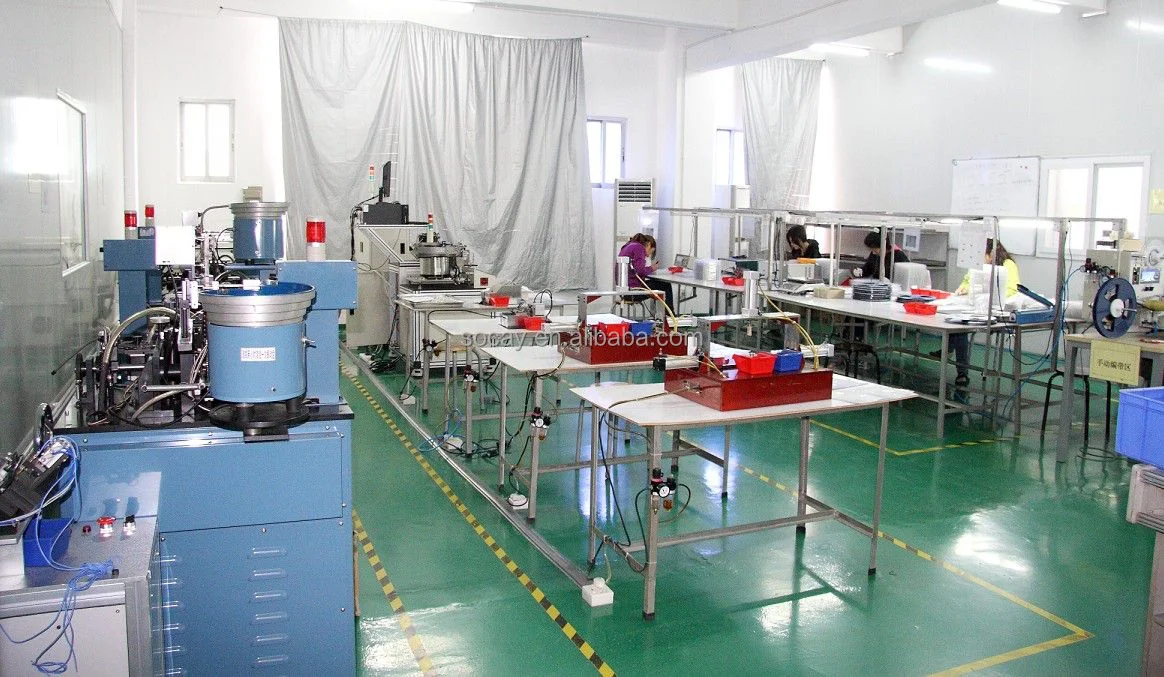

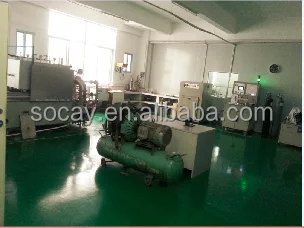

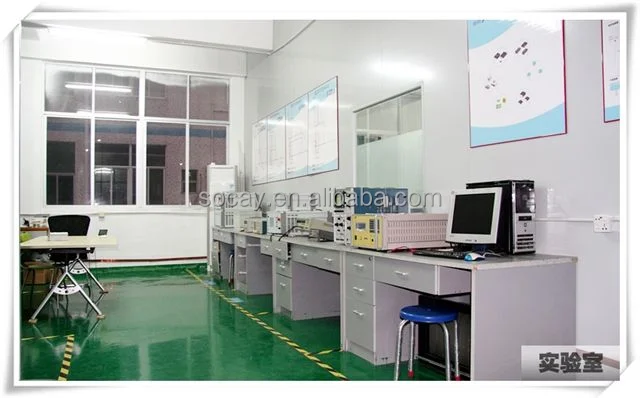

Company Profile
FAQ
Q: May we get some samples?
A: Of course,samples are available.
Q: What is product lead time?
A: For GDT,TVS and ESD,lead time will take 3-4 weeks.For TSS,MOV,MLV,NTC,and PPTC,lead time will take 4-6 weeks.Accurate lead time will be further confirmed when we know your specific requirement.
Q: Do you support customization?
A: Yes,we do.
