ЖК модуль 20x4 символов для радиопульта дистанционного управления
ЖК-модуль 20x4 символов для радиопульта дистанционного управления

ЖК модуль 20x4 символов для радиопульта дистанционного управления

Share on (60770176228):


Price:4,00 $

Quantity:


Product Overview

Description


20x4 character lcd module display for radio remote control

Product Description



5V parallel interface blue white 20x4 character lcd module custom character lcd module

Number of characters: 20 x 4 lines
Display type: COB STN/FSTN, blue/grey/yellow green/negative/positive
Duty: 1/16
Bias: 1/5
Input voltage: 5.0/3.3V DC
view angle: 6 or 12 o'clock
Controller: SPLC780D or equation
Connector: zebra
LED back light colors: white/blue/yellow green
Operating temperatures: 0 to 50°C/-20 to 70°C
Storage temperatures: -10 to 60°C/-30 to 80°C
Module dimensions (W x H x T): 98.0 x 60.0 x 14.0mm
VA (W x H): 76.0 x 26.0mm

20x4 character lcd module display for radio remote control

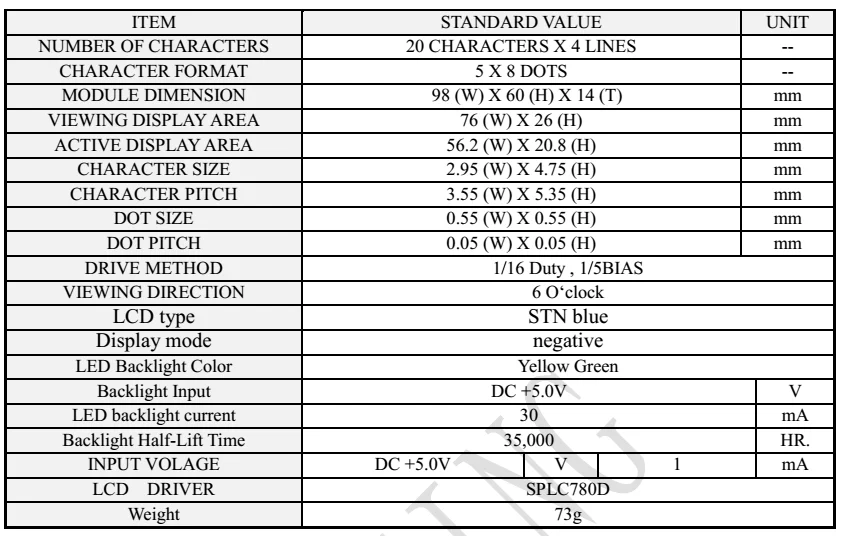

20x4 character lcd module.png20x4 character lcd module display for radio remote control

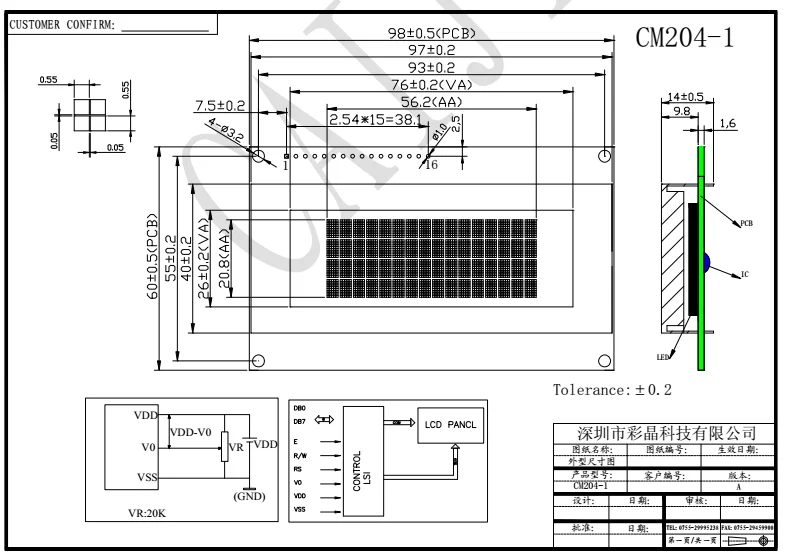

20x4 lcd module.png20x4 character lcd module display for radio remote control

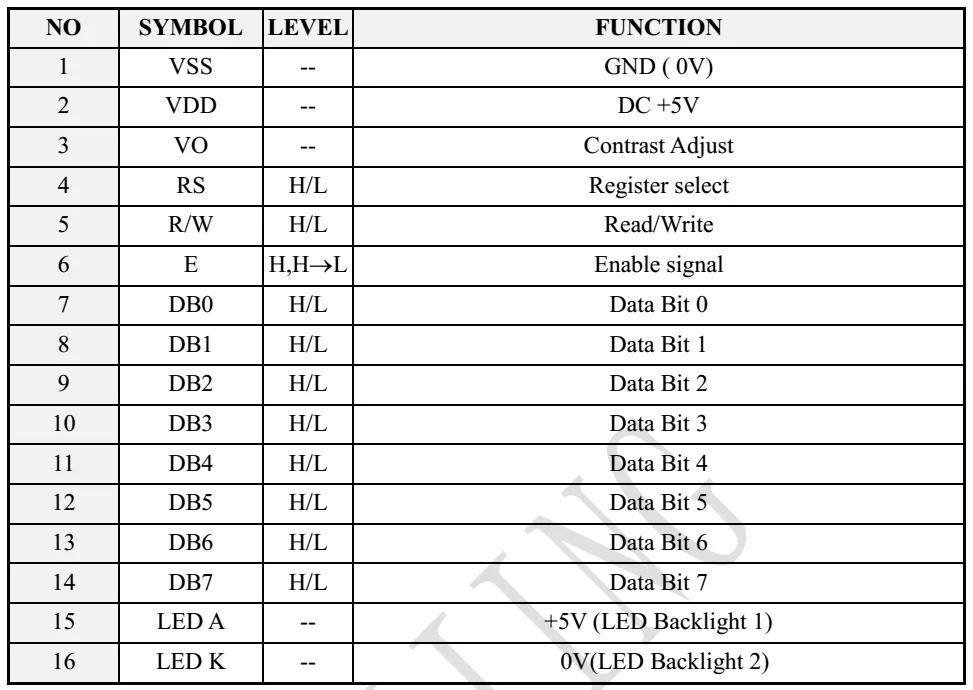

20x4 lcd display.png

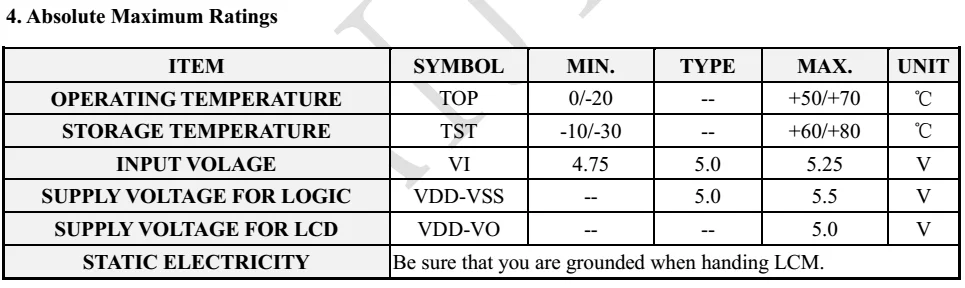

20x4 STN lcd.png

20x4 character lcd module display for radio remote control

Product Certificates

20x4 character lcd module display for radio remote control

8 characters 2 lines lcd module certificates.png



Our Services

Our advantage and service

15 year's design,manufacture and sales experience
300+ models available,custom orders welcome
exporting to 100+ countries
Free 1-year maintance

Free sample for some styles



Contact Us

Shenzhen Brilliant Crystal Technologic Co.,ltd

Bella Zou

Skype:cjsz2002

QQ:2829642402

cjsz2002#hotmail.com

Celand whatsapp:+86-15889302786

Tel:+86-0755-29485608

Website:www.cjlcd.com  & www.cj86.com

              https://szcmlcd.1688.com/



Related Product

Related Product  for 20x4 character lcd module display for radio remote control

 About character lcd module ,we also have 16x1 character lcd module display ,16x2 character LCM,16x4 monochrome lcd display,20x2 lcd ,20x4 lcd display ,40x2 small size lcd module,40x4 lcd display module.

Display ContentModel No.Outline Size(mm)V.A(mm)Dots SizeControllerVoltageInterface
8x2CM802-140×35×728×140.5×0.5SPLC7805V/3Vserial/parallel
8x2CM802-258×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
8x2CM802-658×32×13.538×160.56×0.66SPLC7805V/3Vserial/parallel
12x1CM121-1103×35×1176×251×1.4SPLC7805V/3Vserial/parallel
16x1CM161-180×36×1264×13.80.55×0.7SPLC7805V/3Vserial/parallel
16x1CM161-2122×33×1499×130.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-1122×44×13.499×240.92×1.1SPLC7805V/3Vserial/parallel
16x2CM162-384×44×13.762×180.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-480×36×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1084×44×1264×13.80.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1180×36×12.564.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1285×36×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1380×36×12.564.6×13.80.55×0.55SPLC7805V/3Vserial/parallel
16x2CM162-1585×29×11.364.9×15.90.54×0.62SPLC7805V/3Vserial/parallel
16x2CM162-1785×36×1462×160.55×0.65SPLC7805V/3Vserial/parallel
16x2CM162-3680x36x11.364.9x15.90.54x0.62SPLC7805V/3Vserial/parallel
16x4CM164-187×60×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
16x4CM164-287×55×12.561.5×250.55×0.55SPLC7805V/3Vserial/parallel
20x2CM202-1116×37×12.583×18.50.61×0.66SPLC7805V/3Vserial/parallel
20x2CM202-2180×40×14.3148×231.1×1.12SPLC7805V/3Vserial/parallel
20x2CM202-3116×32.5×7.987.8×17.50.553×0.569SPLC7805Vserial/parallel
20x2CM9079123×25×12.785×12.90.55×0.65SPLC7805Vserial/parallel
20x4CM204-198×60×1476×260.55×0.55SPLC7805V/3Vserial/parallel
20x4CM204-2146×62.5×13123×42.50.92×1.1SPLC7805V/3Vserial/parallel
40x2CM402-1182×33×11.5154×15.80.6×0.65SPLC7805Vserial/parallel
40x4CM404-1190×54×13.6147×29.50.5×0.55SPLC780x25V/3Vserial/parallel
