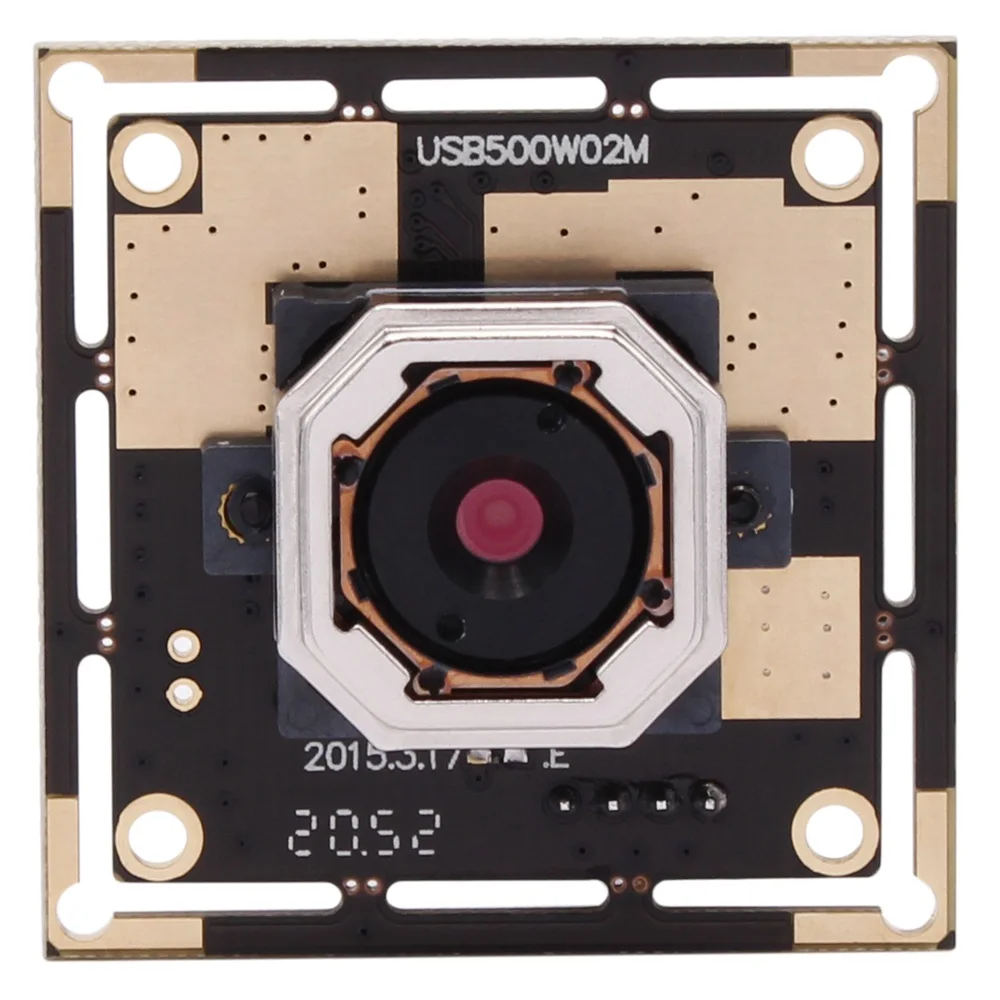

ELP CMOS Sensor OV5640 Mini 5mp cmos USB Autofocus Webcam for telescope endoscope,microscope with 30 degree megapixel lens
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60770205165):
Product Overview
Description

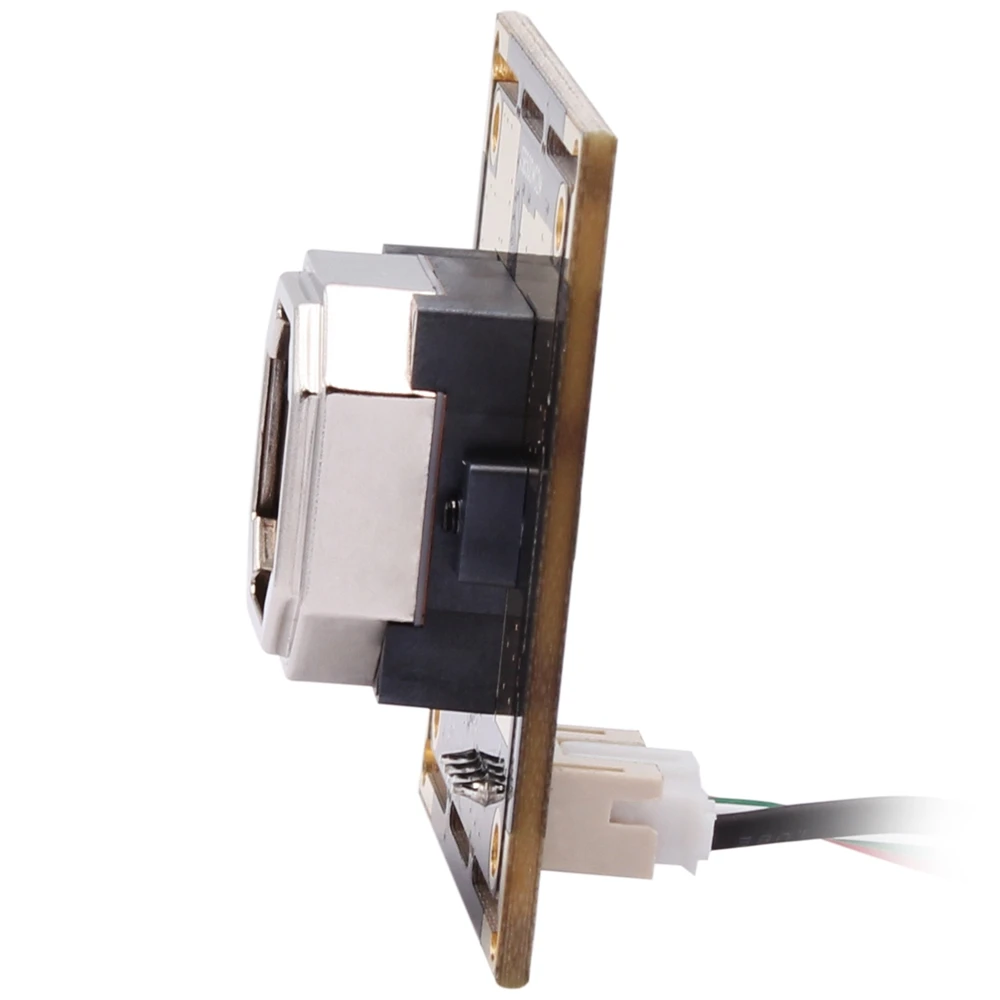

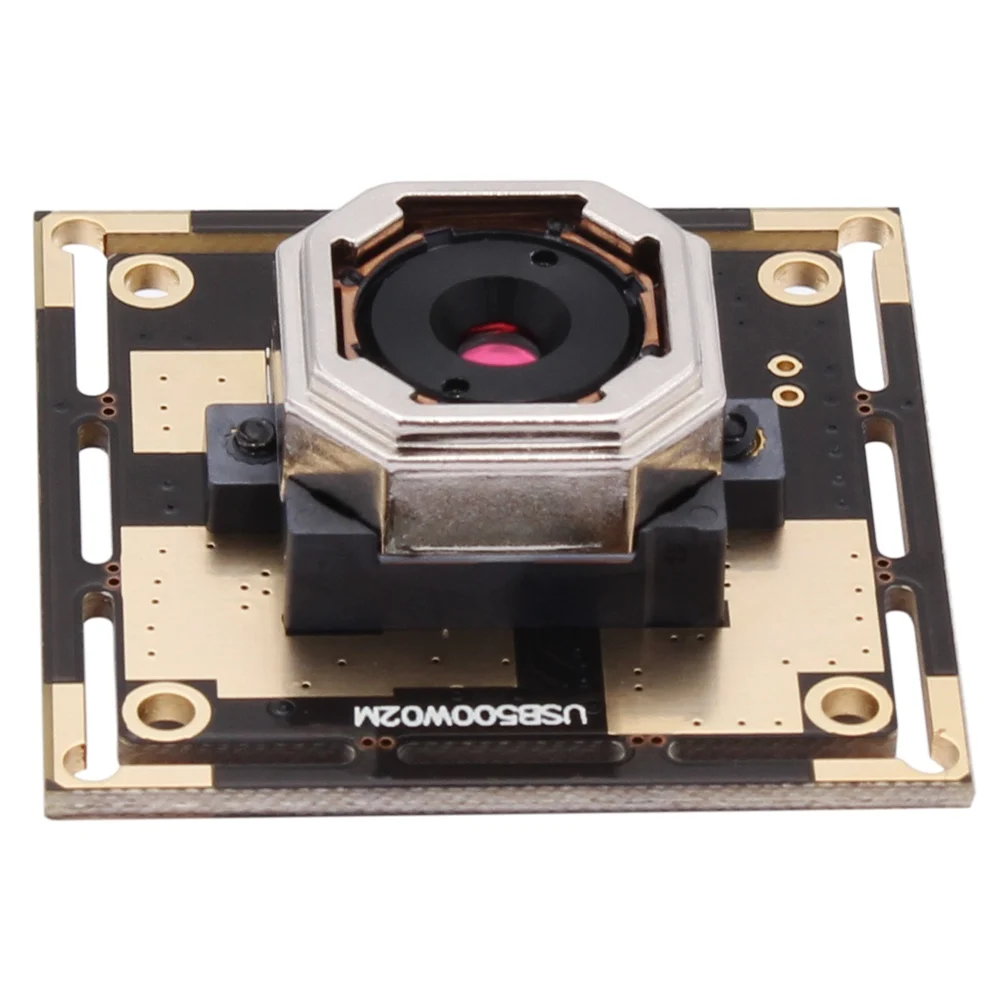

ELP CMOS Sensor OV5640 Mini 5mp cmos USB Autofocus Webcam for telescope endoscope,microscope with 30 degree megapixel lens
Model:ELP-USB500W02M-AF30 is 5.0megapixel 2592(H)x1944(V)pixels High resolution Auto focus USB cameras with 30degree fisheye lens for Linux Android Windows etc. OS system.
Features

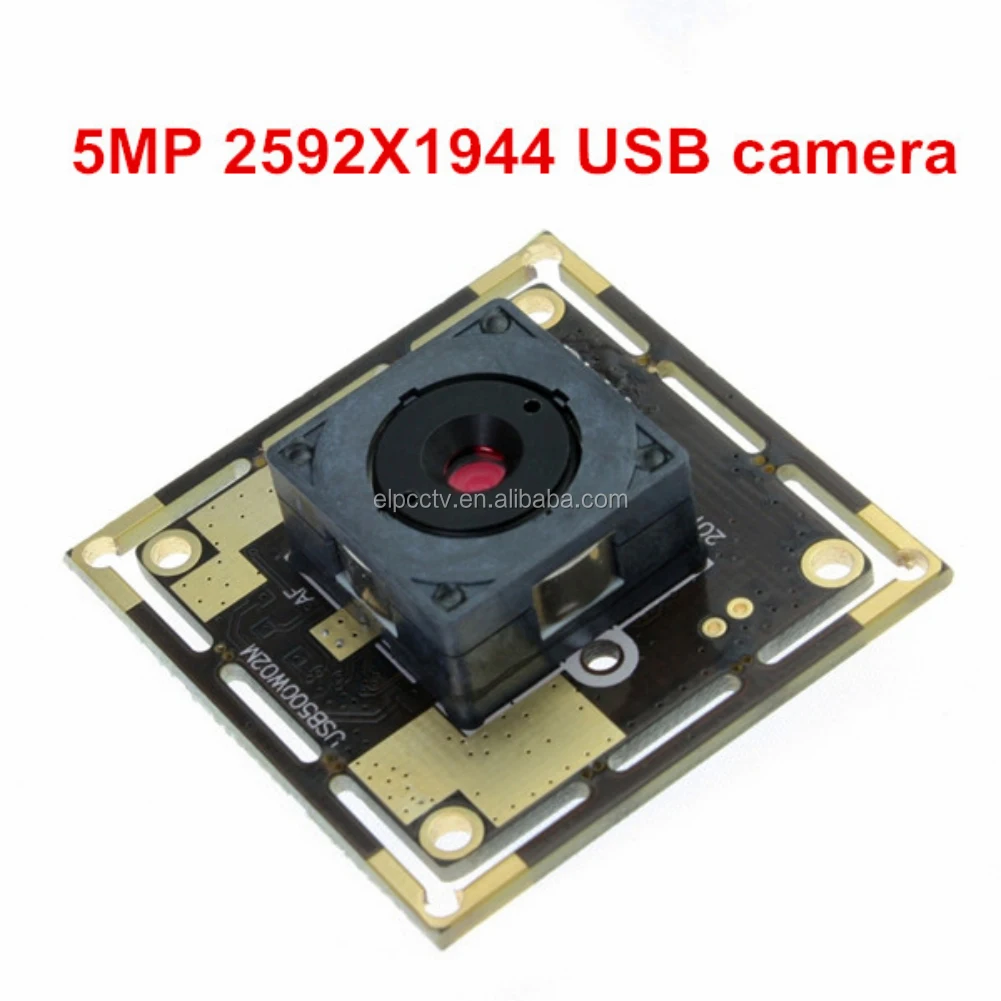

*5.0megapixel 2592(H)x1944(V)pixels USB Camera
*FOV(D)30 Degree Lens with AUTOFOCUS MOTOR
*CMOS OV5640 sensor for high quality image and low power consumption.

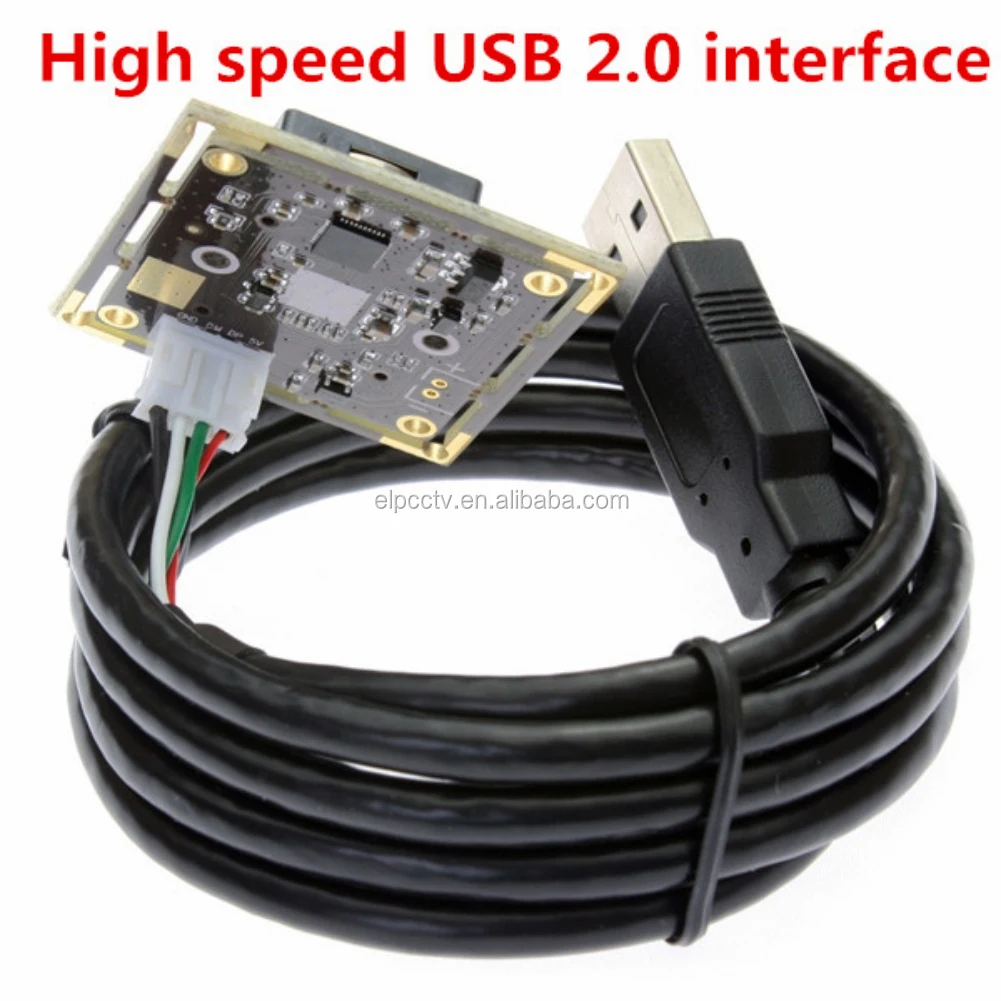

*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.

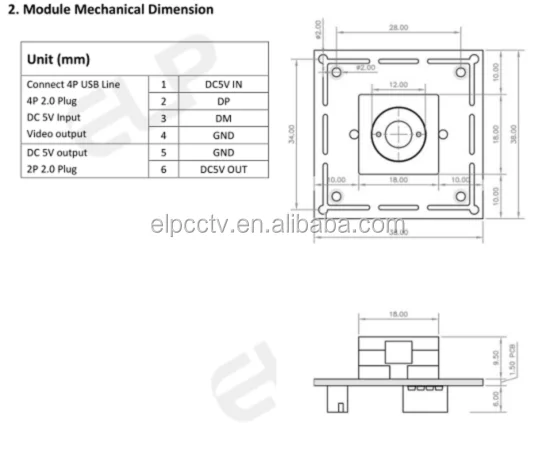

*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
| Module: ELP-USB500W02M-A30 | |||
| Performance | 2592x1944@ 15fps MJPEG / 2048x1536@ 15fps MJPEG 1600x1200@ 15fps MJPEG / 1920x1080@ 15fps MJPEG 1280x1024@15fps MJPEG/ 1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG / 320x240@ 30fps MJPEG | ||

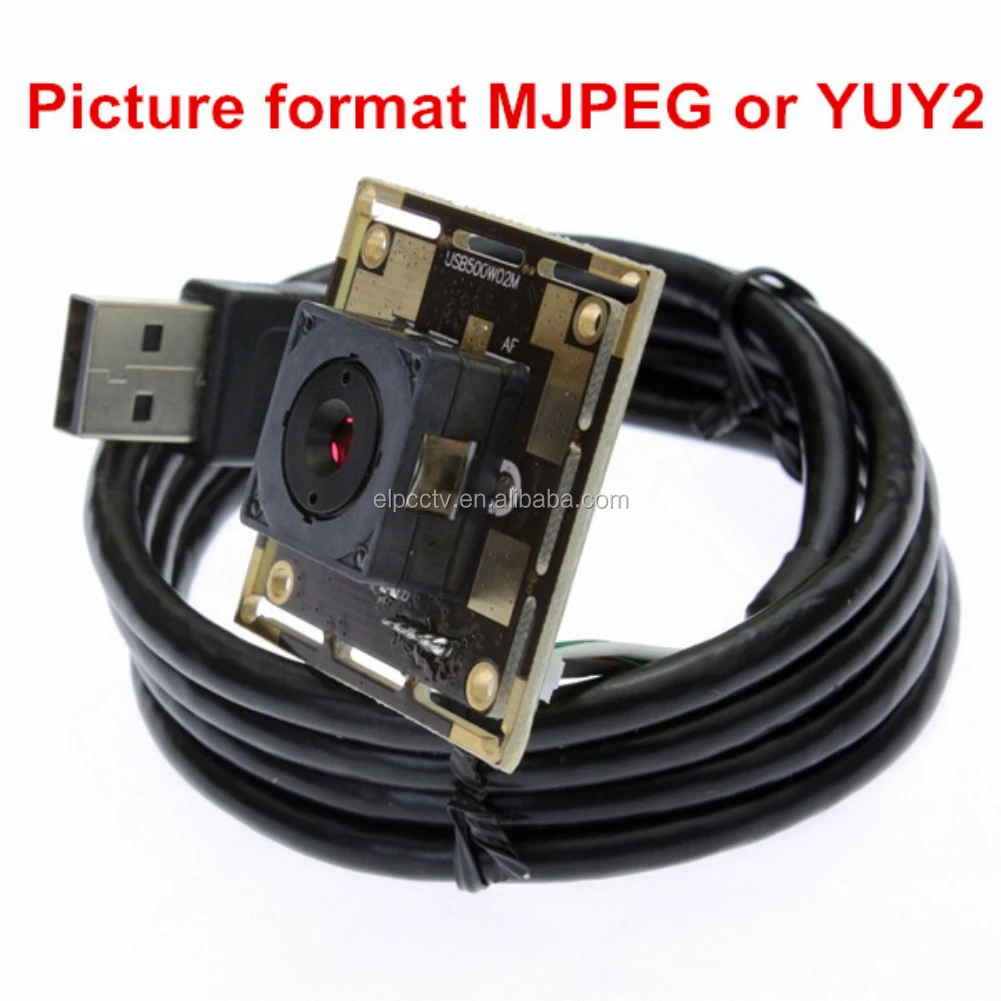

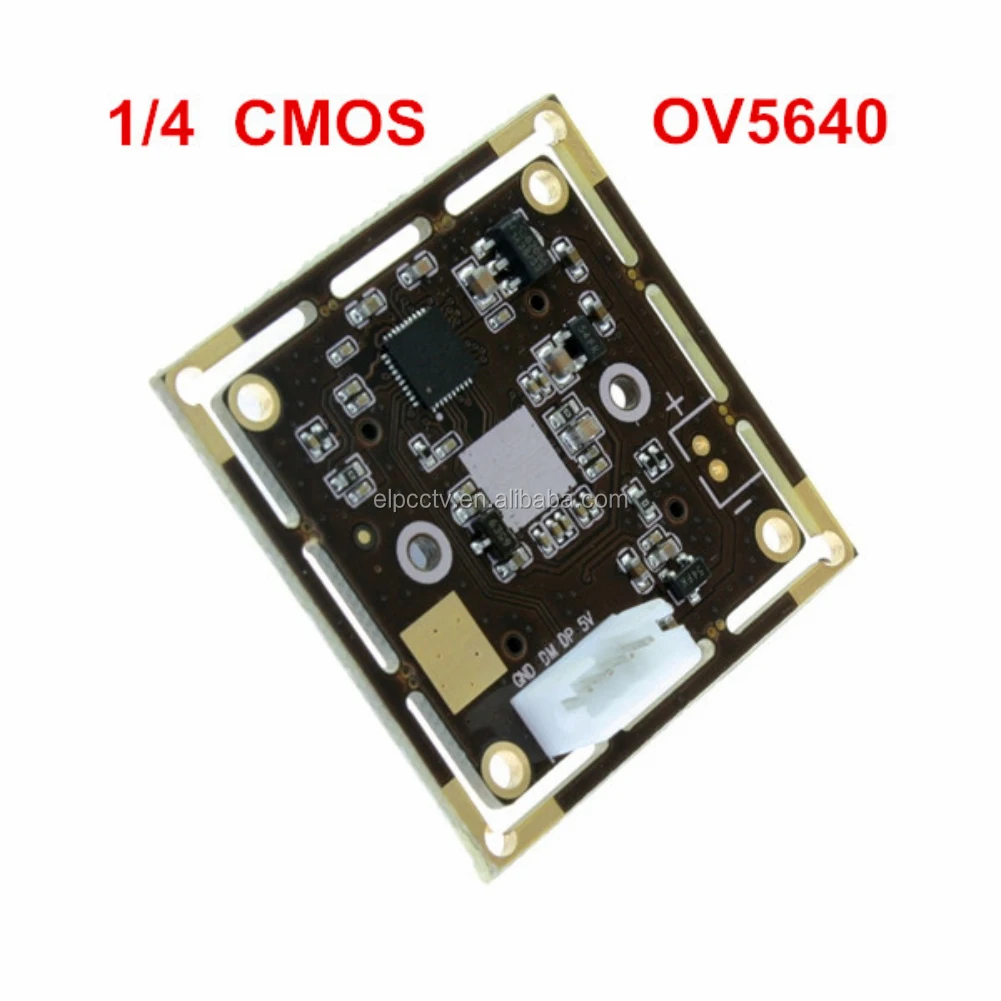

| Sensor | OV5640 (1/4inch ) | Output Formats | YUYV/MJPEG |
| Pixel Size | 1.4µm x1.4µm | Lens Parameter | FOV: 30Degree Lens optional:30/45/60/170degree |
| Image area | 3673.6µmx2738.4µm | Object distance | 5CM-100M |

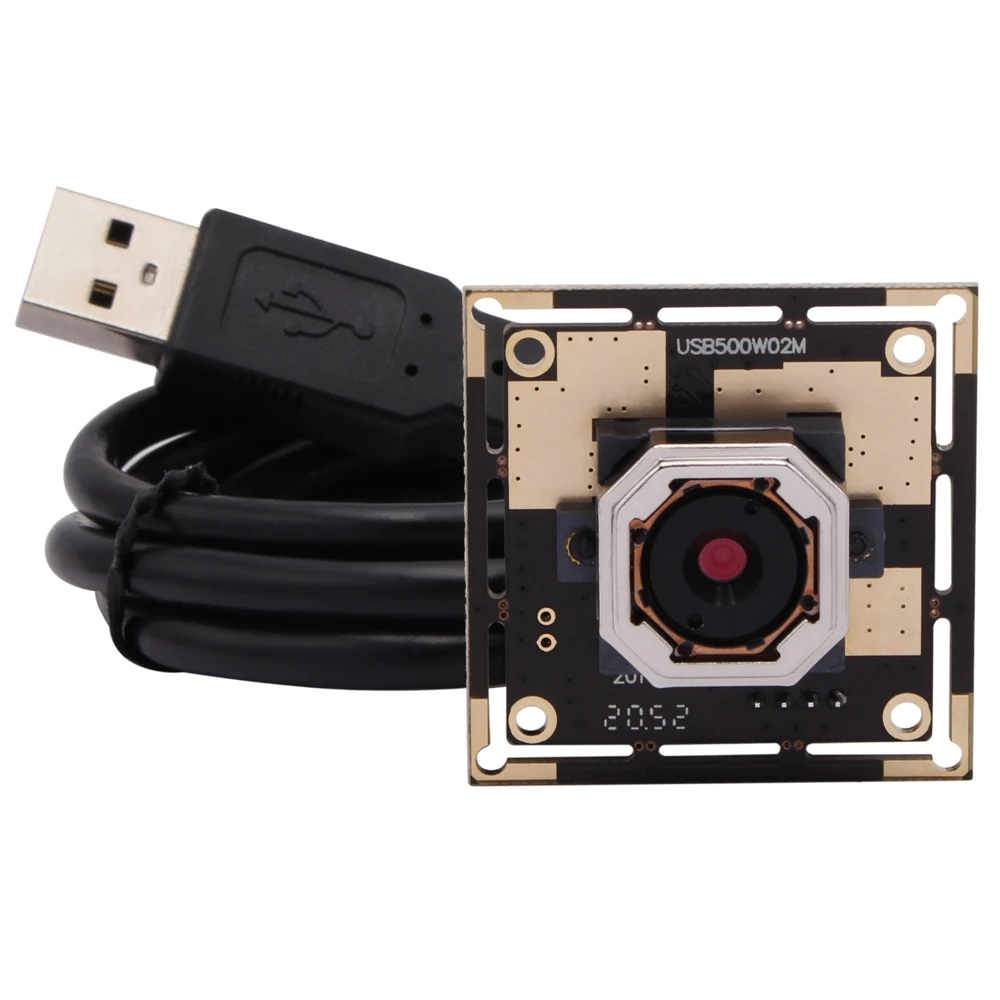

| Max. Resolution | 2592 (H) *1944 (V) | USB Cable | 1M(2M/3M/5M Optional) |
| Resolution | 600LW/PH (Center) | Module Size | 38*38/32*32mm |
| S/N Ratio | 36dB | Weight | about 30g |
| Dynamic Range | 68dB | AGC/AEC/AWB/ABF | Auto |
| Sensitivity | 600mV/ Lux-sec | Certifications | FCC and CE |
| Shutter | Rolling shutter/ frame exposure | Camera Board Assembly technique | SMT (ROSH) |
| interface | USB 2.0 High Speed | Adjustable parameter | Brightness Contrast Hue Saturation Sharpness Gamma White |
| protocol | USB Video Class(UVC) | ||
LED board power connector | Support 2P-2.0mm socket | Package | CSP, Bare Die |

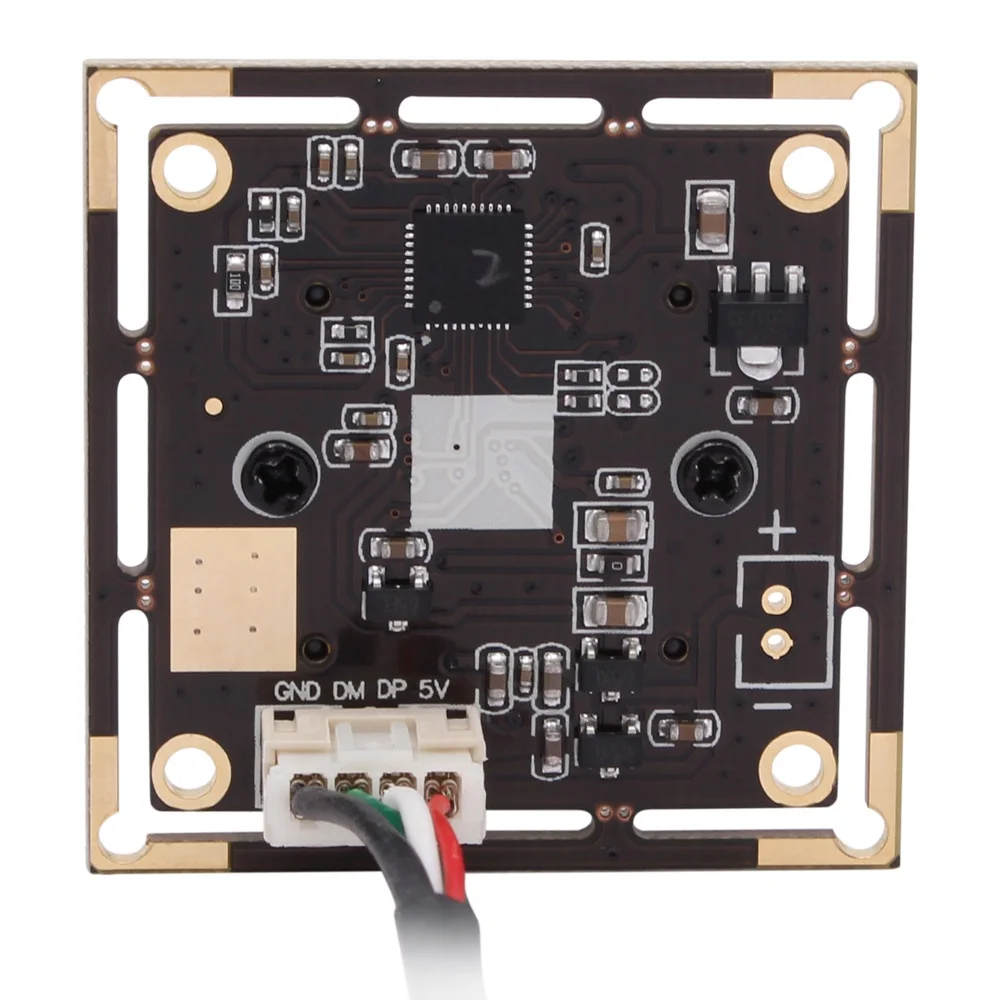

| Power supply | USB BUS POWER 4P-2.0mm socket | Package | LQFN-40pin |
| Operating Voltage | DC5V | OperationTemperature | -20°C to 70°C |
| Power consumption | 150mW (VGA); 200mW (QSXGA); | Stable Temperature | 0°C to 60°C |
Operating system request | Win XP/Vista/Win7/Win8 / Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later/ Android 4.0 or above with UVC | ||

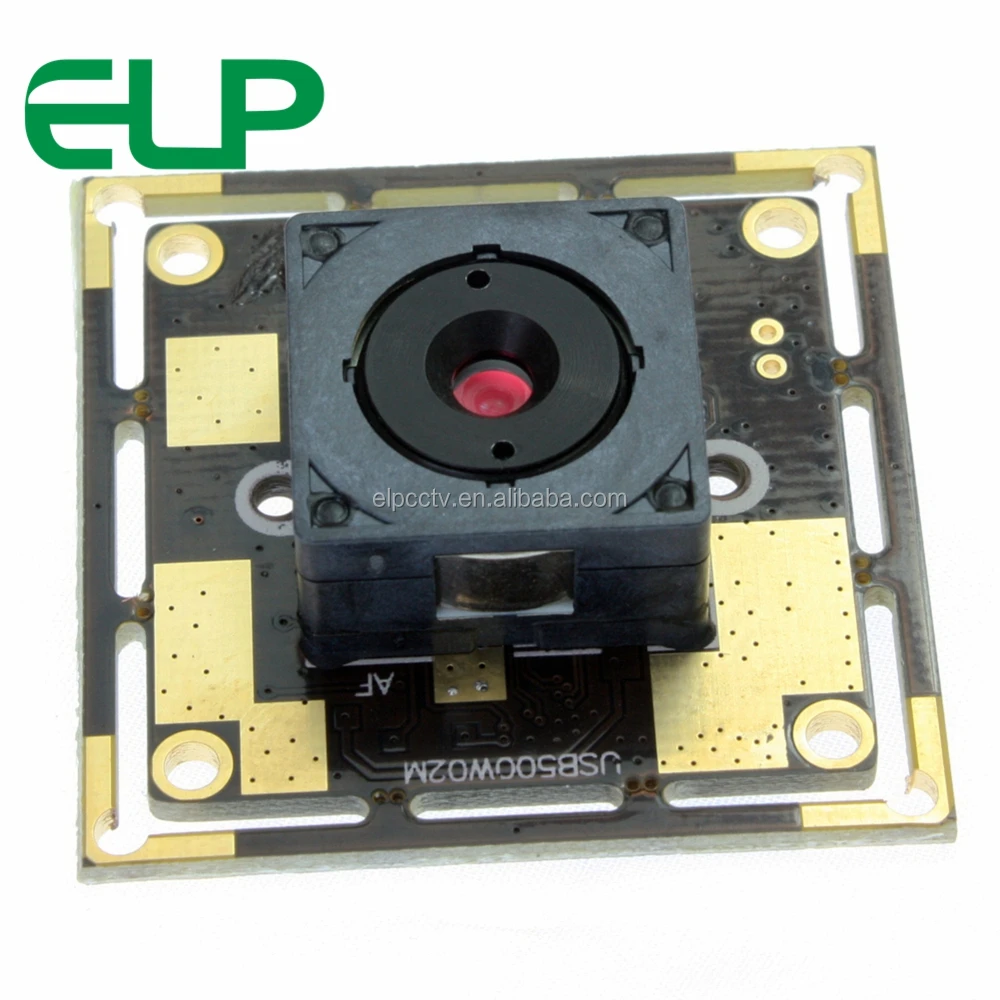

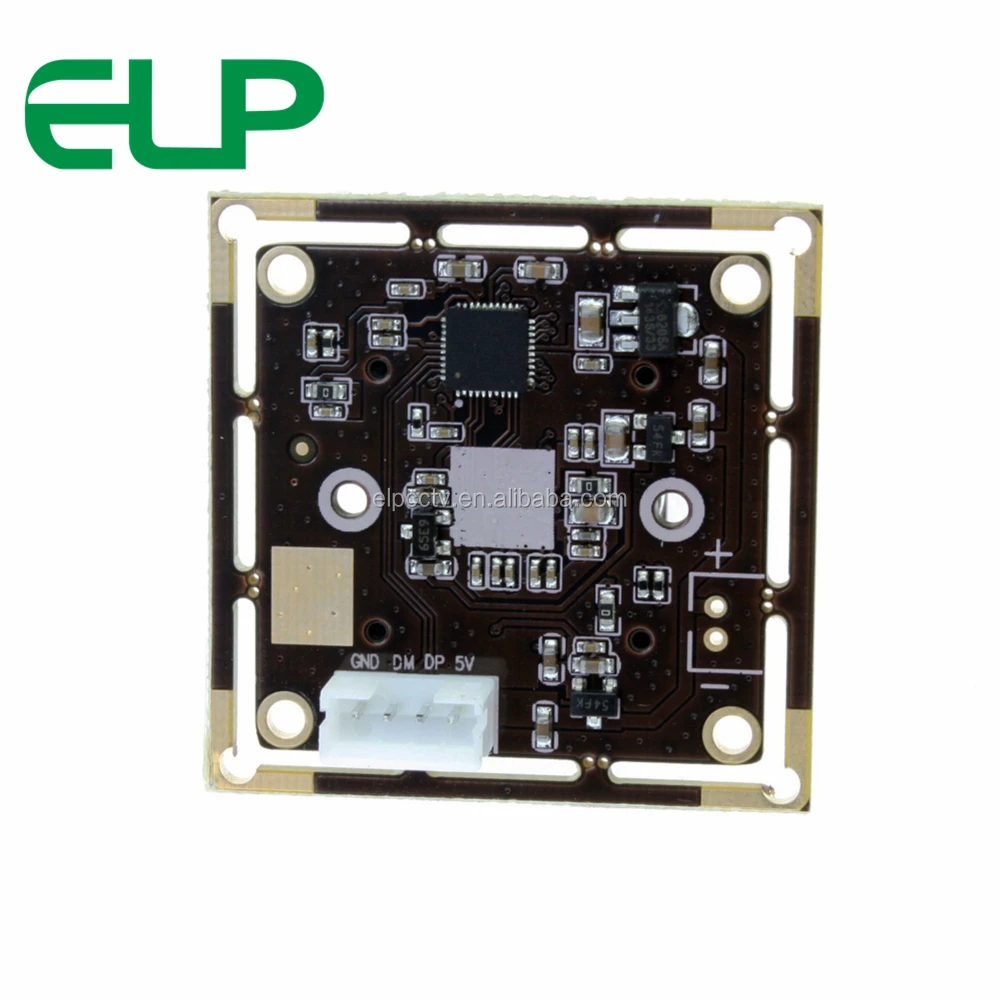

Products Display
Effect Display-at dusk
Applications
Related Products
USB3.0 Camera Module 2MP 120fps/260fps USB Camera
2MP H.264 Sony Low Light USB Camera 1.3MP Low Illumination USB Camera
2MP 1080P H.264 Audio USB Camera 1MP 720P Audio USB Camera
Auto Focus USB Camera 5MP Mini USB Camera Dual Lens USB Camera
3MP WDR USB Camera 8MP USB Camera VGA USB Camera
Face Detection USB Camera USB Camera With Enclosure IP Camera
Company Information
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
