ELP 2MP FHD USB Webcam Mini Camera Module 30fps 1080P USB with Camera 3.7mm Tiny Lens Webcam with USB2.0 Webcam
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (60770229776):
Product Overview
Description
Company Information

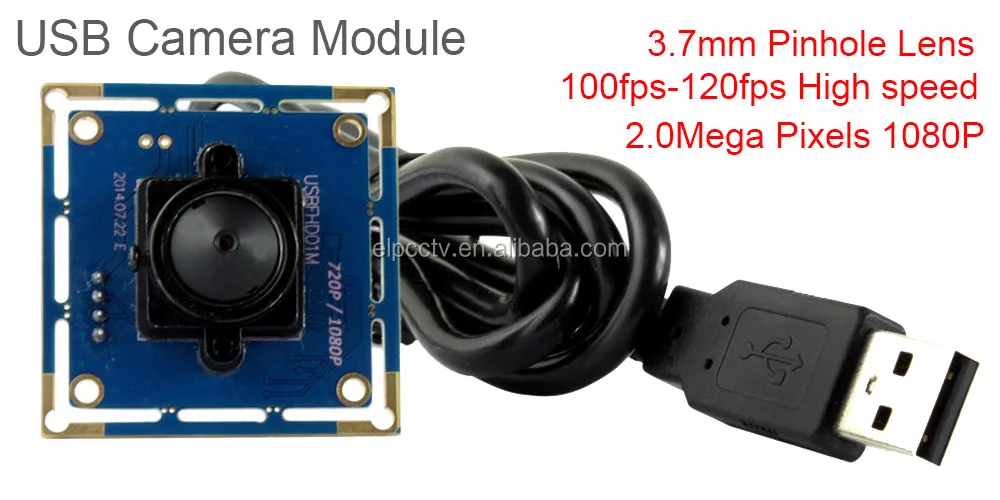

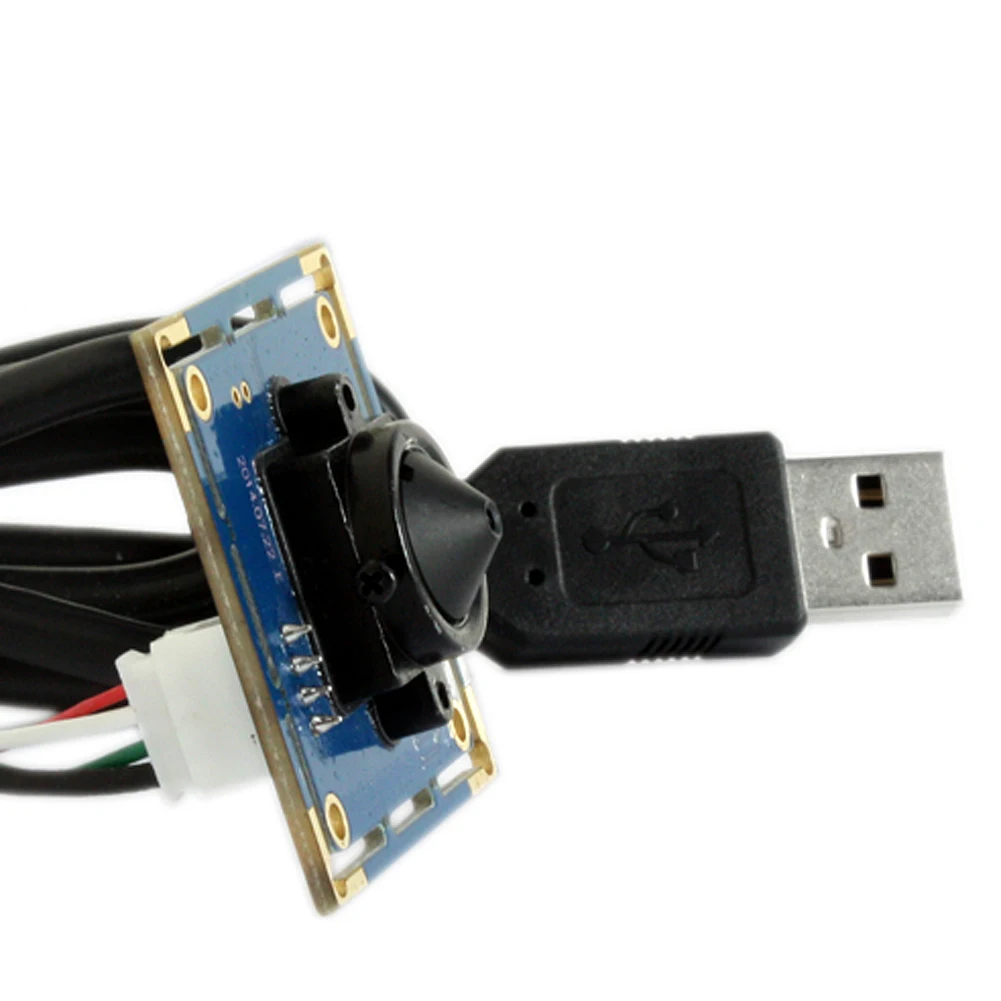

ELP 2MP FHD USB Webcam Mini Camera Module 30fps 1080P USB with Camera 3.7mm Pinhole Hidden Disguise Webcam with USB2.0 Webcam
Model:ELP-USBFHD01M-L21 is 2.0megapixel 1920(H)X1080(V) High resolution USB cameras with Wide angle 2.1mm fixed focus lens for Linux Android Windows etc. OS system.VGA@120fps
Product Description
Mian Features
*High Speed 1080P HD USB Camera
*Equiped with 2.1mm wide angle lens

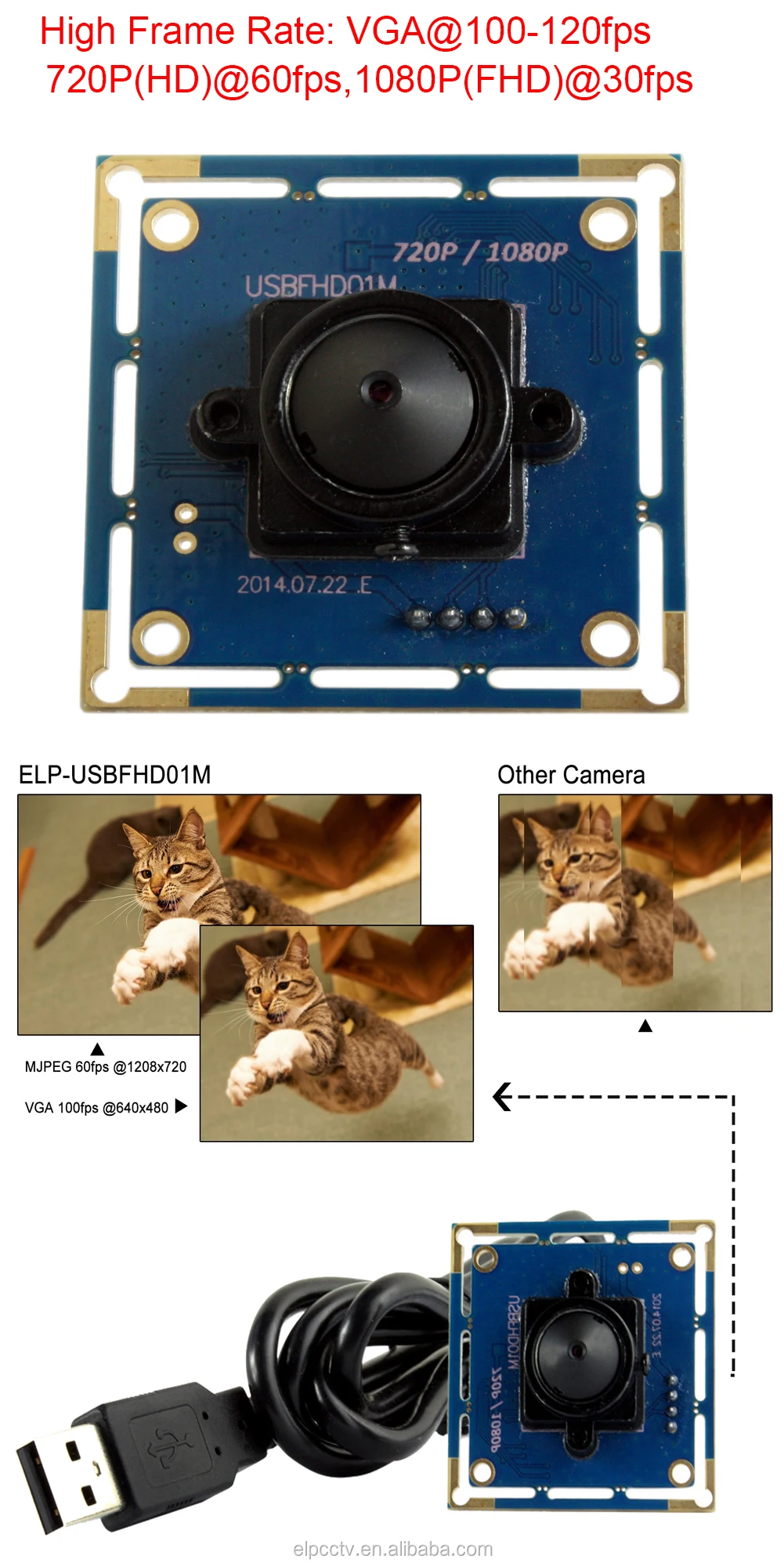

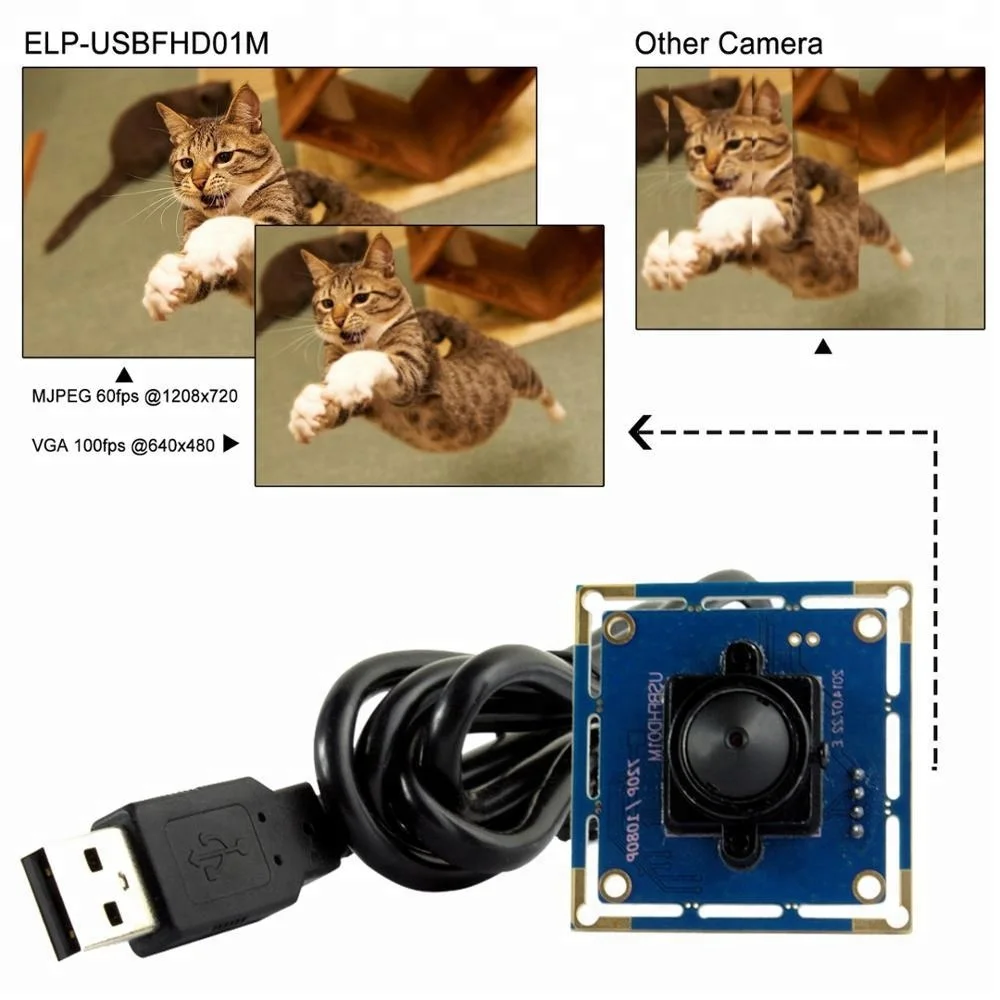

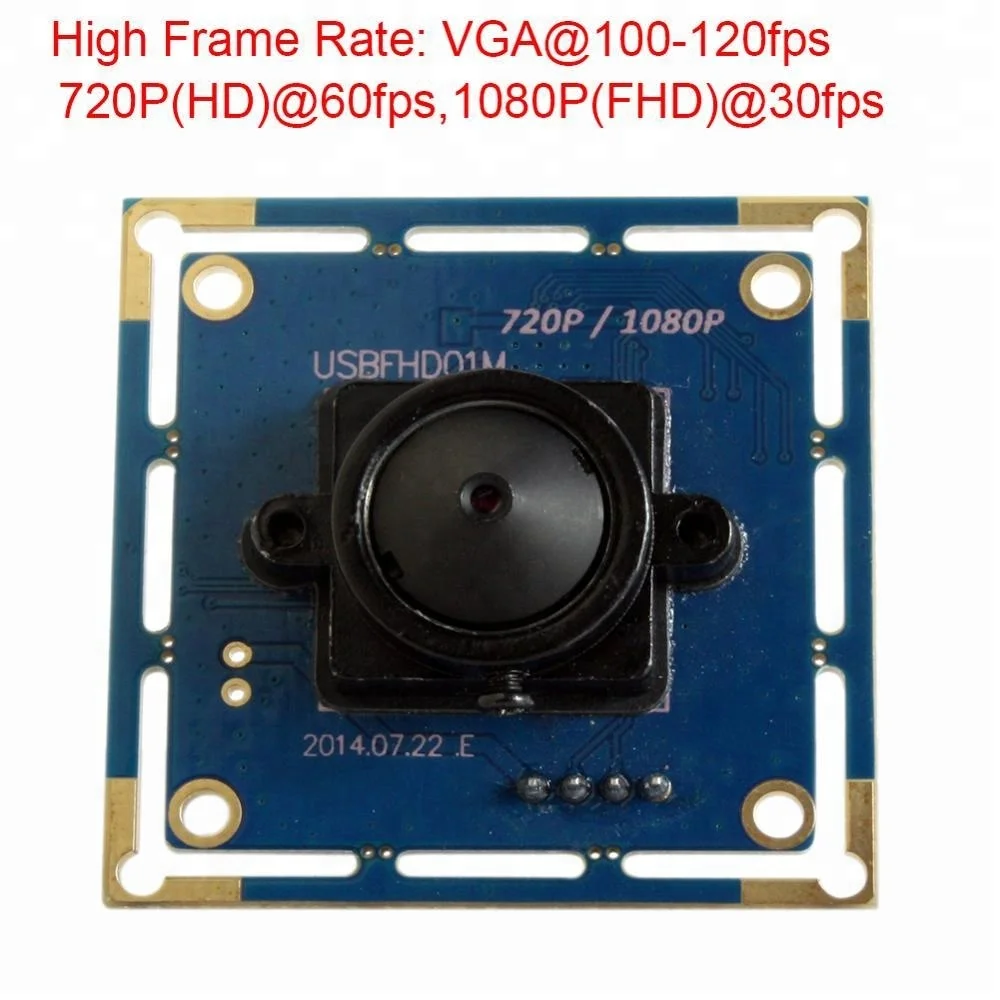

*Can drive 30fps@1080P and 60fps@720p, 120fps at 480P
*CMOS OV2710 sensor for high quality image and low power consumption.

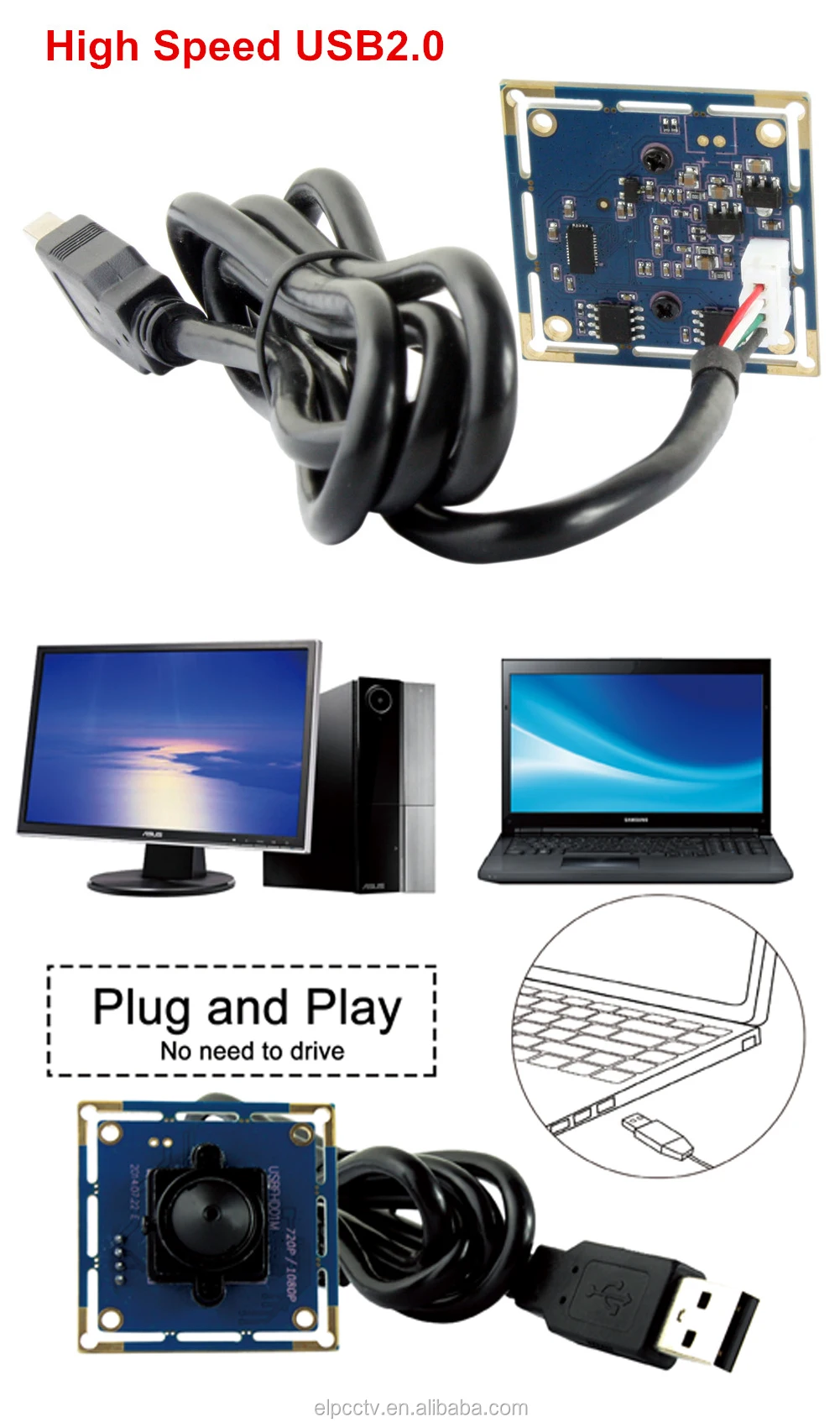

*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.

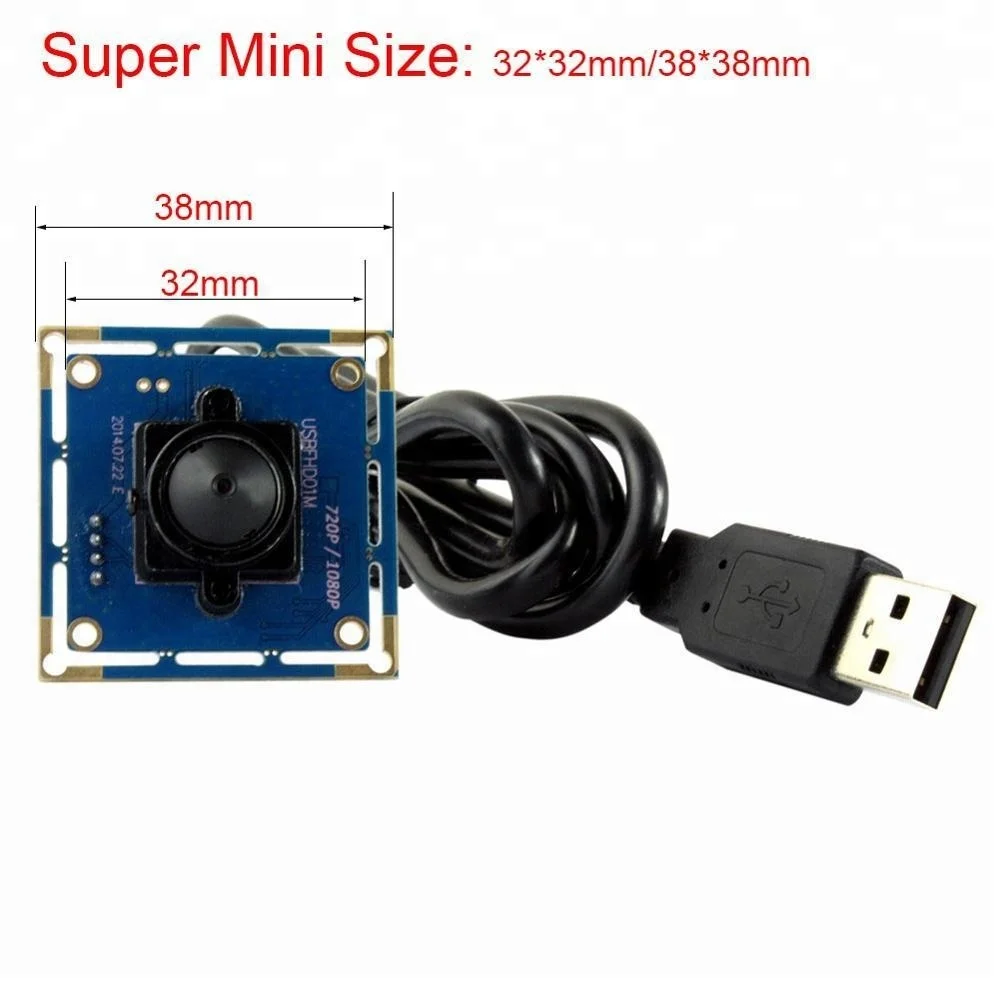

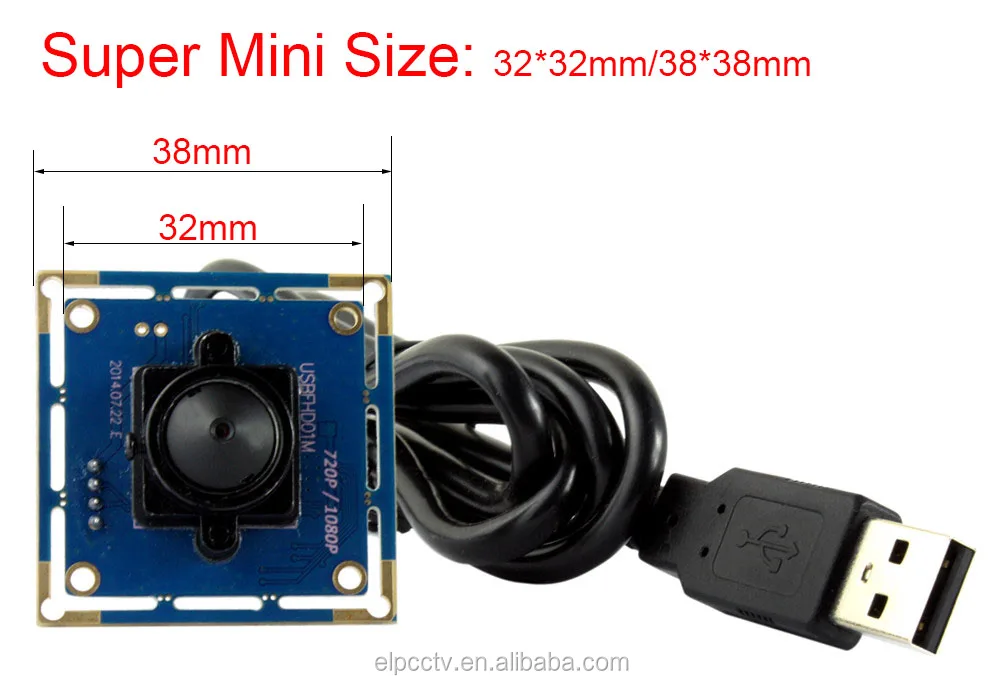

*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*High quality lens, true and undistorted color image.
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specifications
| Model : ELP-USBFHD01M-L37 | |||
Resolution & frame rate | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps | ||
| Sensor | CMOS OV2710 | Picture format | MJPEG or YUY2(YUYV) |
| Sensor Size | 1/2.7 inch | Mini illumination | 0.05lux |

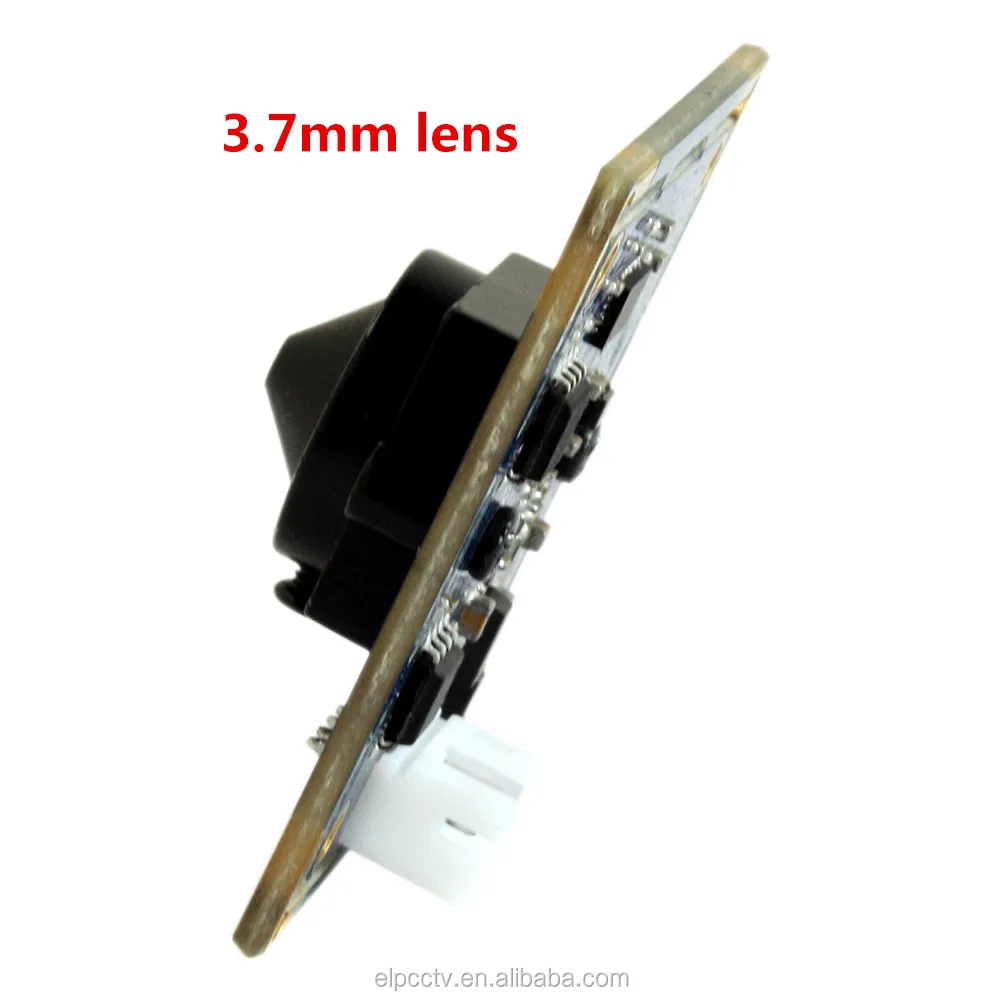

| Pixel Size | 3μm x 3μm | Lens Parameter | Standard 3.7mm mini pinhole camera, FOV(D) 170/180Degree |
| Image Area | 5856μm x 5856μm | Cable | Standard 1M/ Optional 2m,3m,5m |

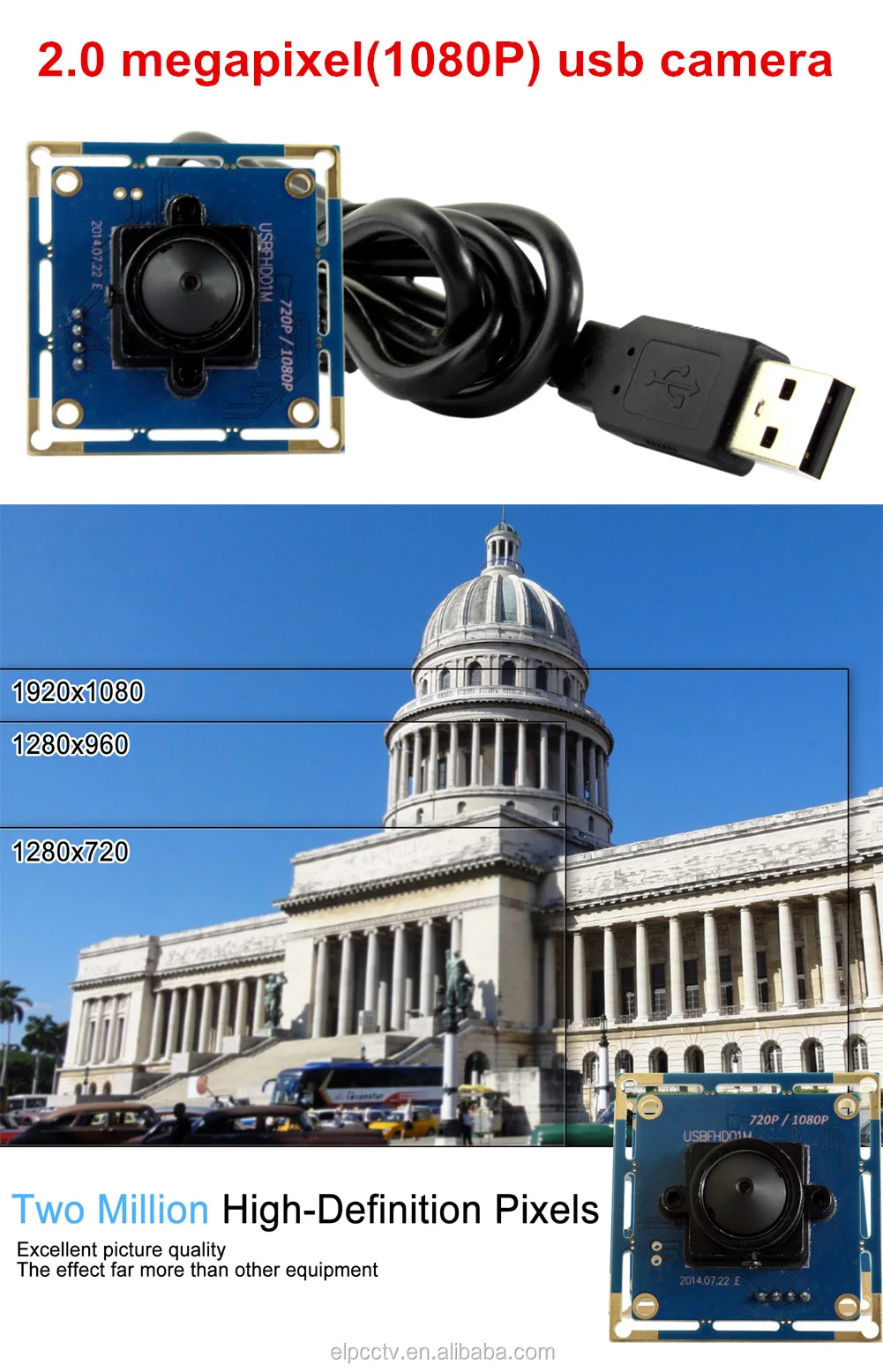

| Max. Resolution | FULL HD 1920(H)x1080(V)pixels | Board Size/ Weight | 38*38mm/32mm*32mm optional / about 30g |
| Interface | USB2.0 High speed | Shutter Type | Rolling shutter/ Frame exposure |
| Support free driver | USB Video Class(UVC) | Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure |
| USB Protocol | USB2.0 HS/FS | Special Function | Lens correction/ Defective pixel correction/ Black sun cancellation |
| OTG protocol | USB2.0 OTG | AEC, AEB,AGC | Supoort |
| Power Supply | DC 5V | Working temperatur | 0~60 degree |
| Working Current | 120mA~220mA | Storage temperatur | -20~75 degree |
| Night vision | Support,need to equipped IR 850nm or 940nm lens and | LED board power connector | Support 2P-2.0mm socket |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
Product Display
Effect Show
Applications
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.

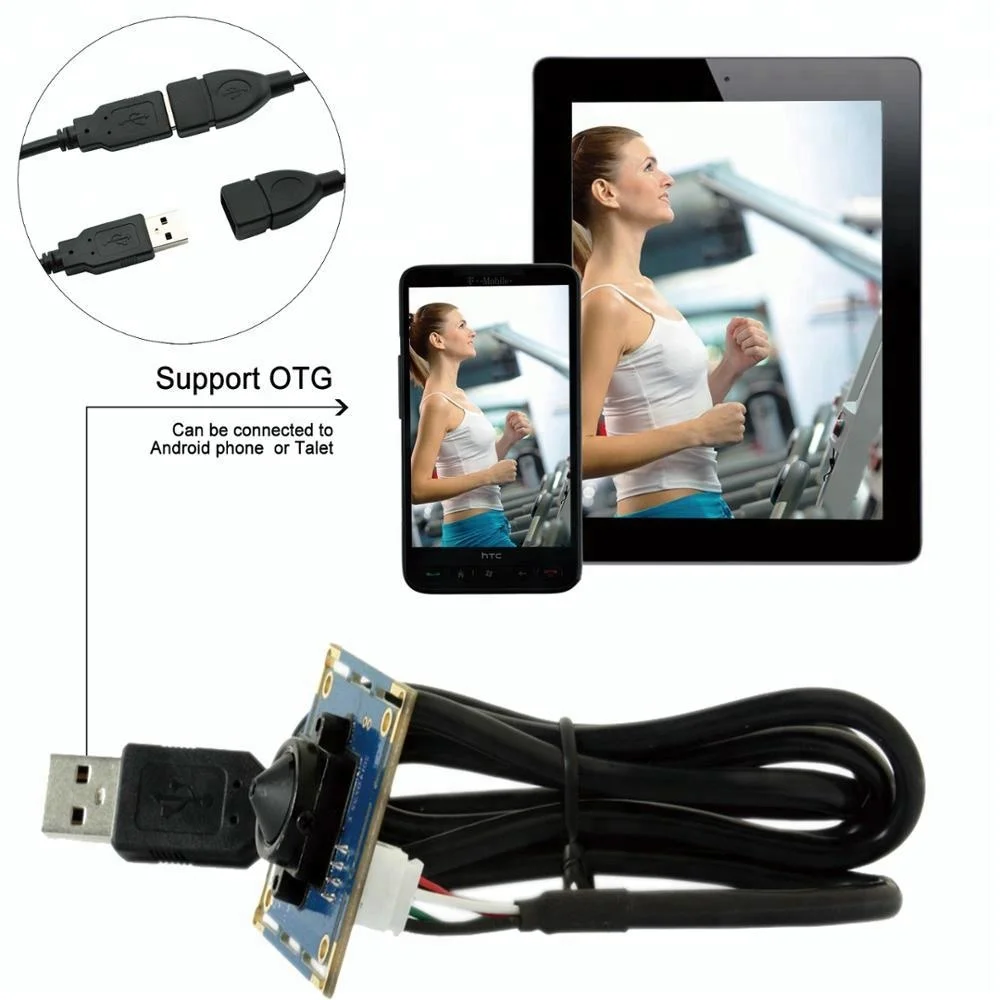

*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
