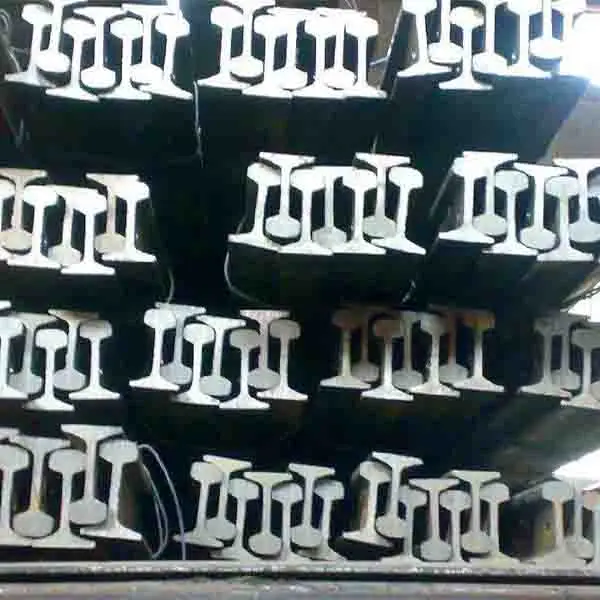

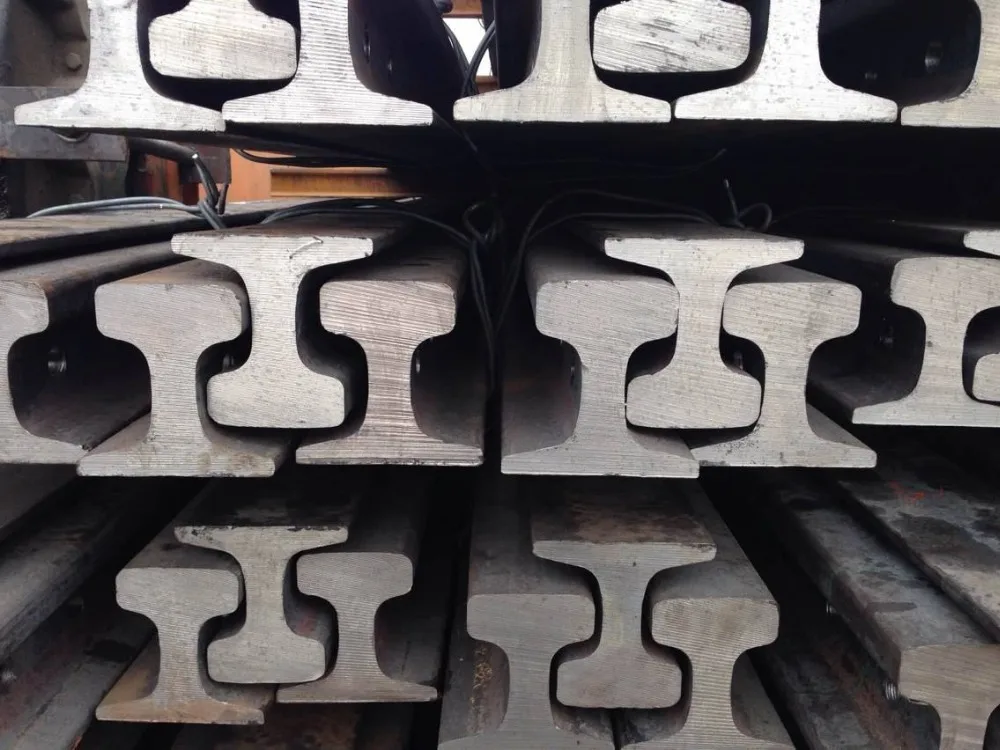

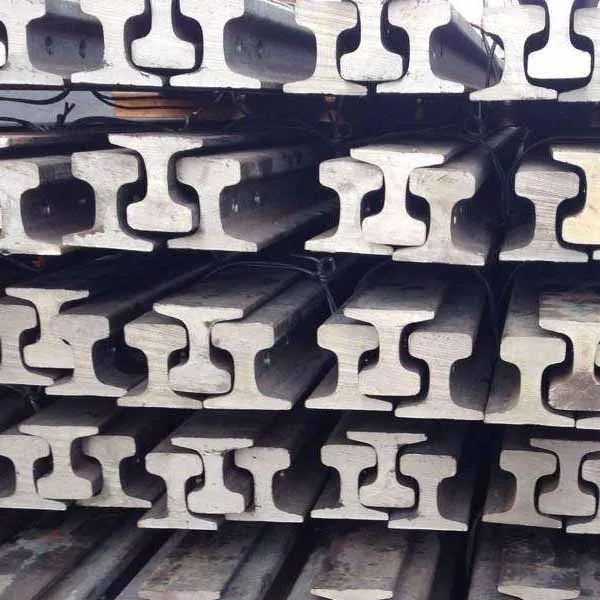

Stainless Steel DIN Rail/Crane Steel Rail

Product Overview

Description

Stainless Steel DIN Rail/Crane Steel Rail

Our company, a steel crane rail maker, is able to conduct a range of laboratory tests for higher quality, such as chemical composition testing and tensile strength test.
The common specs of crane rails include QU70, QU80, QU100 and QU120 (the number refers to the width of rail head).
Crane rails are designed for carrying heavy loads and are used in many applications, especially in the laying of crane track for port building.

Material: U71Mn
Length: 12 meters

Specifications of GB Standard Crane Rails:

Crane Rails YB/T5055-93
SIZE	DIMESION (mm)				WEIGHT (kg/m)
	A	B	C	t
QU 70	70	120	76.5	28	52.8
QU 80	80	130	87	32	63.69
QU 100	100	150	108	38	88.96
QU 120	120	170	129	44	118.1
