Product Overview

Description


Industrial Door Operator

Main Features



1) Oil immersed gear, durable aluminum alloy casing rolling shutter motor

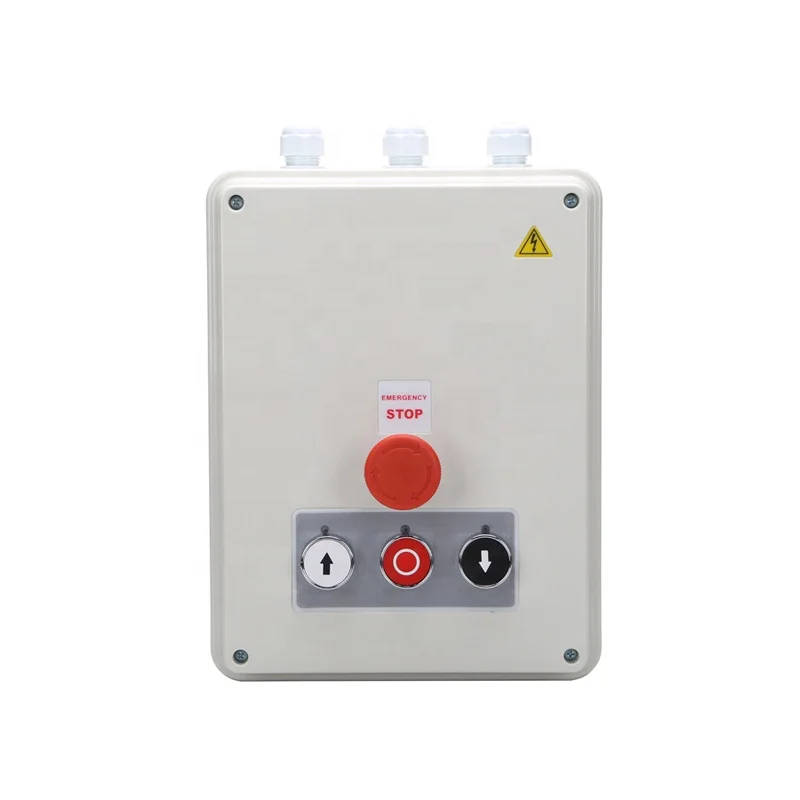

2) Users can choose built-in control board or external control unit, integrated receiver

3) Supporting keypad/ single button interface

4) Self-locking structure, mechanical limit switch



5) Standard output shaft diameter 25.4mm, using metal adapter can transfer to dia. 40mm

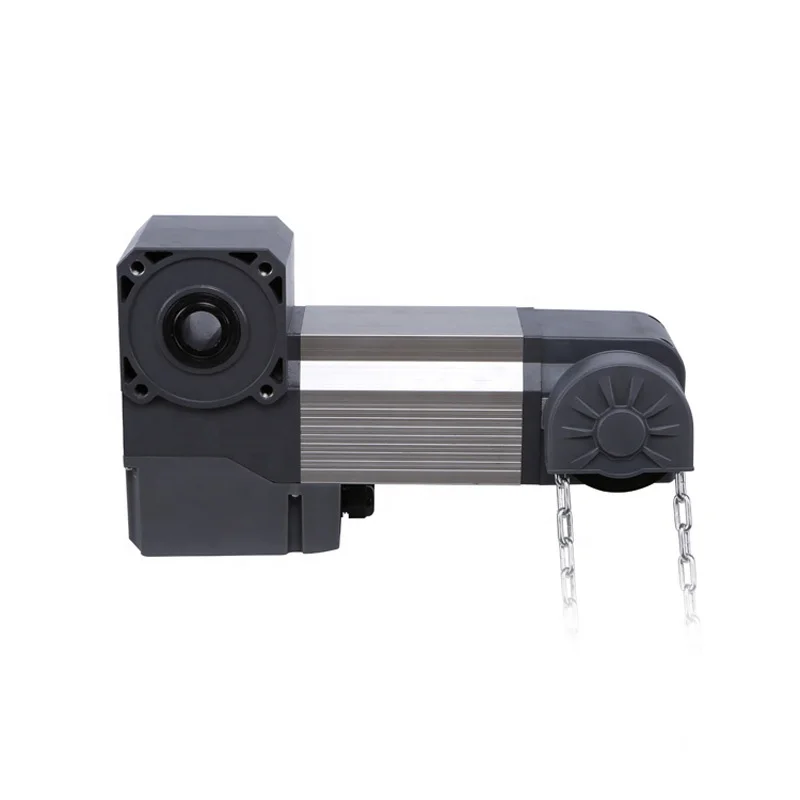

6)  Hand chain manual release system for emergency purpose

Specifications



Type
GYS100
Output Torque
100N.m
Max. Door Surface
35 Sq.m
Motor Power
550W
Limit Switch
Mechanical limit switch
Output Shaft Height
25.4mm
Reduction Ratio
58:1
Remote Control Range
≥30m
Recording of Max Remotes
25 pcs
Work Duty
S2 15min
Working Temperature
-20℃~70℃
Power Supply
AC380V~AC400V
Frequency
433.92MHz
Package Weight
14KG
Motor Size
232*151*368mm


Tips:



This model is AC 380V motor, if you want AC 220V motor, pls click it here;



for more types of industrial sectional door operators, pls click here and check more!

Detailed Images

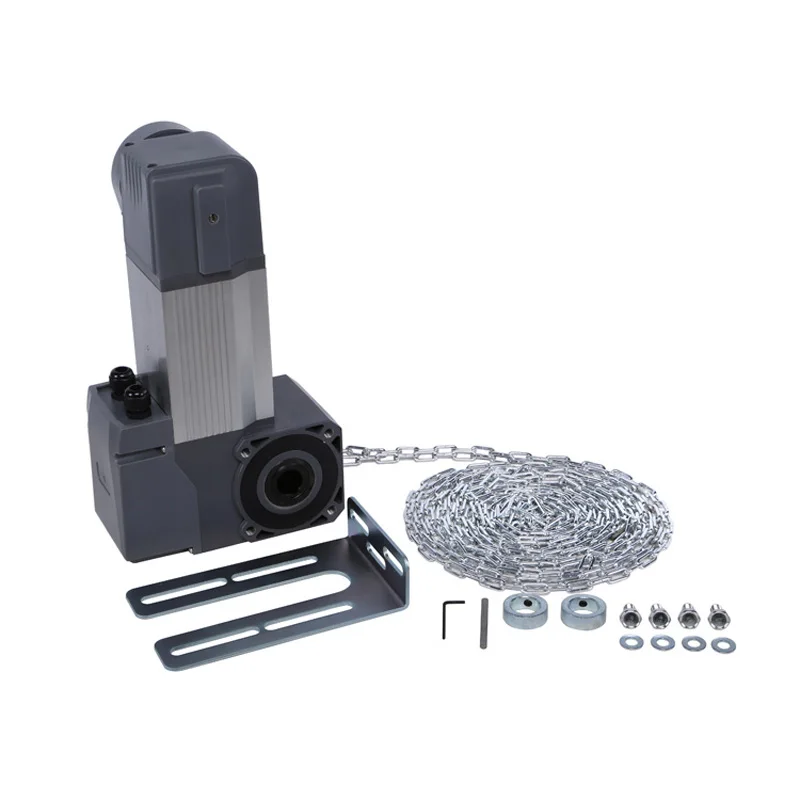

 GY-5GY-4

ins-rolling

Best sellers
Company Information
Packaging & Shipping

3-

Our Services

Pre-sales Service

After-Sales Service

7*24 online service

One year warranty

View our factory

Training how to install and use the machine

OEM orders are welcomed

Engineers available to service machinery overseas

FAQ

Q1: What is Minimal order quantity?

A1: No MOQ. One PC of Sample is available. Would advice deliver by Express such as DHL, FEDEX, TNT, etc.



Q2: How about your quality control?

A2: Each motor with quality control (testing) before packing. IQC, IPQC,PQC, FQC, all are tested.



Q3: Any certificate you have?

A3: CE, IS9001.
