Electric Contact Water Level Gauge for Boiler Drum
- Category: >>>
- Supplier: Shandong Longsheng Biotechnology Co. Ltd.
Share on (60770299166):
Product Overview
Description
Product Parameter
Product Name | Electric Contact Water Level Gauge for Boiler Drum |
Applied Area | Boiler Steam Drum, Water Tank |
Body Material | Depends on temperature |
Standard | China GB, ASME |
Manufacturer Grade | China A Grade, ABS Certificated, TUV Certificated |
Working Temperature | Saturation |
Nominal Pressure | 1.6 ~ 32 MPa |
Working Pressure | 1.0 ~ 21.5 MPa |
Connection | - Welding (Recommended) - Flange |
Connect Pipe | Φ38 x 5 |
c-c Distance | 440, 600, 670, 800 |
Probe Nos. | 15, 17, 19 |
Accuracy | 20 mm (avg.) |
Power Input | 220VAC, 50Hz |
Power Consumption | 20 Watt |
Signal Output | 4~20mA, Switch, Alarm |
Liquid Conductivity | 0 ~ 100 kΩ |

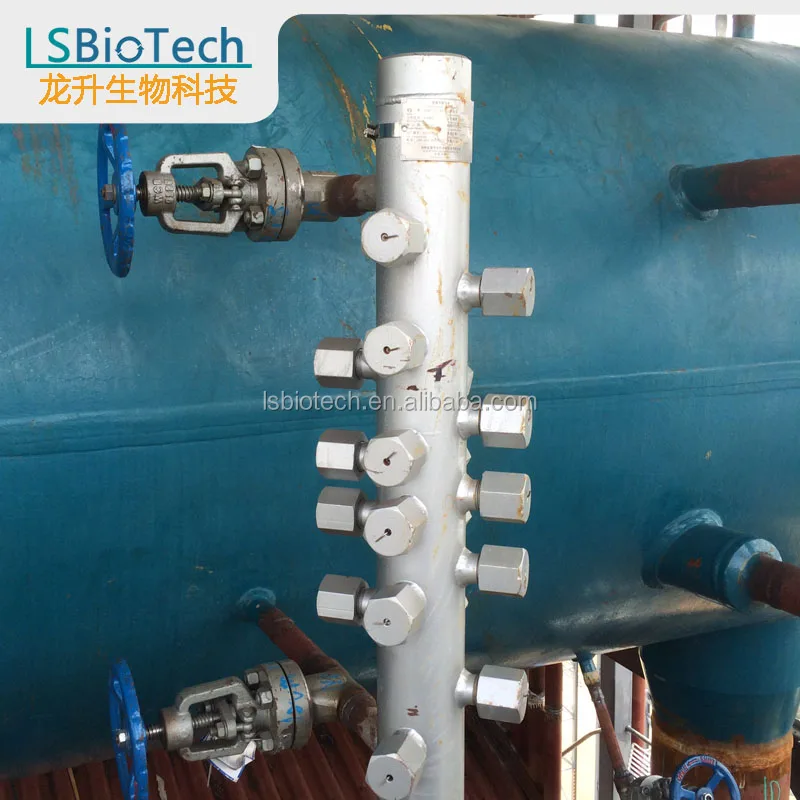

Product Show
Factory Show & QA
Packing & Delivery
Packing
Different packing methods are chosen depend on transportation type.
1. Plywood Protection
for special material protection
2. Plywood Box Packing
for small and high value product
3. Steel Frame Packing
for general product
4. Steel Frame Packing
for general product
5. Steel Frame Packing
for general product
6. Steel Frame Packing
for general product
FAQ
Q: How long is your delivery time?
A: General small equipment/parts will be ready for shipment in 20-25 days if the materials were in stock, in 35-40 days if the materials were not in stock.
Large equipment delivery time should be determined after technical discussion. Please contact our sales.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample tube or sample materials for free charge, but the cost of freight should be paid by Customer.
Q: What is terms of payment ?
A: General small equipment/parts, the 100% of contract price should be paid after signing.
You could sign with us via Alibaba Trade Assurance Order online service, or via traditional offline type.
Large equipment payment schedule, please contact our sales.
Q: How long is the warranty period?
A: General small equipment we guarantee 12 months from the date of shipment departure.
