CE ISO New Mechanical aluminum machine 45 ton power press

Product Overview

Description

aluminum foil container machine 45 ton power press



Product Description



J23 series open press is a sheet metal Universal presses for shearing, punching,

blanking, bending and shallow drawing work. Usually used for ( communications,

computers, household appliances, furniture, vehicles, (cars, motorcycles, bicycles)

metal parts stamping and forming).



Technical parameter

NO	Name	J23-80T
1	Nominal force(KN)	800
2	Nominal force stroke(mm)	5
3	Slider stroke(mm)	115
4	Slider stroke times(time\\min)	45
5	Maximum height for die loading	410
6	Adjustment range for die loading height	60
7	Distance between slider center line and the fuselage	280
8	Worktable size	500*750
9	Work table blanking hole size	D200*250*375
10	Slider bottom size	250*300
11	Shank hole size	D60*Depth100
12	Distance between columns(mm)	360
13	Bolster thickness(mm)	90
14	Tilting degree(degree)	20
15	Motor(kw)	7.5





Main feature

1, With foundry structure for better vibration resistance.

2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.

3, The good rigidity of Casting box structure slider

4, Built-in block collapsed overload protection device, the structure is simple, if slider after

overload, fuse collapsed destroyed to protect the machine and mold from damage

5, Four elongated triangular rail, easy for adjustment.

6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous,

single and adjustment practices.

7, Compatible with the corresponding punch automatic feeding system, which having a feeding



error detection, pre-cut and pre-breaking device, low cost and high efficiency.

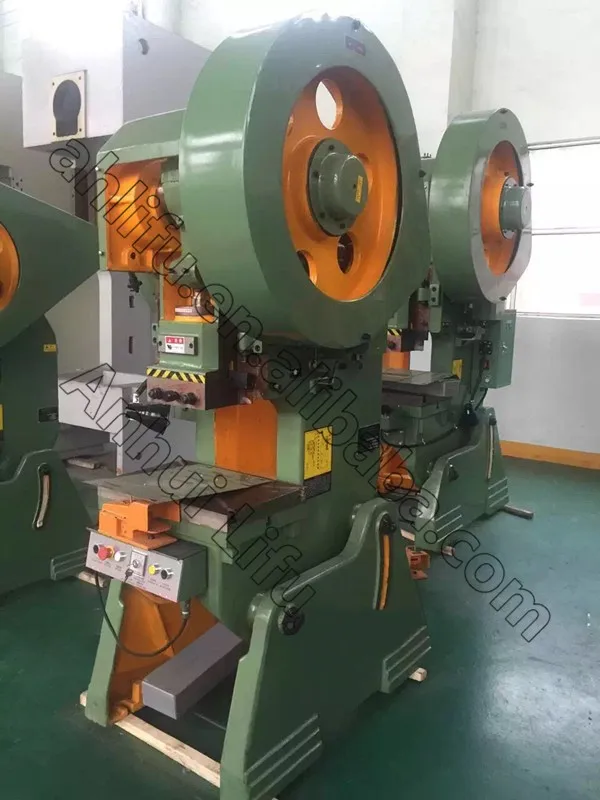

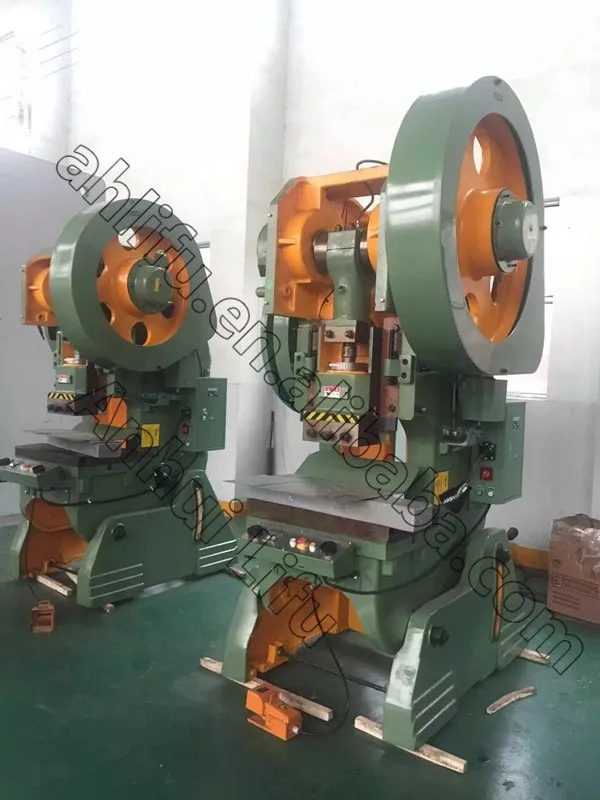

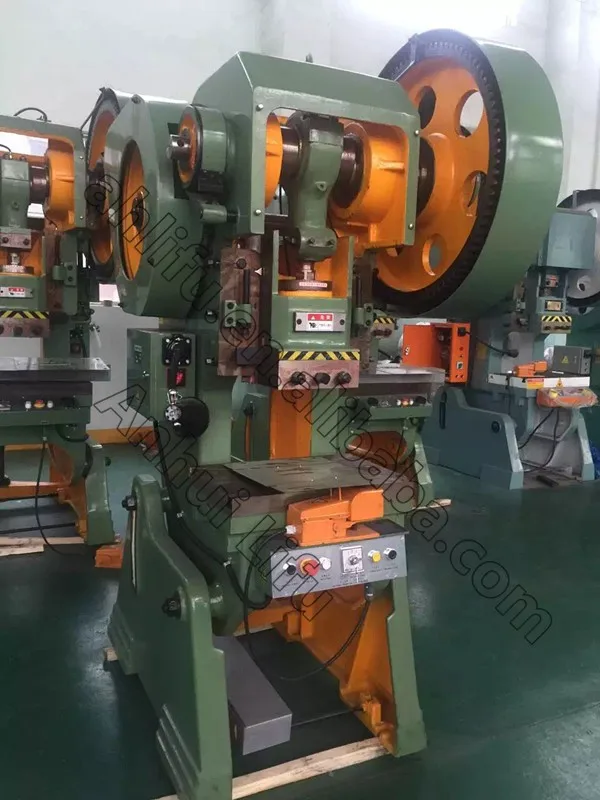

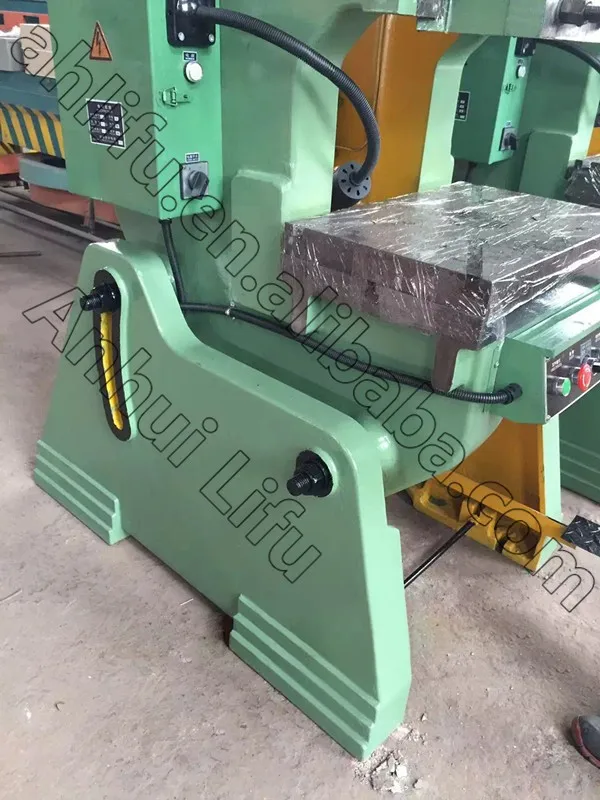

Detailed image

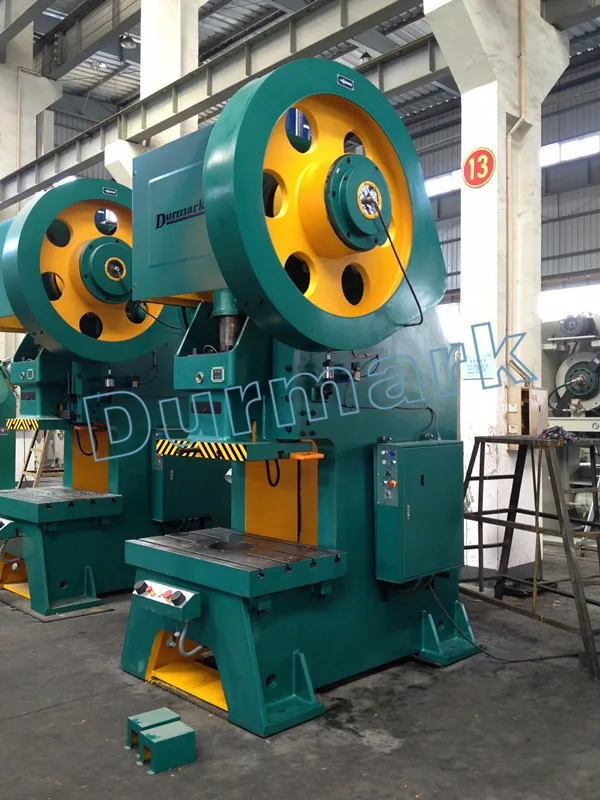

J21 Type







Our service



Pre-sales Service

1. Inquiry and consulting support

2. Sample testing support

3. Recommend the most suitable machine according to customer's purpose



4. Factory visiting welcomed



After-sales Service

1. Training how to install the machine

2. Training how to use the machine

3. Warranty 1 year



4. Engineers available to service machinery oversea
