body composition analyzer

Product Overview

Description







Expert of Health Care, High Accuracy



With 5 testing frequencies, BCA-2A is with great accuracy, high correlation with MRI & DEXA. It's a reliable machine to be used in medical or health care applications. With unique muscle analysis function and powerful PC software, BCA-2A is the best choice for hospitals, fitness gyms, research institutions and any other high-end users.





 Why BCA?-----Our Advantage

  • Serious fundamental research

  • MRI calibrated algorithm

  • DEXA Measure Bone Density

  • Multi-frequency

  • Segmental analysis

  • 8 point tactile electrode

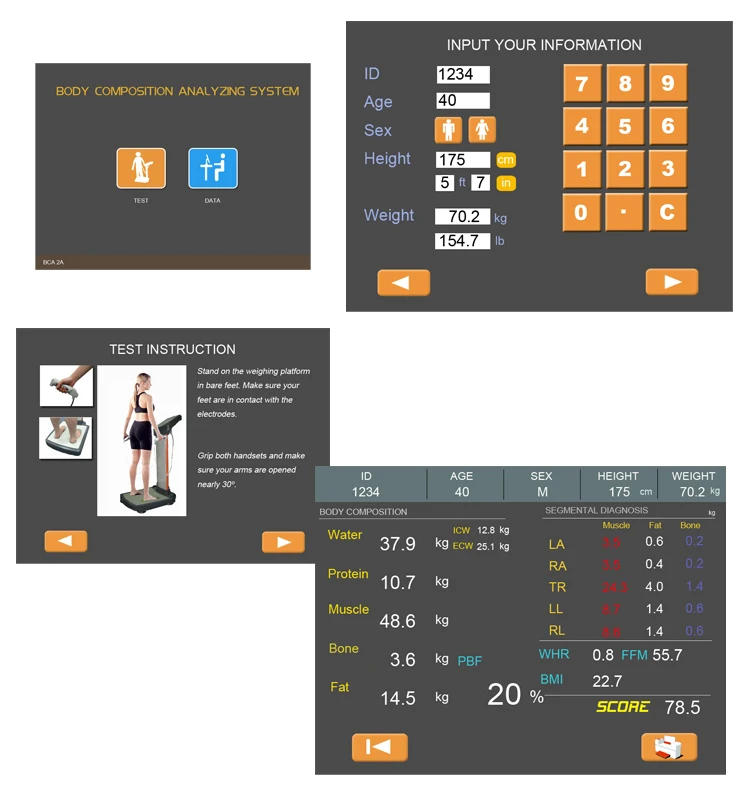

  • PC Software support

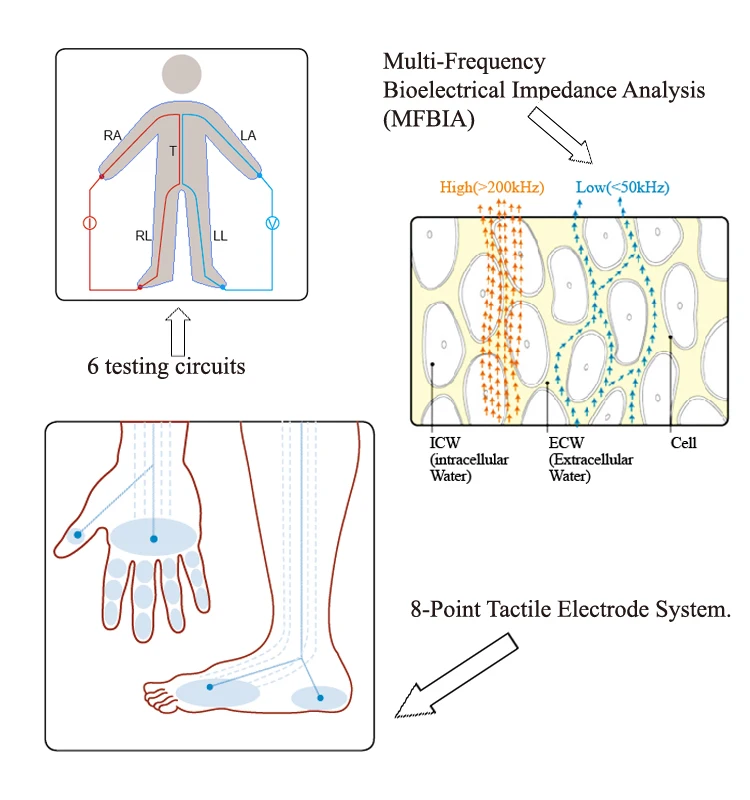

BIA Technology

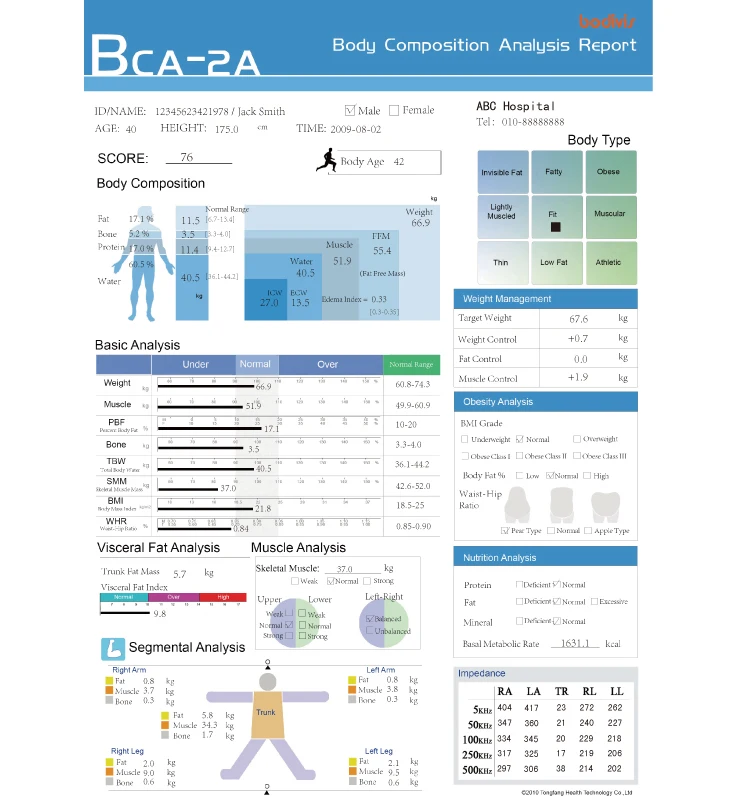

Output



Basi Items

Body Weight(auto detected)

Intracellular Water, Extracelluar Water, Total Body Water(TBW)

Protein, Bone Mass, Fat Mass, Percent Body Fat(PBF)

Muscle Mass, Skeletal Muscle, Fat Free Mass(FFM)

Visceral Fat Index, Percent Body Protein/Bone/Water

Body Mass Index(BMI), Waist to Hip Ratin(WHR)

Basal Metabolic Rate(BMR), Edema Index(EXF/TF)



Fitness Score, Body Shape Graph, Body Age



Segmental Analysis

Segmental Fat, Segmental Muscle, Segmental Bone

Muscle Analysis

Skeletal Muscle Level, Upper-Lower Balance, Left-Right Balance

Weight Management

Target Weight, Weight Control, Fat Control, Muscle Control

Obesity Analysis

BMI Grade, PBF Grade, WHR Type

Nutrition Analysis

Protein, Fat, Mineral Level



Impedance of Each Segmental & Frequencies





Specification



Measuring method	Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method(DSM-BIA)
Testing Frequency	5, 50, 100, 250, 500 KHz
Electrode Method	Tetrapolar 8-Point Tactile Electrode System
Resistance Scope	100~1000Ω
Current	500μA
Display	8.4'(800*600) color TFT touch LCD

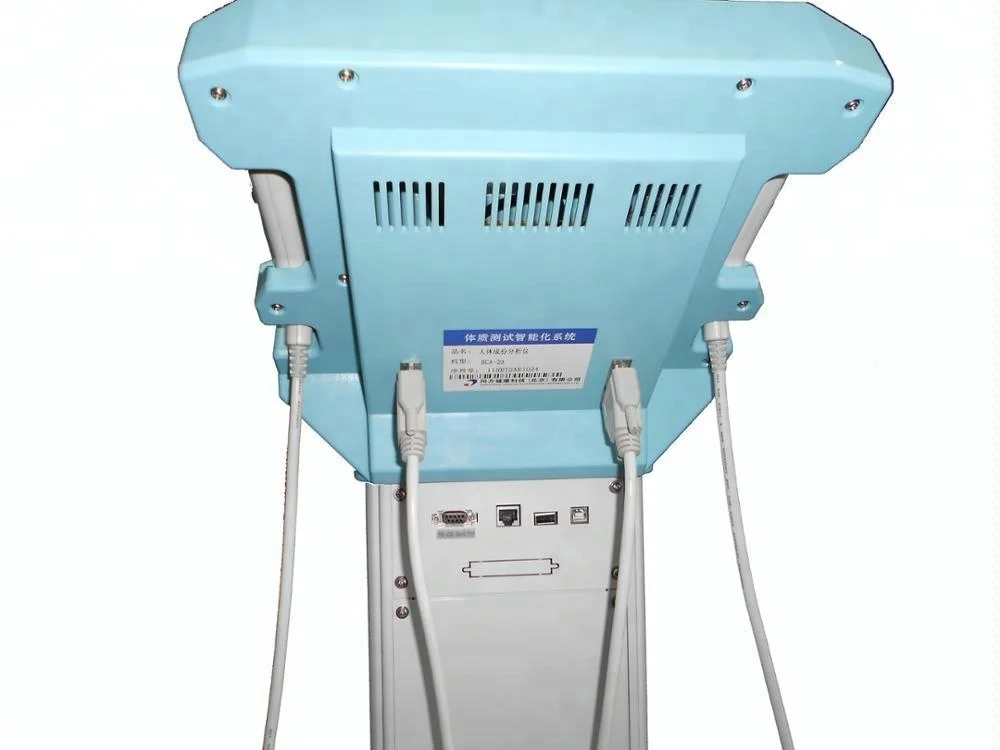

External Interface	RS 232C(9 pin), USB port, RJ45(10/100Base-T)Ethernet
Printer	Laser/Inkjet Printer (USB, designated type)
Machine Weight	25kg
Weight Range	10~250kg (22 ~ 551lbs.)
Age Range	7~99
Measurement Duration	<50 seconds

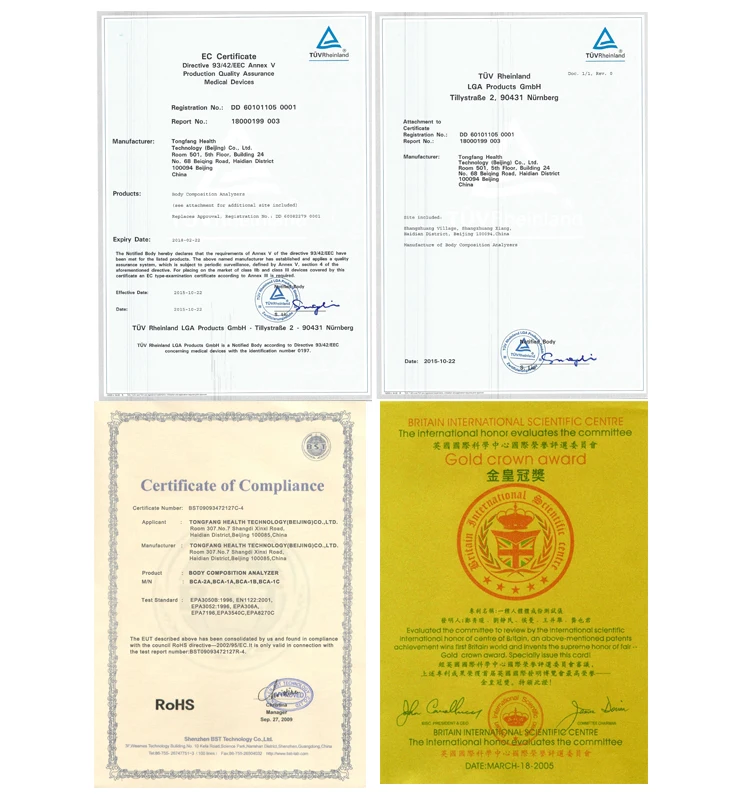

Certificates
